4--循環鏈表

編輯:C++入門知識

4--循環鏈表


1、基本概念

循環鏈表的定義:將單鏈表中最後一個數據元素的next指針指向第一個元素

\

循環鏈表擁有單鏈表的所有操作:



創建鏈表

銷毀鏈表

獲取鏈表長度

清空鏈表

獲取第pos個元素操作

插入元素到位置pos

刪除位置pos處的元素

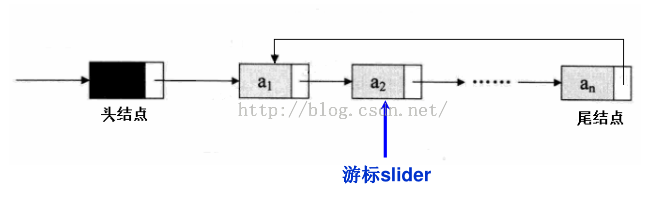

游標的定義

在循環鏈表中可以定義一個“當前”指針,這個指針通常稱為游標,可以通過這個游標來遍歷鏈表中的所有元素。

\

循環鏈表新操作:

獲取當前游標指向的數據元素

將游標重置指向鏈表中的第一個數據元素

將游標移動指向到鏈表中的下一個數據元素

直接指定刪除鏈表中的某個數據元素

2、設計與實現

插入元素的分析

  1. 普通位置插入元素添加第一個元素(第一次插入元素)最後一個位置插入元素第一個位置插入元素(如圖):

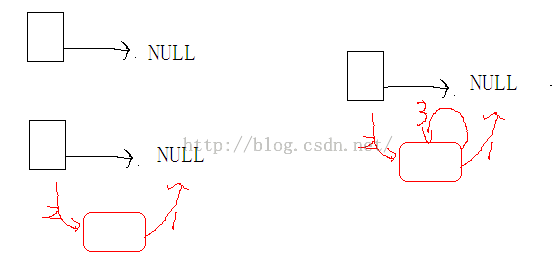

    添加第一個元素如圖:\

    \

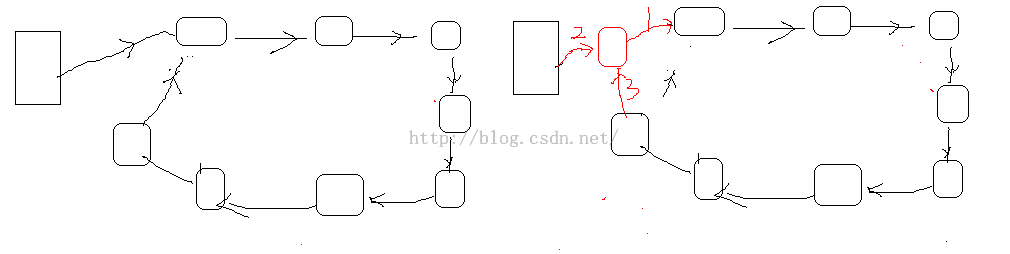

    在最後一個位置插入元素如圖:\

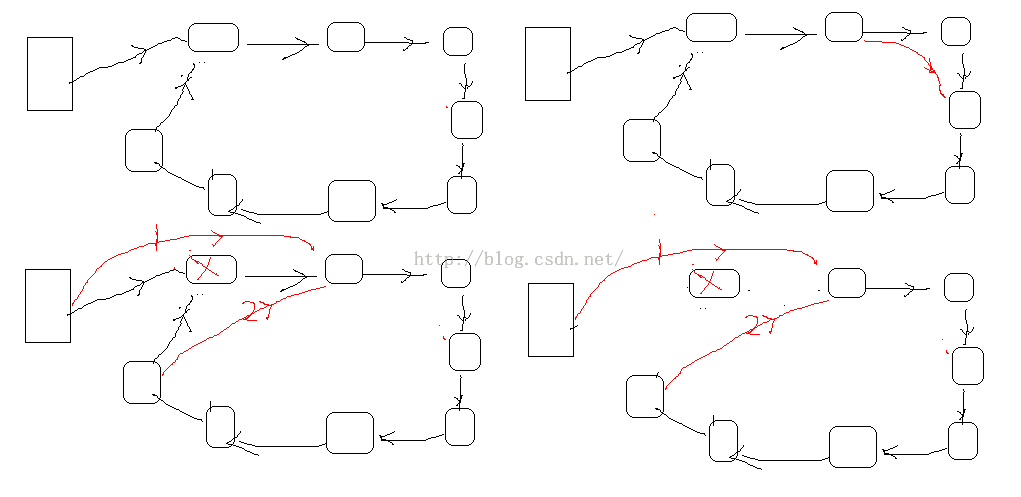

    刪除節點\



    3、優點和缺點



    優點:功能強了。循環鏈表只是在單鏈表的基礎上做了一個加強,循環鏈表可以完全取代單鏈表的使用,循環鏈表的Next和Current操作可以高效的遍歷鏈表中的所有元素

    缺點:代碼復雜度提高了

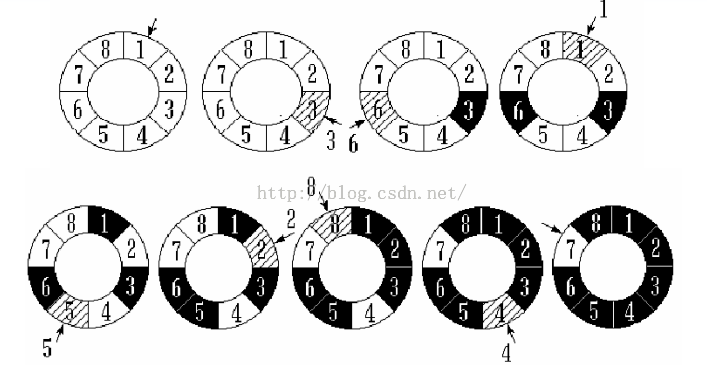

    約瑟夫問題-循環鏈表典型應用



    n個人圍成一個圓圈,首先第1個人從1開始一個人一個人順時針報數,報到第m個人,令其出列。然後再從下一個人開始從1順時針報數,報到第m個人,再令其出列,…,如此下去,求出列順序。

    \



    CircleList.h

    #ifndef _CIRCLELIST_H_

    #define _CIRCLELIST_H_

    typedef void CircleList;

    /*

    typedef struct _tag_CircleListNode CircleListNode;

    struct _tag_CircleListNode

    {

    CircleListNode* next;

    };

    */

    typedef struct _tag_CircleListNode

    {

     struct _tag_CircleListNode * next;

    }CircleListNode;

    CircleList* CircleList_Create();

    void CircleList_Destroy(CircleList* list);

    void CircleList_Clear(CircleList* list);

    int CircleList_Length(CircleList* list);

    int CircleList_Insert(CircleList* list, CircleListNode* node, int pos);

    CircleListNode* CircleList_Get(CircleList* list, int pos);

    CircleListNode* CircleList_Delete(CircleList* list, int pos);

    //add

    CircleListNode* CircleList_DeleteNode(CircleList* list, CircleListNode* node);

    CircleListNode* CircleList_Reset(CircleList* list);

    CircleListNode* CircleList_Current(CircleList* list);

    CircleListNode* CircleList_Next(CircleList* list);

    #endif


    CircleList.c

    #include

    #include

    #include "CircleList.h"

    typedef struct _tag_CircleList

    {

     CircleListNode header;

     CircleListNode* slider;

     int length;

    } TCircleList;

    CircleList* CircleList_Create() // O(1)

    {

     TCircleList* ret = (TCircleList*)malloc(sizeof(TCircleList));

     if (ret == NULL)

     {

      return NULL;

     }



     ret->length = 0;

     ret->header.next = NULL;

     ret->slider = NULL;

     return ret;

    }

    void CircleList_Destroy(CircleList* list) // O(1)

    {

     if (list == NULL)

     {

      return ;

     }

     free(list);

    }

    void CircleList_Clear(CircleList* list) // O(1)

    {

     TCircleList* sList = (TCircleList*)list;

     if (sList == NULL)

     {

      return ;

     }

     sList->length = 0;

     sList->header.next = NULL;

     sList->slider = NULL;

    }

    int CircleList_Length(CircleList* list) // O(1)

    {

     TCircleList* sList = (TCircleList*)list;

     int ret = -1;

     if (list == NULL)

     {

      return ret;

     }

     ret = sList->length;

     return ret;

    }

    int CircleList_Insert(CircleList* list, CircleListNode* node, int pos) // O(n)

    {

     int ret = 0, i=0;

     TCircleList* sList = (TCircleList*)list;

     if (list == NULL || node== NULL || pos<0)

     {

      return -1;

     }

     //if( ret )

     {

      CircleListNode* current = (CircleListNode*)sList;

      for(i=0; (inext != NULL); i++)

      {

       current = current->next;

      }

      //current->next 0號節點的地址

      node->next = current->next; //1

      current->next = node; //2

      //若第一次插入節點

      if( sList->length == 0 )

      {

       sList->slider = node;

      }

      sList->length++;

      //若頭插法

      if( current == (CircleListNode*)sList )

      {

       //獲取最後一個元素

       CircleListNode* last = CircleList_Get(sList, sList->length - 1);

       last->next = current->next; //3

      }

     }

     return ret;

    }

    CircleListNode* CircleList_Get(CircleList* list, int pos) // O(n)

    {

     TCircleList* sList = (TCircleList*)list;

     CircleListNode* ret = NULL;

     int i = 0;

     if (list==NULL || pos<0)

     {

      return NULL;

     }

     //if( (sList != NULL) && (pos >= 0) && (sList->length > 0) )

     {

      CircleListNode* current = (CircleListNode*)sList;

      for(i=0; inext;

      }

      ret = current->next;

     }

     return ret;

    }

    CircleListNode* CircleList_Delete(CircleList* list, int pos) // O(n)

    {

     TCircleList* sList = (TCircleList*)list;

     CircleListNode* ret = NULL;

     int i = 0;

     if( (sList != NULL) && (pos >= 0) && (sList->length > 0) )

     {

      CircleListNode* current = (CircleListNode*)sList;

      CircleListNode* last = NULL;

      for(i=0; inext;

      }

      //若刪除第一個元素

      if( current == (CircleListNode*)sList )

      {

       last = (CircleListNode*)CircleList_Get(sList, sList->length - 1);

      }

      //求要刪除的元素

      ret = current->next;

      current->next = ret->next;

      sList->length--;

      //判斷鏈表是否為空

      if( last != NULL )

      {

       sList->header.next = ret->next;

       last->next = ret->next;

      }

      //若刪除的元素為游標所指的元素

      if( sList->slider == ret )

      {

       sList->slider = ret->next;

      }

      //若刪除元素後,鏈表長度為0

      if( sList->length == 0 )

      {

       sList->header.next = NULL;

       sList->slider = NULL;

      }

     }

     return ret;

    }

    CircleListNode* CircleList_DeleteNode(CircleList* list, CircleListNode* node) // O(n)

    {

     TCircleList* sList = (TCircleList*)list;

     CircleListNode* ret = NULL;

     int i = 0;

     if( sList != NULL )

     {

      CircleListNode* current = (CircleListNode*)sList;



      //查找node在循環鏈表中的位置i

      for(i=0; ilength; i++)

      {

       if( current->next == node )

       {

        ret = current->next;

        break;

       }

       current = current->next;

      }



      //如果ret找到,根據i去刪除

      if( ret != NULL )

      {

       CircleList_Delete(sList, i);

      }

     }

     return ret;

    }

    CircleListNode* CircleList_Reset(CircleList* list) // O(1)

    {

     TCircleList* sList = (TCircleList*)list;

     CircleListNode* ret = NULL;

     if( sList != NULL )

     {

      sList->slider = sList->header.next;

      ret = sList->slider;

     }

     return ret;

    }

    CircleListNode* CircleList_Current(CircleList* list) // O(1)

    {

     TCircleList* sList = (TCircleList*)list;

     CircleListNode* ret = NULL;

     if( sList != NULL )

     {

      ret = sList->slider;

     }

     return ret;

    }

    CircleListNode* CircleList_Next(CircleList* list) // O(1)

    {

     TCircleList* sList = (TCircleList*)list;

     CircleListNode* ret = NULL;

     if( (sList != NULL) && (sList->slider != NULL) )

     {

      ret = sList->slider;

      sList->slider = ret->next;

     }

     return ret;

    }


    #include

    #include

    #include "CircleList.h"

    struct Value

    {

     CircleListNode header;

     int v;

    };

    void  main()

    {

     int i = 0;

     CircleList* list = CircleList_Create();

     struct Value v1;

     struct Value v2;

     struct Value v3;

     struct Value v4;

     struct Value v5;

     struct Value v6;

     struct Value v7;

     struct Value v8;

     v1.v = 1;

     v2.v = 2;

     v3.v = 3;

     v4.v = 4;

     v5.v = 5;

     v6.v = 6;

     v7.v = 7;

     v8.v = 8;

     CircleList_Insert(list, (CircleListNode*)&v1, CircleList_Length(list));

     CircleList_Insert(list, (CircleListNode*)&v2, CircleList_Length(list));

     CircleList_Insert(list, (CircleListNode*)&v3, CircleList_Length(list));

     CircleList_Insert(list, (CircleListNode*)&v4, CircleList_Length(list));

     CircleList_Insert(list, (CircleListNode*)&v5, 5);

     CircleList_Delete(list, 0);

     for(i=0; i<2*CircleList_Length(list); i++)

     {

      struct Value* pv = (struct Value*)CircleList_Get(list, i);

      printf("%d\n", pv->v);

     }

     printf("\n");

     while( CircleList_Length(list) > 0 )

     {

      struct Value* pv = (struct Value*)CircleList_Delete(list, 0);

      printf("%d\n", pv->v);

     }

     printf("\n");

     CircleList_Insert(list, (CircleListNode*)&v1, CircleList_Length(list));

     CircleList_Insert(list, (CircleListNode*)&v2, CircleList_Length(list));

     CircleList_Insert(list, (CircleListNode*)&v3, CircleList_Length(list));

     CircleList_Insert(list, (CircleListNode*)&v4, CircleList_Length(list));

     CircleList_Insert(list, (CircleListNode*)&v5, CircleList_Length(list));

     CircleList_Insert(list, (CircleListNode*)&v6, CircleList_Length(list));

     CircleList_Insert(list, (CircleListNode*)&v7, CircleList_Length(list));

     CircleList_Insert(list, (CircleListNode*)&v8, CircleList_Length(list));

     for(i=0; iv);

     }

     printf("\n");

     CircleList_Reset(list);

     while( CircleList_Length(list) > 0 )

     {

      struct Value* pv = NULL;

      for(i=1; i<3; i++)

      {

       CircleList_Next(list);

      }

      pv = (struct Value*)CircleList_Current(list);

      printf("%d\n", pv->v);

      CircleList_DeleteNode(list, (CircleListNode*)pv);

     }

     CircleList_Destroy(list);

     system("pause");

     return ;

    }
