ZOJ 1047 Image Perimeters

Technicians in a pathology lab analyze digitized images of slides. Objects on a slide are selected for analysis by a mouse click on the object. The perimeter of the boundary of an object is one useful measure. Your task is to determine this perimeter for selected objects.

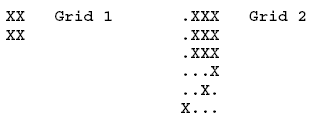

The digitized slides will be represented by a rectangular grid of periods, '.', indicating empty space, and the capital letter 'X', indicating part of an object. Simple examples are

An X in a grid square indicates that the entire grid square, including its boundaries, lies in some object. The X in the center of the grid below is adjacent to the X in any of the 8 positions around it. The grid squares for any two adjacent X's overlap on an edge or corner, so they are connected.

XXX
XXX Central X and adjacent X's
XXX

An object consists of the grid squares of all X's that can be linked to one another through a sequence of adjacent X's. In Grid 1, the whole grid is filled by one object. In Grid 2 there are two objects. One object contains only the lower left grid square. The remaining X's belong to the other object.

The technician will always click on an X, selecting the object containing that X. The coordinates of the click are recorded. Rows and columns are numbered starting from 1 in the upper left hand corner. The technician could select the object in Grid 1 by clicking on row 2 and column 2. The larger object in Grid 2 could be selected by clicking on row 2, column 3. The click could not be on row 4, column 3.

One useful statistic is the perimeter of the object. Assume each X corresponds to a square one unit on each side. Hence the object in Grid 1 has perimeter 8 (2 on each of four sides). The perimeter for the larger object in Grid 2 is illustrated in the figure at the left. The length is 18.

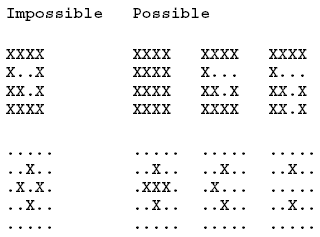

Objects will not contain any totally enclosed holes, so the leftmost grid patterns shown below could NOT appear. The variations on the right could appear:

The input will contain one or more grids. Each grid is preceded by a line containing the number of rows and columns in the grid and the row and column of the mouse click. All numbers are in the range 1-20. The rows of the grid follow, starting on the next line, consisting of '.' and 'X' characters.

The end of the input is indicated by a line containing four zeros. The numbers on any one line are separated by blanks. The grid rows contain no blanks.

For each grid in the input, the output contains a single line with the perimeter of the specified object.

Example input:

2 2 2 2
XX
XX
6 4 2 3
.XXX
.XXX
.XXX
...X
..X.
X...
5 6 1 3
.XXXX.
X....X
..XX.X
.X...X
..XXX.
7 7 2 6
XXXXXXX
XX...XX
X..X..X
X..X...
X..X..X
X.....X
XXXXXXX
7 7 4 4
XXXXXXX
XX...XX
X..X..X
X..X...
X..X..X
X.....X
XXXXXXX
0 0 0 0

Example output:

8
18
40
48
8

題意：告訴n*m的圖形，告訴起始點a,b以(a,b)為起點八個方向找聯通塊，求聯通快周長。

思路：搜索來一層層找聯通快，對於每個X，起始周長是4，如果X上下左右四個方向有X，那麼周長就減一。

#include
#include
#include
#include
#include
#include
#define N 55
using namespace std;

char s[N][N];
int n,m;
int a,b;
int dis[8][2]={0,1,0,-1,1,0,-1,0,-1,-1,-1,1,1,-1,1,1};
int vis[N][N];
int ans;

void dfs(int x,int y)
{
    int cnt=4;
    if(vis[x][y]) return;
    vis[x][y]=1;
    for(int i=0;i<8;i++)
    {
        int xx=x+dis[i][0];
        int yy=y+dis[i][1];

        if(xx<0||yy<0||xx>=n||yy>=m) continue;

        if(s[xx][yy]!='X') continue;

        dfs(xx,yy);
        if(dis[i][0]==0 || dis[i][1]==0) cnt--;
    }
    ans+=cnt;

}

int main()
{
    while(~scanf(%d%d%d%d,&n,&m,&a,&b))
    {
        if(n+m+a+b==0) break;
        a--;b--;

        memset(vis,0,sizeof vis);
        for(int i=0;i
