如果在Quartz.NET作業運行時我們想動態修改Job和Trigger的綁定關系,同時修改一些參數那麼該怎麼辦呢?Quartz.NET提供了插件技術,可以通過在XML文件中對Job和Trigger的參數進行配置,然後定期去加載配置文件來實例化任務和Trigger,這樣就解決了此類問題.
using System;
using System.Collections.Specialized;
using System.Threading;
using Common.Logging;
using Quartz;
using Quartz.Impl;
using Quartz.Job;
using System.Windows.Forms;
namespace QuartzDemo
{
public class PlugInJobExample
{
public string Name
{
get { return GetType().Name; }
}
public virtual IScheduler Run()
{
var properties = new NameValueCollection();
properties["quartz.plugin.triggHistory.type"] = "Quartz.Plugin.History.LoggingJobHistoryPlugin";
properties["quartz.plugin.jobInitializer.type"] = "Quartz.Plugin.Xml.XMLSchedulingDataProcessorPlugin";
//配置文件名稱
properties["quartz.plugin.jobInitializer.fileNames"] = "quartz_jobs.xml";
properties["quartz.plugin.jobInitializer.failOnFileNotFound"] = "true";
//每隔120秒進行探查,看配置文件是否更改
properties["quartz.plugin.jobInitializer.scanInterval"] = "120";
// 用插件XML定義的propertie來實例化一個ISchedulerFactory
ISchedulerFactory sf = new StdSchedulerFactory(properties);
IScheduler sched = sf.GetScheduler();
//啟動
sched.Start();
//返回
return sched;
}
}
}
1 using System;
2 using System.Collections.Generic;
3
4 using Common.Logging;
5 using Quartz;
6 using Quartz.Impl;
7 using Quartz.Job;
8 using System.Windows.Forms;
9 namespace QuartzDemo
10 {
11
12 public class SimpleJob1 : IJob
13 {
14
15 public virtual void Execute(IJobExecutionContext context)
16 {
17 JobKey jobKey = context.JobDetail.Key;
18 if (isOpen("FrmConsole"))
19 {
20 try
21 {
22 //獲取當前Form1實例
23 __instance = (FrmConsole)Application.OpenForms["FrmConsole"];
24 //獲取當前執行的線程ID
25 __instance.SetInfo(" - "+jobKey + "Thread ID " + System.Threading.Thread.CurrentThread.ManagedThreadId.ToString());
26
27 //通過方法更新消息
28 __instance.SetInfo(string.Format(" - {0} exec at {1}",
29 jobKey,
30 System.DateTime.Now.ToString()));
31
32 }
33 catch (Exception ex)
34 {
35 Console.WriteLine(ex.Message);
36 }
37 }
38 // This job simply prints out its job name and the
39
40 if (context.MergedJobDataMap.Count > 0)
41 {
42 ICollection<string> keys = context.MergedJobDataMap.Keys;
43 foreach (string key in keys)
44 {
45 String val = context.MergedJobDataMap.GetString(key);
46 __instance.SetInfo(string.Format(" - MergedJobDataMap entry: {0} = {1}", key, val));
47
48 }
49 }
50 context.Result = "exec ok";
51 }
52
53 private static FrmConsole __instance = null;
54
55 /// <summary>
56 /// 判斷窗體是否打開
57 /// </summary>
58 /// <param name="appName"></param>
59 /// <returns></returns>
60 private bool isOpen(string appName)
61 {
62 FormCollection collection = Application.OpenForms;
63 foreach (Form form in collection)
64 {
65 if (form.Name == appName)
66 {
67 return true;
68 }
69 }
70 return false;
71 }
72 }
73 }
下面第一個是簡單的Trigger配置,第二個是用CronTrigger:
1 <?xml version="1.0" encoding="UTF-8"?> 2 3 <job-scheduling-data xmlns="http://quartznet.sourceforge.net/JobSchedulingData" 4 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" 5 version="2.0"> 6 7 <processing-directives> 8 <overwrite-existing-data>true</overwrite-existing-data> 9 </processing-directives> 10 11 <schedule> 12 13 <job> 14 <name>jobName1</name> 15 <group>jobGroup1</group> 16 <description>jobDesciption1</description> 17 <job-type>QuartzDemo.SimpleJob1, QuartzDemo</job-type> 18 <durable>true</durable> 19 <recover>false</recover> 20 <job-data-map> 21 <entry> 22 <key>key0</key> 23 <value>value0</value> 24 </entry> 25 <entry> 26 <key>key1</key> 27 <value>value1</value> 28 </entry> 29 <entry> 30 <key>key2</key> 31 <value>value2</value> 32 </entry> 33 </job-data-map> 34 </job> 35 36 <trigger> 37 <simple> 38 <name>simpleName</name> 39 <group>simpleGroup</group> 40 <description>SimpleTriggerDescription</description> 41 <job-name>jobName1</job-name> 42 <job-group>jobGroup1</job-group> 43 <start-time>2015-12-02T10:15:00.0Z</start-time> 44 <end-time>2020-05-04T18:13:51.0Z</end-time> 45 <misfire-instruction>SmartPolicy</misfire-instruction> 46 <repeat-count>100</repeat-count> 47 <repeat-interval>1000</repeat-interval> 48 </simple> 49 </trigger> 50 51 </schedule> 52 53 </job-scheduling-data>
1 <?xml version="1.0" encoding="UTF-8"?> 2 3 <job-scheduling-data xmlns="http://quartznet.sourceforge.net/JobSchedulingData" 4 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" 5 version="2.0"> 6 7 <processing-directives> 8 <overwrite-existing-data>true</overwrite-existing-data> 9 </processing-directives> 10 <schedule> 11 <job> 12 <name>SimpleJob1</name> 13 <group>myJobGroup1</group> 14 <description>SimpleJob1</description> 15 <job-type>QuartzDemo.SimpleJob1, QuartzDemo</job-type> 16 <durable>true</durable> 17 <recover>false</recover> 18 <job-data-map> 19 <entry> 20 <key>author</key> 21 <value>jackwangcumt</value> 22 </entry> 23 <entry> 24 <key>blog</key> 25 <value>isaboy</value> 26 </entry> 27 <entry> 28 <key>jobType</key> 29 <value>XML Plugin Job</value> 30 </entry> 31 </job-data-map> 32 </job> 33 <trigger> 34 <cron> 35 <name>trigger1</name> 36 <group>myTriggerGroup</group> 37 <job-name>SimpleJob1</job-name> 38 <job-group>myJobGroup1</job-group> 39 <cron-expression>0/2 * * * * ?</cron-expression> 40 </cron> 41 </trigger> 42 </schedule> 43 </job-scheduling-data>

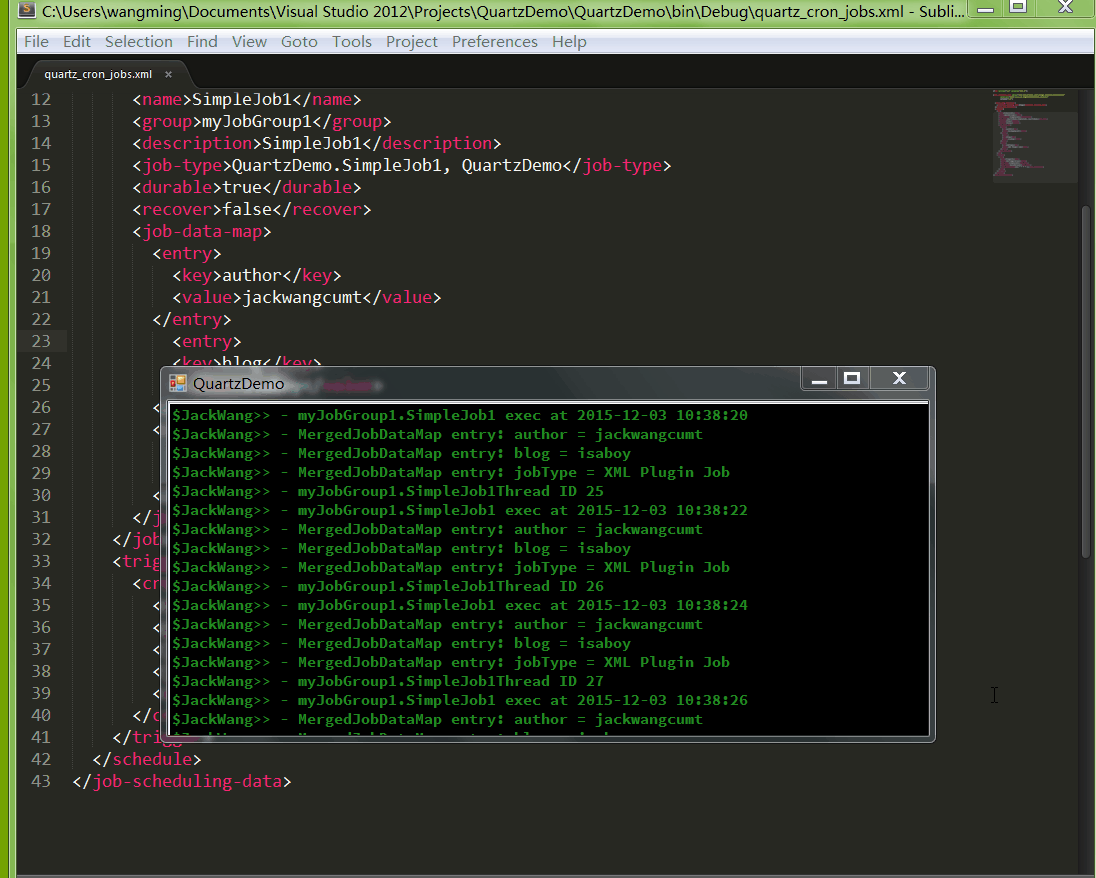

(可以將下圖在另一個頁簽打開,看無壓縮GIF圖片)
