再學GDI+[50]: 路徑 - GetPathPoints、GetPathTypes、TPathData

編輯:Delphi

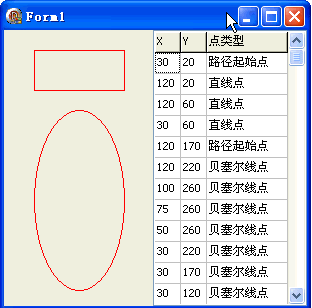

本例效果圖:

代碼文件:unit Unit1;
interface
uses
 Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,
 Dialogs, StdCtrls, Grids;
type
 TForm1 = class(TForm)
  StringGrid1: TStringGrid;
  procedure FormCreate(Sender: TObject);
  procedure FormPaint(Sender: TObject);
  procedure StringGrid1SelectCell(Sender: TObject; ACol, ARow: Integer;
   var CanSelect: Boolean);
 end;
var
 Form1: TForm1;
implementation
{$R *.dfm}
uses GDIPOBJ, GDIPAPI;
procedure TForm1.FormCreate(Sender: TObject);
begin
 StringGrid1.Align := alRight;
 StringGrid1.FixedCols := 0;
 StringGrid1.ColCount := 3;
 StringGrid1.ColWidths[0] := 25;
 StringGrid1.ColWidths[1] := 25;
 StringGrid1.ColWidths[2] := 80;
 StringGrid1.DefaultRowHeight := 20;
 StringGrid1.Cells[0,0] := 'X';
 StringGrid1.Cells[1,0] := 'Y';
 StringGrid1.Cells[2,0] := '點類型';
end;
procedure TForm1.FormPaint(Sender: TObject);
var
 g: TGPGraphics;
 p: TGPPen;
 path: TGPGraphicsPath;
 points: array of TGPPoint;
 types: PByte;
 typestr: string;
 i: Integer;
begin
 g := TGPGraphics.Create(Canvas.Handle);
 p := TGPPen.Create(aclRed);
 path := TGPGraphicsPath.Create;
 path.StartFigure;
 path.AddRectangle(MakeRect(30,20,90,40));
 path.AddEllipse(MakeRect(30,80,90,180));
 path.CloseFigure;
 g.DrawPath(p, path);
 SetLength(points, path.GetPointCount);
 GetMem(types, path.GetPointCount);
 path.GetPathPoints(PGPPoint(points), Length(points));
 path.GetPathTypes(types, Length(points));
 StringGrid1.RowCount := Length(points) + 1;
 for i := 0 to Length(points) - 1 do
 begin
  case types^ of
   $00 : typestr := '路徑起始點';
   $01 : typestr := '直線點';
   $03 : typestr := '貝塞爾線點';
   $07 : typestr := '遮蓋點';
   $10 : typestr := '虛線點';
   $20 : typestr := '路徑標記';
   $80 : typestr := '子路徑結束點';
  end;
  StringGrid1.Cells[0, i+1] := IntToStr(points[i].X);
  StringGrid1.Cells[1, i+1] := IntToStr(points[i].Y);
  StringGrid1.Cells[2, i+1] := typestr;
  Inc(types);
 end;
 Dec(types, Length(points));
 FreeMem(types);
 types := nil;
 path.Free;
 p.Free;
 g.Free;
end;
procedure TForm1.StringGrid1SelectCell(Sender: TObject; ACol, ARow: Integer;
 var CanSelect: Boolean);
var
 x,y: Integer;
begin
 x := StrToIntDef(StringGrid1.Cells[0,ARow], 0);
 y := StrToIntDef(StringGrid1.Cells[1,ARow], 0);
 Repaint;
 Canvas.Brush.Color := clBlue;
 Canvas.FillRect(Bounds(x-3,y-3,6,6));
 Text := Format('%d,%d',[x,y]);
end;
end.

這個例子有點麻煩, 如果使用 TPathData 類會簡單許多, 下面是用 TPathData 實現的代碼, 運行效果相同; 不過這樣獲取的點數組必須是小數數組. 代碼如下:unit Unit1;
interface
uses
 Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,
 Dialogs, StdCtrls, Grids;
type
 TForm1 = class(TForm)
  StringGrid1: TStringGrid;
  procedure FormCreate(Sender: TObject);
  procedure FormPaint(Sender: TObject);
  procedure StringGrid1SelectCell(Sender: TObject; ACol, ARow: Integer;
   var CanSelect: Boolean);
 end;
var
 Form1: TForm1;
implementation
{$R *.dfm}
uses GDIPOBJ, GDIPAPI;
procedure TForm1.FormCreate(Sender: TObject);
begin
 StringGrid1.Align := alRight;
 StringGrid1.FixedCols := 0;
 StringGrid1.ColCount := 3;
 StringGrid1.ColWidths[0] := 25;
 StringGrid1.ColWidths[1] := 25;
 StringGrid1.ColWidths[2] := 80;
 StringGrid1.DefaultRowHeight := 20;
 StringGrid1.Cells[0,0] := 'X';
 StringGrid1.Cells[1,0] := 'Y';
 StringGrid1.Cells[2,0] := '點類型';
end;
procedure TForm1.FormPaint(Sender: TObject);
var
 g: TGPGraphics;
 p: TGPPen;
 path: TGPGraphicsPath;
 PathData: TPathData;
 Points: PGPPointF;
 Types: PByte;
 TypeStr: string;
 i: Integer;
begin
 g := TGPGraphics.Create(Canvas.Handle);
 p := TGPPen.Create(aclRed);
 path := TGPGraphicsPath.Create;
 path.StartFigure;
 path.AddRectangle(MakeRect(30,20,90,40));
 path.AddEllipse(MakeRect(30,80,90,180));
 path.CloseFigure;
 g.DrawPath(p, path);
 PathData := TPathData.Create;
 path.GetPathData(PathData);
 Points := PathData.Points;
 Types := PathData.Types;
 StringGrid1.RowCount := PathData.Count + 1;
 for i := 0 to PathData.Count - 1 do
 begin
  case Types^ of
   $00 : TypeStr := '路徑起始點';
   $01 : TypeStr := '直線點';
   $03 : TypeStr := '貝塞爾線點';
   $07 : TypeStr := '遮蓋點';
   $10 : TypeStr := '虛線點';
   $20 : TypeStr := '路徑標記';
   $80 : TypeStr := '子路徑結束點';
  end;
  StringGrid1.Cells[0, i+1] := IntToStr(Trunc(Points.X));
  StringGrid1.Cells[1, i+1] := IntToStr(Trunc(Points.Y));
  StringGrid1.Cells[2, i+1] := TypeStr;
  Inc(Points);
  Inc(Types);
 end;
 PathData.Free;
 path.Free;
 p.Free;
 g.Free;
end;
procedure TForm1.StringGrid1SelectCell(Sender: TObject; ACol, ARow: Integer;
 var CanSelect: Boolean);
var
 x,y: Integer;
begin
 x := StrToIntDef(StringGrid1.Cells[0,ARow], 0);
 y := StrToIntDef(StringGrid1.Cells[1,ARow], 0);
 Repaint;
 Canvas.Brush.Color := clBlue;
 Canvas.FillRect(Bounds(x-3,y-3,6,6));
 Text := Format('%d,%d',[x,y]);
end;
end.

窗體文件:object Form1: TForm1
 Left = 0
 Top = 0
 Caption = 'Form1'
 ClientHeight = 276
 ClientWidth = 303
 Color = clBtnFace
 Font.Charset = DEFAULT_CHARSET
 Font.Color = clWindowText
 Font.Height = -11
 Font.Name = 'Tahoma'
 Font.Style = []
 OldCreateOrder = False
 Position = poDesktopCenter
 OnCreate = FormCreate
 OnPaint = FormPaint
 PixelsPerInch = 96
 TextHeight = 13
 object StringGrid1: TStringGrid
  Left = 88
  Top = 40
  Width = 154
  Height = 120
  TabOrder = 0
  OnSelectCell = StringGrid1SelectCell
 end
end

路徑中的點類型枚舉:PathPointType = (
 PathPointTypeStart    = $00, {路徑起始點}
 PathPointTypeLine     = $01, {直線點}
 PathPointTypeBezier    = $03, {默認貝塞爾線點}
 PathPointTypePathTypeMask = $07, {遮蓋點}
 PathPointTypeDashMode   = $10, {虛線點}
 PathPointTypePathMarker  = $20, {路徑標記}
 PathPointTypeCloseSubpath = $80, {子路徑結束點}
 PathPointTypeBezier3   = $03 {立體貝塞爾線點}
);
TPathPointType = PathPointType;
