ADF(Application development Framework)是Oracle主推的JEE平台的解決方案，其中包括JDeveloper (開發IDE)，Weblogic(Server 容器),ADF Faces(JSF 實現)， ADF richFaces(JSF 中擴展組件)等等。
本文主要討論ADF Faces中，如何控制顯示Table的Details信息。

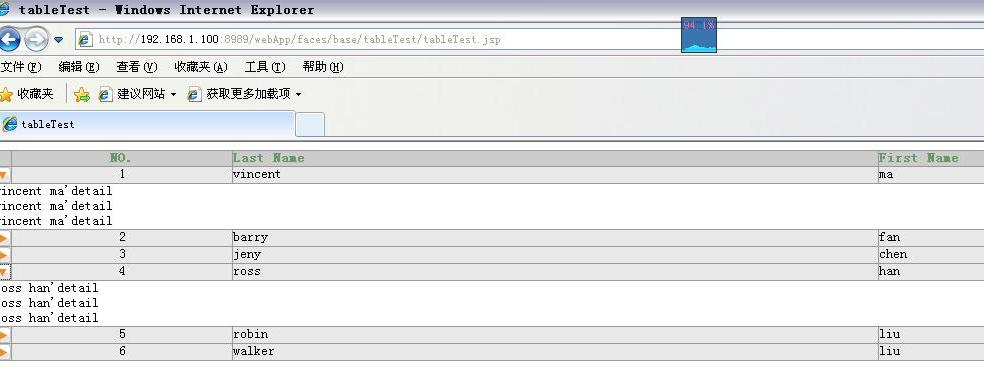

ADF Table類似於JSF標准的Table,但提供許多更有用的功能。比如顯示Datail就是很好的功能，如下圖：用戶可以點擊首列小圖表，查看本行詳細信息

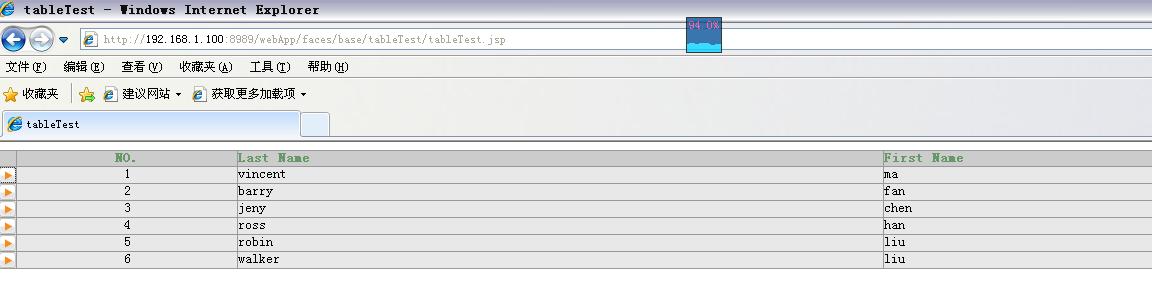

如下圖顯示：
下面是相對應的JSP和BackingBean
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"
"http://www.w3.org/TR/html4/loose.dtd">
<%@ page contentType="text/html;charset=GBK"%>
<%@ taglib uri="http://java.sun.com/jsf/html" prefix="h"%>
<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f"%>
<%@ taglib uri="http://xmlns.oracle.com/adf/faces" prefix="af"%>
<%@ taglib uri="http://xmlns.oracle.com/adf/faces/html" prefix="afh"%>
<f:view>
<afh:html>
<afh:head title="tableTest">
<meta http-equiv="Content-Type" content="text/html; charset=GBK"/>
<style type="text/css">
body {
}
a:link { color: #ffa5a5; }
</style>
</afh:head>
<afh:body>
<h:form>
<af:table width="98%" value="#{tableTest.allData}" var="data"
emptyText="No Data"
disclosureListener="#{tableTest.showDetails}" banding="none"
varStatus="vs">
<af:column sortable="true" formatType="icon"
inlineStyle="border-color:rgb(0,0,0); border-width:thin; margin:auto; text-align:center;">
<f:facet name="header">
<af:outputText value="NO."/>
</f:facet>
<af:outputText value="#{data.column1}"/>
</af:column>
<af:column inlineStyle="border-color:rgb(0,0,0); border-width:thin; margin:auto; text-align:center;">
<f:facet name="header">
<af:outputText value="Last Name"/>
</f:facet>
<af:outputText value="#{data.column2}"/>
</af:column>
<af:column inlineStyle="border-color:rgb(0,0,0); border-width:thin; margin:auto; text-align:center;">
<f:facet name="header">
<af:outputText value="First Name"/>
</f:facet>
<af:outputText value="#{data.column3}"/>
</af:column>
<f:facet name="detailStamp">
<af:panelGroup layout="vertical">
<af:outputText rendered="#{tableTest.showDetail}"
value="#{data.detail}"/>
<af:outputText rendered="#{tableTest.showDetail}"
value="#{data.detail}"/>
<af:outputText rendered="#{tableTest.showDetail}"
value="#{data.detail}"/>
</af:panelGroup>
</f:facet>
</af:table>
</h:form>
</afh:body>
</afh:html>
</f:view>
其中紅色部分JSP就是顯示Details信息。
disclosureListener="#{tableTest.showDetails}" 為Table加一個打開關閉Details信息的監聽器，在監聽器裡面控制顯示。
BackBean如下：
public class TableDataBackBean {
private List allData = new ArrayList();
private boolean showDetail = false;
public TableDataBackBean() {
TableData tableDate1 = new TableData("1","vincent","ma","vincent ma'detail");
TableData tableDate2 = new TableData("2","barry","fan","barry fan'detail");
TableData tableDate3 = new TableData("3","jeny","chen","jeny chen'detail");
TableData tableDate4 = new TableData("4","ross","han","ross han'detail");
TableData tableDate5 = new TableData("5","robin","liu","robin liu'detail");
TableData tableDate6 = new TableData("6","walker","liu","walker liu'detail");
allData.add(tableDate1);
allData.add(tableDate2);
allData.add(tableDate3);
allData.add(tableDate4);
allData.add(tableDate5);
allData.add(tableDate6);
}
public void showDetails(DisclosureEvent disclosureEvent) {
if(disclosureEvent.isExpanded()){
this.showDetail = true;
}
}
public void setAllData(List allData) {
this.allData = allData;
}
public List getAllData() {
return allData;
}
public void setShowDetail(boolean showDetail) {
this.showDetail = showDetail;
}
public boolean isShowDetail() {
return showDetail;
}
}
當用戶點擊打開小圖標時，觸發如下事件：
public void showDetails(DisclosureEvent disclosureEvent) {
if(disclosureEvent.isExpanded()){
this.showDetail = true;
}
}
那麼，如何只讓它顯示一個Detail 信息呢？ 也就是打開第二個時，關閉第一個呢? 很簡單
修改showDetails方法如下：
public String oldValue = "";
public void showDetails(DisclosureEvent disclosureEvent) {
CoreTable activityTable1 = (CoreTable)disclosureEvent.getComponent();
if(disclosureEvent.isExpanded()){
this.showDetail = true;
}
RowKeySet rowKeySet2 = activityTable1.getDisclosureState();
Set set =rowKeySet2.getKeySet();
Iterator iterator = set.iterator();
if(set.size()==2){
while(iterator.hasNext()){
String temp = (String)iterator.next();
System.out.println("Old Value:"+oldValue);
System.out.println("Two value:"+temp);
if(!temp.equals(oldValue)){
oldValue = temp;
System.out.println("Set Older Value ="+temp);
break;
}
}
set.clear();
set.add(new String(oldValue));
System.out.println("Display:"+oldValue);
}else if(set.size()==1){
while(iterator.hasNext()){
String temp = (String)iterator.next();
oldValue = temp;
}
set.add(new String(oldValue));
System.out.println("only One Display:"+oldValue);
}
activityTable1.setDisclosureState(rowKeySet2);
}
