前言：
最近沒什麼事做，搭個框架寫成博客記載上去，拉通一下之前所學知識.
話不多說，我們直接步入正題。
預備任務：
1/裝置並配置java運轉環境
2/數據庫的裝置配置（Mysql）
3/裝置並配置服務器(Tomcat)
4/Maven
5/ IntelliJIDEA的裝置配置（自己運用的次要軟件是IntelliJIDEA,沒用eclipse什麼的）
6/ 運用IntelliJIDEA創立一個web app項目。
貌似就這些了吧
導包
不同於以往的導包，由於我們創立的是maven的webapp項目，所以如今只需配置下pomxml這個配置文件，零碎會自動到maven的地方倉庫去下載相應的包.
自己的pom.xml配置文件如下（都寫有闡明的哈）：
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>XRog</groupId>
<artifactId>ssh</artifactId>
<packaging>war</packaging>
<version>1.0-SNAPSHOT</version>
<name>ssh Maven Webapp</name>
<url>http://maven.apache.org</url>
<!-- 自己將配置包的版本信息都一致放入此處，方便當前管理-->
<properties>
<springVersion>4.3.1.RELEASE</springVersion>
<hibernateVersion>4.3.5.Final</hibernateVersion>
<jstlVersion>1.2</jstlVersion>
<taglibVersion>1.1.2</taglibVersion>
<servletVersion>3.0-alpha-1</servletVersion>
<jsonVersion>1.9.13</jsonVersion>
<jacksonVersion>2.5.0</jacksonVersion>
<mysqlVersion>6.0.3</mysqlVersion>
<c3p0Version>0.9.1.2</c3p0Version>
<log4jVersion>1.2.17</log4jVersion>
<fileuploadVersion>1.3.1</fileuploadVersion>
<lombokVersion>1.16.10</lombokVersion>
</properties>
<dependencies>
<!-- 單元測試 -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>3.8.1</version>
<scope>test</scope>
</dependency>
<!-- spring-->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-beans</artifactId>
<version>${springVersion}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-core</artifactId>
<version>${springVersion}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>${springVersion}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-orm</artifactId>
<version>${springVersion}</version>
</dependency>
<!-- spring web + spring MVC-->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-web</artifactId>
<version>${springVersion}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>${springVersion}</version>
</dependency>
<!-- hibernate配置-->
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-core</artifactId>
<version>${hibernateVersion}</version>
</dependency>
<!-- hibernate 緩存, 視狀況添加-->
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-ehcache</artifactId>
<version>${hibernateVersion}</version>
</dependency>
<!-- jsp頁面運用的jstl支持-->
<dependency>
<groupId>jstl</groupId>
<artifactId>jstl</artifactId>
<version>${jstlVersion}</version>
</dependency>
<dependency>
<groupId>taglibs</groupId>
<artifactId>standard</artifactId>
<version>${taglibVersion}</version>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>servlet-api</artifactId>
<version>${servletVersion}</version>
<scope>provided</scope>
</dependency>
<!-- DataBase數據庫銜接 mysql包-->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>${mysqlVersion}</version>
</dependency>
<!-- 數據庫銜接池-->
<dependency>
<groupId>c3p0</groupId>
<artifactId>c3p0</artifactId>
<version>${c3p0Version}</version>
</dependency>
<!-- json數據 使springMVC可以前往json值 ,視狀況添加-->
<dependency>
<groupId>org.codehaus.jackson</groupId>
<artifactId>jackson-mapper-asl</artifactId>
<version>${jsonVersion}</version>
</dependency>
<!-- Jackson可以輕松的將Java對象轉換成json對象和xml文檔,異樣也可以將json、xml轉換成Java對象-->
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-core</artifactId>
<version>${jacksonVersion}</version>
</dependency>
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-annotations</artifactId>
<version>${jacksonVersion}</version>
</dependency>
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
<version>${jacksonVersion}</version>
</dependency>
<!-- log4j配置, 視狀況添加-->
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>${log4jVersion}</version>
</dependency>
<!--文件 上傳-->
<dependency>
<groupId>commons-fileupload</groupId>
<artifactId>commons-fileupload</artifactId>
<version>${fileuploadVersion}</version>
</dependency>
<!-- lombok插件導包-->
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>${lombokVersion}</version>
<scope>provided</scope>
</dependency>
</dependencies>
<build>
<finalName>ssh</finalName>
</build>
</project>
OK，配置後運轉下maven,就會自意向地方倉庫下載相應的包啦！（這個就不多說了）。
SpringMVC配置
我如今在這裡把我配置後的構造拿出來給你們看下
我們先配置下SpringMVC的配置：resources/META-INF/spring-mvc.xml
<beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xmlns:mvc="http://www.springframework.org/schema/mvc" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.1.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.1.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.1.xsd"> <!-- 啟動注解驅動的spring MVC功用,注冊懇求url和注解POJO類辦法的映射--> <mvc:annotation-driven /> <!-- 對模型視圖稱號的解析,在懇求時模型視圖稱號添加前後綴 --> <context:component-scan base-package="com.ssh" /> <bean id="viewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver"> <property name="viewClass" value="org.springframework.web.servlet.view.JstlView" /> <property name="prefix" value="views/" /> <!-- 前綴 --> <property name="suffix" value=".jsp" /> <!-- 後綴 --> </bean> <!--這裡是對靜態資源的映射--> <mvc:resources mapping="/js/**" location="/resources/js/" /> <mvc:resources mapping="/css/**" location="/resources/css/" /> <mvc:resources mapping="/img/**" location="/resources/img/" /> </beans>
好了，我們如今修正下web.xml這個配置文件，完善下SpringMVC的配置， web.xml配置如下：
<?xml version="1.0" encoding="UTF-8"?> <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" version="3.0"> <!-- 地址為http://localhost:8080/ 顯示的默許網頁--> <welcome-file-list> <welcome-file>/index.jsp</welcome-file> </welcome-file-list> <!-- spring MVC config start--> <servlet> <servlet-name>spring</servlet-name> <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> <init-param> <param-name>contextConfigLocation</param-name> <!-- 此處指向的的是SpringMVC的配置文件 --> <param-value>classpath:META-INF/spring-mvc.xml</param-value> </init-param> <!--配置容器在啟動的時分就加載這個servlet並實例化--> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>spring</servlet-name> <url-pattern>/</url-pattern> </servlet-mapping> <!-- spring MVC config end--> </web-app>
OK，SpringMVC配置完成，如今我們停止一下測試吧
在controller層新建一個MainController，內容如下
package com.ssh.controller;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
/**
* Created by XRog
* On 2/1/2017.12:36 AM
*/
@Controller
public class MainController {
@RequestMapping(value = "test", method = RequestMethod.GET)
public String test(){
// 實踐前往的是views/test.jsp ,spring-mvc.xml中配置過前後綴
return "test";
}
}
test.jsp網頁如下：
<html> <body> <center> <h2 >this is my test page!</h2> </center> </body> </html>

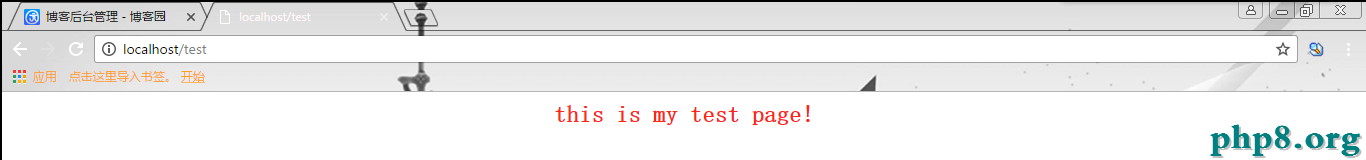

重啟Tomcat服務器， 然後閱讀器訪問http://localhost/test如下圖所示：
PS： Tomcat默許端口是8080，我更改了端口號，如若你們為更改，正確的訪問地址是localhost：8080/test
OK，成功訪問。
SpringMVC+Spring整合
這個就非常復雜了， 配置applicationContext.xml這個Spring的配置文件如下：
<beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xmlns:mvc="http://www.springframework.org/schema/mvc" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.1.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.1.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.1.xsd"> <!-- 自動掃描 --> <context:component-scan base-package="com.ssh"> <!-- 掃描時跳過 @Controller 注解的JAVA類（控制器） --> <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/> </context:component-scan> </beans>
完善web.xml配置文件如下：
<?xml version="1.0" encoding="UTF-8"?> <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" version="3.0"> <!-- 地址為http://localhost:8080/ 顯示的默許網頁--> <welcome-file-list> <welcome-file>/index.jsp</welcome-file> </welcome-file-list> <!--加載Spring的配置文件到上下文中去--> <context-param> <param-name>contextConfigLocation</param-name> <param-value> classpath:META-INF/applicationContext.xml </param-value> </context-param> <!-- spring MVC config start--> <servlet> <servlet-name>spring</servlet-name> <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> <init-param> <param-name>contextConfigLocation</param-name> <!-- 此處指向的的是SpringMVC的配置文件 --> <param-value>classpath:META-INF/spring-mvc.xml</param-value> </init-param> <!--配置容器在啟動的時分就加載這個servlet並實例化--> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>spring</servlet-name> <url-pattern>/</url-pattern> </servlet-mapping> <!-- spring MVC config end--> <!-- Spring監聽器 --> <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener> <!-- 字符集過濾 --> <filter> <filter-name>encodingFilter</filter-name> <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class> <init-param> <param-name>encoding</param-name> <param-value>UTF-8</param-value> </init-param> <init-param> <param-name>forceEncoding</param-name> <param-value>true</param-value> </init-param> </filter> <filter-mapping> <filter-name>encodingFilter</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> </web-app>
web.xml配置文件中更改了三處：引入Spring配置文件 Spring的監聽器 以及 字符集過濾
OK，Spring+SpringMVC配置完成，上面我們開端測試：
在service寫一個TestServiceImpl完成TestService接口並完成其test()辦法， 代碼如下：
package com.ssh.service.impl;
import com.ssh.service.TestService;
import org.springframework.stereotype.Service;
/**
* Created by XRog
* On 2/1/2017.12:58 AM
*/
@Service
public class TestServiceImpl implements TestService {
public String test() {
return "test";
}
}
PS:這裡留意寫@Service注解
MainController控制器更改如下：
package com.ssh.controller;
import com.ssh.service.TestService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;
/**
* Created by XRog
* On 2/1/2017.12:36 AM
*/
@Controller
public class MainController {
@Autowired
private TestService testService;
@RequestMapping(value = "test", method = RequestMethod.GET)
public String test(){
// 實踐前往的是views/test.jsp ,spring-mvc.xml中配置過前後綴
return "test";
}
@RequestMapping(value = "springtest", method = RequestMethod.GET)
public String springTest(){
return testService.test();
}
}
控制器這裡我們運用了Spring的依賴注入自動裝配。

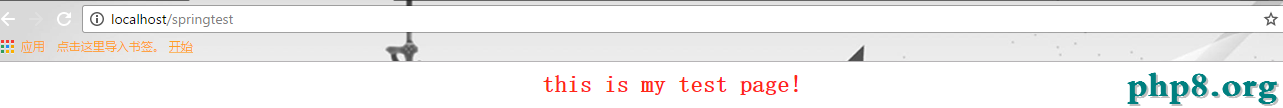

在閱讀器中輸出地址http://localhost/springtest調用springtest辦法
yes，成功前往，闡明我們之前的配置沒問題
Spring+SpringMVC+hibernate整合

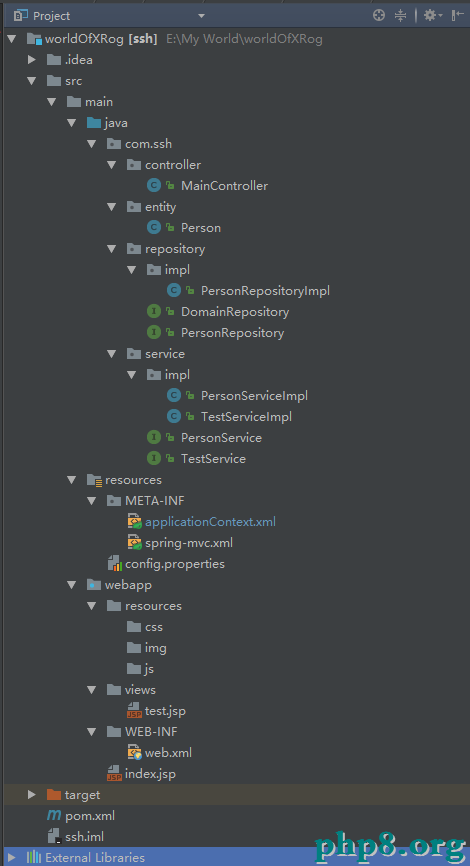

好了，如今就缺hibernate這個框架了。。 我先給大家看些我搭建好之後的構造圖吧
我們想來編寫config.properties這個配置文件，外面寄存的是hibernate的一些配置
#database connection config jdbc.driver = com.mysql.jdbc.Driver jdbc.url = jdbc:mysql://?????:3306/ssh?useUnicode=true&characterEncoding=utf-8 jdbc.username = root jdbc.password = ??? #hibernate config hibernate.dialect = org.hibernate.dialect.MySQLDialect hibernate.show_sql = true hibernate.format_sql = true hibernate.hbm2ddl.auto = update
這裡銜接數據庫的參數由於我是銜接我早晨的數據庫，因而我數據庫地址和密碼打了“？？？”,你們銜接時改成自己本地的就OK了
上面配置hibernate，這裡我為了方便，就直接寫進applicationContext.xml外面。配置後的applicationContext.xml如下：
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.1.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context-4.1.xsd
http://www.springframework.org/schema/mvc
http://www.springframework.org/schema/mvc/spring-mvc-4.1.xsd">
<!--********************************************配置Spring***************************************-->
<!-- 自動掃描 -->
<context:component-scan base-package="com.ssh">
<!-- 掃描時跳過 @Controller 注解的JAVA類（控制器） -->
<context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
</context:component-scan>
<!--********************************************配置hibernate********************************************-->
<!--掃描配置文件(這裡指向的是之前配置的那個config.properties)-->
<context:property-placeholder location="classpath:/config.properties" />
<!--配置數據源-->
<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource" destroy-method="close">
<property name="driverClass" value="${jdbc.driver}" /> <!--數據庫銜接驅動-->
<property name="jdbcUrl" value="${jdbc.url}" /> <!--數據庫地址-->
<property name="user" value="${jdbc.username}" /> <!--用戶名-->
<property name="password" value="${jdbc.password}" /> <!--密碼-->
<property name="maxPoolSize" value="40" /> <!--最大銜接數-->
<property name="minPoolSize" value="1" /> <!--最小銜接數-->
<property name="initialPoolSize" value="10" /> <!--初始化銜接池內的數據庫銜接-->
<property name="maxIdleTime" value="20" /> <!--最大閒暇時間-->
</bean>
<!--配置session工廠-->
<bean id="sessionFactory" class="org.springframework.orm.hibernate4.LocalSessionFactoryBean">
<property name="dataSource" ref="dataSource" />
<property name="packagesToScan" value="com.ssh.entity" />
<property name="hibernateProperties">
<props>
<prop key="hibernate.hbm2ddl.auto">${hibernate.hbm2ddl.auto}</prop> <!--hibernate依據實體自動生成數據庫表-->
<prop key="hibernate.dialect">${hibernate.dialect}</prop> <!--指定數據庫方言-->
<prop key="hibernate.show_sql">${hibernate.show_sql}</prop> <!--在控制台顯示執行的數據庫操作語句-->
<prop key="hibernate.format_sql">${hibernate.format_sql}</prop> <!--在控制台顯示執行的數據哭操作語句（格式）-->
</props>
</property>
</bean>
<!-- 事物管理器配置 -->
<bean id="transactionManager" class="org.springframework.orm.hibernate4.HibernateTransactionManager">
<property name="sessionFactory" ref="sessionFactory" />
</bean>
</beans>
OK，到了這裡，配置完畢。上面進入測試階段
實體類（entity)：
package com.ssh.entity;
import lombok.Data;
import javax.persistence.*;
/**
* Created by XRog
* On 2/2/2017.2:03 PM
*/
@Data
@Entity
@Table(name = "Person")
public class Person {
@Id
@GeneratedValue
private Long id;
@Column(name = "created")
private Long created = System.currentTimeMillis();
@Column(name = "username")
private String username;
@Column(name = "address")
private String address;
@Column(name = "phone")
private String phone;
@Column(name = "remark")
private String remark;
}
PS：我這裡用了一個@Data注解，此注解會自動生成get辦法，set辦法，toString辦法等一系列辦法，功用非常弱小，不過需求裝置插件以及導包， 有興味的可以百度下
當然，你也可以手動編寫get/set/結構辦法。
數據庫訪問層（repository）:
package com.ssh.repository;
import java.io.Serializable;
import java.util.List;
/**
* Created by XRog
* On 2/2/2017.2:28 PM
*/
public interface DomainRepository<T,PK extends Serializable>{
T load(PK id);
T get(PK id);
List<T> findAll();
void persist(T entity);
PK save(T entity);
void saveOrUpdate(T entity);
void delete(PK id);
void flush();
}
package com.ssh.repository;
import com.ssh.entity.Person;
/**
* Created by XRog
* On 2/2/2017.2:25 PM
*/
public interface PersonRepository extends DomainRepository<Person,Long> {
}
package com.ssh.repository.impl;
import com.ssh.repository.PersonRepository;
import com.ssh.entity.Person;
import org.hibernate.Session;
import org.hibernate.SessionFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Repository;
import java.util.List;
/**
* Created by XRog
* On 2/2/2017.2:30 PM
*/
@Repository
public class PersonRepositoryImpl implements PersonRepository {
@Autowired
private SessionFactory sessionFactory;
private Session getCurrentSession() {
return this.sessionFactory.openSession();
}
public Person load(Long id) {
return (Person)getCurrentSession().load(Person.class,id);
}
public Person get(Long id) {
return (Person)getCurrentSession().get(Person.class,id);
}
public List<Person> findAll() {
return null;
}
public void persist(Person entity) {
getCurrentSession().persist(entity);
}
public Long save(Person entity) {
return (Long)getCurrentSession().save(entity);
}
public void saveOrUpdate(Person entity) {
getCurrentSession().saveOrUpdate(entity);
}
public void delete(Long id) {
Person person = load(id);
getCurrentSession().delete(person);
}
public void flush() {
getCurrentSession().flush();
}
}
PS:我這裡顯示寫了一個比擬通用的接口，其他一切接口皆承繼此接口， 再編寫完成類
留意：我這裡寫的session發生是調用的SessionFactory的openSession（）這個辦法。之前運用getCurrentSession()不斷報錯，後來百度了一下才知道，hibernate3版本可以運用getCurrentSession()來創立session，而hibernate4版本則不行。
服務層（service）:
package com.ssh.service;
import com.ssh.entity.Person;
/**
* Created by XRog
* On 2/2/2017.2:39 PM
*/
public interface PersonService {
Long savePerson();
}
package com.ssh.service.impl;
import com.ssh.entity.Person;
import com.ssh.repository.PersonRepository;
import com.ssh.service.PersonService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
/**
* Created by XRog
* On 2/2/2017.2:40 PM
*/
@Service
public class PersonServiceImpl implements PersonService {
@Autowired
private PersonRepository personRepository;
public Long savePerson() {
Person person = new Person();
person.setUsername("XRog");
person.setPhone("18381005946");
person.setAddress("chenDu");
person.setRemark("this is XRog");
return personRepository.save(person);
}
}
控制層（controller）:
package com.ssh.controller;
import com.ssh.entity.Person;
import com.ssh.service.PersonService;
import com.ssh.service.TestService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;
/**
* Created by XRog
* On 2/1/2017.12:36 AM
*/
@Controller
public class MainController {
@Autowired
private PersonService personService;
@RequestMapping(value = "savePerson", method = RequestMethod.GET)
@ResponseBody
public String savePerson(){
personService.savePerson();
return "success!";
}
}

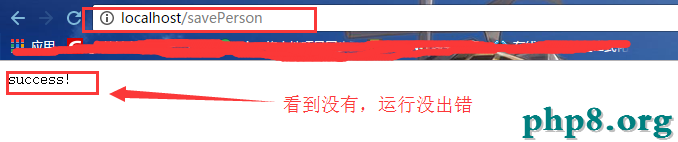

OK，編寫終了，我們重啟下服務器然後測試：

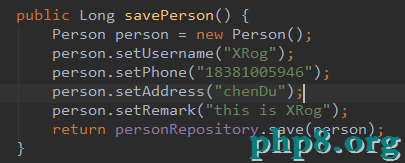

我們在看下數據庫，跟我們拔出的數據比照下
OK，測試終了，非常成功
以上就是本文的全部內容，希望本文的內容對大家的學習或許任務能帶來一定的協助，同時也希望多多支持！
