MyBatis，mybatis官網

編輯：JAVA綜合教程

MyBatis，mybatis官網

一、MyBatis簡介

MyBatis是支持普通SQL查詢，存儲過程和高級映射的優秀持久層框架。

MyBatis消除了幾乎所有的JDBC代碼和參數的手工設置以及對結果集的檢索封裝。

MyBatis可以使用簡單的XML或注解用於配置和原始映射，將接口和Java的POJO（Plain Old Java Objects，普通的Java對象）映射成數據庫中的記錄.

JDBC -> dbutils(自動封裝) -> MyBatis -> Hibernate

mybatis是將sql寫在xml中，然後去訪問數據庫。

二、MyBatis快速入門

2.1.新建java項目

　　添加mybatis和mysql的驅動jar：mybatis-3.1.1.jar,mysql-connector-java-5.1.7-bin.jar

2.2.新建表

create database mybatis;
use mybatis;
create table users(id int primary key auto_increment, name varchar(20), age int);
insert into users (name,age) values('Tom',12);
insert into users (name, age) values('Jack',11);

2.3.添加mybatis的配置文件conf.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
	<environments default="development">
		<environment id="development">
			<transactionManager type="JDBC" />
			<dataSource type="POOLED">
				<property name="driver" value="com.mysql.jdbc.Driver" />
				<property name="url" value="jdbc:mysql://localhost:3306/mybatis" />
				<property name="username" value="root" />
				<property name="password" value="root" />
			</dataSource>
		</environment>
	</environments>
</configuration>

2.4.定義表對應的實體類

public class User {
	private int id;
	private String name;
	private int age;
    //get,set方法
}

2.5.定義操作users表的sql映射文件userMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.atguigu.mybatis_test.test1.userMapper">
	<select id="getUser" parameterType="int"
		resultType="com.atguigu.mybatis_test.test1.User">
		select * from users where id=#{id}
	</select>
</mapper>

2.6.在conf.xml文件中注冊userMapper.xml文件

<mappers>
	<mapper resource="com/atguigu/mybatis_test/test1/userMapper.xml"/>
</mappers>

2.7.編寫測試代碼：執行定義的select語句

public class Test {
	public static void main(String[] args) throws IOException {
		String resource = "conf.xml";
		//加載mybatis的配置文件（它也加載關聯的映射文件）
		Reader reader = Resources.getResourceAsReader(resource);
		//構建sqlSession的工廠
		SqlSessionFactory sessionFactory = new SqlSessionFactoryBuilder().build(reader);
		//創建能執行映射文件中sql的sqlSession
		SqlSession session = sessionFactory.openSession();
		//映射sql的標識字符串
		String statement = "com.atguigu.mybatis.bean.userMapper"+".selectUser";
		//執行查詢返回一個唯一user對象的sql
		User user = session.selectOne(statement, 1);
		System.out.println(user);
	}
}

三、操作users表的CRUD

3.1.xml的實現

3.1.1.定義sql映射xml文件：

<insert id="insertUser" parameterType="com.atguigu.ibatis.bean.User">
	insert into users(name, age) values(#{name}, #{age});
</insert>

<delete id="deleteUser" parameterType="int">
	delete from users where id=#{id}
</delete>

<update id="updateUser" parameterType="com.atguigu.ibatis.bean.User">
	update users set name=#{name},age=#{age} where id=#{id}
</update>

<select id="selectUser" parameterType="int" resultType="com.atguigu.ibatis.bean.User">
	select * from users where id=#{id}
</select>

<select id="selectAllUsers" resultType="com.atguigu.ibatis.bean.User">
	select * from users
</select>

3.1.2.在config.xml中注冊這個映射文件

<mapper resource=" com/atguigu/ibatis/bean/userMapper.xml"/>

3.1.3.在dao中調用

public User getUserById(int id) {
	SqlSession session = sessionFactory.openSession();
	User user = session.selectOne(URI+".selectUser", id);
	return user;
}

3.2.注解的實現

3.2.1.定義sql映射的接口

public interface UserMapper {
	@Insert("insert into users(name, age) values(#{name}, #{age})")
	public int insertUser(User user);

	@Delete("delete from users where id=#{id}")
	public int deleteUserById(int id);

	@Update("update users set name=#{name},age=#{age} where id=#{id}")
	public int updateUser(User user);

	@Select("select * from users where id=#{id}")
	public User getUserById(int id);

	@Select("select * from users")
	public List<User> getAllUser();
}

3.2.2.在config中注冊這個映射接口

<mapper class="com.atguigu.ibatis.crud.ano.UserMapper"/>

3.2.3.在dao中調用

public User getUserById(int id) {
	SqlSession session = sessionFactory.openSession();
	UserMapper mapper = session.getMapper(UserMapper.class);
	User user = mapper.getUserById(id);
	return user;
}

四、幾個可以優化的地方

4.1.連接數據庫的配置可以單獨放在一個properties文件中。

## db.properties

<properties resource="db.properties"/>
<property name="driver" value="${driver}" />
<property name="url" value="${url}" />
<property name="username" value="${username}" />
<property name="password" value="${password}" />

4.2.為實體類定義別名,簡化sql映射xml文件中的引用

<typeAliases>
	<typeAlias type="com.atguigu.ibatis.bean.User" alias="_User"/>
</typeAliases>

4.3.可以在src下加入log4j的配置文件,打印日志信息

1. 添加jar:
log4j-1.2.16.jar

2.1. log4j.properties(方式一)

log4j.properties，
log4j.rootLogger=DEBUG, Console
#Console
log4j.appender.Console=org.apache.log4j.ConsoleAppender
log4j.appender.Console.layout=org.apache.log4j.PatternLayout
log4j.appender.Console.layout.ConversionPattern=%d [%t] %-5p [%c] - %m%n
log4j.logger.java.sql.ResultSet=INFO
log4j.logger.org.apache=INFO
log4j.logger.java.sql.Connection=DEBUG
log4j.logger.java.sql.Statement=DEBUG
log4j.logger.java.sql.PreparedStatement=DEBUG

2.2. log4j.xml(方式二)

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE log4j:configuration SYSTEM "log4j.dtd">
<log4j:configuration xmlns:log4j="http://jakarta.apache.org/log4j/">
<appender name="STDOUT" class="org.apache.log4j.ConsoleAppender">
<layout class="org.apache.log4j.PatternLayout">
<param name="ConversionPattern"
value="%-5p %d{MM-dd HH:mm:ss,SSS} %m (%F:%L) \n" />
</layout>
</appender>
<logger name="java.sql">
<level value="debug" />
</logger>
<logger name="org.apache.ibatis">
<level value="debug" />
</logger>
<root>
<level value="debug" />
<appender-ref ref="STDOUT" />
</root>
</log4j:configuration>

五、解決字段名與實體類屬性名不相同的沖突

5.1.准備表和字段

CREATE TABLE orders(
	order_id INT PRIMARY KEY AUTO_INCREMENT,
	order_no VARCHAR(20),
	order_price FLOAT
);
INSERT INTO orders(order_no, order_price) VALUES('aaaa', 23);
INSERT INTO orders(order_no, order_price) VALUES('bbbb', 33);
INSERT INTO orders(order_no, order_price) VALUES('cccc', 22);

5.2.定義實體類

public class Order {
	private int id;
	private String orderNo;
	private float price;
}

5.3.實現getOrderById(id)的查詢：

方式一: 通過在sql語句中定義別名
<select id="selectOrder" parameterType="int" resultType="_Order">
select order_id id, order_no orderNo,order_price price from orders where order_id=#{id}
</select>

方式二: 通過<resultMap>
<select id="selectOrderResultMap" parameterType="int" resultMap="orderResultMap">
select * from orders where order_id=#{id}
</select>

<resultMap type="_Order" id="orderResultMap">
<id property="id" column="order_id"/>
<result property="orderNo" column="order_no"/>
<result property="price" column="order_price"/>
</resultMap>

六、實現關聯表查詢

6.1.一對一關聯

6.1.1.提出需求

根據班級id查詢班級信息(帶老師的信息)

6.1.2.創建表和數據

CREATE TABLE teacher(
	t_id INT PRIMARY KEY AUTO_INCREMENT,
	t_name VARCHAR(20)
);
CREATE TABLE class(
	c_id INT PRIMARY KEY AUTO_INCREMENT,
	c_name VARCHAR(20),
	teacher_id INT
);
ALTER TABLE class ADD CONSTRAINT fk_teacher_id FOREIGN KEY (teacher_id) REFERENCES teacher(t_id);

INSERT INTO teacher(t_name) VALUES('LS1');
INSERT INTO teacher(t_name) VALUES('LS2');

INSERT INTO class(c_name, teacher_id) VALUES('bj_a', 1);
INSERT INTO class(c_name, teacher_id) VALUES('bj_b', 2);

6.1.3.定義實體類：

public class Teacher {
	private int id;
	private String name;
}
public class Classes {
	private int id;
	private String name;
	private Teacher teacher;
}

6.1.4.定義sql映射文件ClassMapper.xml

<!--
方式一: 嵌套結果: 使用嵌套結果映射來處理重復的聯合結果的子集
SELECT * FROM class c, teacher t,student s WHERE c.teacher_id=t.t_id AND c.C_id=s.class_id AND  c.c_id=1
 -->
<select id="getClass3" parameterType="int" resultMap="ClassResultMap3">
	select * from class c, teacher t,student s where c.teacher_id=t.t_id and c.C_id=s.class_id and  c.c_id=#{id}
</select>
<resultMap type="_Classes" id="ClassResultMap3">
	<id property="id" column="c_id"/>
	<result property="name" column="c_name"/>

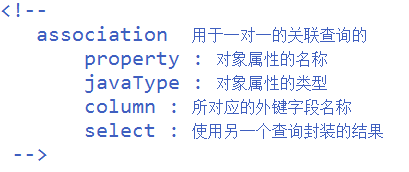

	<association property="teacher" column="teacher_id" javaType="_Teacher">
		<id property="id" column="t_id"/>
		<result property="name" column="t_name"/>
	</association>
	<!-- ofType指定students集合中的對象類型 -->
	<collection property="students" ofType="_Student">
		<id property="id" column="s_id"/>
		<result property="name" column="s_name"/>
	</collection>
</resultMap>

<!--
	方式二：嵌套查詢：通過執行另外一個SQL映射語句來返回預期的復雜類型
		SELECT * FROM class WHERE c_id=1;
		SELECT * FROM teacher WHERE t_id=1   //1 是上一個查詢得到的teacher_id的值
		SELECT * FROM student WHERE class_id=1  //1是第一個查詢得到的c_id字段的值
 -->
 <select id="getClass4" parameterType="int" resultMap="ClassResultMap4">
	select * from class where c_id=#{id}
 </select>
 <resultMap type="_Classes" id="ClassResultMap4">
	<id property="id" column="c_id"/>
	<result property="name" column="c_name"/>
	<association property="teacher" column="teacher_id" javaType="_Teacher" select="getTeacher2"></association>
	<collection property="students" ofType="_Student" column="c_id" select="getStudent"></collection>
 </resultMap>
<select id="getTeacher2" parameterType="int" resultType="_Teacher">
	SELECT t_id id, t_name name FROM teacher WHERE t_id=#{id}
 </select>

 <select id="getStudent" parameterType="int" resultType="_Student">
	SELECT s_id id, s_name name FROM student WHERE class_id=#{id}
 </select>

6.1.5.測試

@Test
public void testOO() {
	SqlSession sqlSession = factory.openSession();
	Classes c = sqlSession.selectOne("com.atguigu.day03_mybatis.test5.OOMapper.getClass", 1);
	System.out.println(c);
}

@Test
public void testOO2() {
	SqlSession sqlSession = factory.openSession();
	Classes c = sqlSession.selectOne("com.atguigu.day03_mybatis.test5.OOMapper.getClass2", 1);
	System.out.println(c);
}

6.2.一對多關聯

6.2.1.提出需求

根據classId查詢對應的班級信息,包括學生,老師

6.2.2.創建表和數據：

CREATE TABLE student(
	s_id INT PRIMARY KEY AUTO_INCREMENT,
	s_name VARCHAR(20),
	class_id INT
);
INSERT INTO student(s_name, class_id) VALUES('xs_A', 1);
INSERT INTO student(s_name, class_id) VALUES('xs_B', 1);
INSERT INTO student(s_name, class_id) VALUES('xs_C', 1);
INSERT INTO student(s_name, class_id) VALUES('xs_D', 2);
INSERT INTO student(s_name, class_id) VALUES('xs_E', 2);
INSERT INTO student(s_name, class_id) VALUES('xs_F', 2);

6.2.3.定義實體類

public class Student {
	private int id;
	private String name;
}

public class Classes {
	private int id;
	private String name;
	private Teacher teacher;
	private List<Student> students;
}

6.2.4.定義sql映射文件ClassMapper.xml

<!--
方式一: 嵌套結果: 使用嵌套結果映射來處理重復的聯合結果的子集
SELECT * FROM class c, teacher t,student s WHERE c.teacher_id=t.t_id AND c.C_id=s.class_id AND  c.c_id=1
 -->
<select id="getClass3" parameterType="int" resultMap="ClassResultMap3">
	select * from class c, teacher t,student s where c.teacher_id=t.t_id and c.C_id=s.class_id and  c.c_id=#{id}
</select>
<resultMap type="_Classes" id="ClassResultMap3">
	<id property="id" column="c_id"/>
	<result property="name" column="c_name"/>
	<association property="teacher" column="teacher_id" javaType="_Teacher">
		<id property="id" column="t_id"/>
		<result property="name" column="t_name"/>
	</association>
	<!-- ofType指定students集合中的對象類型 -->
	<collection property="students" ofType="_Student">
		<id property="id" column="s_id"/>
		<result property="name" column="s_name"/>
	</collection>
</resultMap>

<!--
	方式二：嵌套查詢：通過執行另外一個SQL映射語句來返回預期的復雜類型
		SELECT * FROM class WHERE c_id=1;
		SELECT * FROM teacher WHERE t_id=1   //1 是上一個查詢得到的teacher_id的值
		SELECT * FROM student WHERE class_id=1  //1是第一個查詢得到的c_id字段的值
 -->
 <select id="getClass4" parameterType="int" resultMap="ClassResultMap4">
	select * from class where c_id=#{id}
 </select>
 <resultMap type="_Classes" id="ClassResultMap4">
	<id property="id" column="c_id"/>
	<result property="name" column="c_name"/>
	<association property="teacher" column="teacher_id" javaType="_Teacher" select="getTeacher2"></association>
	<collection property="students" ofType="_Student" column="c_id" select="getStudent"></collection>
 </resultMap>

 <select id="getTeacher2" parameterType="int" resultType="_Teacher">
	SELECT t_id id, t_name name FROM teacher WHERE t_id=#{id}
 </select>

 <select id="getStudent" parameterType="int" resultType="_Student">
	SELECT s_id id, s_name name FROM student WHERE class_id=#{id}
 </select>

6.2.5.測試

@Test
public void testOM() {
	SqlSession sqlSession = factory.openSession();
	Classes c = sqlSession.selectOne("com.atguigu.day03_mybatis.test5.OOMapper.getClass3", 1);
	System.out.println(c);
}

@Test
public void testOM2() {
	SqlSession sqlSession = factory.openSession();
	Classes c = sqlSession.selectOne("com.atguigu.day03_mybatis.test5.OOMapper.getClass4", 1);
	System.out.println(c);
}

七、動態sql與模糊查詢

7.1.需求

實現多條件查詢用戶(姓名模糊匹配, 年齡在指定的最小值到最大值之間)。

7.2.准備數據庫和表

create table d_user(
	id int primary key auto_increment,
	name varchar(10),
	age int(3)
);

insert into d_user(name,age) values('Tom',12);
insert into d_user(name,age) values('Bob',13);
insert into d_user(name,age) values('Jack',18);

7.3.ConditionUser(查詢條件實體類)

private String name;

private int minAge;

private int maxAge;

7.4.User表實體類

private int id;
private String name;
private int age;

7.5.userMapper.xml(映射文件)

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
	"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.atguigu.day03_mybatis.test6.userMapper">
<select id="getUser" parameterType="com.atguigu.day03_mybatis.test6.ConditionUser" resultType="com.atguigu.day03_mybatis.test6.User">
			select * from d_user where age>=#{minAge} and age<=#{maxAge}
		<if test='name!="%null%"'>and name like #{name}</if>
	</select>
</mapper>

7.6.UserTest(測試)

public class UserTest {

	public static void main(String[] args) throws IOException {

		Reader reader = Resources.getResourceAsReader("conf.xml");

		SqlSessionFactory sessionFactory = new SqlSessionFactoryBuilder().build(reader);

		SqlSession sqlSession = sessionFactory.openSession();

		String statement = "com.atguigu.day03_mybatis.test6.userMapper.getUser";

		List<User> list = sqlSession.selectList(statement, new ConditionUser("%a%", 1, 12));

		System.out.println(list);
	}
}

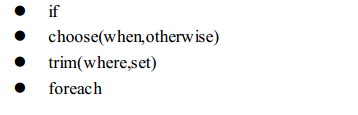

MyBatis中可用的動態SQL標簽

八、調用存儲過程

8.1.提出需求

查詢得到男性或女性的數量, 如果傳入的是0就女性否則是男性

8.2.准備數據庫表和存儲過程:

create table p_user(
	id int primary key auto_increment,
	name varchar(10),
	sex char(2)
);

insert into p_user(name,sex) values('A',"男");
insert into p_user(name,sex) values('B',"女");
insert into p_user(name,sex) values('C',"男");

#創建存儲過程(查詢得到男性或女性的數量, 如果傳入的是0就女性否則是男性)
DELIMITER $
CREATE PROCEDURE mybatis.ges_user_count(IN sex_id INT, OUT user_count INT)
BEGIN
IF sex_id=0 THEN
SELECT COUNT(*) FROM mybatis.p_user WHERE p_user.sex='女' INTO user_count;
ELSE
SELECT COUNT(*) FROM mybatis.p_user WHERE p_user.sex='男' INTO user_count;
END IF;
END
$

#調用存儲過程
DELIMITER ;
SET @user_count = 0;
CALL mybatis.ges_user_count(1, @user_count);
SELECT @user_count;

8.3.創建表的實體類

public class User {
	private String id;
	private String name;
	private String sex;
}

8.4.userMapper.xml

<mapper namespace="com.atguigu.mybatis.test7.userMapper">
	<!--
		查詢得到男性或女性的數量, 如果傳入的是0就女性否則是男性
		CALL mybatis.get_user_count(1, @user_count);
	 -->

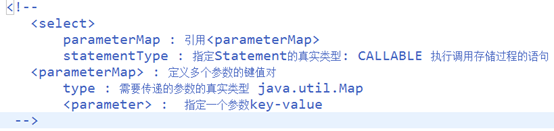

	 <select id="getCount" statementType="CALLABLE" parameterMap="getCountMap">
	 	call mybatis.get_user_count(?,?)
	 </select>
	 <parameterMap type="java.util.Map" id="getCountMap">
	 	<parameter property="sex_id" mode="IN" jdbcType="INTEGER"/>
	 	<parameter property="user_count" mode="OUT" jdbcType="INTEGER"/>
	 </parameterMap>
</mapper>

8.5.測試

Map<String, Integer> paramMap = new HashMap<>();
paramMap.put("sex_id", 0);

session.selectOne(statement, paramMap);

Integer userCount = paramMap.get("user_count");
System.out.println(userCount);

九、MyBatis緩存

9.1.理解mybatis緩存

正如大多數持久層框架一樣，MyBatis 同樣提供了一級緩存和二級緩存的支持

1.一級緩存: 基於PerpetualCache 的 HashMap本地緩存，其存儲作用域為 Session，當 Session flush 或 close 之後，該Session中的所有 Cache 就將清空。

2. 二級緩存與一級緩存其機制相同，默認也是采用 PerpetualCache，HashMap存儲，不同在於其存儲作用域為 Mapper(Namespace)，並且可自定義存儲源，如 Ehcache。

3. 對於緩存數據更新機制，當某一個作用域(一級緩存Session/二級緩存Namespaces)的進行了 C/U/D 操作後，默認該作用域下所有 select 中的緩存將被clear。

9.2.mybatis一級緩存

9.2.1.根據任務查詢

根據id查詢對應的用戶記錄對象。

9.2.2.准備數據庫表和數據

CREATE TABLE c_user(
	id INT PRIMARY KEY AUTO_INCREMENT,
	NAME VARCHAR(20),
	age INT
);
INSERT INTO c_user(NAME, age) VALUES('Tom', 12);
INSERT INTO c_user(NAME, age) VALUES('Jack', 11);

9.2.3.創建表的實體類

public class User implements Serializable{
	private int id;
	private String name;
	private int age;

9.2.4.userMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.atguigu.mybatis.test8.userMapper">

	<select id="getUser" parameterType="int" resultType="_CUser">
		select * from c_user where id=#{id}
	</select>

	<update id="updateUser" parameterType="_CUser">
		update c_user set
		name=#{name}, age=#{age} where id=#{id}
	</update>
</mapper>

9.2.5.測試

/*
 * 一級緩存: 也就Session級的緩存(默認開啟)
 */
@Test
public void testCache1() {
	SqlSession session = MybatisUtils.getSession();
	String statement = "com.atguigu.mybatis.test8.userMapper.getUser";
	User user = session.selectOne(statement, 1);
	System.out.println(user);

	/*
	 * 一級緩存默認就會被使用
	 */
	/*
	user = session.selectOne(statement, 1);
	System.out.println(user);
	*/

	/*
	 1. 必須是同一個Session,如果session對象已經close()過了就不可能用了
	 */
	/*
	session = MybatisUtils.getSession();
	user = session.selectOne(statement, 1);
	System.out.println(user);
	*/

	/*
	 2. 查詢條件是一樣的
	 */
	/*
	user = session.selectOne(statement, 2);
	System.out.println(user);
	*/

	/*
	 3. 沒有執行過session.clearCache()清理緩存
	 */
	/*
	session.clearCache();
	user = session.selectOne(statement, 2);
	System.out.println(user);
	*/

	/*
	 4. 沒有執行過增刪改的操作(這些操作都會清理緩存)
	 */
	/*
	session.update("com.atguigu.mybatis.test8.userMapper.updateUser",
			new User(2, "user", 23));
	user = session.selectOne(statement, 2);
	System.out.println(user);
	*/
}

9.3.MyBatis二級緩存

9.3.1.添加一個<cache>在userMapper.xml中

<mapper namespace="com.atguigu.mybatis.test8.userMapper">
	<cache/>

9.3.2.測試

/*
 * 測試二級緩存
 */
@Test
public void testCache2() {
	String statement = "com.atguigu.mybatis.test8.userMapper.getUser";

	SqlSession session = MybatisUtils.getSession();
	User user = session.selectOne(statement, 1);
	session.commit();
	System.out.println("user="+user);

	SqlSession session2 = MybatisUtils.getSession();
	user = session2.selectOne(statement, 1);
	session.commit();
	System.out.println("user2="+user);
}

9.3.3.補充說明

1. 映射語句文件中的所有select語句將會被緩存。
2. 映射語句文件中的所有insert，update和delete語句會刷新緩存。
3. 緩存會使用Least Recently Used（LRU，最近最少使用的）算法來收回。
4. 緩存會根據指定的時間間隔來刷新。
5. 緩存會存儲1024個對象

<cache
eviction="FIFO"  //回收策略為先進先出
flushInterval="60000" //自動刷新時間60s
size="512" //最多緩存512個引用對象
readOnly="true"/> //只讀

十、Spring集成MyBatis

10.1.添加jar

【mybatis】
		mybatis-3.2.0.jar
		mybatis-spring-1.1.1.jar
		log4j-1.2.17.jar
【spring】
		spring-aop-3.2.0.RELEASE.jar
		spring-beans-3.2.0.RELEASE.jar
		spring-context-3.2.0.RELEASE.jar
		spring-core-3.2.0.RELEASE.jar
		spring-expression-3.2.0.RELEASE.jar
		spring-jdbc-3.2.0.RELEASE.jar
		spring-test-3.2.4.RELEASE.jar
		spring-tx-3.2.0.RELEASE.jar

		aopalliance-1.0.jar
		cglib-nodep-2.2.3.jar
		commons-logging-1.1.1.jar
【MYSQL驅動包】
		mysql-connector-java-5.0.4-bin.jar

10.2.數據庫表

CREATE TABLE s_user(
	user_id INT AUTO_INCREMENT PRIMARY KEY,
	user_name VARCHAR(30),
	user_birthday DATE,
	user_salary DOUBLE
)

10.3.實體類：User

public class User {
	private int id;
	private String name;
	private Date birthday;
	private double salary;

    //set,get方法
}

10.4.DAO接口: UserMapper (XXXMapper)

public interface UserMapper {

	void save(User user);
	void update(User user);
	void delete(int id);
	User findById(int id);
	List<User> findAll();
}

10.5.SQL映射文件: userMapper.xml(與接口忽略大小寫同名)

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.atguigu.mybatis.test9.UserMapper">
	<resultMap type="User" id="userResult">
		<result column="user_id" property="id"/>
		<result column="user_name" property="name"/>
		<result column="user_birthday" property="birthday"/>
		<result column="user_salary" property="salary"/>
	</resultMap>
<!-- 取得插入數據後的id -->
	<insert id="save" keyColumn="user_id" keyProperty="id" useGeneratedKeys="true">
		insert into s_user(user_name,user_birthday,user_salary)
		values(#{name},#{birthday},#{salary})
	</insert>

	<update id="update">
		update s_user
		set user_name = #{name},
			user_birthday = #{birthday},
			user_salary = #{salary}
		where user_id = #{id}
	</update>

	<delete id="delete">
		delete from s_user
		where user_id = #{id}
	</delete>

	<select id="findById" resultMap="userResult">
		select *
		from s_user
		where user_id = #{id}
	</select>

	<select id="findAll" resultMap="userResult">
		select *
		from s_user
	</select>
</mapper>

10.6.spring的配置文件: beans.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:p="http://www.springframework.org/schema/p"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="
		http://www.springframework.org/schema/beans
		http://www.springframework.org/schema/beans/spring-beans-3.2.xsd
		http://www.springframework.org/schema/context
		http://www.springframework.org/schema/context/spring-context-3.2.xsd
		http://www.springframework.org/schema/tx
		http://www.springframework.org/schema/tx/spring-tx-3.2.xsd">
	<!-- 1. 數據源 : DriverManagerDataSource -->
	<bean id="dataSource"
		class="org.springframework.jdbc.datasource.DriverManagerDataSource">
		<property name="driverClassName" value="com.mysql.jdbc.Driver"/>
		<property name="url" value="jdbc:mysql://localhost:3306/mybatis"/>
		<property name="username" value="root"/>
		<property name="password" value="root"/>
	</bean>

	<!--
		2. mybatis的SqlSession的工廠: SqlSessionFactoryBean
			dataSource / typeAliasesPackage
	-->
	<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
		<property name="dataSource" ref="dataSource"/>
		<property name="typeAliasesPackage" value="com.atuigu.spring_mybatis2.domain"/>
	</bean>

	<!--
		3. mybatis自動掃描加載Sql映射文件 : MapperScannerConfigurer
			sqlSessionFactory / basePackage
	-->
	<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
		<property name="basePackage" value="com.atuigu.spring_mybatis2.mapper"/>
		<property name="sqlSessionFactory" ref="sqlSessionFactory"/>
	</bean>

	<!-- 4. 事務管理 : DataSourceTransactionManager -->
	<bean id="txManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<property name="dataSource" ref="dataSource"/>
	</bean>

	<!-- 5. 使用聲明式事務 -->
	<tx:annotation-driven transaction-manager="txManager" />
</beans>

10.7.mybatis的配置文件: mybatis-config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
  PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-config.dtd">

<configuration>
	<!-- Spring整合myBatis後，這個配置文件基本可以不要了-->
	<!-- 設置外部配置文件 -->
	<!-- 設置類別名 -->
	<!-- 設置數據庫連接環境 -->
	<!-- 映射文件 -->
</configuration>

10.8.測試

@RunWith(SpringJUnit4ClassRunner.class) //使用Springtest測試框架
@ContextConfiguration("/beans.xml") //加載配置
public class SMTest {

	@Autowired  //注入
	private UserMapper userMapper;

	@Test
	public void save() {
		User user = new User();
		user.setBirthday(new Date());
		user.setName("marry");
		user.setSalary(300);
		userMapper.save(user);
		System.out.println(user.getId());
	}

	@Test
	public void update() {
		User user = userMapper.findById(2);
		user.setSalary(2000);
		userMapper.update(user);
	}

	@Test
	public void delete() {
		userMapper.delete(3);
	}

	@Test
	public void findById() {
		User user = userMapper.findById(1);
		System.out.println(user);
	}

	@Test
	public void findAll() {
		List<User> users = userMapper.findAll();
		System.out.println(users);
	}
}
