MySQL備份與恢復之真實環境使用冷備(2),mysql冷備

編輯:MySQL綜合教程

MySQL備份與恢復之真實環境使用冷備(2),mysql冷備


       在上一篇文章(MySQL備份與恢復之冷備)中,我們提到了冷備。但是有個問題,我們存儲的數據文件是保存在當前本地磁盤的,如果這個磁盤掛掉,那我們存儲的數據不就丟失了,這樣備份數據不就功虧一篑,勞而無功。所以真實環境中我們多准備幾塊磁盤,然後再在這些磁盤上搭建LVM,把MySQL的數據目錄掛載到LVM上,這樣數據就不是存儲在當前磁盤上,就可以保證數據的安全性。

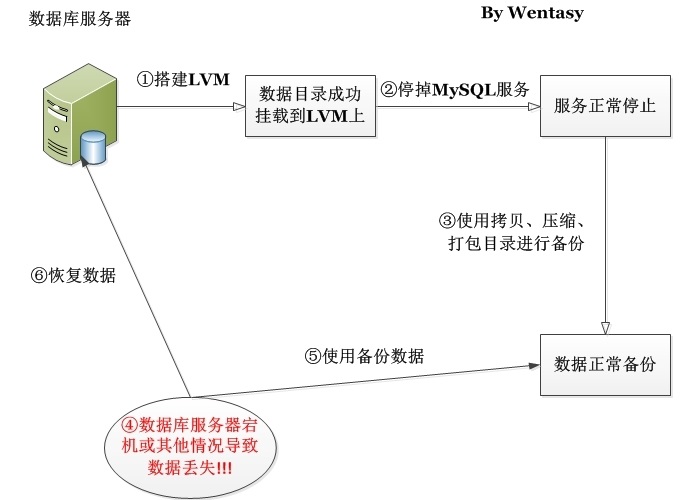

示意圖



真實環境使用冷備模擬

第一步,需要提前規劃好磁盤,這裡做模擬,添加兩磁盤

第二步,對磁盤進行分區

[root@serv01 ~]# fdisk /dev/sdb
[root@serv01 ~]# fdisk /dev/sdc

[root@serv01 ~]# ll /dev/sd[bc]1
brw-rw----. 1 root disk 8, 17 Sep 10 18:06 /dev/sdb1
brw-rw----. 1 root disk 8, 33 Sep 10 18:09 /dev/sdc1



第三步,yum安裝lvm2

[root@serv01 ~]# yum install lvm2 -y


第四步,創建物理卷

[root@serv01 ~]# pvcreate /dev/sdb1 /dev/sdc1
 Physical volume "/dev/sdb1" successfully created
 Physical volume "/dev/sdc1" successfully created


第五步,創建卷組

[root@serv01 ~]# vgcreate data /dev/sdb1 /dev/sdc1
 Volume group "data" successfully created


第六步,創建邏輯卷

[root@serv01 ~]# lvcreate -L 2G -n mydata data
 Logical volume "mydata" created


第七步,格式化磁盤

[root@serv01 ~]# mkfs.ext4 /dev/data/mydata
mke2fs 1.41.12 (17-May-2010)
Filesystem label=
OS type: Linux
Block size=4096 (log=2)
Fragment size=4096 (log=2)
Stride=0 blocks, Stripe width=0 blocks
131072 inodes, 524288 blocks
26214 blocks (5.00%) reserved for the super user
First data block=0
Maximum filesystem blocks=536870912
16 block groups
32768 blocks per group, 32768 fragments per group
8192 inodes per group
Superblock backups stored on blocks:
 32768, 98304, 163840, 229376, 294912

Writing inode tables: done
Creating journal (16384 blocks): done
Writing superblocks and filesystem accounting information: done

This filesystem will be automatically checked every 28 mounts or
180 days, whichever comes first. Use tune2fs -c or -i to override.

第八步,冷備

[root@serv01 ~]# ls /usr/local/mysql/data/
crm ib_logfile0 mysql-bin.000001 mysql-bin.000005 mysql-bin.000009 mysql-bin.000013 mysql-bin.index test
game ib_logfile1 mysql-bin.000002 mysql-bin.000006 mysql-bin.000010 mysql-bin.000014 performance_schema
hello larrydb mysql-bin.000003 mysql-bin.000007 mysql-bin.000011 mysql-bin.000015 serv01.host.com.err
ibdata1 mysql mysql-bin.000004 mysql-bin.000008 mysql-bin.000012 mysql-bin.000016 serv01.host.com.pid

[root@serv01 opt]# tar -cvPzf mysql01.tar.gz /usr/local/mysql/data/

第九步,刪除數據庫文件

[root@serv01 ~]# rm -rf /usr/local/mysql/data/*


第十步,掛載

[root@serv01 ~]# mount /dev/data/mydata /usr/local/mysql/data/
[root@serv01 ~]# df -h
Filesystem  Size Used Avail Use% Mounted on
/dev/sda2  9.7G 2.4G 6.8G 27% /
tmpfs   188M 0 188M 0% /dev/shm
/dev/sda1  194M 25M 160M 14% /boot
/dev/sda5  4.0G 160M 3.7G 5% /opt
/dev/sr0  3.4G 3.4G 0 100% /iso
/dev/mapper/data-mydata
   2.0G 67M 1.9G 4% /usr/local/mysql/data


第十一步,將掛載信息寫入配置文件

[root@serv01 opt]# echo "/dev/mapper/data-mydata /usr/local/mysql/data ext4 defaults 1 2" >> /etc/fstab
[root@serv01 opt]# tail -n1 /etc/fstab
/dev/mapper/data-mydata /usr/local/mysql/data ext4 defaults 1 2


第十二步,停掉數據庫

[root@serv01 ~]# /etc/init.d/mysqld stop
 ERROR! MySQL server PID file could not be found!
[root@serv01 ~]# ps -ef | grep mysqld
root 1055 1 0 18:05 ? 00:00:00 /bin/sh /usr/local/mysql/bin/mysqld_safe --datadir=/usr/local/mysql/data --pid-file=/usr/local/mysql/data/serv01.host.com.pid
mysql 1332 1055 0 18:05 ? 00:00:00 /usr/local/mysql/bin/mysqld --basedir=/usr/local/mysql --datadir=/usr/local/mysql/data --plugin-dir=/usr/local/mysql/lib/plugin --user=mysql --log-error=/usr/local/mysql/data/serv01.host.com.err --pid-file=/usr/local/mysql/data/serv01.host.com.pid --socket=/tmp/mysql.sock --port=3306
root 1885 1490 0 18:18 pts/0 00:00:00 grep mysqld

[root@serv01 ~]# pkill -9 mysql
[root@serv01 ~]# ps -ef | grep mysqld
root 1888 1490 0 18:18 pts/0 00:00:00 grep mysqld
[root@serv01 ~]# chown mysql.mysql /usr/local/mysql/data/ -R

[root@serv01 opt]# ll /usr/local/mysql/data/
total 0
[root@serv01 opt]# ll /usr/local/mysql/data/ -d
drwxr-xr-x. 2 mysql mysql 4096 Sep 10 18:17 /usr/local/mysql/data/

第十三步,恢復數據

[root@serv01 opt]# tar -xPvf mysql01.tar.gz


第十四步,啟動數據庫,登錄MySQL,然後查看數據是否丟失

[root@serv01 opt]# /etc/init.d/mysqld start
Starting MySQL SUCCESS!

[root@serv01 ~]# mysql
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 1
Server version: 5.5.29-log Source distribution

Copyright (c) 2000, 2012, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql> use larrydb;
Database changed
mysql> show tables;
+-------------------+
| Tables_in_larrydb |
+-------------------+
| class  |
| stu  |
+-------------------+
2 rows in set (0.00 sec)

mysql> select * from class;
+------+--------+
| cid | cname |
+------+--------+
| 1 | linux |
| 2 | oracle |
+------+--------+
2 rows in set (0.01 sec)

mysql> select * from stu;
+------+---------+------+
| sid | sname | cid |
+------+---------+------+
| 1 | larry01 | 1 |
| 2 | larry02 | 2 |
+------+---------+------+
2 rows in set (0.00 sec)


第十五步,使用LVS的快照功能創建快照,快照不需要格式化。

[root@serv01 opt]# lvcreate -L 100M -s -n smydata /dev/data/mydata
 Logical volume "smydata" created


第十六步,掛載

[root@serv01 opt]# mount /dev/data/smydata /mnt
[root@serv01 opt]# df -h
Filesystem  Size Used Avail Use% Mounted on
/dev/sda2  9.7G 2.4G 6.8G 27% /
tmpfs   188M 0 188M 0% /dev/shm
/dev/sda1  194M 25M 160M 14% /boot
/dev/sda5  4.0G 161M 3.7G 5% /opt
/dev/sr0  3.4G 3.4G 0 100% /iso
/dev/mapper/data-mydata
   2.0G 98M 1.8G 6% /usr/local/mysql/data
/dev/mapper/data-smydata
   2.0G 98M 1.8G 6% /mnt


第十七步,模擬數據丟失和驗證快照的數據不會受本身數據的影響

[root@serv01 opt]# cd /mnt
[root@serv01 mnt]# ls
crm  ib_logfile1 mysql-bin.000003 mysql-bin.000008 mysql-bin.000013 mysql-bin.index
game  larrydb  mysql-bin.000004 mysql-bin.000009 mysql-bin.000014 performance_schema
hello mysql  mysql-bin.000005 mysql-bin.000010 mysql-bin.000015 serv01.host.com.err
ibdata1 mysql-bin.000001 mysql-bin.000006 mysql-bin.000011 mysql-bin.000016 serv01.host.com.pid
ib_logfile0 mysql-bin.000002 mysql-bin.000007 mysql-bin.000012 mysql-bin.000017 test

#進入數據目錄,創建一個文件
[root@serv01 ~]# cd /usr/local/mysql/data/
[root@serv01 data]# touch aa01.txt

#進入快照掛載目錄,發現沒有這個文件
[root@serv01 mnt]# ls aa01.txt
ls: cannot access aa01.txt: No such file or directory


第十八步,備份數據

[root@serv01 mnt]# cd /databackup/
[root@serv01 databackup]# ll
total 976
-rw-r--r--. 1 root root 995761 Sep 10 17:47 mysql01.tar.gz
[root@serv01 databackup]# /etc/init.d/mysqld status
 SUCCESS! MySQL running (2198)
[root@serv01 databackup]# tar -cvzf mysql02.tar.gz /mnt

[root@serv01 mnt]# rm -rf /usr/local/mysql/data/*
[root@serv01 mnt]# /etc/init.d/mysqld stop
 ERROR! MySQL server PID file could not be found!
[root@serv01 mnt]# pkill -9 mysql
[root@serv01 mnt]# ps -ef | grep mysqld | grep grep -v

[root@serv01 mnt]# cd /usr/local/mysql/data/
[root@serv01 data]# ll
total 0


第十九步,恢復數據,啟動數據庫,登錄MySQL,然後查看數據是否丟失

[root@serv01 data]# tar -xvf /databackup/mysql02.tar.gz

[root@serv01 data]# ls
mnt
[root@serv01 data]# cd mnt/
[root@serv01 mnt]# mv ./* ../

[root@serv01 mnt]# cd ..
[root@serv01 data]# ls
crm ib_logfile0 mysql  mysql-bin.000004 mysql-bin.000008 mysql-bin.000012 mysql-bin.000016 serv01.host.com.err
game ib_logfile1 mysql-bin.000001 mysql-bin.000005 mysql-bin.000009 mysql-bin.000013 mysql-bin.000017 serv01.host.com.pid
hello larrydb mysql-bin.000002 mysql-bin.000006 mysql-bin.000010 mysql-bin.000014 mysql-bin.index test
ibdata1 mnt  mysql-bin.000003 mysql-bin.000007 mysql-bin.000011 mysql-bin.000015 performance_schema

[root@serv01 data]# /etc/init.d/mysqld start
Starting MySQL SUCCESS!
[root@serv01 data]# mysql
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 1
Server version: 5.5.29-log Source distribution

Copyright (c) 2000, 2012, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql> use larrydb;
Database changed
mysql> select * from class;
+------+--------+
| cid | cname |
+------+--------+
| 1 | linux |
| 2 | oracle |
+------+--------+
2 rows in set (0.00 sec)

mysql> select * from stu;
+------+---------+------+
| sid | sname | cid |
+------+---------+------+
| 1 | larry01 | 1 |
| 2 | larry02 | 2 |
+------+---------+------+
2 rows in set (0.00 sec)

本文主要是在真實環境實現冷備份,保證數據的安全性,很有實用價值,有需要的朋友可以收藏起來。
