SQL SERVER中Key Hash Value的作用（上）

測試環境：SQLSERVER2005 開發者版

真的不好意思，我做實驗的時候到最後還是沒有找到這個問題的答案

問題是這樣的：

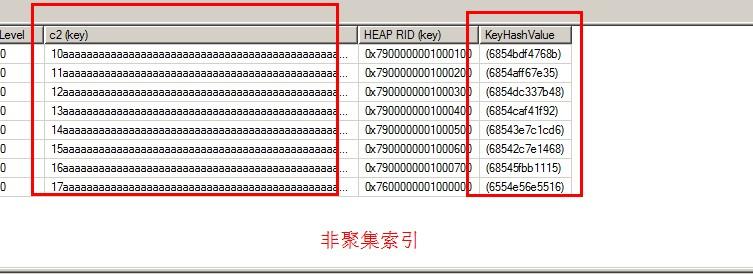

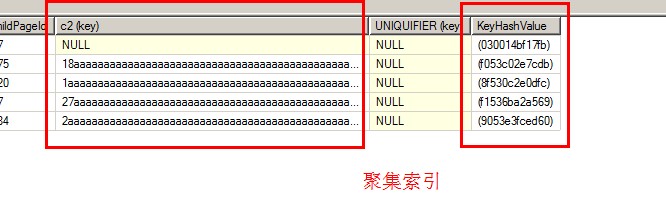

當通過聚集索引查找和非聚集索引查找的時候，通過哈希碼來匹配，然後找到相應記錄的

既然通過哈希碼來匹配，那麼就需要一個hash bucket把所有索引頁面的所有key/value全部加載到hash bucket

既然要全部加載到hash bucket就需要讀取所有的索引頁

我的測試腳本，我使用SET STATISTICS IO ON來測試是否有讀取索引頁的情況，但是到最後還是找不到規律

--sql在聚集索引下如何找到哈希值的隨想

USE master
GO
--新建數據庫IAMDB
CREATE DATABASE SCANDB
GO

USE SCANDB
GO



--DROP TABLE clusteredtable
--DROP TABLE nonclusteredtable


--建立測試表
CREATE TABLE clusteredtable(c1 INT IDENTITY(1,1), c2 VARCHAR (900))
GO
CREATE TABLE nonclusteredtable(c1 INT IDENTITY(1,1), c2 VARCHAR (900))
GO


--建立索引
CREATE CLUSTERED INDEX cix_clusteredtable ON clusteredtable([C2])
GO
CREATE  INDEX ix_nonclusteredtable ON nonclusteredtable([C2])
GO


--插入測試數據
DECLARE @a INT;
SELECT @a = 1;
WHILE (@a <= 100)
BEGIN
    INSERT INTO clusteredtable VALUES ( CAST(@a AS NVARCHAR(2))+replicate('a', 880))
    SELECT @a = @a + 1
END


DECLARE @a INT;
SELECT @a = 1;
WHILE (@a <= 100)
BEGIN
    INSERT INTO nonclusteredtable VALUES ( CAST(@a AS NVARCHAR(2))+replicate('a', 880))
    SELECT @a = @a + 1
END




--查詢數據
SELECT * FROM clusteredtable  ORDER BY [c1] ASC
SELECT * FROM nonclusteredtable  ORDER BY [c1] ASC


CREATE TABLE DBCCResult (
PageFID NVARCHAR(200),
PagePID NVARCHAR(200),
IAMFID NVARCHAR(200),
IAMPID NVARCHAR(200),
ObjectID NVARCHAR(200),
IndexID NVARCHAR(200),
PartitionNumber NVARCHAR(200),
PartitionID NVARCHAR(200),
iam_chain_type NVARCHAR(200),
PageType NVARCHAR(200),
IndexLevel NVARCHAR(200),
NextPageFID NVARCHAR(200),
NextPagePID NVARCHAR(200),
PrevPageFID NVARCHAR(200),
PrevPagePID NVARCHAR(200)
)

TRUNCATE TABLE [dbo].[DBCCResult]

INSERT INTO DBCCResult EXEC ('DBCC IND(SCANDB,nonclusteredtable,-1) ')

SELECT * FROM [dbo].[DBCCResult] ORDER BY [PageType] DESC

DBCC TRACEON(3604,-1)
GO
DBCC PAGE(SCANDB,1,89,3)
GO

checkpoint
DBCC DROPCLEANBUFFERS
DBCC freesystemcache('all')
GO
-----------------------------------
SET STATISTICS IO ON
GO
--聚集索引查找
SELECT * FROM clusteredtable WHERE [c2]='18aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa'
SET STATISTICS IO OFF
GO



(1 行受影響)
表 'clusteredtable'。掃描計數 1，邏輯讀取 4 次，物理讀取 2 次，預讀 0 次，lob 邏輯讀取 0 次，lob 物理讀取 0 次，lob 預讀 0 次。




----------------------------------------------------------------------------------------
checkpoint
DBCC DROPCLEANBUFFERS
DBCC freesystemcache('all')
GO
-----------------------------------
SET STATISTICS IO ON
GO
--索引查找  、RID查找 、嵌套循環
SELECT * FROM nonclusteredtable WHERE [c2]='17aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa'
SET STATISTICS IO OFF
GO



(1 行受影響)
表 'nonclusteredtable'。掃描計數 1，邏輯讀取 5 次，物理讀取 1 次，預讀 0 次，lob 邏輯讀取 0 次，lob 物理讀取 0 次，lob 預讀 0 次。
