.Net語言Smobiler開發利用Gridview控件設計較復雜的表單

最前面的話：Smobiler是一個在VS環境中使用.Net語言來開發APP的開發平台，也許比Xamarin更方便。

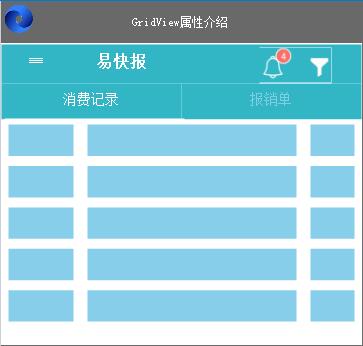

一、目標樣式

我們要實現上圖中的效果，需要如下的操作：

1.從工具欄上的”Smobiler Components”拖動一個GridView控件到窗體界面上

2.修改GridView控件的屬性

a.load事件代碼
 VB：

  Private Sub TestGridView3_Load(senderAs Object, e As EventArgs)Handles MyBase.Load
    Dim matTable As New DataTable
    With matTable
    .Columns.Add("MAT_IMG", GetType(String))
    .Columns.Add("MAT_DESC1", GetType(String))
    .Columns.Add("MAT_DESC2", GetType(String))
    .Columns.Add("MAT_DESC3", GetType(String))
    .Rows.Add()
    .Rows(0)("MAT_IMG") = "img97"
    .Rows(0)("MAT_DESC1") = "￥69.00"
    .Rows(0)("MAT_DESC2") = "2015/07/08"
    .Rows(0)("MAT_DESC3") = "1張發票"
    .Rows.Add()
    .Rows(1)("MAT_IMG") = "img96"
    .Rows(1)("MAT_DESC1") = "￥39.00"
    .Rows(1)("MAT_DESC2") = "2015/07/08"
    .Rows(1)("MAT_DESC3") = "1張發票"
    .Rows.Add()
    .Rows(2)("MAT_IMG") = "img95"
    .Rows(2)("MAT_DESC1") = "￥280.00"
    .Rows(2)("MAT_DESC2") = "2015/07/08"
    .Rows(2)("MAT_DESC3") = "1張發票"
    End With
    Me.GridView1.DataSource = matTable
    Me.GridView1.DataBind()
  End Sub C#：
  private void TestGridView3_Load(object sender, EventArgs e)
  {
    DataTable matTable = new DataTable();
    matTable.Columns.Add("MAT_IMG", typeof(string));
    matTable.Columns.Add("MAT_DESC1", typeof(string));
    matTable.Columns.Add("MAT_DESC2", typeof(string));
    matTable.Columns.Add("MAT_DESC3", typeof(string));
    matTable.Rows.Add();
    matTable.Rows[0]["MAT_IMG"] = "img97";
    matTable.Rows[0]["MAT_DESC1"] = "￥69.00";
    matTable.Rows[0]["MAT_DESC2"] = "2015/07/08";
    matTable.Rows[0]["MAT_DESC3"] = "1張發票";
    matTable.Rows.Add();
    matTable.Rows[1]["MAT_IMG"] = "img96";
    matTable.Rows[1]["MAT_DESC1"] = "￥39.00";
    matTable.Rows[1]["MAT_DESC2"] = "2015/07/08";
    matTable.Rows[1]["MAT_DESC3"] = "1張發票";
    matTable.Rows.Add();
    matTable.Rows[2]["MAT_IMG"] = "img95";
    matTable.Rows[2]["MAT_DESC1"] = "￥280.00";
    matTable.Rows[2]["MAT_DESC2"] = "2015/07/08";
    matTable.Rows[2]["MAT_DESC3"] = "1張發票";
    this.GridView1.DataSource = matTable;
    this.GridView1.DataBind();
  }

b.Layout屬性

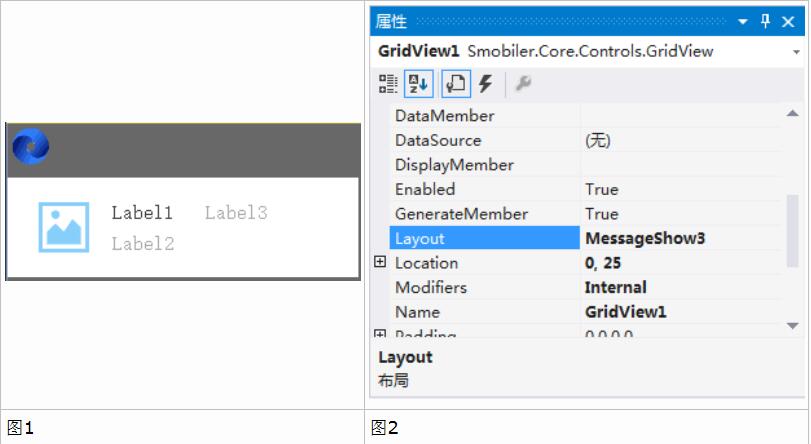

新創建MobileForm項，並命名為MessageShow3，並拖入一個Label控件，如圖1

GridView的Layout屬性，綁定新建的窗體MessageShow3，如圖2

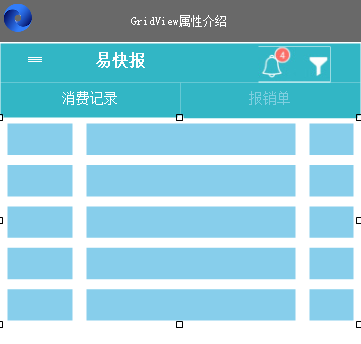

3.Smobiler窗體設計界面顯示效果

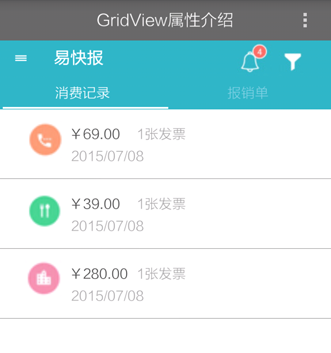

二、手機效果顯示

以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持腳本之家。
