在上一篇文章演示了並行的流水線操作（生產者和消費者並行同時執行），C#是通過BlockingCollection這個線程安全的對象作為Buffer，並且結合Task來實現的。但是上一篇文章有個缺陷，在整個流水線上，生產者和消費者是唯一的。本文將演示多個消費者多個生產者同時並行執行。

一、多消費者、多生產者示意圖

 與前一篇文章演示的流水線思想類似，不同之處就是本文的topic：消費者和生產者有多個，以buffer1為例，起生產者有兩個，消費者有兩個，現在有三個緯度的並行：

二、實現

2.1 代碼

 class PiplelineDemo
    {
        private int seed;
        public PiplelineDemo()
        {
            seed = 10;
        }

        public void Action11(BlockingCollection<string> output)
        {
            for (var i = 0; i < seed; i++)
            {
                output.Add(i.ToString());//initialize data to buffer1
            }
        }

        public void Action12(BlockingCollection<string> output)
        {
            for (var i = 0; i < seed; i++)
            {
                output.Add(i.ToString());//initialize data to buffer1
            }
        }

        public void Action21(BlockingCollection<string> input, BlockingCollection<string> output)
        {
            foreach (var item in input.GetConsumingEnumerable())
            {
                var itemToInt = int.Parse(item);
                output.Add((itemToInt * itemToInt).ToString());// add new data to buffer2
            }
        }

        public void Action22(BlockingCollection<string> input, BlockingCollection<string> output)
        {
            foreach (var item in input.GetConsumingEnumerable())
            {
                var itemToInt = int.Parse(item);
                output.Add((itemToInt * itemToInt).ToString());// add new data to buffer2
            }
        }

        public void Action31(BlockingCollection<string> input, BlockingCollection<string> output)
        {
            foreach (var item in input.GetConsumingEnumerable())
            {
                output.Add((item));// add new data to buffer3
            }
        }

        public void Action32(BlockingCollection<string> input, BlockingCollection<string> output)
        {
            foreach (var item in input.GetConsumingEnumerable())
            {
                output.Add((item));// add new data to buffer3
            }
        }
        public void Pipeline()
        {
            var buffer1 = new BlockingCollection<string>(seed * 2);
            var buffer2 = new BlockingCollection<string>(seed * 2);
            var buffer3 = new BlockingCollection<string>(seed * 2);
            var taskFactory = new TaskFactory(TaskCreationOptions.LongRunning, TaskContinuationOptions.None);
            var stage11 = taskFactory.StartNew(() => Action11(buffer1));
            var stage12 = taskFactory.StartNew(() => Action12(buffer1));
            Task.Factory.ContinueWhenAll(new Task[] { stage11, stage12 }, (tasks) =>
            {
                buffer1.CompleteAdding();
            });
            var stage21 = taskFactory.StartNew(() => Action21(buffer1, buffer2));
            var stage22 = taskFactory.StartNew(() => Action22(buffer1, buffer2));
            Task.Factory.ContinueWhenAll(new Task[] { stage21, stage22 }, (tasks) =>
            {
                buffer2.CompleteAdding();
            });
            var stage31 = taskFactory.StartNew(() => Action31(buffer2, buffer3));
            var stage32 = taskFactory.StartNew(() => Action32(buffer2, buffer3));
            Task.Factory.ContinueWhenAll(new Task[] { stage31, stage32 }, (tasks) =>
            {
                buffer3.CompleteAdding();
            });
            Task.WaitAll(stage11, stage12, stage21, stage22, stage31, stage32);
            foreach (var item in buffer3.GetConsumingEnumerable())//print data in buffer3
            {
                Console.WriteLine(item);
            }
        }
    }

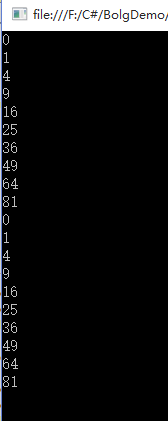

2.2 運行結果

2.3 代碼解釋
