前言:
需要解壓InfoPath表單的xsn文件,在項目中以前使用的是Expand命令行解壓,都沒有出過問題,近段時間項目中突然報錯解壓失敗,通過分析解壓操作得出結論:
1.正常正常情況下,expand命令行解壓沒有任何問題,同一個站點,相同的請求,隨機出現解壓失敗的錯誤。而且最容易復現的情況為:高頻率刷新頁面。
2.監視解壓的目標目錄,解壓失敗的時候,目錄沒有任何變化。而解壓成功時,目錄監視則正常。
然後將expand命令放到bat文件中,在bat文件中,執行expand命令之前,先執行 “md” 命令創建隨機目錄,C#代碼代碼執行bat命令,發現在解壓失敗的時候,bat命令即使執行完成,目錄監視也沒有發現md命令創建的目錄。只能猜測C#在執行命令行的時候,某些情況下會存在不同步的情況。
也沒有時間專門去研究這個同步的問題,項目中有使用C#調用COM組件的地方,然後去網上搜了一下COM組件解壓的cab文件的資料,發現使用shell32進行解壓則沒有問題。只是需要注意添加Shell32引用的方式:
1.添加“Microsoft Shell Controls And Automation” 引用,如下圖所示:

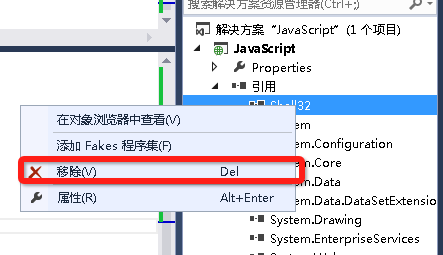

2.生成項目,在bin目錄下會生成“Interop.Shell32.dll”程序集,拷貝到其他目錄,然後移除對Sell32的引用:

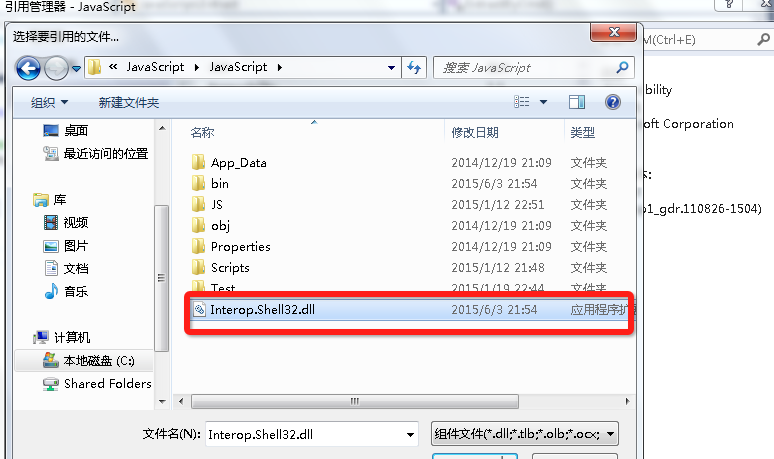

3.添加對“Interop.Shell32.dll”程序集的引用,然後效果如下圖所示:

至於為什麼要進行上述操作,是因為:直接添加對“Microsoft Shell...”的引用,代碼生成之後在其他系統可能無法正常調用,如Win 2003 生成的無法在win2007上使用,但是通過上述方式引用之後,則可以了了。這樣就可以正常使用Shell進行操作了。進行Shell操作的資料可以參考:http://www.fluxbytes.com/csharp/unzipping-files-using-shell32-in-c/
最終代碼整理如下:代碼中也包括cmd命令行的方式,在此供參考。
代碼:
public partial class Extract : System.Web.UI.Page
{
/// <summary>
/// 要解壓的文件名稱
/// </summary>
private String XSNFileName = @"infopath.xsn";
/// <summary>
/// 解壓到.... 的目標路徑
/// </summary>
private String TargetDirectory = @"C:\xsn";
/// <summary>
/// cab文件名稱
/// </summary>
private String CabFileName = "cab.cab";
protected void Page_Load(object sender, EventArgs e)
{
//使用cmd命令解壓
this.ExtractByCmd();
//使用shell32進行解壓
this.ExtractByShell();
}
#region cmd命令解壓
/// <summary>
/// 使用cmd命令進行解壓
/// </summary>
private void ExtractByCmd()
{
//使用cmd命令:expand sourcefile targetDir -F:*
// 上面的命令得注意:目標目錄不能是sourceFile的目錄。
System.Text.StringBuilder sbString = new System.Text.StringBuilder();
String tempDir = Guid.NewGuid().ToString();
System.IO.Directory.CreateDirectory(System.IO.Path.Combine(this.TargetDirectory, tempDir));
String cmdString = String.Format("\"{0}\" \"{1}\" -F:*", this.XSNFileName,tempDir);
using (Process process = new Process())
{
process.StartInfo.FileName = "expand";
process.StartInfo.WorkingDirectory = this.TargetDirectory;
process.StartInfo.Arguments = cmdString;
process.StartInfo.RedirectStandardInput = true;
process.StartInfo.RedirectStandardOutput = true;
process.StartInfo.RedirectStandardError = true;
process.StartInfo.UseShellExecute = false;
process.Start();
process.WaitForExit();
//this.Response.Write(process.StandardOutput.ReadToEnd());
}
System.IO.DirectoryInfo tempDirectory = new System.IO.DirectoryInfo(System.IO.Path.Combine(this.TargetDirectory, tempDir));
sbString.Append("使用CMD命令進行解壓:已經解壓的文件:<br />");
foreach (var item in tempDirectory.GetFiles())
sbString.AppendFormat("{0} <br />", item.Name);
this.Response.Write(sbString.ToString());
}
#endregion
#region 使用shell解壓
/// <summary>
/// 使用Shell解壓
/// </summary>
private void ExtractByShell()
{
//shell能解壓zip和cab文件,xsn文件是cab格式文件,但是需要注意直接使用後綴xsn解壓會失敗。此時需要重命名為cab即可
//shell是支持要解壓的文件和目標目錄相同。
//1.重命名
String tempString=Path.Combine(this.TargetDirectory,this.CabFileName);
if (File.Exists(tempString)) File.Delete(tempString);
new FileInfo(Path.Combine(this.TargetDirectory, this.XSNFileName)).CopyTo(tempString);
//2.解壓
Shell32.ShellClass shellClass = new Shell32.ShellClass();
Shell32.Folder sourceFoloder = shellClass.NameSpace(Path.Combine(this.TargetDirectory, this.CabFileName));
tempString = Path.Combine(this.TargetDirectory, Guid.NewGuid().ToString());
Directory.CreateDirectory(tempString);
Shell32.Folder targetDir = shellClass.NameSpace(tempString);
foreach (var item in sourceFoloder.Items())
targetDir.CopyHere(item, 4);
//各個參數的含義,參照:http://www.fluxbytes.com/csharp/unzipping-files-using-shell32-in-c/
DirectoryInfo tempDire = new DirectoryInfo(tempString);
System.Text.StringBuilder sbString = new System.Text.StringBuilder();
sbString.Append("<br /><br /><hr />使用Shell32進行解壓。已經解壓的文件:<br />");
foreach (var item in tempDire.GetFiles())
sbString.AppendFormat("{0} <br />", item.Name);
this.Response.Write(sbString.ToString());
}
#endregion
}
最終測試結果如下:
使用CMD命令進行解壓:已經解壓的文件: manifest.xsf sampledata.xml schema.xsd template.xml view1.xsl 使用Shell32進行解壓。已經解壓的文件: manifest.xsf sampledata.xml schema.xsd template.xml view1.xsl
在出問題的項目服務器上,使用shell32的方式進行xsn文件解壓,測試後發現沒有任何問題,即使高頻率重復刷新。
以上只是項目中遇到的實際情況闡述,並不一定是最好的解決方案,如果大家更好的方案,請留言。
