再學 GDI+[54]: 路徑 - Transform

編輯:Delphi

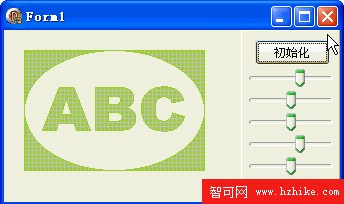

本例效果圖:

再學 GDI+[54]: 路徑 - Transform

  代碼文件:unit Unit1;
interface
uses
 Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,
 Dialogs, ComCtrls, StdCtrls, ExtCtrls;
type
 TForm1 = class(TForm)
  Panel1: TPanel;
  Button1: TButton;
  TrackBar1: TTrackBar;
  TrackBar2: TTrackBar;
  TrackBar3: TTrackBar;
  TrackBar4: TTrackBar;
  TrackBar5: TTrackBar;
  TrackBar6: TTrackBar;
  PaintBox1: TPaintBox;
  procedure FormCreate(Sender: TObject);
  procedure TrackBar1Change(Sender: TObject);
  procedure TrackBar2Change(Sender: TObject);
  procedure TrackBar3Change(Sender: TObject);
  procedure TrackBar4Change(Sender: TObject);
  procedure TrackBar5Change(Sender: TObject);
  procedure TrackBar6Change(Sender: TObject);
  procedure PaintBox1Paint(Sender: TObject);
 end;
var
 Form1: TForm1;
implementation
{$R *.dfm}
uses GDIPOBJ, GDIPAPI;
procedure TForm1.FormCreate(Sender: TObject);
const
 n = 40;
begin
 TrackBar1.Min := -n;
 TrackBar1.Max := n;
 TrackBar2.Min := -n;
 TrackBar2.Max := n;
 TrackBar3.Min := -n;
 TrackBar3.Max := n;
 TrackBar4.Min := -n;
 TrackBar4.Max := n;
 TrackBar5.Min := -n;
 TrackBar5.Max := n;
 TrackBar6.Min := -n;
 TrackBar6.Max := n;
 TrackBar1.Position := 10;
 TrackBar2.Position := 0;
 TrackBar3.Position := 0;
 TrackBar4.Position := 10;
 TrackBar5.Position := 0;
 TrackBar6.Position := 0;
 Button1.OnClick := FormCreate;
end;
procedure TForm1.PaintBox1Paint(Sender: TObject);
var
 g: TGPGraphics;
 p: TGPPen;
 b: TGPBrush;
 path: TGPGraphicsPath;
 matrix: TGPMatrix;
 fontFamily: TGPFontFamily;
 StringFormat: TGPStringFormat;
 rect: TGPRect;
begin
 rect := MakeRect(20, 20, 180, 120);
 g := TGPGraphics.Create(PaintBox1.Canvas.Handle);
 p := TGPPen.Create(aclYellowGreen, 1);
 b := TGPHatchBrush.Create(HatchStyleSmallGrid, aclSilver, aclYellowGreen);
 fontFamily := TGPFontFamily.Create('Arial Black');
 StringFormat := TGPStringFormat.Create;
 StringFormat.SetAlignment(StringAlignmentCenter);
 StringFormat.SetLineAlignment(StringAlignmentCenter);
 path := TGPGraphicsPath.Create;
 path.AddRectangle(rect);
 path.AddEllipse(rect);
 path.AddString('ABC', -1, fontFamily, FontStyleRegular, 60, rect, StringFormat);
 matrix := TGPMatrix.Create;
 matrix.SetElements(TrackBar1.Position / 10,
           TrackBar2.Position / 10,
           TrackBar3.Position / 10,
           TrackBar4.Position / 10,
           TrackBar5.Position * 10,
           TrackBar6.Position * 10);
 path.Transform(matrix);
 g.FillPath(b, path);
 g.DrawPath(p, path);
 path.Free;
 StringFormat.Free;
 fontFamily.Free;
 b.Free;
 p.Free;
 g.Free;
end;
procedure TForm1.TrackBar1Change(Sender: TObject);
begin
 PaintBox1.Repaint;
end;
procedure TForm1.TrackBar2Change(Sender: TObject);
begin
 PaintBox1.Repaint;
end;
procedure TForm1.TrackBar3Change(Sender: TObject);
begin
 PaintBox1.Repaint;
end;
procedure TForm1.TrackBar4Change(Sender: TObject);
begin
 PaintBox1.Repaint;
end;
procedure TForm1.TrackBar5Change(Sender: TObject);
begin
 PaintBox1.Repaint;
end;
procedure TForm1.TrackBar6Change(Sender: TObject);
begin
 PaintBox1.Repaint;
end;
end.
窗體文件:object Form1: TForm1
 Left = 0
 Top = 0
 Caption = 'Form1'
 ClIEntHeight = 172
 ClIEntWidth = 336
 Color = clBtnFace
 Font.Charset = DEFAULT_CHARSET
 Font.Color = clWindowText
 Font.Height = -11
 Font.Name = 'Tahoma'
 Font.Style = []
 OldCreateOrder = False
 Position = poDesktopCenter
 OnCreate = FormCreate
 PixelsPerInch = 96
 TextHeight = 13
 object PaintBox1: TPaintBox
  Left = 0
  Top = 0
  Width = 237
  Height = 172
  Align = alClIEnt
  OnPaint = PaintBox1Paint
  ExplicitLeft = 120
  ExplicitTop = 48
  ExplicitWidth = 105
  ExplicitHeight = 105
 end
 object Panel1: TPanel
  Left = 237
  Top = 0
  Width = 99
  Height = 172
  Align = alRight
  TabOrder = 0
  ExplicitLeft = 225
  ExplicitHeight = 170
  object Button1: TButton
   Left = 14
   Top = 10
   Width = 75
   Height = 25
   Caption = #21021#22987#21270
   TabOrder = 0
  end
  object TrackBar1: TTrackBar
   Left = 0
   Top = 37
   Width = 100
   Height = 20
   ShowSelRange = False
   TabOrder = 1
   OnChange = TrackBar1Change
  end
  object TrackBar2: TTrackBar
   Left = 0
   Top = 59
   Width = 100
   Height = 20
   ShowSelRange = False
   TabOrder = 2
   OnChange = TrackBar2Change
  end
  object TrackBar3: TTrackBar
   Left = 0
   Top = 81
   Width = 100
   Height = 20
   ShowSelRange = False
   TabOrder = 3
   OnChange = TrackBar3Change
  end
  object TrackBar4: TTrackBar
   Left = 0
   Top = 103
   Width = 100
   Height = 20
   ShowSelRange = False
   TabOrder = 4
   OnChange = TrackBar4Change
  end
  object TrackBar5: TTrackBar
   Left = 0
   Top = 125
   Width = 100
   Height = 20
   ShowSelRange = False
   TabOrder = 5
   OnChange = TrackBar5Change
  end
  object TrackBar6: TTrackBar
   Left = 0
   Top = 147
   Width = 100
   Height = 20
   ShowSelRange = False
   TabOrder = 6
   OnChange = TrackBar6Change
  end
 end
end
