再學 GDI+[49]: 路徑 - GetPointCount、GetPathPoints、GetLastPoint、GetBounds

編輯:Delphi

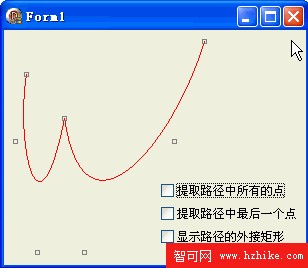

本例效果圖:

再學 GDI+[49]: 路徑 - GetPointCount、GetPathPoints、GetLastPoint、GetBounds

  代碼文件:unit Unit1;
interface
uses
 Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,
 Dialogs, StdCtrls;
type
 TForm1 = class(TForm)
  CheckBox1: TCheckBox;
  CheckBox2: TCheckBox;
  CheckBox3: TCheckBox;
  procedure FormCreate(Sender: TObject);
  procedure FormPaint(Sender: TObject);
  procedure CheckBox1Click(Sender: TObject);
  procedure CheckBox2Click(Sender: TObject);
  procedure CheckBox3Click(Sender: TObject);
 end;
var
 Form1: TForm1;
implementation
{$R *.dfm}
uses GDIPOBJ, GDIPAPI;
procedure TForm1.FormCreate(Sender: TObject);
begin
 CheckBox1.Caption := '提取路徑中所有的點';
 CheckBox2.Caption := '提取路徑中最後一個點';
 CheckBox3.Caption := '顯示路徑的外接矩形';
end;
procedure TForm1.FormPaint(Sender: TObject);
var
 g: TGPGraphics;
 path: TGPGraphicsPath;
 p: TGPPen;
 b: TGPBrush;
 pts: array[0..6] of TGPPoint;
 ptf: TGPPointF;
 PPTs: array of TGPPoint;
 rect: TGPRect;
 i: Integer;
begin
 {給 BezIEr 線准備的點, 用於建立路徑}
 pts[0].X := 22; pts[0].Y := 44;
 pts[1].X := 11; pts[1].Y := 111;
 pts[2].X := 33; pts[2].Y := 222;
 pts[3].X := 60; pts[3].Y := 88;
 pts[4].X := 80; pts[4].Y := 222;
 pts[5].X := 170; pts[5].Y := 111;
 pts[6].X := 200; pts[6].Y := 11;
 g := TGPGraphics.Create(Canvas.Handle);
 {建立路徑, 並給路徑添加兩條 BezIEr 線}
 path := TGPGraphicsPath.Create;
 path.AddBezIErs(PGPPoint(@pts), Length(pts));
 {繪制路徑}
 p := TGPPen.Create(aclRed);
 g.DrawPath(p, path);
 {虛畫原始數據點}
 p.SetColor(aclGray);
 for i := 0 to Length(pts)-1 do
  g.DrawRectangle(p, MakeRect(pts[i].X-2, pts[i].Y-2, 4, 4));
 {提取路徑中所有的點}
 b := TGPSolidBrush.Create(aclBlue);
 if CheckBox1.Checked then
 begin
  SetLength(PPTs, path.GetPointCount);
  path.GetPathPoints(PGPPoint(PPTs), Length(pts));
  for i := 0 to Length(PPTs)-1 do
   g.FillRectangle(b, MakeRect(ppts[i].X-3, PPTs[i].Y-3, 6, 6));
 end;
 {可以專門獲取最後一個點}
 TGPSolidBrush(b).SetColor(aclRed);
 if CheckBox2.Checked then
 begin
  path.GetLastPoint(ptf);
  g.FillRectangle(b, MakeRect(ptf.X-3, ptf.Y-3, 6, 6));
 end;
 {路徑的外接矩形}
 if CheckBox3.Checked then
 begin
  path.GetBounds(rect);
  g.DrawRectangle(p, rect);
 end;
 b.Free;
 p.Free;
 path.Free;
 g.Free;
end;
procedure TForm1.CheckBox1Click(Sender: TObject);
begin
 Repaint;
end;
procedure TForm1.CheckBox2Click(Sender: TObject);
begin
 Repaint;
end;
procedure TForm1.CheckBox3Click(Sender: TObject);
begin
 Repaint;
end;
end.
窗體文件:object Form1: TForm1
 Left = 0
 Top = 0
 Caption = 'Form1'
 ClIEntHeight = 235
 ClIEntWidth = 302
 Color = clBtnFace
 Font.Charset = DEFAULT_CHARSET
 Font.Color = clWindowText
 Font.Height = -11
 Font.Name = 'Tahoma'
 Font.Style = []
 OldCreateOrder = False
 Position = poDesktopCenter
 OnCreate = FormCreate
 OnPaint = FormPaint
 PixelsPerInch = 96
 TextHeight = 13
 object CheckBox1: TCheckBox
  Left = 157
  Top = 152
  Width = 124
  Height = 17
  Caption = 'CheckBox1'
  TabOrder = 0
  OnClick = CheckBox1Click
 end
 object CheckBox2: TCheckBox
  Left = 157
  Top = 175
  Width = 137
  Height = 17
  Caption = 'CheckBox2'
  TabOrder = 1
  OnClick = CheckBox2Click
 end
 object CheckBox3: TCheckBox
  Left = 157
  Top = 198
  Width = 137
  Height = 17
  Caption = 'CheckBox3'
  TabOrder = 2
  OnClick = CheckBox3Click
 end
end
