Java的ReadWriteLock實現機制解析(1)

如果接觸過多線程編程或者大規模並發應用的開發的人都應該知道Readers-writer lock的設計模式，從英文字面上看就是對於資源允許多個Reader(復數)並發讀，單個Writer寫的鎖機制，而Reader和Writer互斥。

現在的JDK裡有一個ReadWriteLock的接口和一個ReentrantReadWriteLock的實現類，而其作者是赫赫有名的Doug Lea大牛(他有本 Concurrent Programming in Java Design Principles and Pattern ,推薦一下) 。早在JDK 1.4的時代，他就發表了自己的cocurrent包實現，其中就有多個ReadWriteLock的實現。下面會先聊一下早期Doug Lea在EDU.oswego.cs.dl.util.concurrent版本中對ReadWriteLock的實現，最後再說JDK版本的。

1.EDU.oswego.cs.dl.util.concurrent的實現

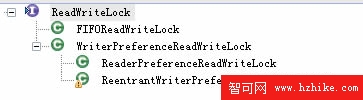

Doug Lea的這個版本：EDU.oswego.cs.dl.util.concurrent包中ReadWriteLock所包含的內容比JDK要豐富不少，除了ReentrantReadWriteLock還有若干個其他實現。先看一下ReadWriteLock在其中的類繼承關系。源代碼下載

這其中包含了4個ReadWriteLock，包括先進先出的FIFOReadWriteLock ，Writer優先的WriterPreferenceReadWriteLock ，Reader優先的ReaderPreferenceReadWriteLock ，可重入ReentrantWriterPreferenceReadWriteLock 。

1.1 EDU.oswego.cs.dl.util.concurrent.ReadWriteLock接口

Java代碼

public interface ReadWriteLock {
  /** get the readLock **/
  Sync readLock();

  /** get the writeLock **/
  Sync writeLock();
}

ReadWriteLock的接口定義和後來JDK的實現基本一致。readLock和writeLock都實現Sync接口，這個接口兩個主要的方法是acquire和realse，在以後的JDK中，變成了Lock的lock方法和unlock方法。

1.2 WriterPreferenceReadWriteLock類

這個類包含了WriterLock類型的writerLock_和ReaderLock類型的readerLock_兩個成員，而這兩個類型又分別為WriterPreferenceReadWriteLock的內部類，這樣做的一個考慮可能是為了能夠讓這兩個類能夠訪問WriterPreferenceReadWriteLock的成員以及互相訪問。

先看看WriterPreferenceReadWriteLock中ReaderLock的實現

該類的幾個成員以及解釋如下

Java代碼

/*用來給Writer判斷是否可以拿到write控制權*/
protected long activeReaders_ = 0;
/*當前writer線程*/
protected Thread activeWriter_ = null;
/*可以用來作為策略調整，此版本中沒有太多作用*/
protected long waitingReaders_ = 0;
/*等待中的寫，用來給Reader判斷是否還有Writer在等待，以便實現Writer優先*/
protected long waitingWriters_ = 0;

/*實際的ReaderLock*/
protected final ReaderLock readerLock_ = new ReaderLock();
/*實際的WriterLock*/
protected final WriterLock writerLock_ = new WriterLock();

先來看看 ReaderLock，它的兩個主要方法acquire和release

其中acquire的代碼如下

Java代碼

public void acquire() throws InterruptedException {
    if (Thread.interrupted())
        throw new InterruptedException();
    InterruptedException IE = null;
    synchronized (this) {
        /**
         * 判斷是否能夠獲得讀權
         */
        if (!startReadFromNewReader()) {
            for (;;) {
                try {
                    /**
                     * 等待notify
                     */
                    ReaderLock.this.wait();
                    /**
                     * 再次判斷能否獲得讀權
                     * 因為此處是Writer優先，當一個writer釋放時，
                     * reader還必須等待其他wait的writer獲得控制權並釋放後才能獲得控制權
                     */
                    if (startReadFromWaitingReader())
                        return;
                } catch (InterruptedException ex) {
                    cancelledWaitingReader();
                    IE = ex;
                    break;
                }
            }
        }
    }
    if (IE != null) {
        // fall through outside synch on interrupt.
        // This notification is not really needed here,
        // but may be in plausible subclasses
        writerLock_.signalWaiters();
        throw IE;
    }
}

acquire調用startReadFromNewReader，startReadFromWaitingReader，以及allowReader方法，這三個方法都屬於WriterPreferenceReadWriteLock類

Java代碼

protected synchronized boolean startReadFromNewReader() {
    boolean pass = startRead();
    if (!pass)
        ++waitingReaders_;
    return pass;
}


protected synchronized boolean startReadFromWaitingReader() {
    boolean pass = startRead();
    if (pass)
        --waitingReaders_;
    return pass;
}



protected boolean allowReader() {
    //通過是否有正有控制權的activeWriter_和等待中的waitingWriters_來判斷是Reader是否能獲得控制權
    return activeWriter_ == null && waitingWriters_ == 0;
}


protected synchronized boolean startRead() {
    boolean allowRead = allowReader();
    if (allowRead)
        ++activeReaders_;
    return allowRead;
}

另外release的代碼如下

Java代碼

public void release() {
    Signaller s = endRead();
    if (s != null)
        s.signalWaiters();
}


protected synchronized Signaller endRead() {
    //只有當沒有Reader在控制以及有等待的Writer的時候才返回
    //因為Reader之間沒有互斥，所以返回writerLock
    if (--activeReaders_ == 0 && waitingWriters_ > 0)
        return writerLock_;
    else
        return null;
}

這裡要注意的是endRead返回的是writerLock，這樣他就可以完成notify和它互斥的writer

下面看一下WriterLock的實現，同樣也是acquire和release方法

先看acquire

Java代碼

public void acquire() throws InterruptedException {
    if (Thread.interrupted())
        throw new InterruptedException();
    InterruptedException IE = null;
    synchronized (this) {
        //試圖獲得writer權
        if (!startWriteFromNewWriter()) {
            for (;;) {
                try {

                    WriterLock.this.wait();
                    /**
                     * 重新判斷是否能獲得控制權
                     * 這時如果是writerLock的notify的話，理論上只有一個reader或者writer能夠結束等待
                     * 如果是readerLock的notify的話，因為調用的是notifyAll，所以就必須重新競爭控制權
                     */
                    if (startWriteFromWaitingWriter())
                        return;
                } catch (InterruptedException ex) {
                    cancelledWaitingWriter();
                    WriterLock.this.notify();
                    IE = ex;
                    break;
                }
            }
        }
    }
    if (IE != null) {
        // Fall through outside synch on interrupt.
        // On exception, we may need to signal readers.
        // It is not worth checking here whether it is strictly
        // necessary.
        readerLock_.signalWaiters();
        throw IE;
    }
}

再看acquire調用的startWriteFromNewWriter，startWriteFromWaitingWriter和startWrite

Java代碼

protected synchronized boolean startWriteFromNewWriter() {
    boolean pass = startWrite();
    //如果不能獲得控制權，則等待數+1
    if (!pass)
        ++waitingWriters_;
    return pass;
}


protected synchronized boolean startWrite() {

    // The allowWrite expression cannot be modifIEd without
    // also changing startWrite, so is hard-wired
    //是否能獲得寫控制取決與是否已經有人有控制權（包括讀和寫)
    boolean allowWrite = (activeWriter_ == null && activeReaders_ == 0);
    if (allowWrite)
        activeWriter_ = Thread.currentThread();
    return allowWrite;
}


protected synchronized boolean startWriteFromWaitingWriter() {
    boolean pass = startWrite();
    //如果能獲得控制權，則等待數-1
    if (pass)
        --waitingWriters_;
    return pass;
}

再來看看WriterLock的release實現

Java代碼

public void release() {
    Signaller s = endWrite();
    if (s != null)
        //如果沒有write的waiter，返回的的是readerLock_，則通知所有waiting的reader結束等待
        //如果有write的waiter，返回的的是writeLock，則通知一個正在等待的writer獲得控制權
        s.signalWaiters();
}


protected synchronized Signaller endWrite() {
    activeWriter_ = null;
    //如果沒有writer，則通知所有的等待的reader
    if (waitingReaders_ > 0 && allowReader())
        return readerLock_;
    //優先通知一個等待的writer
    else if (waitingWriters_ > 0)
        return writerLock_;
    else
        return null;
}

最後看看WriterLock和ReaderLock如何實現Writer優先

* 首先在競爭控制權時，Reader在競爭控制權必須確認既沒有占用控制權的Writer也沒有等待控制權的writer

這裡是調用的是allowRead方法

activeWriter_ == null && waitingWriters_ == 0;

* 其次在WriterLock的release方法裡，調用endWrite，然後也會調用allowReader，確認沒有等待的Writer才會返回readerLock_，並在signalWaiters裡調用notifyAll通知所有的等待reader結束等待。而一旦有writer等待，則調用writerLock_，只通知等待的writer競爭控制權。具體代碼見上文。

* 同時在ReaderLock的release方法裡，調用endRead，返回writerLock_，通知等待的writer競爭控制權。具體代碼見上文。

到此為止WriterPreferenceReadWriteLock的實現基本說完，這個版本的實現下載見http://gee.cs.oswego.edu/dl/classes/EDU/oswego/cs/dl/util/concurrent/intro.Html
