JSF Struts Spring Hibernate整合

編輯：關於JAVA

JSF1.1+Struts2.1+Spring2.0+Hibernate3.1

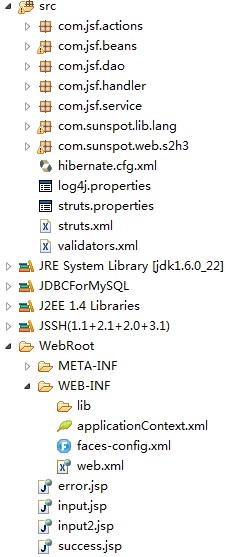

圖示：

JSF1.1 Jar包：

MyFaces1.1 Jar包：

Struts2.1 Jar包：

Spring2.0 Jar包：

Hibernate3.1 Jar包：

官方下載的Hibernate3.1文件夾lib下的全部Jar包

其他必須包：

web.xml 配置：

<!-- JSF Configuration -->
    <servlet>
        <servlet-name>FacesServlet</servlet-name>
        <servlet-class>javax.faces.webapp.FacesServlet</servlet-class>
        <load-on-startup>0</load-on-startup>
    </servlet>

    <servlet-mapping>
        <servlet-name>FacesServlet</servlet-name>
        <url-pattern>*.jsf</url-pattern>
    </servlet-mapping>

    <!-- Struts2 Configuration -->
    <filter>
        <filter-name>struts2</filter-name>
        <filter-class>
            org.apache.struts2.dispatcher.FilterDispatcher
        </filter-class>
    </filter>

    <filter-mapping>
        <filter-name>struts2</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <filter>
        <filter-name>struts-cleanup</filter-name>
        <filter-class>
            org.apache.struts2.dispatcher.ActionContextCleanUp
        </filter-class>
    </filter>

    <filter-mapping>
        <filter-name>struts-cleanup</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>/WEB-INF/applicationContext.xml</param-value>
    </context-param>

    <!-- Spring Configuration -->
    <listener>
        <listener-class>
            org.springframework.web.context.ContextLoaderListener
        </listener-class>
    </listener>

    <filter>
        <filter-name>CharacterEncoding</filter-name>
        <filter-class>
            org.springframework.web.filter.CharacterEncodingFilter
        </filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>gb2312</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>CharacterEncoding</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!-- Sun for JSF Listener -->
    <listener>
        <listener-class>
            com.sun.faces.config.ConfigureListener
        </listener-class>
    </listener>

    <!-- MyFaces for JSF Listener -->
    <listener>
        <listener-class>
            org.apache.myfaces.webapp.StartupServletContextListener
        </listener-class>
    </listener>

    <context-param>
        <param-name>javax.faces.STATE_SAVING_METHOD</param-name>
        <param-value>client</param-value>
    </context-param>

faces-config.xml

這裡必須要配置Delegation Configuration

<!-- Delegation Configuration -->
    <application>
        <variable-

resolver>org.springframework.web.jsf.DelegatingVariableResolver</variable-resolver>
    </application>

    <!-- Bean Configuration -->
    <managed-bean>
        <managed-bean-name>userBean</managed-bean-name>
        <managed-bean-class>com.jsf.beans.User</managed-bean-class>
        <managed-bean-scope>request</managed-bean-scope>
<!-- 注入Service，userService已在Spring中配置 -->
        <managed-property>
            <property-name>service</property-name>
            <value>#{userService}</value>
        </managed-property>
    </managed-bean>

    <!-- Navigation Configuration -->
    <navigation-rule>
        <from-view-id>/input.jsp</from-view-id>
        <navigation-case>
            <from-outcome>success</from-outcome>
            <to-view-id>/success.jsp</to-view-id>
        </navigation-case>
        <navigation-case>
            <from-outcome>error</from-outcome>
            <to-view-id>/error.jsp</to-view-id>
        </navigation-case>
    </navigation-rule>

struts.xml

<!-- JSF Interceptors -->
    <package name="jsf" extends="jsf-default">
        <interceptors>
            <interceptor-stack name="jsfFullStack">
                <interceptor-ref name="params" />
                <interceptor-ref name="basicStack" />
                <interceptor-ref name="jsfStack" />
            </interceptor-stack>
        </interceptors>
        <default-interceptor-ref name="jsfFullStack" />
    </package>

    <!-- Struts Configuration -->
    <package name="main" namespace="/" extends="struts-default">
        <action name="login" class="loginAction" method="login">
            <result name="input">/input2.jsp</result>
            <result name="error">/error.jsp</result>
            <result name="success">/success.jsp</result>
        </action>
    </package>

applicationContext.xml

這裡的Service和Action切記將scope設置為 prototype類型，該類型持有狀態對象

<!-- Service Configuration -->
    <bean name="userService" id="userService" class="com.jsf.service.UserService"
        factory-method="getInstance" lazy-init="false" scope="prototype"/>

    <!-- Action Configuration -->
    <bean id="loginAction" class="com.jsf.beans.User" scope="prototype">
        <property name="service"><ref local="userService"/></property>
    </bean>

User.java

UserService與SSH1中的一致。

http://sunspot.blog.51cto.com/372554/468430

package com.jsf.beans;

import java.io.Serializable;

import com.jsf.service.UserService;
import com.opensymphony.xwork2.ActionContext;
import com.opensymphony.xwork2.ActionSupport;

public class User extends ActionSupport implements Serializable{
    private String id;
    private String name;
    private String password;
    private Integer age;
    public User() {
        super();
    }

    public String getId() {
        return id;
    }

    public void setId(String id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    private UserService service;

    public UserService getService() {
        return service;
    }

    public void setService(UserService service) {
        this.service = service;
    }
         //jsf的執行方法
    public String execute() {
        if(service.validate(this.id, this.password)) {
            User user = service.getUser(this.id);
            this.setAge(user.getAge());
            this.setName(user.getName());
            return "success";
        }
        return "error";
    }

         //struts執行方法
    public String login() throws Exception {
        if(service.validate(this.id, this.password)) {
            User user = service.getUser(this.id);
            ActionContext.getContext().put("userBean", user);
            return "success";
        }
        return "error";
    }
}

input.jsp

純JSF方式創建頁面，如果以JSF方式提交表單，系統拋出異常

>> javax.servlet.ServletException

<%@ page language="java" pageEncoding="gb2312"%>
<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f"%>
<%@ taglib uri="http://java.sun.com/jsf/html" prefix="h"%>
<html>
    <head>
        <title>JSSH JSF</title>
    </head>

    <body>
        <f:view>
            <h:form>
                用戶名：<h:inputText value="#{userBean.id}" />
                密碼：<h:inputSecret value="#{userBean.password}" />
                <h:commandButton value="登錄" action="#

{userBean.execute}"></h:commandButton>
            </h:form>
        </f:view>
    </body>
</html>

input2.jsp

使用JSF與Struts混合標簽創建頁面，以Struts方式提交表單，系統正確運轉

<%@ page language="java" pageEncoding="gb2312"%>
<%@ taglib uri="/struts-tags" prefix="s"%>
<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f"%>
<html>
    <head>
        <title>JSSH Struts</title>
    </head>
    <body>
    <f:view>
            <s:form action="login" namespace="/">
                <s:textfield name="id" label="用戶名"/>
                <s:password name="password" label="密碼"/>
                <s:submit value="登錄" />
            </s:form>
    </f:view>
    </body>
</html>

總結：

在web.xml中使用Sun和MyFaces對JSF的監聽

配置faces- config.xml中要托管的解析器DelegatingVariableResolver

在struts.xml中建立JSF的攔截器，之後的 package應該繼承該配置

在頁面中可以實現JSF與Struts混編，但是只能以struts方式進行表單提交，如果以JSF方式進行表單提交，將會拋出異常
