Spring boot實現一個簡單的ioc（2）

前言

跳過廢話，直接看正文
仿照spring-boot的項目結構以及部分注解，寫一個簡單的ioc容器。
測試代碼完成後，便正式開始這個ioc容器的開發工作。

正文

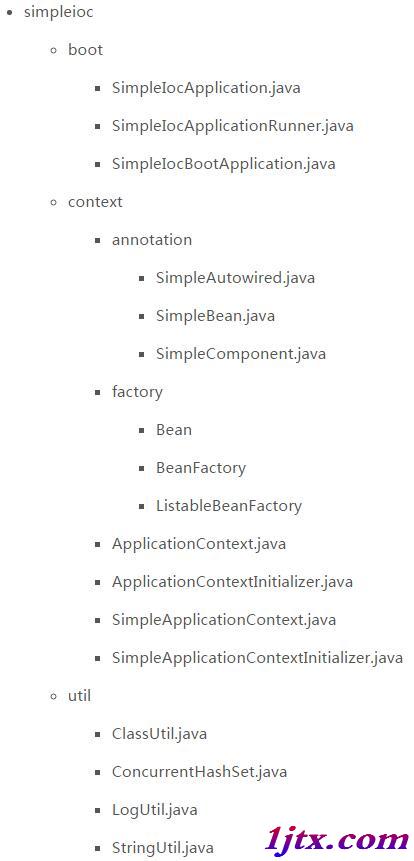

項目結構

實際上三四個類完全能搞定這個簡單的ioc容器，但是出於可擴展性的考慮，還是寫了不少的類。
因篇幅限制，接下來只將幾個最重要的類的代碼貼出來並加以說明，完整的代碼請直接參考https://github.com/clayandgithub/simple-ioc。

SimpleAutowired

代碼

import java.lang.annotation.*;

@Target({ElementType.FIELD})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface SimpleAutowired {
 boolean required() default true;

 String value() default ""; // this field is moved from @Qualifier to here for simplicity
}

說明

@SimpleAutowired的作用是用於注解需要自動裝配的字段。
此類和spring的@Autowired的作用類似。但又有以下兩個區別：
- @SimpleAutowired只能作用於類字段，而不能作用於方法（這樣實現起來相對簡單些，不會用到aop）
- @SimpleAutowired中包括了required（是否一定需要裝配）和value（要裝配的bean的名字）兩個字段，實際上是將spring中的@Autowired以及Qualifier的功能簡單地融合到了一起

SimpleBean

代碼

import java.lang.annotation.*;

@Target({ElementType.METHOD, ElementType.ANNOTATION_TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface SimpleBean {
 String value() default "";
}

說明

@SimpleBean作用於方法，根據方法返回值來生成一個bean，對應spring中的@Bean
用value來設置要生成的bean的名字

SimpleComponent

代碼

import java.lang.annotation.*;

@Target({ElementType.METHOD, ElementType.ANNOTATION_TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface SimpleBean {
 String value() default "";
}

說明

@SimpleComponent作用於類，ioc容器會為每一個擁有@SimpleComponent的類生成一個bean，對應spring中的@Component。特殊說明，為了簡單起見，@SimpleComponent注解的類必須擁有一個無參構造函數，否則無法生成該類的實例，這個在之後的SimpleAppliationContext中的processSingleClass方法中會有說明。

SimpleIocBootApplication

代碼

import java.lang.annotation.*;

@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface SimpleIocBootApplication {
 String[] basePackages() default {};
}

說明

@SimpleIocBootApplication作用於應用的入口類。
這個啟動模式是照搬了spring-boot的啟動模式，將啟動任務委托給SimpleIocApplication來完成。ioc容器將根據注解@SimpleIocBootApplication的相關配置自動掃描相應的package，生成beans並完成自動裝配。（如果沒有配置，默認掃描入口類（測試程序中的SampleApplication）所在的package及其子package）

以上就是這個ioc容器所提供的所有注解，接下來講解ioc容器的掃描和裝配過程的實現。

SimpleIocApplication

代碼

import com.clayoverwind.simpleioc.context.*;
import com.clayoverwind.simpleioc.util.LogUtil;

import java.util.Arrays;
import java.util.Map;
import java.util.logging.Logger;


public class SimpleIocApplication {
 private Class<?> applicationEntryClass;

 private ApplicationContext applicationContext;

 private final Logger LOGGER = LogUtil.getLogger(this.getClass());

 public SimpleIocApplication(Class<?> applicationEntryClass) {
 this.applicationEntryClass = applicationEntryClass;
 }

 public static void run(Class<?> applicationEntryClass, String[] args) {
 new SimpleIocApplication(applicationEntryClass).run(args);
 }

 public void run(String[] args) {
 LOGGER.info("start running......");

 // create application context and application initializer
 applicationContext = createSimpleApplicationContext();
 ApplicationContextInitializer initializer = createSimpleApplicationContextInitializer(applicationEntryClass);

 // initialize the application context (this is where we create beans)
 initializer.initialize(applicationContext); // here maybe exist a hidden cast

 // process those special beans
 processSpecialBeans(args);

 LOGGER.info("over!");
 }

 private SimpleApplicationContextInitializer createSimpleApplicationContextInitializer(Class<?> entryClass) {
 // get base packages
 SimpleIocBootApplication annotation = entryClass.getDeclaredAnnotation(SimpleIocBootApplication.class);
 String[] basePackages = annotation.basePackages();
 if (basePackages.length == 0) {
  basePackages = new String[]{entryClass.getPackage().getName()};
 }

 // create context initializer with base packages
 return new SimpleApplicationContextInitializer(Arrays.asList(basePackages));
 }

 private SimpleApplicationContext createSimpleApplicationContext() {
 return new SimpleApplicationContext();
 }

 private void processSpecialBeans(String[] args) {
 callRegisteredRunners(args);
 }

 private void callRegisteredRunners(String[] args) {
 Map<String, SimpleIocApplicationRunner> applicationRunners = applicationContext.getBeansOfType(SimpleIocApplicationRunner.class);
 try {
  for (SimpleIocApplicationRunner applicationRunner : applicationRunners.values()) {
  applicationRunner.run(args);
  }
 } catch (Exception e) {
  throw new RuntimeException(e);
 }
 }
}

說明

前面說到應用的啟動會委托SimpleIocApplication來完成，通過將應用入口類（測試程序中的SampleApplication）傳入SimpleIocApplication的構造函數，構造出SimpleIocApplication的一個實例並運行run方法。在run方法中，會首先生成一個applicationContext，並調用SimpleApplicationContextInitializer來完成applicationContext的初始化(bean的掃描、裝配)。然後調用processSpecialBeans來處理一些特殊的bean，如實現了SimpleIocApplicationRunner接口的bean會調用run方法來完成一些應用程序的啟動任務。
這就是這個ioc容器的整個流程。

SimpleApplicationContextInitializer

代碼

import java.io.IOException;
import java.util.LinkedHashSet;
import java.util.List;
import java.util.Set;

public class SimpleApplicationContextInitializer implements ApplicationContextInitializer<SimpleApplicationContext> {

  private Set<String> basePackages = new LinkedHashSet<>();

  public SimpleApplicationContextInitializer(List<String> basePackages) {
    this.basePackages.addAll(basePackages);
  }

  @Override
  public void initialize(SimpleApplicationContext applicationContext) {
    try {
      applicationContext.scan(basePackages, true);
    } catch (ClassNotFoundException e) {
      throw new RuntimeException(e);
    } catch (IOException e) {
      throw new RuntimeException(e);
    }
    applicationContext.setStartupDate(System.currentTimeMillis());
  }
}

說明

在SimpleIocApplication的run中，會根據basePackages來構造一個SimpleApplicationContextInitializer 的實例，進而通過這個ApplicationContextInitializer來完成SimpleApplicationContext 的初始化。
在SimpleApplicationContextInitializer中， 簡單地調用SimpleApplicationContext 中的scan即可完成SimpleApplicationContext的初始化任務

SimpleApplicationContext

說明：

終於到了最重要的部分了，在SimpleApplicationContext中將真正完成掃描、生成bean以及自動裝配的任務。這裡scan即為SimpleApplicationContext的程序入口，由SimpleApplicationContextInitializer在初始化時調用。
代碼的調用邏輯簡單易懂，就不多加說明了。
這裡只簡單列一下各個字段的含義以及幾個比較關鍵的方法的作用。

字段

- startupDate：啟動時間記錄字段
- scannedPackages：已經掃描的包的集合，保證不重復掃描
- registeredBeans：已經完全裝配好並注冊好了的bean
- earlyBeans : 只是生成好了，還未裝配完成的bean，用於處理循環依賴的問題
- totalBeanCount : 所有bean的計數器，在生成bean的名字時會用到其唯一性

方法

- processEarlyBeans：用於最終裝配earlyBeans 中的bean，若裝配成功，則將bean移至registeredBeans，否則報錯
- scan ： 掃描並處理傳入的package集合
- processSingleClass:處理單個類，嘗試生成該類的bean並進行裝配（前提是此類有@SimpleComponent注解）
- createBeansByMethodsOfClass ： 顧名思義，根據那些被@Bean注解的方法來生成bean
- autowireFields：嘗試裝配某個bean，lastChance代表是否在裝配失敗是報錯（在第一次裝配時，此值為false，在裝配失敗後會將bean移至earlyBeans，在第二次裝配時，此值為true，實際上就是在裝配earlyBeans中的bean，因此若仍然裝配失敗，就會報錯）。在這個方法中，裝配相應的bean時會從registeredBeans以及earlyBeans中去尋找符合條件的bean，只要找到，不管是來自哪裡，都算裝配成功。

代碼

import com.clayoverwind.simpleioc.context.annotation.SimpleAutowired;
import com.clayoverwind.simpleioc.context.annotation.SimpleBean;
import com.clayoverwind.simpleioc.context.annotation.SimpleComponent;
import com.clayoverwind.simpleioc.context.factory.Bean;
import com.clayoverwind.simpleioc.util.ClassUtil;
import com.clayoverwind.simpleioc.util.ConcurrentHashSet;
import com.clayoverwind.simpleioc.util.LogUtil;

import java.io.IOException;
import java.lang.annotation.Annotation;
import java.lang.reflect.Field;
import java.lang.reflect.InvocationTargetException;
import java.lang.reflect.Method;
import java.util.*;
import java.util.concurrent.ConcurrentHashMap;
import java.util.concurrent.atomic.AtomicLong;
import java.util.logging.Logger;

/**
 * @author clayoverwind
 * @E-mail [email protected]
 * @version 2017/4/5
 */

public class SimpleApplicationContext implements ApplicationContext {

 private long startupDate;

 private Set<String> scannedPackages = new ConcurrentHashSet<>();

 private Map<String, Bean> registeredBeans = new ConcurrentHashMap<>();

 private Map<String, Bean> earlyBeans = new ConcurrentHashMap<>();

 private final Logger LOGGER = LogUtil.getLogger(this.getClass());

 AtomicLong totalBeanCount = new AtomicLong(0L);

 AtomicLong nameConflictCount = new AtomicLong(0L);

 @Override
 public Object getBean(String name) {
 return registeredBeans.get(name);
 }

 @Override
 public <T> T getBean(String name, Class<T> type) {
 Bean bean = (Bean)getBean(name);
 return bean == null ? null : (type.isAssignableFrom(bean.getClazz()) ? type.cast(bean.getObject()) : null);
 }

 @Override
 public <T> T getBean(Class<T> type) {
 Map<String, T> map = getBeansOfType(type);
 return map.isEmpty() ? null : type.cast(map.values().toArray()[0]);
 }

 @Override
 public boolean containsBean(String name) {
 return getBean(name) != null;
 }

 @Override
 public <T> Map<String, T> getBeansOfType(Class<T> type) {
 Map<String, T> res = new HashMap<>();
 registeredBeans.entrySet().stream().filter(entry -> type.isAssignableFrom(entry.getValue().getClazz())).forEach(entry -> res.put(entry.getKey(), type.cast(entry.getValue().getObject())));
 return res;
 }

 @Override
 public void setStartupDate(long startupDate) {
 this.startupDate = startupDate;
 }

 @Override
 public long getStartupDate() {
 return startupDate;
 }

 /**
 * try to autowire those beans in earlyBeans
 * if succeed, remove it from earlyBeans and put it into registeredBeans
 * otherwise ,throw a RuntimeException(in autowireFields)
 */
 private synchronized void processEarlyBeans() {
 for (Map.Entry<String, Bean> entry : earlyBeans.entrySet()) {
  Bean myBean = entry.getValue();
  try {
  if (autowireFields(myBean.getObject(), myBean.getClazz(), true)) {
   registeredBeans.put(entry.getKey(), myBean);
   earlyBeans.remove(entry.getKey());
  }
  } catch (IllegalAccessException e) {
  throw new RuntimeException(e);
  }
 }
 }

 /**
 * scan base packages and create beans
 * @param basePackages
 * @param recursively
 * @throws ClassNotFoundException
 */
 public void scan(Set<String> basePackages, boolean recursively) throws ClassNotFoundException, IOException {
 LOGGER.info("start scanning......");

 ClassLoader classLoader = Thread.currentThread().getContextClassLoader();

 // get all classes who haven't been registered
 Set<Class<?>> classes = new LinkedHashSet<>();
 for (String packageName : basePackages) {
  if (scannedPackages.add(packageName)) {
  classes.addAll(ClassUtil.getClassesByPackageName(classLoader, packageName, recursively));
  }
 }

 // autowire or create bean for each class
 classes.forEach(this::processSingleClass);

 processEarlyBeans();

 LOGGER.info("scan over!");
 }

 /**
 * try to create a bean for certain class, put it into registeredBeans if success, otherwise put it into earlyBeans
 * @param clazz
 */
 private void processSingleClass(Class<?> clazz) {
 LOGGER.info(String.format("processSingleClass [%s] ...", clazz.getName()));

 Annotation[] annotations = clazz.getDeclaredAnnotations();
 for (Annotation annotation : annotations) {
  if (annotation instanceof SimpleComponent) {
  Object instance;
  try {
   instance = clazz.newInstance();
  } catch (InstantiationException e) {
   throw new RuntimeException(e);
  } catch (IllegalAccessException e) {
   throw new RuntimeException(e);
  }

  long beanId = totalBeanCount.getAndIncrement();
  SimpleComponent component = (SimpleComponent) annotation;
  String beanName = component.value();
  if (beanName.isEmpty()) {
   beanName = getUniqueBeanNameByClassAndBeanId(clazz, beanId);
  }

  try {
   if (autowireFields(instance, clazz, false)) {
   registeredBeans.put(beanName, new Bean(instance, clazz));
   } else {
   earlyBeans.put(beanName, new Bean(instance, clazz));
   }
  } catch (IllegalAccessException e) {
   throw new RuntimeException(e);
  }

  try {
   createBeansByMethodsOfClass(instance, clazz);
  } catch (InvocationTargetException e) {
   throw new RuntimeException(e);
  } catch (IllegalAccessException e) {
   throw new RuntimeException(e);
  }
  }
 }
 }

 private void createBeansByMethodsOfClass(Object instance, Class<?> clazz) throws InvocationTargetException, IllegalAccessException {
 List<Method> methods = getMethodsWithAnnotation(clazz, SimpleBean.class);
 for (Method method : methods) {
  method.setAccessible(true);
  Object methodBean = method.invoke(instance);
  long beanId = totalBeanCount.getAndIncrement();
  Class<?> methodBeanClass = methodBean.getClass();

  //bean name
  SimpleBean simpleBean = method.getAnnotation(SimpleBean.class);
  String beanName = simpleBean.value();
  if (beanName.isEmpty()) {
  beanName = getUniqueBeanNameByClassAndBeanId(clazz, beanId);
  }

  // register bean
  registeredBeans.put(beanName, new Bean(methodBean, methodBeanClass));
 }
 }

 private List<Method> getMethodsWithAnnotation(Class<?> clazz, Class<?> annotationClass) {
 List<Method> res = new LinkedList<>();
 Method[] methods = clazz.getDeclaredMethods();
 for (Method method : methods) {
  Annotation[] annotations = method.getAnnotations();
  for (Annotation annotation : annotations) {
  if (annotation.annotationType() == annotationClass) {
   res.add(method);
   break;
  }
  }
 }
 return res;
 }


 /**
 * try autowire all fields of a certain instance
 * @param instance
 * @param clazz
 * @param lastChance
 * @return true if success, otherwise return false or throw a exception if this is the lastChance
 * @throws IllegalAccessException
 */
 private boolean autowireFields(Object instance, Class<?> clazz, boolean lastChance) throws IllegalAccessException {
 Field[] fields = clazz.getDeclaredFields();
 for (Field field : fields) {
  Annotation[] annotations = field.getAnnotations();
  for (Annotation annotation : annotations) {
  if (annotation instanceof SimpleAutowired) {
   SimpleAutowired autowired = (SimpleAutowired) annotation;
   String beanName = autowired.value();
   Bean bean = getSimpleBeanByNameOrType(beanName, field.getType(), true);
   if (bean == null) {
   if (lastChance) {
    if (!autowired.required()) {
    break;
    }
    throw new RuntimeException(String.format("Failed in autowireFields : [%s].[%s]", clazz.getName(), field.getName()));
   } else {
    return false;
   }
   }
   field.setAccessible(true);
   field.set(instance, bean.getObject());
  }
  }
 }
 return true;
 }

 /**
 * only used in autowireFields
 * @param beanName
 * @param type
 * @param allowEarlyBean
 * @return
 */
 private Bean getSimpleBeanByNameOrType(String beanName, Class<?> type, boolean allowEarlyBean) {
 // 1. by name
 Bean res = registeredBeans.get(beanName);
 if (res == null && allowEarlyBean) {
  res = earlyBeans.get(beanName);
 }

 // 2. by type
 if (type != null) {
  if (res == null) {
  res = getSimpleBeanByType(type, registeredBeans);
  }
  if (res == null && allowEarlyBean) {
  res = getSimpleBeanByType(type, earlyBeans);
  }
 }

 return res;
 }

 /**
 * search bean by type in certain beans map
 * @param type
 * @param beansMap
 * @return
 */
 private Bean getSimpleBeanByType(Class<?> type, Map<String, Bean> beansMap) {
 List<Bean> beans = new LinkedList<>();
 beansMap.entrySet().stream().filter(entry -> type.isAssignableFrom(entry.getValue().getClazz())).forEach(entry -> beans.add(entry.getValue()));
 if (beans.size() > 1) {
  throw new RuntimeException(String.format("Autowire by type, but more than one instance of type [%s] is founded!", beans.get(0).getClazz().getName()));
 }
 return beans.isEmpty() ? null : beans.get(0);
 }

 private String getUniqueBeanNameByClassAndBeanId(Class<?> clazz, long beanId) {
 String beanName = clazz.getName() + "_" + beanId;
 while (registeredBeans.containsKey(beanName) || earlyBeans.containsKey(beanName)) {
  beanName = clazz.getName() + "_" + beanId + "_" + nameConflictCount.getAndIncrement();
 }
 return beanName;
 }
}

後記

至此，一個簡單的ioc容器就完成了，總結一下優缺點。

優點：

小而簡單。
可以使用@SimpleBean、@SimpleComponent以及@SimpleAutowired 來完成一些簡單但常用的依賴注入任務.

缺點：

很明顯，實現過於簡單，提供的功能太少。
如果你想了解ioc的實現原理，或者你想要開發一個小型個人項目但又嫌spring過於龐大，這個簡單的ioc容器或許可以幫到你。

如果你想做的不僅如此，那麼你應該將目光轉向spring-boot。

完整代碼參考：https://github.com/clayandgithub/simple-ioc。

以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持。
