　　寫了一個簡單的JMS例子，之所以使用JNDI 是出於通用性考慮，該例子使用JMS規范提供的通用接口，沒有使用具體JMS提供者的接口，這樣可以保證我們編寫的程序適用於任何一種JMS實現(ActiveMQ、HornetQ...)。

什麼是JNDI

　　JNDI(Java Naming and Directory Interface)是一個標准規范，類似於JDBC，JMS等規范，為開發人員提供了查找和訪問各種命名和目錄服務的通用、統一的接口。J2EE 規范要求所有 J2EE 容器都要提供 JNDI 規范的實現，因此Tomcat就實現了JNDI 規范。

使用Tomcat配置JNDI

　　找到Tomcat安裝路徑下的conf文件夾，打開context.xml，添加如下配置：

 <Resource name="queue/connectionFactory"
                auth="Container"
                type="org.apache.activemq.ActiveMQConnectionFactory"
                description="JMS Connection Factory"
                factory="org.apache.activemq.jndi.JNDIReferenceFactory"
                brokerURL="tcp://localhost:61616"
                brokerName="LocalActiveMQBroker" />

<Resource name="queue/queue0"
                auth="Container"
                type="org.apache.activemq.command.ActiveMQQueue"
                description="My Queue"
                factory="org.apache.activemq.jndi.JNDIReferenceFactory"
                physicalName="TomcatQueue" />

啟動ActiveMQ

　　CMD到ActiveMQ安裝路徑下的bin目錄，輸入“activemq start”指令即可啟動，可在浏覽器中輸入地址http://localhost:8161/admin，查看隊列、話題等信息。

編寫一個Web工程

　　eclipse上新建web工程，添加ActiveMQ依賴的jar包，然後開始編寫兩個Servlet，一個用於生產消息，另一個用於消費消息，如下代碼：

消息生產者Servlet：

import java.io.IOException;
import java.io.PrintWriter;

import javax.jms.DeliveryMode;
import javax.jms.Queue;
import javax.jms.QueueConnection;
import javax.jms.QueueConnectionFactory;
import javax.jms.QueueSender;
import javax.jms.QueueSession;
import javax.jms.Session;
import javax.jms.TextMessage;
import javax.naming.InitialContext;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

/**
 * Servlet implementation class JMSTest
 */
@WebServlet("/Send")
public class Send extends HttpServlet {
    private static final long serialVersionUID = 1L;

    /**
     * @see HttpServlet#HttpServlet()
     */
    public Send() {
        super();
        // TODO Auto-generated constructor stub
    }

    /**
     * @see HttpServlet#doGet(HttpServletRequest request, HttpServletResponse
     *      response)
     */
    protected void doGet(HttpServletRequest request,
            HttpServletResponse response) throws ServletException, IOException {
        PrintWriter out = response.getWriter();

        try {
            // get the initial context
            InitialContext context = new InitialContext();

            // lookup the queue object
            Queue queue = (Queue) context.lookup("java:comp/env/queue/queue0");

            // lookup the queue connection factory
            QueueConnectionFactory conFactory = (QueueConnectionFactory) context
                    .lookup("java:comp/env/queue/connectionFactory");

            // create a queue connection
            QueueConnection queConn = conFactory.createQueueConnection();

            // create a queue session
            QueueSession queSession = queConn.createQueueSession(false,
                    Session.DUPS_OK_ACKNOWLEDGE);

            // create a queue sender
            QueueSender queSender = queSession.createSender(queue);
            queSender.setDeliveryMode(DeliveryMode.NON_PERSISTENT);

            // create a simple message to say "Hello World"
            TextMessage message = queSession.createTextMessage("Hello World");

            // send the message
            queSender.send(message);

            // print what we did
            out.write("Message Sent: " + message.getText());

            // close the queue connection
            queConn.close();
        } catch (Exception e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }

    }

    /**
     * @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse
     *      response)
     */
    protected void doPost(HttpServletRequest request,
            HttpServletResponse response) throws ServletException, IOException {
        // TODO Auto-generated method stub
    }

}

消息消費者Servlet：

import java.io.IOException;
import java.io.PrintWriter;

import javax.jms.Queue;
import javax.jms.QueueConnection;
import javax.jms.QueueConnectionFactory;
import javax.jms.QueueReceiver;
import javax.jms.QueueSession;
import javax.jms.Session;
import javax.jms.TextMessage;
import javax.naming.InitialContext;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

/**
 * Servlet implementation class Receive
 */
@WebServlet("/Receive")
public class Receive extends HttpServlet {
    private static final long serialVersionUID = 1L;

    /**
     * @see HttpServlet#HttpServlet()
     */
    public Receive() {
        super();
        // TODO Auto-generated constructor stub
    }

    /**
     * @see HttpServlet#doGet(HttpServletRequest request, HttpServletResponse
     *      response)
     */
    protected void doGet(HttpServletRequest request,
            HttpServletResponse response) throws ServletException, IOException {
        PrintWriter out = response.getWriter();

        try {
            // get the initial context
            InitialContext context = new InitialContext();

            // lookup the queue object
            Queue queue = (Queue) context.lookup("java:comp/env/queue/queue0");

            // lookup the queue connection factory
            QueueConnectionFactory conFactory = (QueueConnectionFactory) context
                    .lookup("java:comp/env/queue/connectionFactory");

            // create a queue connection
            QueueConnection queConn = conFactory.createQueueConnection();

            // create a queue session
            QueueSession queSession = queConn.createQueueSession(false,
                    Session.AUTO_ACKNOWLEDGE);

            // create a queue receiver
            QueueReceiver queReceiver = queSession.createReceiver(queue);

            // start the connection
            queConn.start();

            // receive a message
            TextMessage message = (TextMessage) queReceiver.receive();

            // print the message
            out.write("Message Received: " + message.getText());

            // close the queue connection
            queConn.close();
        } catch (Exception e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }
    }

    /**
     * @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse
     *      response)
     */
    protected void doPost(HttpServletRequest request,
            HttpServletResponse response) throws ServletException, IOException {
        // TODO Auto-generated method stub
    }

}

驗證結果

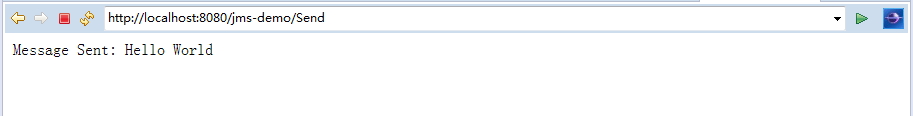

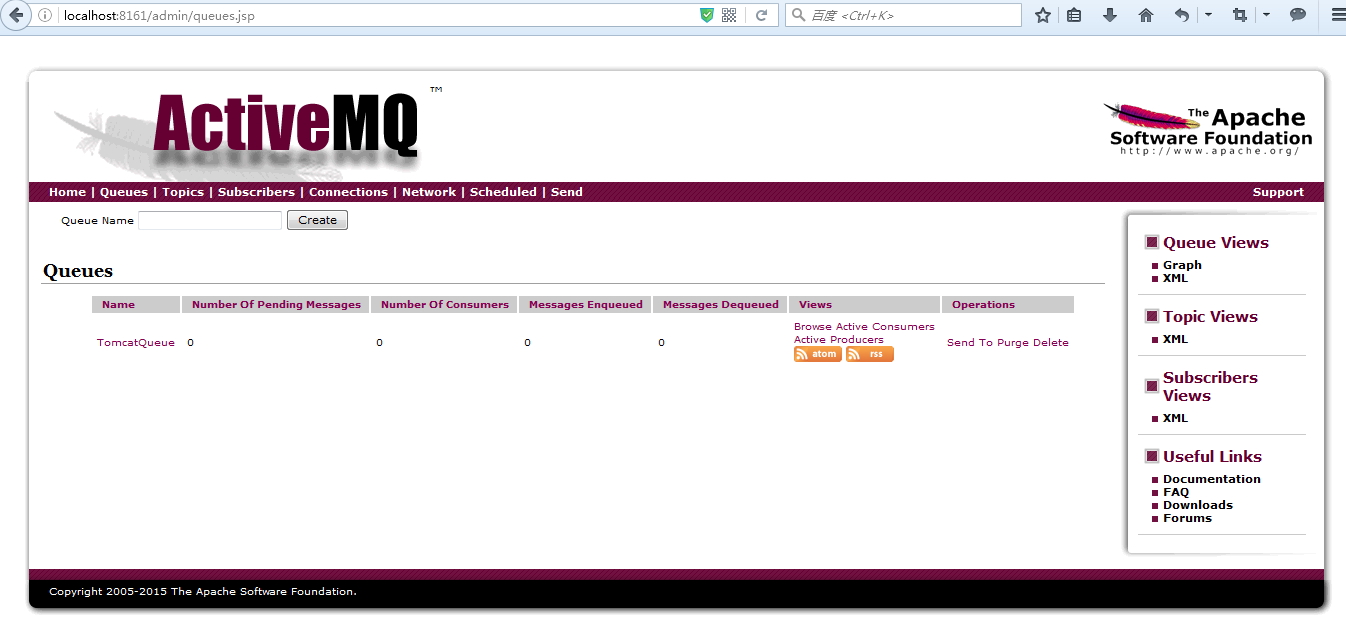

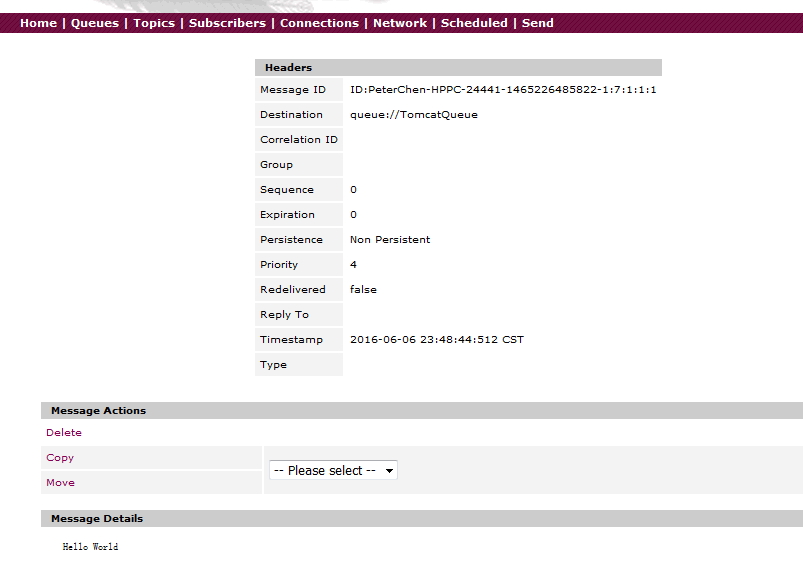

　　在Tomcat裡運行該Web工程，執行消息生產者Servlet，返回消息發送成功標志，同時我們可以在http://localhost:8161/admin/queues.jsp查看到該消息，如下圖所示

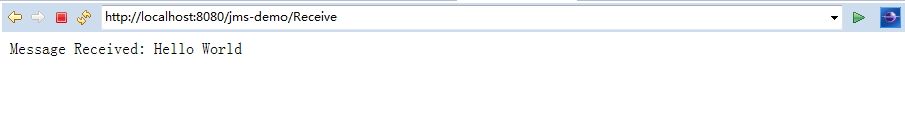

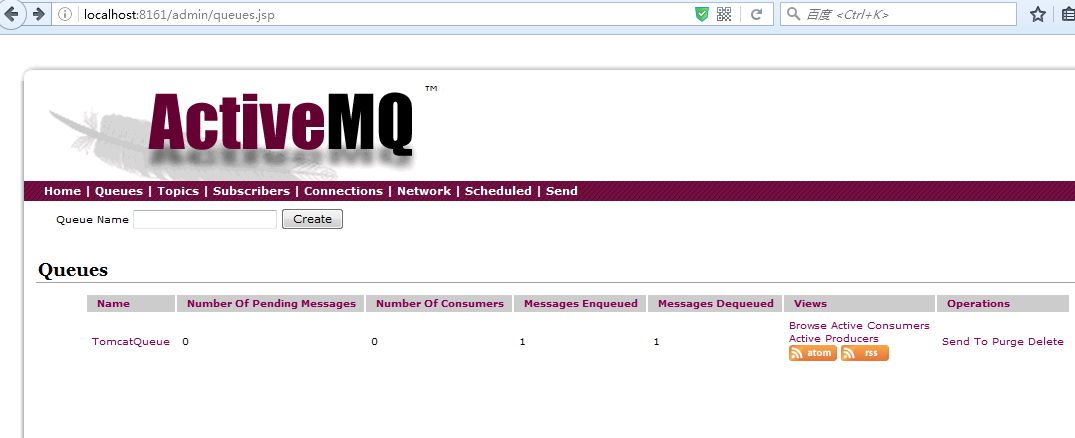

　　繼續執行消息消費者Servlet，返回消息接收成功標志，同時我們可以打開http://localhost:8161/admin/queues.jsp頁面，發現剛才的消息已經不見了，如下圖所示

代碼參考：http://howtodoinjava.com/jms/jms-point-to-point-message-example/
