Yii多表聯合查詢操作詳解

編輯:PHP綜合

本文針對Yii多表聯查進行匯總描述,供大家參考,具體內容如下

1、多表聯查實現方法

有兩種方式一種使用DAO寫SQL語句實現,這種實現理解起來相對輕松,只要保證SQL語句不寫錯就行了。缺點也很明顯,比較零散,而且不符合YII的推薦框架,最重要的缺點在於容易寫錯。

還有一種便是下面要說的使用YII自帶的CActiveRecord實現多表聯查

2、 整體框架

我們需要找到一個用戶的好友關系,用戶的信息放在用戶表中,用戶之間的關系放在關系表中,而關系的內容則放在關系類型表中。明顯的我們只需要以關系表為主表聯查其他兩個表即可。我主要從代碼的角度,分析下實現的過程。

3、CActiveRecord

我們首先需要對3張表建立相應的model,下面是關系表的代碼

SocialRelation.php

<?php

/**
 * This is the model class for table "{{social_relation}}".
 *
 * The followings are the available columns in table '{{social_relation}}':
 * @property integer $relation_id
 * @property integer $relation_type_id
 * @property integer $user_id
 * @property integer $another_user_id
 *
 * The followings are the available model relations:
 * @property SocialRelationType $relationType
 * @property AccessUser $user
 * @property AccessUser $anotherUser
 */
class SocialRelation extends CActiveRecord
{
  /**
   * Returns the static model of the specified AR class.
   * @param string $className active record class name.
   * @return SocialRelation the static model class
   */
  public static function model($className=__CLASS__)
  {
    return parent::model($className);
  }

  /**
   * @return string the associated database table name
   */
  public function tableName()
  {
    return '{{social_relation}}';
  }

  /**
   * @return array validation rules for model attributes.
   */
  public function rules()
  {
    // NOTE: you should only define rules for those attributes that
    // will receive user inputs.
    return array(
      array('relation_type_id, user_id, another_user_id', 'numerical', 'integerOnly'=>true),
      // The following rule is used by search().
      // Please remove those attributes that should not be searched.
      array('relation_id, relation_type_id, user_id, another_user_id', 'safe', 'on'=>'search'),
    );
  }

  /**
   * @return array relational rules.
   */
  public function relations()
  {
    // NOTE: you may need to adjust the relation name and the related
    // class name for the relations automatically generated below.
    return array(
      'relationType' => array(self::BELONGS_TO, 'SocialRelationType', 'relation_type_id'),
      'user' => array(self::BELONGS_TO, 'AccessUser', 'user_id'),
      'anotherUser' => array(self::BELONGS_TO, 'AccessUser', 'another_user_id'),
    );
  }

  /**
   * @return array customized attribute labels (name=>label)
   */
  public function attributeLabels()
  {
    return array(
      'relation_id' => 'Relation',
      'relation_type_id' => 'Relation Type',
      'relation_type_name' => 'Relation Name',
      'user_id' => 'User ID',
      'user_name' => 'User Name',
      'another_user_id' => 'Another User',
      'another_user_name' => 'Another User Name',
    );
  }

  /**
   * Retrieves a list of models based on the current search/filter conditions.
   * @return CActiveDataProvider the data provider that can return the models based on the search/filter conditions.
   */
  public function search()
  {
    // Warning: Please modify the following code to remove attributes that
    // should not be searched.

    $criteria=new CDbCriteria;

    $criteria->compare('relation_id',$this->relation_id);
    $criteria->compare('relation_type_id',$this->relation_type_id);
    $criteria->compare('user_id',$this->user_id);
    $criteria->compare('another_user_id',$this->another_user_id);
    $criteria->with=array(
      'relationType',
    );

    return new CActiveDataProvider($this, array(
      'criteria'=>$criteria,
    ));
  }
}

為了描述方便我們約定 主表為A表(執行查詢的那個表), 引用表為B表(外鍵所引用的表)
建議使用Gii自動生成模型,這樣能夠節省大量時間,為了測試方便,可以對主表生成CRUD,就是增刪改查頁面,其他的引用表只用生成model就行了。
1. model函數、tablename函數用於得到這個模型和得到數據庫表基本信息。自動生成無需修改

2.rules函數,這個函數主要用於規定參數檢驗方式,注意即使有些參數不需要校驗,也必須出現在rules中。不然模型將無法得到參數

3.relation函數,這個函數十分關鍵,用於定義表之間的關系,下面我將詳細說明其中含義

'relationType' => array(self::BELONGS_TO, 'SocialRelationType', 'relation_type_id')
 這句代碼中結構如下
'VarName'=>array('RelationType', 'ClassName', 'ForeignKey', ...additional options)
VarName 是關系的名字,我們以後會用這個名字訪問外鍵引用表的字段

RelationType是關系的類型,十分重要,如果設定錯誤會導致一些奇怪而且難以檢查的錯誤,Yii一共提供了4種關系

BELONGS_TO(屬於): 如果表 A 和 B 之間的關系是一對多,則 表 B 屬於 表 A
HAS_MANY(有多個): 如果表 A 和 B 之間的關系是一對多,則 A 有多個 B
HAS_ONE(有一個): 這是 HAS_MANY 的一個特例,A 最多有一個 B
MANY_MANY: 這個對應於數據庫中的 多對多關系
ClassName是引用表名,就是外鍵所引用的表的名字,也就是B表表名

ForeignKey是外鍵名,主要這裡填寫的是外鍵在主表中的名字,也就是外鍵在A表中的表名,切記不要填錯了

如果B表中是雙主鍵可以采用下列方式實現,從軟件工程的角度不推薦這樣的做法,每個表最好使用獨立無意義主鍵,不然容易出現各種問題,而且不方便管理

'categories'=>array(self::MANY_MANY, 'Category',
        'tbl_post_category(post_id, category_id)'),

 additional option 附加選項,很少用到
4 attributeLabels函數,這就是表屬性的顯示名稱了,有點點像powerdesigner中code和name的關系前面一部分為數據庫字段名,後面一部分為顯示名稱
5 search函數,用於生成表查詢結果的函數,可以在此加一些限制條件,具體的使用方法就不在這裡說明了,可以參考API中CDbCriteria的講解。如果使用Gii生成那麼不需要怎麼修改。

同理我們生成,剩下的兩個引用表

關系類型表:SocialRelationType.php

<?php

/**
 * This is the model class for table "{{social_relation_type}}".
 *
 * The followings are the available columns in table '{{social_relation_type}}':
 * @property integer $relation_type_id
 * @property string $relation_type_name
 *
 * The followings are the available model relations:
 * @property SocialRelation[] $socialRelations
 */
class SocialRelationType extends CActiveRecord
{
  /**
   * Returns the static model of the specified AR class.
   * @param string $className active record class name.
   * @return SocialRelationType the static model class
   */
  public static function model($className=__CLASS__)
  {
    return parent::model($className);
  }

  /**
   * @return string the associated database table name
   */
  public function tableName()
  {
    return '{{social_relation_type}}';
  }

  /**
   * @return array validation rules for model attributes.
   */
  public function rules()
  {
    // NOTE: you should only define rules for those attributes that
    // will receive user inputs.
    return array(
      array('relation_type_name', 'length', 'max'=>10),
      // The following rule is used by search().
      // Please remove those attributes that should not be searched.
      array('relation_type_id, relation_type_name', 'safe', 'on'=>'search'),
    );
  }

  /**
   * @return array relational rules.
   */
  public function relations()
  {
    // NOTE: you may need to adjust the relation name and the related
    // class name for the relations automatically generated below.
    return array(
      'socialRelations' => array(self::HAS_MANY, 'SocialRelation', 'relation_type_id'),
    );
  }

  /**
   * @return array customized attribute labels (name=>label)
   */
  public function attributeLabels()
  {
    return array(
      'relation_type_id' => 'Relation Type',
      'relation_type_name' => 'Relation Type Name',
    );
  }

  /**
   * Retrieves a list of models based on the current search/filter conditions.
   * @return CActiveDataProvider the data provider that can return the models based on the search/filter conditions.
   */
  public function search()
  {
    // Warning: Please modify the following code to remove attributes that
    // should not be searched.

    $criteria=new CDbCriteria;

    $criteria->compare('relation_type_id',$this->relation_type_id);
    $criteria->compare('relation_type_name',$this->relation_type_name,true);

    return new CActiveDataProvider($this, array(
      'criteria'=>$criteria,
    ));
  }
}

用戶表:AccessUser.php

<?php

/**
 * This is the model class for table "{{access_user}}".
 *
 * The followings are the available columns in table '{{access_user}}':
 * @property integer $id
 * @property string $name
 * @property string $password
 * @property string $lastlogin
 * @property string $salt
 * @property string $email
 * @property integer $status
 *
 * The followings are the available model relations:
 * @property SocialRelation[] $socialRelations
 * @property SocialRelation[] $socialRelations1
 */
class AccessUser extends CActiveRecord
{
  /**
   * Returns the static model of the specified AR class.
   * @param string $className active record class name.
   * @return AccessUser the static model class
   */
  public static function model($className=__CLASS__)
  {
    return parent::model($className);
  }

  /**
   * @return string the associated database table name
   */
  public function tableName()
  {
    return '{{access_user}}';
  }

  /**
   * @return array validation rules for model attributes.
   */
  public function rules()
  {
    // NOTE: you should only define rules for those attributes that
    // will receive user inputs.
    return array(
      array('status', 'numerical', 'integerOnly'=>true),
      array('name, password, salt, email', 'length', 'max'=>255),
      array('lastlogin', 'safe'),
      // The following rule is used by search().
      // Please remove those attributes that should not be searched.
      array('id, name, password, lastlogin, salt, email, status', 'safe', 'on'=>'search'),
    );
  }

  /**
   * @return array relational rules.
   */
  public function relations()
  {
    // NOTE: you may need to adjust the relation name and the related
    // class name for the relations automatically generated below.
    return array(
      'user_name' => array(self::HAS_MANY, 'SocialRelation', 'user_id'),
      'anotherUser_name' => array(self::HAS_MANY, 'SocialRelation', 'another_user_id'),
    );
  }

  /**
   * @return array customized attribute labels (name=>label)
   */
  public function attributeLabels()
  {
    return array(
      'id' => 'ID',
      'name' => 'Name',
      'password' => 'Password',
      'lastlogin' => 'Lastlogin',
      'salt' => 'Salt',
      'email' => 'Email',
      'status' => 'Status',
    );
  }

  /**
   * Retrieves a list of models based on the current search/filter conditions.
   * @return CActiveDataProvider the data provider that can return the models based on the search/filter conditions.
   */
  public function search()
  {
    // Warning: Please modify the following code to remove attributes that
    // should not be searched.

    $criteria=new CDbCriteria;

    $criteria->compare('id',$this->id);
    $criteria->compare('name',$this->name,true);
    $criteria->compare('password',$this->password,true);
    $criteria->compare('lastlogin',$this->lastlogin,true);
    $criteria->compare('salt',$this->salt,true);
    $criteria->compare('email',$this->email,true);
    $criteria->compare('status',$this->status);

    return new CActiveDataProvider($this, array(
      'criteria'=>$criteria,
    ));
  }
}

4、Controller
三張表介紹完了後,下面就應當介紹Controller了,同樣的我們使用Gii生成主表(A表)的CRUD後就能得到controller,我們只需要對其進行一些修改即可,代碼如下

SocialRelationController.php

<?php

class SocialRelationController extends Controller
{
  /**
   * @var string the default layout for the views. Defaults to '//layouts/column2', meaning
   * using two-column layout. See 'protected/views/layouts/column2.php'.
   */
  public $layout='//layouts/column2';

  /**
   * @return array action filters
   */
  public function filters()
  {
    return array(
      'accessControl', // perform access control for CRUD operations
      'postOnly + delete', // we only allow deletion via POST request
    );
  }

  /**
   * Specifies the access control rules.
   * This method is used by the 'accessControl' filter.
   * @return array access control rules
   */
  public function accessRules()
  {
    return array(
      array('allow', // allow all users to perform 'index' and 'view' actions
        'actions'=>array('index','view'),
        'users'=>array('*'),
      ),
      array('allow', // allow authenticated user to perform 'create' and 'update' actions
        'actions'=>array('create','update'),
        'users'=>array('@'),
      ),
      array('allow', // allow admin user to perform 'admin' and 'delete' actions
        'actions'=>array('admin','delete'),
        'users'=>array('admin'),
      ),
      array('deny', // deny all users
        'users'=>array('*'),
      ),
    );
  }

  /**
   * Displays a particular model.
   * @param integer $id the ID of the model to be displayed
   */
  public function actionView($id)
  {
    $this->render('view',array(
      'model'=>$this->loadModel($id),
    ));
  }

  /**
   * Creates a new model.
   * If creation is successful, the browser will be redirected to the 'view' page.
   */
  public function actionCreate()
  {
    $model=new SocialRelation;

    // Uncomment the following line if AJAX validation is needed
    // $this->performAjaxValidation($model);

    if(isset($_POST['SocialRelation']))
    {
      $model->attributes=$_POST['SocialRelation'];
      if($model->save())
        $this->redirect(array('view','id'=>$model->relation_id));
    }

    $this->render('create',array(
      'model'=>$model,
    ));
  }

  /**
   * Updates a particular model.
   * If update is successful, the browser will be redirected to the 'view' page.
   * @param integer $id the ID of the model to be updated
   */
  public function actionUpdate($id)
  {
    $model=$this->loadModel($id);

    // Uncomment the following line if AJAX validation is needed
    // $this->performAjaxValidation($model);

    if(isset($_POST['SocialRelation']))
    {
      $model->attributes=$_POST['SocialRelation'];
      if($model->save())
        $this->redirect(array('view','id'=>$model->relation_id));
    }

    $this->render('update',array(
      'model'=>$model,
    ));
  }

  /**
   * Deletes a particular model.
   * If deletion is successful, the browser will be redirected to the 'admin' page.
   * @param integer $id the ID of the model to be deleted
   */
  public function actionDelete($id)
  {
    $this->loadModel($id)->delete();

    // if AJAX request (triggered by deletion via admin grid view), we should not redirect the browser
    if(!isset($_GET['ajax']))
      $this->redirect(isset($_POST['returnUrl']) ? $_POST['returnUrl'] : array('admin'));
  }

  /**
   * Lists all models.
   */
  public function actionIndex()
  {
    if(Yii::app()->user->id != null){
      $dataProvider=new CActiveDataProvider(
        'SocialRelation',
        array('criteria'=>array('condition'=>'user_id='.Yii::app()->user->id,
      ))
      );
      $this->render('index',array(
        'dataProvider'=>$dataProvider,
      ));
    }

  }

  /**
   * Manages all models.
   */
  public function actionAdmin()
  {
    $model=new SocialRelation('search');
    $model->unsetAttributes(); // clear any default values
    if(isset($_GET['SocialRelation']))
      $model->attributes=$_GET['SocialRelation'];

    $this->render('admin',array(
      'model'=>$model,
    ));
  }

  /**
   * Returns the data model based on the primary key given in the GET variable.
   * If the data model is not found, an HTTP exception will be raised.
   * @param integer $id the ID of the model to be loaded
   * @return SocialRelation the loaded model
   * @throws CHttpException
   */
  public function loadModel($id)
  {
    $model=SocialRelation::model()->findByPk($id);
    if($model===null)
      throw new CHttpException(404,'The requested page does not exist.');
    return $model;
  }

  /**
   * Performs the AJAX validation.
   * @param SocialRelation $model the model to be validated
   */
  protected function performAjaxValidation($model)
  {
    if(isset($_POST['ajax']) && $_POST['ajax']==='social-relation-form')
    {
      echo CActiveForm::validate($model);
      Yii::app()->end();
    }
  }
}

簡單介紹下其中各個函數和變量
$layout 就是布局文件的位置了,布局文件如何使用,這裡不做討論

filters 定義過濾器,這裡面水很深

accessRules 訪問方式,就是那些用戶能夠訪問到這個模塊

array('allow', // allow all users to perform 'index' and 'view' actions
        'actions'=>array('index','view'),
        'users'=>array('*'),
      ),

allow 表示允許訪問的規則如下,deny表示拒絕訪問的規則如下。
action表示規定規則使用的動作

user表示規則適用的用戶群組,*表示所有用戶,@表示登錄後的用戶,admin表示管理員用戶

actionXXX 各個action函數

這裡值得注意的是 這個函數

public function actionIndex()
  {
    if(Yii::app()->user->id != null){
      $dataProvider=new CActiveDataProvider(
        'SocialRelation',
        array('criteria'=>array('condition'=>'user_id='.Yii::app()->user->id,
      ))
      );
      $this->render('index',array(
        'dataProvider'=>$dataProvider,
      ));
    }

  }

其中我們可以在dataProvider中設置相應的查詢條件,注意這裡設置是對於主表(A表)進行的,用的字段名也是主表中的,因為我們要顯示的是當前用戶的好友,於是,這裡我們使用Yii::app()->user->id取得當前用戶的id 。

loadModel 用於裝載模型,這裡我們可以看到findByPk查詢了數據庫。

performAjaxValidation 用於Ajax驗證。

5、視圖View

index.php

<?php
/* @var $this SocialRelationController */
/* @var $dataProvider CActiveDataProvider */

$this->breadcrumbs=array(
  'Social Relations',
);
?>

<h1>Social Relations</h1>

<?php $this->widget('zii.widgets.CListView', array(
  'dataProvider'=>$dataProvider,
  'itemView'=>'_view',
)); ?>

我們使用一個 CListView控件進行顯示,其中itemView為內容顯示的具體表單,dataProvider這個是內容源,我們在controller中已經設定了。

_view.php

<?php
/* @var $this SocialRelationController */
/* @var $data SocialRelation */
?>

<div class="view">

  <b><?php echo CHtml::encode($data->getAttributeLabel('relation_id')); ?>:</b>
  <?php echo CHtml::link(CHtml::encode($data->relation_id), array('view', 'id'=>$data->relation_id)); ?>
  <br />

  <b><?php echo CHtml::encode($data->getAttributeLabel('relation_type_id')); ?>:</b>
  <?php echo CHtml::encode($data->relation_type_id); ?>
  <br />

  <b><?php echo CHtml::encode($data->getAttributeLabel('relation_type_name')); ?>:</b>
  <?php
    echo $data->relationType->relation_type_name;
  ?>
  <br />

  <b><?php echo CHtml::encode($data->getAttributeLabel('user_id')); ?>:</b>
  <?php echo CHtml::encode($data->user_id); ?>
  <br />

  <b><?php echo CHtml::encode($data->getAttributeLabel('user_name')); ?>:</b>
  <?php
    echo $data->user->name;
  ?>
  <br />

  <b><?php echo CHtml::encode($data->getAttributeLabel('another_user_id')); ?>:</b>
  <?php echo CHtml::encode($data->another_user_id); ?>
  <br />

  <b><?php echo CHtml::encode($data->getAttributeLabel('another_user_name')); ?>:</b>
  <?php
    echo $data->anotherUser->name;
  ?>
  <br />

</div>

主要都是類似的,我們看其中的一條
復制代碼 代碼如下:<b><?php echo CHtml::encode($data->getAttributeLabel('relation_type_name')); ?>:</b>
<?php echo $data->relationType->relation_type_name; ?>
第一行為顯示標簽,在模型中我們設定的顯示名就在這裡體現出來
第二行為內容顯示,這裡的relationType是在模型中設置的關系名字,後面的relation_type_name是引用表的字段名(B表中的名字)

6、總結

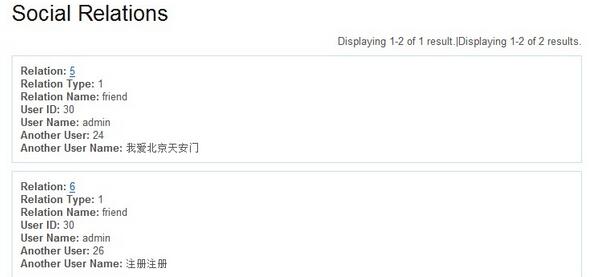

通過上面的步驟,我們就實現了整個聯合查詢功能,效果圖如下所示:

以上就是本文的全部內容,希望對大家的學習有所幫助,也希望大家多多支持。

  1. 上一頁:
  2. 下一頁:
Copyright © 程式師世界 All Rights Reserved
