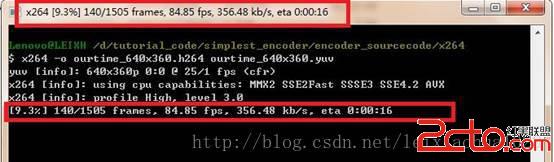

本文簡單分析x264項目中的命令行工具（x264.exe）的源代碼。該命令行工具可以調用libx264將YUV格式像素數據編碼為H.264碼流。

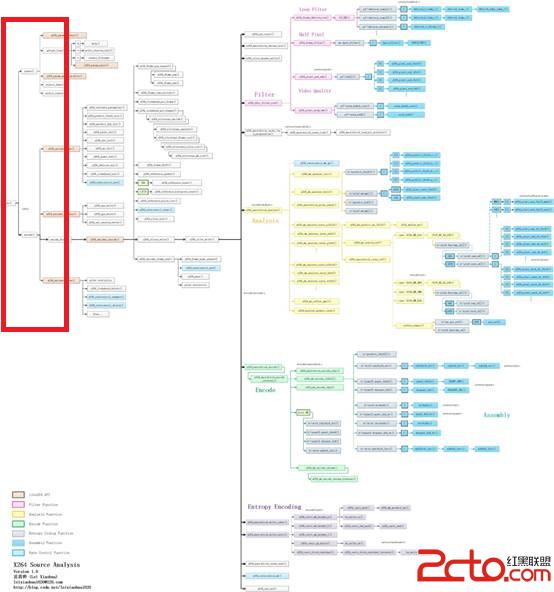

X264命令行工具的源代碼在x264中的位置如下圖所示。
單擊查看更清晰的圖片x264_param_default()：設置參數集結構體x264_param_t的缺省值。
x264_encoder_open()：打開編碼器。
x264_encoder_headers()：輸出SPS，PPS，SEI等信息。
x264_encoder_encode()：編碼輸出一幀圖像。
x264_encoder_close()：關閉編碼器。

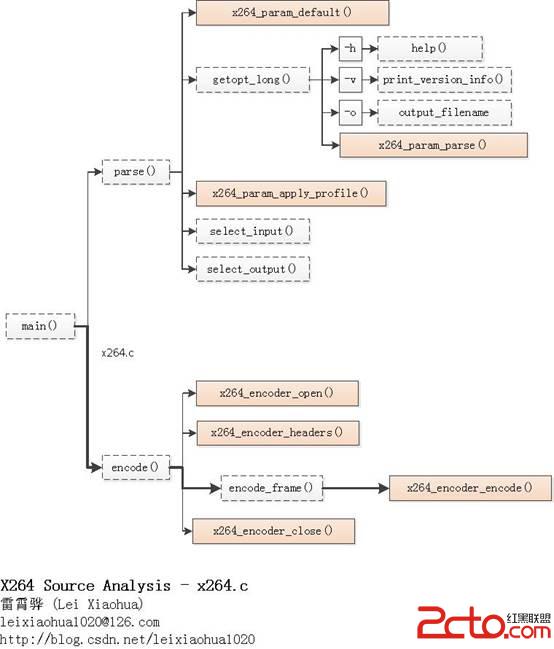

在X264命令行工具中，main()首先調用parse()解析輸入的命令行參數，然後調用encode()進行編碼。parse()首先調用x264_param_default()為存儲參數的結構體x264_param_t賦默認值；然後在一個大循環中調用getopt_long()逐個解析輸入的參數，並作相應的處理；最後調用select_input()和select_output()解析輸入文件格式（例如yuv，y4m…）和輸出文件格式（例如raw，flv，MP4…）。encode()首先調用x264_encoder_open()打開H.264編碼器，然後調用x264_encoder_headers()輸出H.264碼流的頭信息（例如SPS、PPS、SEI），接著進入一個循環並且調用encode_frame()逐幀編碼視頻，最後調用x264_encoder_close()關閉解碼器。其中encode_frame()中又調用了x264_encoder_encode()完成了具體的編碼工作。下文將會對上述流程展開分析。
//主函數
int main( int argc, char **argv )
{
//參數集
x264_param_t param;
cli_opt_t opt = {0};
int ret = 0;
FAIL_IF_ERROR( x264_threading_init(), unable to initialize threading
)
#ifdef _WIN32
FAIL_IF_ERROR( !get_argv_utf8( &argc, &argv ), unable to convert command line to UTF-8
)
GetConsoleTitleW( org_console_title, CONSOLE_TITLE_SIZE );
_setmode( _fileno( stdin ), _O_BINARY );
_setmode( _fileno( stdout ), _O_BINARY );
_setmode( _fileno( stderr ), _O_BINARY );
#endif
/* Parse command line */
//解析命令行輸入
if( parse( argc, argv, ¶m, &opt ) < 0 )
ret = -1;
#ifdef _WIN32
/* Restore title; it can be changed by input modules */
SetConsoleTitleW( org_console_title );
#endif
/* Control-C handler */
signal( SIGINT, sigint_handler );
//編碼
if( !ret )
ret = encode( ¶m, &opt );
/* clean up handles */
if( filter.free )
filter.free( opt.hin );
else if( opt.hin )
cli_input.close_file( opt.hin );
if( opt.hout )
cli_output.close_file( opt.hout, 0, 0 );
if( opt.tcfile_out )
fclose( opt.tcfile_out );
if( opt.qpfile )
fclose( opt.qpfile );
#ifdef _WIN32
SetConsoleTitleW( org_console_title );
free( argv );
#endif
return ret;
}
//解析命令行輸入
static int parse( int argc, char **argv, x264_param_t *param, cli_opt_t *opt )
{
char *input_filename = NULL;
const char *demuxer = demuxer_names[0];
char *output_filename = NULL;
const char *muxer = muxer_names[0];
char *tcfile_name = NULL;
x264_param_t defaults;
char *profile = NULL;
char *vid_filters = NULL;
int b_thread_input = 0;
int b_turbo = 1;
int b_user_ref = 0;
int b_user_fps = 0;
int b_user_interlaced = 0;
cli_input_opt_t input_opt;
cli_output_opt_t output_opt;
char *preset = NULL;
char *tune = NULL;
//初始化參數默認值
x264_param_default( &defaults );
cli_log_level = defaults.i_log_level;
memset( &input_opt, 0, sizeof(cli_input_opt_t) );
memset( &output_opt, 0, sizeof(cli_output_opt_t) );
input_opt.bit_depth = 8;
input_opt.input_range = input_opt.output_range = param->vui.b_fullrange = RANGE_AUTO;
int output_csp = defaults.i_csp;
opt->b_progress = 1;
/* Presets are applied before all other options. */
for( optind = 0;; )
{
int c = getopt_long( argc, argv, short_options, long_options, NULL );
if( c == -1 )
break;
if( c == OPT_PRESET )
preset = optarg;
if( c == OPT_TUNE )
tune = optarg;
else if( c == '?' )
return -1;
}
if( preset && !strcasecmp( preset, placebo ) )
b_turbo = 0;
//設置preset，tune
if( x264_param_default_preset( param, preset, tune ) < 0 )
return -1;
/* Parse command line options */
//解析命令行選項
for( optind = 0;; )
{
int b_error = 0;
int long_options_index = -1;
int c = getopt_long( argc, argv, short_options, long_options, &long_options_index );
if( c == -1 )
{
break;
}
//不同的選項做不同的處理
switch( c )
{
case 'h':
help( &defaults, 0 );//-h幫助菜單
exit(0);
case OPT_LONGHELP:
help( &defaults, 1 );
exit(0);
case OPT_FULLHELP:
help( &defaults, 2 );
exit(0);
case 'V':
print_version_info();//打印版本信息
exit(0);
case OPT_FRAMES:
param->i_frame_total = X264_MAX( atoi( optarg ), 0 );
break;
case OPT_SEEK:
opt->i_seek = X264_MAX( atoi( optarg ), 0 );
break;
case 'o':
output_filename = optarg;//輸出文件路徑
break;
case OPT_MUXER:
FAIL_IF_ERROR( parse_enum_name( optarg, muxer_names, &muxer ), Unknown muxer `%s'
, optarg )
break;
case OPT_DEMUXER:
FAIL_IF_ERROR( parse_enum_name( optarg, demuxer_names, &demuxer ), Unknown demuxer `%s'
, optarg )
break;
case OPT_INDEX:
input_opt.index_file = optarg;
break;
case OPT_QPFILE:
opt->qpfile = x264_fopen( optarg, rb );
FAIL_IF_ERROR( !opt->qpfile, can't open qpfile `%s'
, optarg )
if( !x264_is_regular_file( opt->qpfile ) )
{
x264_cli_log( x264, X264_LOG_ERROR, qpfile incompatible with non-regular file `%s'
, optarg );
fclose( opt->qpfile );
return -1;
}
break;
case OPT_THREAD_INPUT:
b_thread_input = 1;
break;
case OPT_QUIET:
cli_log_level = param->i_log_level = X264_LOG_NONE;//設置log級別
break;
case 'v':
cli_log_level = param->i_log_level = X264_LOG_DEBUG;//設置log級別
break;
case OPT_LOG_LEVEL:
if( !parse_enum_value( optarg, log_level_names, &cli_log_level ) )
cli_log_level += X264_LOG_NONE;
else
cli_log_level = atoi( optarg );
param->i_log_level = cli_log_level;//設置log級別
break;
case OPT_NOPROGRESS:
opt->b_progress = 0;
break;
case OPT_TUNE:
case OPT_PRESET:
break;
case OPT_PROFILE:
profile = optarg;
break;
case OPT_SLOWFIRSTPASS:
b_turbo = 0;
break;
case 'r':
b_user_ref = 1;
goto generic_option;
case OPT_FPS:
b_user_fps = 1;
param->b_vfr_input = 0;
goto generic_option;
case OPT_INTERLACED:
b_user_interlaced = 1;
goto generic_option;
case OPT_TCFILE_IN:
tcfile_name = optarg;
break;
case OPT_TCFILE_OUT:
opt->tcfile_out = x264_fopen( optarg, wb );
FAIL_IF_ERROR( !opt->tcfile_out, can't open `%s'
, optarg )
break;
case OPT_TIMEBASE:
input_opt.timebase = optarg;
break;
case OPT_PULLDOWN:
FAIL_IF_ERROR( parse_enum_value( optarg, pulldown_names, &opt->i_pulldown ), Unknown pulldown `%s'
, optarg )
break;
case OPT_VIDEO_FILTER:
vid_filters = optarg;
break;
case OPT_INPUT_FMT:
input_opt.format = optarg;//輸入文件格式
break;
case OPT_INPUT_RES:
input_opt.resolution = optarg;//輸入分辨率
break;
case OPT_INPUT_CSP:
input_opt.colorspace = optarg;//輸入色域
break;
case OPT_INPUT_DEPTH:
input_opt.bit_depth = atoi( optarg );//輸入顏色位深
break;
case OPT_DTS_COMPRESSION:
output_opt.use_dts_compress = 1;
break;
case OPT_OUTPUT_CSP:
FAIL_IF_ERROR( parse_enum_value( optarg, output_csp_names, &output_csp ), Unknown output csp `%s'
, optarg )
// correct the parsed value to the libx264 csp value
#if X264_CHROMA_FORMAT
static const uint8_t output_csp_fix[] = { X264_CHROMA_FORMAT, X264_CSP_RGB };
#else
static const uint8_t output_csp_fix[] = { X264_CSP_I420, X264_CSP_I422, X264_CSP_I444, X264_CSP_RGB };
#endif
param->i_csp = output_csp = output_csp_fix[output_csp];
break;
case OPT_INPUT_RANGE:
FAIL_IF_ERROR( parse_enum_value( optarg, range_names, &input_opt.input_range ), Unknown input range `%s'
, optarg )
input_opt.input_range += RANGE_AUTO;
break;
case OPT_RANGE:
FAIL_IF_ERROR( parse_enum_value( optarg, range_names, ¶m->vui.b_fullrange ), Unknown range `%s'
, optarg );
input_opt.output_range = param->vui.b_fullrange += RANGE_AUTO;
break;
default:
generic_option:
{
if( long_options_index < 0 )
{
for( int i = 0; long_options[i].name; i++ )
if( long_options[i].val == c )
{
long_options_index = i;
break;
}
if( long_options_index < 0 )
{
/* getopt_long already printed an error message */
return -1;
}
}
//解析以字符串方式輸入的參數
//即選項名稱和選項值都是字符串
b_error |= x264_param_parse( param, long_options[long_options_index].name, optarg );
}
}
if( b_error )
{
const char *name = long_options_index > 0 ? long_options[long_options_index].name : argv[optind-2];
x264_cli_log( x264, X264_LOG_ERROR, invalid argument: %s = %s
, name, optarg );
return -1;
}
}
/* If first pass mode is used, apply faster settings. */
if( b_turbo )
x264_param_apply_fastfirstpass( param );
/* Apply profile restrictions. */
//設置profile
if( x264_param_apply_profile( param, profile ) < 0 )
return -1;
/* Get the file name */
FAIL_IF_ERROR( optind > argc - 1 || !output_filename, No %s file. Run x264 --help for a list of options.
,
optind > argc - 1 ? input : output )
//根據文件名的後綴確定輸出的文件格式（raw H264，flv，mp4...）
if( select_output( muxer, output_filename, param ) )
return -1;
FAIL_IF_ERROR( cli_output.open_file( output_filename, &opt->hout, &output_opt ), could not open output file `%s'
, output_filename )
//輸入文件路徑
input_filename = argv[optind++];
video_info_t info = {0};
char demuxername[5];
/* set info flags to be overwritten by demuxer as necessary. */
//設置info結構體
info.csp = param->i_csp;
info.fps_num = param->i_fps_num;
info.fps_den = param->i_fps_den;
info.fullrange = input_opt.input_range == RANGE_PC;
info.interlaced = param->b_interlaced;
if( param->vui.i_sar_width > 0 && param->vui.i_sar_height > 0 )
{
info.sar_width = param->vui.i_sar_width;
info.sar_height = param->vui.i_sar_height;
}
info.tff = param->b_tff;
info.vfr = param->b_vfr_input;
input_opt.seek = opt->i_seek;
input_opt.progress = opt->b_progress;
input_opt.output_csp = output_csp;
//設置輸入文件的格式（yuv，y4m...）
if( select_input( demuxer, demuxername, input_filename, &opt->hin, &info, &input_opt ) )
return -1;
FAIL_IF_ERROR( !opt->hin && cli_input.open_file( input_filename, &opt->hin, &info, &input_opt ),
could not open input file `%s'
, input_filename )
x264_reduce_fraction( &info.sar_width, &info.sar_height );
x264_reduce_fraction( &info.fps_num, &info.fps_den );
x264_cli_log( demuxername, X264_LOG_INFO, %dx%d%c %u:%u @ %u/%u fps (%cfr)
, info.width,
info.height, info.interlaced ? 'i' : 'p', info.sar_width, info.sar_height,
info.fps_num, info.fps_den, info.vfr ? 'v' : 'c' );
if( tcfile_name )
{
FAIL_IF_ERROR( b_user_fps, --fps + --tcfile-in is incompatible.
)
FAIL_IF_ERROR( timecode_input.open_file( tcfile_name, &opt->hin, &info, &input_opt ), timecode input failed
)
cli_input = timecode_input;
}
else FAIL_IF_ERROR( !info.vfr && input_opt.timebase, --timebase is incompatible with cfr input
)
/* init threaded input while the information about the input video is unaltered by filtering */
#if HAVE_THREAD
if( info.thread_safe && (b_thread_input || param->i_threads > 1
|| (param->i_threads == X264_THREADS_AUTO && x264_cpu_num_processors() > 1)) )
{
if( thread_input.open_file( NULL, &opt->hin, &info, NULL ) )
{
fprintf( stderr, x264 [error]: threaded input failed
);
return -1;
}
cli_input = thread_input;
}
#endif
/* override detected values by those specified by the user */
if( param->vui.i_sar_width > 0 && param->vui.i_sar_height > 0 )
{
info.sar_width = param->vui.i_sar_width;
info.sar_height = param->vui.i_sar_height;
}
if( b_user_fps )
{
info.fps_num = param->i_fps_num;
info.fps_den = param->i_fps_den;
}
if( !info.vfr )
{
info.timebase_num = info.fps_den;
info.timebase_den = info.fps_num;
}
if( !tcfile_name && input_opt.timebase )
{
uint64_t i_user_timebase_num;
uint64_t i_user_timebase_den;
int ret = sscanf( input_opt.timebase, %SCNu64/%SCNu64, &i_user_timebase_num, &i_user_timebase_den );
FAIL_IF_ERROR( !ret, invalid argument: timebase = %s
, input_opt.timebase )
else if( ret == 1 )
{
i_user_timebase_num = info.timebase_num;
i_user_timebase_den = strtoul( input_opt.timebase, NULL, 10 );
}
FAIL_IF_ERROR( i_user_timebase_num > UINT32_MAX || i_user_timebase_den > UINT32_MAX,
timebase you specified exceeds H.264 maximum
)
opt->timebase_convert_multiplier = ((double)i_user_timebase_den / info.timebase_den)
* ((double)info.timebase_num / i_user_timebase_num);
info.timebase_num = i_user_timebase_num;
info.timebase_den = i_user_timebase_den;
info.vfr = 1;
}
if( b_user_interlaced )
{
info.interlaced = param->b_interlaced;
info.tff = param->b_tff;
}
if( input_opt.input_range != RANGE_AUTO )
info.fullrange = input_opt.input_range;
//初始化濾鏡filter
//filter可以認為是一種“擴展”了的輸入源
if( init_vid_filters( vid_filters, &opt->hin, &info, param, output_csp ) )
return -1;
/* set param flags from the post-filtered video */
param->b_vfr_input = info.vfr;
param->i_fps_num = info.fps_num;
param->i_fps_den = info.fps_den;
param->i_timebase_num = info.timebase_num;
param->i_timebase_den = info.timebase_den;
param->vui.i_sar_width = info.sar_width;
param->vui.i_sar_height = info.sar_height;
info.num_frames = X264_MAX( info.num_frames - opt->i_seek, 0 );
if( (!info.num_frames || param->i_frame_total < info.num_frames)
&& param->i_frame_total > 0 )
info.num_frames = param->i_frame_total;
param->i_frame_total = info.num_frames;
if( !b_user_interlaced && info.interlaced )
{
#if HAVE_INTERLACED
x264_cli_log( x264, X264_LOG_WARNING, input appears to be interlaced, enabling %cff interlaced mode.
If you want otherwise, use --no-interlaced or --%cff
,
info.tff ? 't' : 'b', info.tff ? 'b' : 't' );
param->b_interlaced = 1;
param->b_tff = !!info.tff;
#else
x264_cli_log( x264, X264_LOG_WARNING, input appears to be interlaced, but not compiled with interlaced support
);
#endif
}
/* if the user never specified the output range and the input is now rgb, default it to pc */
int csp = param->i_csp & X264_CSP_MASK;
if( csp >= X264_CSP_BGR && csp <= X264_CSP_RGB )
{
if( input_opt.output_range == RANGE_AUTO )
param->vui.b_fullrange = RANGE_PC;
/* otherwise fail if they specified tv */
FAIL_IF_ERROR( !param->vui.b_fullrange, RGB must be PC range )
}
/* Automatically reduce reference frame count to match the user's target level
* if the user didn't explicitly set a reference frame count. */
if( !b_user_ref )
{
int mbs = (((param->i_width)+15)>>4) * (((param->i_height)+15)>>4);
for( int i = 0; x264_levels[i].level_idc != 0; i++ )
if( param->i_level_idc == x264_levels[i].level_idc )
{
while( mbs * param->i_frame_reference > x264_levels[i].dpb && param->i_frame_reference > 1 )
param->i_frame_reference--;
break;
}
}
return 0;
}
（1）調用x264_param_default()為存儲參數的結構體x264_param_t賦默認值
（2）調用x264_param_default_preset()為x264_param_t賦值
（3）在一個大循環中調用getopt_long()逐個解析輸入的參數，並作相應的處理。舉幾個例子：a)“-h”：調用help()打開幫助菜單。b)“-V”調用print_version_info()打印版本信息。c)對於長選項，調用x264_param_parse()進行處理。（4）調用select_input()解析輸出文件格式（例如raw，flv，MP4…）
（5）調用select_output()解析輸入文件格式（例如yuv，y4m…）
下文按照順序記錄parse()中涉及到的函數：
x264_param_default()
x264_param_default_preset()
help()
print_version_info()
x264_param_parse()
select_input()
select_output()
/* x264_param_default: * fill x264_param_t with default values and do CPU detection */ void x264_param_default( x264_param_t * );x264_param_default()的定義如下所示。
/****************************************************************************
* x264_param_default:
****************************************************************************/
//初始化參數默認值
void x264_param_default( x264_param_t *param )
{
/* */
memset( param, 0, sizeof( x264_param_t ) );
/* CPU autodetect */
param->cpu = x264_cpu_detect();
param->i_threads = X264_THREADS_AUTO;
param->i_lookahead_threads = X264_THREADS_AUTO;
param->b_deterministic = 1;
param->i_sync_lookahead = X264_SYNC_LOOKAHEAD_AUTO;
/* Video properties */
param->i_csp = X264_CHROMA_FORMAT ? X264_CHROMA_FORMAT : X264_CSP_I420;
param->i_width = 0;
param->i_height = 0;
param->vui.i_sar_width = 0;
param->vui.i_sar_height= 0;
param->vui.i_overscan = 0; /* undef */
param->vui.i_vidformat = 5; /* undef */
param->vui.b_fullrange = -1; /* default depends on input */
param->vui.i_colorprim = 2; /* undef */
param->vui.i_transfer = 2; /* undef */
param->vui.i_colmatrix = -1; /* default depends on input */
param->vui.i_chroma_loc= 0; /* left center */
param->i_fps_num = 25;
param->i_fps_den = 1;
param->i_level_idc = -1;
param->i_slice_max_size = 0;
param->i_slice_max_mbs = 0;
param->i_slice_count = 0;
/* Encoder parameters */
//編碼參數--最常見
param->i_frame_reference = 3;
param->i_keyint_max = 250;
param->i_keyint_min = X264_KEYINT_MIN_AUTO;
param->i_bframe = 3;
param->i_scenecut_threshold = 40;
param->i_bframe_adaptive = X264_B_ADAPT_FAST;
param->i_bframe_bias = 0;
param->i_bframe_pyramid = X264_B_PYRAMID_NORMAL;
param->b_interlaced = 0;
param->b_constrained_intra = 0;
param->b_deblocking_filter = 1;
param->i_deblocking_filter_alphac0 = 0;
param->i_deblocking_filter_beta = 0;
param->b_cabac = 1;
param->i_cabac_init_idc = 0;
//碼率控制模塊 Rate Control
param->rc.i_rc_method = X264_RC_CRF;
param->rc.i_bitrate = 0;
param->rc.f_rate_tolerance = 1.0;
param->rc.i_vbv_max_bitrate = 0;
param->rc.i_vbv_buffer_size = 0;
param->rc.f_vbv_buffer_init = 0.9;
param->rc.i_qp_constant = 23 + QP_BD_OFFSET;
param->rc.f_rf_constant = 23;
param->rc.i_qp_min = 0;
param->rc.i_qp_max = QP_MAX;
param->rc.i_qp_step = 4;
param->rc.f_ip_factor = 1.4;
param->rc.f_pb_factor = 1.3;
param->rc.i_aq_mode = X264_AQ_VARIANCE;
param->rc.f_aq_strength = 1.0;
param->rc.i_lookahead = 40;
param->rc.b_stat_write = 0;
param->rc.psz_stat_out = x264_2pass.log;
param->rc.b_stat_read = 0;
param->rc.psz_stat_in = x264_2pass.log;
param->rc.f_qcompress = 0.6;
param->rc.f_qblur = 0.5;
param->rc.f_complexity_blur = 20;
param->rc.i_zones = 0;
param->rc.b_mb_tree = 1;
/* Log */
//日志模塊
param->pf_log = x264_log_default;
param->p_log_private = NULL;
param->i_log_level = X264_LOG_INFO;
/* */
//分析模塊 Analysis
param->analyse.intra = X264_ANALYSE_I4x4 | X264_ANALYSE_I8x8;
param->analyse.inter = X264_ANALYSE_I4x4 | X264_ANALYSE_I8x8
| X264_ANALYSE_PSUB16x16 | X264_ANALYSE_BSUB16x16;
param->analyse.i_direct_mv_pred = X264_DIRECT_PRED_SPATIAL;
param->analyse.i_me_method = X264_ME_HEX;
param->analyse.f_psy_rd = 1.0;
param->analyse.b_psy = 1;
param->analyse.f_psy_trellis = 0;
param->analyse.i_me_range = 16;
param->analyse.i_subpel_refine = 7;
param->analyse.b_mixed_references = 1;
param->analyse.b_chroma_me = 1;
param->analyse.i_mv_range_thread = -1;
param->analyse.i_mv_range = -1; // set from level_idc
param->analyse.i_chroma_qp_offset = 0;
param->analyse.b_fast_pskip = 1;
param->analyse.b_weighted_bipred = 1;
param->analyse.i_weighted_pred = X264_WEIGHTP_SMART;
param->analyse.b_dct_decimate = 1;
param->analyse.b_transform_8x8 = 1;
param->analyse.i_trellis = 1;
param->analyse.i_luma_deadzone[0] = 21;
param->analyse.i_luma_deadzone[1] = 11;
param->analyse.b_psnr = 0;
param->analyse.b_ssim = 0;
param->i_cqm_preset = X264_CQM_FLAT;
memset( param->cqm_4iy, 16, sizeof( param->cqm_4iy ) );
memset( param->cqm_4py, 16, sizeof( param->cqm_4py ) );
memset( param->cqm_4ic, 16, sizeof( param->cqm_4ic ) );
memset( param->cqm_4pc, 16, sizeof( param->cqm_4pc ) );
memset( param->cqm_8iy, 16, sizeof( param->cqm_8iy ) );
memset( param->cqm_8py, 16, sizeof( param->cqm_8py ) );
memset( param->cqm_8ic, 16, sizeof( param->cqm_8ic ) );
memset( param->cqm_8pc, 16, sizeof( param->cqm_8pc ) );
param->b_repeat_headers = 1;
param->b_annexb = 1;
param->b_aud = 0;
param->b_vfr_input = 1;
param->i_nal_hrd = X264_NAL_HRD_NONE;
param->b_tff = 1;
param->b_pic_struct = 0;
param->b_fake_interlaced = 0;
param->i_frame_packing = -1;
param->b_opencl = 0;
param->i_opencl_device = 0;
param->opencl_device_id = NULL;
param->psz_clbin_file = NULL;
}
/* Multiple tunings can be used if separated by a delimiter in ,./-+, * however multiple psy tunings cannot be used. * film, animation, grain, stillimage, psnr, and ssim are psy tunings. * * returns 0 on success, negative on failure (e.g. invalid preset/tune name). */ int x264_param_default_preset( x264_param_t *, const char *preset, const char *tune );x264_param_default_preset()的定義如下所示。
//設置preset，tune
int x264_param_default_preset( x264_param_t *param, const char *preset, const char *tune )
{
x264_param_default( param );
//設置preset
if( preset && x264_param_apply_preset( param, preset ) < 0 )
return -1;
//設置tune
if( tune && x264_param_apply_tune( param, tune ) < 0 )
return -1;
return 0;
}
//設置preset
static int x264_param_apply_preset( x264_param_t *param, const char *preset )
{
char *end;
int i = strtol( preset, &end, 10 );
if( *end == 0 && i >= 0 && i < sizeof(x264_preset_names)/sizeof(*x264_preset_names)-1 )
preset = x264_preset_names[i];
//幾種不同的preset設置不同的參數
if( !strcasecmp( preset, ultrafast ) )
{
param->i_frame_reference = 1;
param->i_scenecut_threshold = 0;
param->b_deblocking_filter = 0;//不使用去塊濾波
param->b_cabac = 0;//不使用CABAC
param->i_bframe = 0;//不使用B幀
param->analyse.intra = 0;
param->analyse.inter = 0;
param->analyse.b_transform_8x8 = 0;//不使用8x8DCT
param->analyse.i_me_method = X264_ME_DIA;//運動搜索方法使用“Diamond”
param->analyse.i_subpel_refine = 0;
param->rc.i_aq_mode = 0;
param->analyse.b_mixed_references = 0;
param->analyse.i_trellis = 0;
param->i_bframe_adaptive = X264_B_ADAPT_NONE;
param->rc.b_mb_tree = 0;
param->analyse.i_weighted_pred = X264_WEIGHTP_NONE;//不使用加權
param->analyse.b_weighted_bipred = 0;
param->rc.i_lookahead = 0;
}
else if( !strcasecmp( preset, superfast ) )
{
param->analyse.inter = X264_ANALYSE_I8x8|X264_ANALYSE_I4x4;
param->analyse.i_me_method = X264_ME_DIA;//鑽石模板
param->analyse.i_subpel_refine = 1;//亞像素運動估計質量為1
param->i_frame_reference = 1;
param->analyse.b_mixed_references = 0;
param->analyse.i_trellis = 0;
param->rc.b_mb_tree = 0;
param->analyse.i_weighted_pred = X264_WEIGHTP_SIMPLE;
param->rc.i_lookahead = 0;
}
else if( !strcasecmp( preset, veryfast ) )
{
param->analyse.i_me_method = X264_ME_HEX;//六邊形模板
param->analyse.i_subpel_refine = 2;
param->i_frame_reference = 1;
param->analyse.b_mixed_references = 0;
param->analyse.i_trellis = 0;
param->analyse.i_weighted_pred = X264_WEIGHTP_SIMPLE;
param->rc.i_lookahead = 10;
}
else if( !strcasecmp( preset, faster ) )
{
param->analyse.b_mixed_references = 0;
param->i_frame_reference = 2;
param->analyse.i_subpel_refine = 4;
param->analyse.i_weighted_pred = X264_WEIGHTP_SIMPLE;
param->rc.i_lookahead = 20;
}
else if( !strcasecmp( preset, fast ) )
{
param->i_frame_reference = 2;
param->analyse.i_subpel_refine = 6;
param->analyse.i_weighted_pred = X264_WEIGHTP_SIMPLE;
param->rc.i_lookahead = 30;
}
else if( !strcasecmp( preset, medium ) )
{
/* Default is medium */
}
else if( !strcasecmp( preset, slow ) )
{
param->analyse.i_me_method = X264_ME_UMH;//UMH相對復雜
param->analyse.i_subpel_refine = 8;//亞像素運動估計質量為8
param->i_frame_reference = 5;
param->i_bframe_adaptive = X264_B_ADAPT_TRELLIS;
param->analyse.i_direct_mv_pred = X264_DIRECT_PRED_AUTO;
param->rc.i_lookahead = 50;
}
else if( !strcasecmp( preset, slower ) )
{
param->analyse.i_me_method = X264_ME_UMH;
param->analyse.i_subpel_refine = 9;
param->i_frame_reference = 8;
param->i_bframe_adaptive = X264_B_ADAPT_TRELLIS;
param->analyse.i_direct_mv_pred = X264_DIRECT_PRED_AUTO;
param->analyse.inter |= X264_ANALYSE_PSUB8x8;
param->analyse.i_trellis = 2;
param->rc.i_lookahead = 60;
}
else if( !strcasecmp( preset, veryslow ) )
{
param->analyse.i_me_method = X264_ME_UMH;
param->analyse.i_subpel_refine = 10;
param->analyse.i_me_range = 24;
param->i_frame_reference = 16;
param->i_bframe_adaptive = X264_B_ADAPT_TRELLIS;
param->analyse.i_direct_mv_pred = X264_DIRECT_PRED_AUTO;
param->analyse.inter |= X264_ANALYSE_PSUB8x8;
param->analyse.i_trellis = 2;
param->i_bframe = 8;
param->rc.i_lookahead = 60;
}
else if( !strcasecmp( preset, placebo ) )
{
param->analyse.i_me_method = X264_ME_TESA;//TESA很慢
param->analyse.i_subpel_refine = 11;
param->analyse.i_me_range = 24;
param->i_frame_reference = 16;
param->i_bframe_adaptive = X264_B_ADAPT_TRELLIS;
param->analyse.i_direct_mv_pred = X264_DIRECT_PRED_AUTO;
param->analyse.inter |= X264_ANALYSE_PSUB8x8;
param->analyse.b_fast_pskip = 0;
param->analyse.i_trellis = 2;
param->i_bframe = 16;
param->rc.i_lookahead = 60;
}
else
{
x264_log( NULL, X264_LOG_ERROR, invalid preset '%s'
, preset );
return -1;
}
return 0;
}
//設置tune
static int x264_param_apply_tune( x264_param_t *param, const char *tune )
{
char *tmp = x264_malloc( strlen( tune ) + 1 );
if( !tmp )
return -1;
tmp = strcpy( tmp, tune );
//分解一個字符串為一個字符串數組。第2個參數為分隔符
char *s = strtok( tmp, ,./-+ );
int psy_tuning_used = 0;
//設置
//這裡是循環的，可以設置多次
while( s )
{
if( !strncasecmp( s, film, 4 ) )
{
if( psy_tuning_used++ ) goto psy_failure;
param->i_deblocking_filter_alphac0 = -1;
param->i_deblocking_filter_beta = -1;
param->analyse.f_psy_trellis = 0.15;
}
else if( !strncasecmp( s, animation, 9 ) )
{
if( psy_tuning_used++ ) goto psy_failure;
param->i_frame_reference = param->i_frame_reference > 1 ? param->i_frame_reference*2 : 1;
param->i_deblocking_filter_alphac0 = 1;
param->i_deblocking_filter_beta = 1;
param->analyse.f_psy_rd = 0.4;
param->rc.f_aq_strength = 0.6;
param->i_bframe += 2;
}
else if( !strncasecmp( s, grain, 5 ) )
{
if( psy_tuning_used++ ) goto psy_failure;
param->i_deblocking_filter_alphac0 = -2;
param->i_deblocking_filter_beta = -2;
param->analyse.f_psy_trellis = 0.25;
param->analyse.b_dct_decimate = 0;
param->rc.f_pb_factor = 1.1;
param->rc.f_ip_factor = 1.1;
param->rc.f_aq_strength = 0.5;
param->analyse.i_luma_deadzone[0] = 6;
param->analyse.i_luma_deadzone[1] = 6;
param->rc.f_qcompress = 0.8;
}
else if( !strncasecmp( s, stillimage, 10 ) )
{
if( psy_tuning_used++ ) goto psy_failure;
param->i_deblocking_filter_alphac0 = -3;
param->i_deblocking_filter_beta = -3;
param->analyse.f_psy_rd = 2.0;
param->analyse.f_psy_trellis = 0.7;
param->rc.f_aq_strength = 1.2;
}
else if( !strncasecmp( s, psnr, 4 ) )
{
if( psy_tuning_used++ ) goto psy_failure;
param->rc.i_aq_mode = X264_AQ_NONE;
param->analyse.b_psy = 0;
}
else if( !strncasecmp( s, ssim, 4 ) )
{
if( psy_tuning_used++ ) goto psy_failure;
param->rc.i_aq_mode = X264_AQ_AUTOVARIANCE;
param->analyse.b_psy = 0;
}
else if( !strncasecmp( s, fastdecode, 10 ) )
{
param->b_deblocking_filter = 0;
param->b_cabac = 0;
param->analyse.b_weighted_bipred = 0;
param->analyse.i_weighted_pred = X264_WEIGHTP_NONE;
}
else if( !strncasecmp( s, zerolatency, 11 ) )
{
//zerolatency速度快
param->rc.i_lookahead = 0;
param->i_sync_lookahead = 0;
param->i_bframe = 0;//不使用B幀
param->b_sliced_threads = 1;
param->b_vfr_input = 0;
param->rc.b_mb_tree = 0;
}
else if( !strncasecmp( s, touhou, 6 ) )
{
if( psy_tuning_used++ ) goto psy_failure;
param->i_frame_reference = param->i_frame_reference > 1 ? param->i_frame_reference*2 : 1;
param->i_deblocking_filter_alphac0 = -1;
param->i_deblocking_filter_beta = -1;
param->analyse.f_psy_trellis = 0.2;
param->rc.f_aq_strength = 1.3;
if( param->analyse.inter & X264_ANALYSE_PSUB16x16 )
param->analyse.inter |= X264_ANALYSE_PSUB8x8;
}
else
{
x264_log( NULL, X264_LOG_ERROR, invalid tune '%s'
, s );
x264_free( tmp );
return -1;
}
if( 0 )
{
psy_failure:
x264_log( NULL, X264_LOG_WARNING, only 1 psy tuning can be used: ignoring tune %s
, s );
}
s = strtok( NULL, ,./-+ );
}
x264_free( tmp );
return 0;
}
//幫助菜單
//longhelp標識是否展開更長的幫助菜單
static void help( x264_param_t *defaults, int longhelp )
{
char buf[50];
//H0(),H1(),H2()都是printf()
//H1(),H2()只有“長幫助菜單”的情況下才會調用printf()
#define H0 printf
#define H1 if(longhelp>=1) printf
#define H2 if(longhelp==2) printf
H0( x264 core:%d%s
Syntax: x264 [options] -o outfile infile
Infile can be raw (in which case resolution is required),
or YUV4MPEG (*.y4m),
or Avisynth if compiled with support (%s).
or libav* formats if compiled with lavf support (%s) or ffms support (%s).
Outfile type is selected by filename:
.264 -> Raw bytestream
.mkv -> Matroska
.flv -> Flash Video
.mp4 -> MP4 if compiled with GPAC or L-SMASH support (%s)
Output bit depth: %d (configured at compile time)
Options:
-h, --help List basic options
--longhelp List more options
--fullhelp List all options
,
X264_BUILD, X264_VERSION,
#if HAVE_AVS
yes,
#else
no,
#endif
#if HAVE_LAVF
yes,
#else
no,
#endif
#if HAVE_FFMS
yes,
#else
no,
#endif
#if HAVE_GPAC
gpac,
#elif HAVE_LSMASH
lsmash,
#else
no,
#endif
x264_bit_depth
);
H0( Example usage:
);
H0(
);
H0( Constant quality mode:
);
H0( x264 --crf 24 -o
//打印版本信息
static void print_version_info( void )
{
#ifdef X264_POINTVER
printf( x264 X264_POINTVER
);
#else
printf( x264 0.%d.X
, X264_BUILD );
#endif
#if HAVE_SWSCALE
printf( (libswscale %d.%d.%d)
, LIBSWSCALE_VERSION_MAJOR, LIBSWSCALE_VERSION_MINOR, LIBSWSCALE_VERSION_MICRO );
#endif
#if HAVE_LAVF
printf( (libavformat %d.%d.%d)
, LIBAVFORMAT_VERSION_MAJOR, LIBAVFORMAT_VERSION_MINOR, LIBAVFORMAT_VERSION_MICRO );
#endif
#if HAVE_FFMS
printf( (ffmpegsource %d.%d.%d.%d)
, FFMS_VERSION >> 24, (FFMS_VERSION & 0xff0000) >> 16, (FFMS_VERSION & 0xff00) >> 8, FFMS_VERSION & 0xff );
#endif
printf( built on __DATE__ , );
#ifdef __INTEL_COMPILER
printf( intel: %.2f (%d)
, __INTEL_COMPILER / 100.f, __INTEL_COMPILER_BUILD_DATE );
#elif defined(__GNUC__)
printf( gcc: __VERSION__
);
#elif defined(_MSC_FULL_VER)
printf( msvc: %.2f (%u)
, _MSC_VER / 100.f, _MSC_FULL_VER );
#else
printf( using an unknown compiler
);
#endif
printf( configuration: --bit-depth=%d --chroma-format=%s
, x264_bit_depth, X264_CHROMA_FORMAT ? (output_csp_names[0]+1) : all );
printf( x264 license: );
#if HAVE_GPL
printf( GPL version 2 or later
);
#else
printf( Non-GPL commercial
);
#endif
#if HAVE_SWSCALE
const char *license = swscale_license();
printf( libswscale%s%s license: %s
, HAVE_LAVF ? /libavformat : , HAVE_FFMS ? /ffmpegsource : , license );
if( !strcmp( license, nonfree and unredistributable ) ||
(!HAVE_GPL && (!strcmp( license, GPL version 2 or later )
|| !strcmp( license, GPL version 3 or later ))))
printf( WARNING: This binary is unredistributable!
);
#endif
}
/* x264_param_parse: * set one parameter by name. * returns 0 on success, or returns one of the following errors. * note: BAD_VALUE occurs only if it can't even parse the value, * numerical range is not checked until x264_encoder_open() or * x264_encoder_reconfig(). * value=NULL means true for boolean options, but is a BAD_VALUE for non-booleans. */ int x264_param_parse( x264_param_t *, const char *name, const char *value );x264_param_parse()的定義如下所示。
//解析以字符串方式輸入的參數
//即選項名稱和選項值都是字符串
//實質就是通過strcmp()方法
int x264_param_parse( x264_param_t *p, const char *name, const char *value )
{
char *name_buf = NULL;
int b_error = 0;
int name_was_bool;
int value_was_null = !value;
int i;
if( !name )
return X264_PARAM_BAD_NAME;
if( !value )
value = true;
if( value[0] == '=' )
value++;
if( strchr( name, '_' ) ) // s/_/-/g
{
char *c;
name_buf = strdup(name);
while( (c = strchr( name_buf, '_' )) )
*c = '-';
name = name_buf;
}
if( (!strncmp( name, no-, 3 ) && (i = 3)) ||
(!strncmp( name, no, 2 ) && (i = 2)) )
{
name += i;
value = atobool(value) ? false : true;
}
name_was_bool = 0;
#define OPT(STR) else if( !strcmp( name, STR ) )
#define OPT2(STR0, STR1) else if( !strcmp( name, STR0 ) || !strcmp( name, STR1 ) )
if(0);
//OPT()實際上就是strcmp()
OPT(asm)
{
p->cpu = isdigit(value[0]) ? atoi(value) :
!strcasecmp(value, auto) || atobool(value) ? x264_cpu_detect() : 0;
if( b_error )
{
char *buf = strdup(value);
char *tok, UNUSED *saveptr=NULL, *init;
b_error = 0;
p->cpu = 0;
for( init=buf; (tok=strtok_r(init, ,, &saveptr)); init=NULL )
{
for( i=0; x264_cpu_names[i].flags && strcasecmp(tok, x264_cpu_names[i].name); i++ );
p->cpu |= x264_cpu_names[i].flags;
if( !x264_cpu_names[i].flags )
b_error = 1;
}
free( buf );
if( (p->cpu&X264_CPU_SSSE3) && !(p->cpu&X264_CPU_SSE2_IS_SLOW) )
p->cpu |= X264_CPU_SSE2_IS_FAST;
}
}
OPT(threads)
{
if( !strcasecmp(value, auto) )
p->i_threads = X264_THREADS_AUTO;
else
p->i_threads = atoi(value);
}
OPT(lookahead-threads)
{
if( !strcasecmp(value, auto) )
p->i_lookahead_threads = X264_THREADS_AUTO;
else
p->i_lookahead_threads = atoi(value);
}
OPT(sliced-threads)
p->b_sliced_threads = atobool(value);
OPT(sync-lookahead)
{
if( !strcasecmp(value, auto) )
p->i_sync_lookahead = X264_SYNC_LOOKAHEAD_AUTO;
else
p->i_sync_lookahead = atoi(value);
}
OPT2(deterministic, n-deterministic)
p->b_deterministic = atobool(value);
OPT(cpu-independent)
p->b_cpu_independent = atobool(value);
OPT2(level, level-idc)
{
if( !strcmp(value, 1b) )
p->i_level_idc = 9;
else if( atof(value) < 6 )
p->i_level_idc = (int)(10*atof(value)+.5);
else
p->i_level_idc = atoi(value);
}
OPT(bluray-compat)
p->b_bluray_compat = atobool(value);
OPT(avcintra-class)
p->i_avcintra_class = atoi(value);
OPT(sar)
{
b_error = ( 2 != sscanf( value, %d:%d, &p->vui.i_sar_width, &p->vui.i_sar_height ) &&
2 != sscanf( value, %d/%d, &p->vui.i_sar_width, &p->vui.i_sar_height ) );
}
OPT(overscan)
b_error |= parse_enum( value, x264_overscan_names, &p->vui.i_overscan );
OPT(videoformat)
b_error |= parse_enum( value, x264_vidformat_names, &p->vui.i_vidformat );
OPT(fullrange)
b_error |= parse_enum( value, x264_fullrange_names, &p->vui.b_fullrange );
OPT(colorprim)
b_error |= parse_enum( value, x264_colorprim_names, &p->vui.i_colorprim );
OPT(transfer)
b_error |= parse_enum( value, x264_transfer_names, &p->vui.i_transfer );
OPT(colormatrix)
b_error |= parse_enum( value, x264_colmatrix_names, &p->vui.i_colmatrix );
OPT(chromaloc)
{
p->vui.i_chroma_loc = atoi(value);
b_error = ( p->vui.i_chroma_loc < 0 || p->vui.i_chroma_loc > 5 );
}
OPT(fps)
{
if( sscanf( value, %u/%u, &p->i_fps_num, &p->i_fps_den ) == 2 )
;
else
{
float fps = atof(value);
if( fps > 0 && fps <= INT_MAX/1000 )
{
p->i_fps_num = (int)(fps * 1000 + .5);
p->i_fps_den = 1000;
}
else
{
p->i_fps_num = atoi(value);
p->i_fps_den = 1;
}
}
}
OPT2(ref, frameref)
p->i_frame_reference = atoi(value);
OPT(dpb-size)
p->i_dpb_size = atoi(value);
OPT(keyint)
{
if( strstr( value, infinite ) )
p->i_keyint_max = X264_KEYINT_MAX_INFINITE;
else
p->i_keyint_max = atoi(value);
}
OPT2(min-keyint, keyint-min)
{
p->i_keyint_min = atoi(value);
if( p->i_keyint_max < p->i_keyint_min )
p->i_keyint_max = p->i_keyint_min;
}
OPT(scenecut)
{
p->i_scenecut_threshold = atobool(value);
if( b_error || p->i_scenecut_threshold )
{
b_error = 0;
p->i_scenecut_threshold = atoi(value);
}
}
OPT(intra-refresh)
p->b_intra_refresh = atobool(value);
OPT(bframes)
p->i_bframe = atoi(value);
OPT(b-adapt)
{
p->i_bframe_adaptive = atobool(value);
if( b_error )
{
b_error = 0;
p->i_bframe_adaptive = atoi(value);
}
}
OPT(b-bias)
p->i_bframe_bias = atoi(value);
OPT(b-pyramid)
{
b_error |= parse_enum( value, x264_b_pyramid_names, &p->i_bframe_pyramid );
if( b_error )
{
b_error = 0;
p->i_bframe_pyramid = atoi(value);
}
}
OPT(open-gop)
p->b_open_gop = atobool(value);
OPT(nf)
p->b_deblocking_filter = !atobool(value);
OPT2(filter, deblock)
{
if( 2 == sscanf( value, %d:%d, &p->i_deblocking_filter_alphac0, &p->i_deblocking_filter_beta ) ||
2 == sscanf( value, %d,%d, &p->i_deblocking_filter_alphac0, &p->i_deblocking_filter_beta ) )
{
p->b_deblocking_filter = 1;
}
else if( sscanf( value, %d, &p->i_deblocking_filter_alphac0 ) )
{
p->b_deblocking_filter = 1;
p->i_deblocking_filter_beta = p->i_deblocking_filter_alphac0;
}
else
p->b_deblocking_filter = atobool(value);
}
OPT(slice-max-size)
p->i_slice_max_size = atoi(value);
OPT(slice-max-mbs)
p->i_slice_max_mbs = atoi(value);
OPT(slice-min-mbs)
p->i_slice_min_mbs = atoi(value);
OPT(slices)
p->i_slice_count = atoi(value);
OPT(slices-max)
p->i_slice_count_max = atoi(value);
OPT(cabac)
p->b_cabac = atobool(value);
OPT(cabac-idc)
p->i_cabac_init_idc = atoi(value);
OPT(interlaced)
p->b_interlaced = atobool(value);
OPT(tff)
p->b_interlaced = p->b_tff = atobool(value);
OPT(bff)
{
p->b_interlaced = atobool(value);
p->b_tff = !p->b_interlaced;
}
OPT(constrained-intra)
p->b_constrained_intra = atobool(value);
OPT(cqm)
{
if( strstr( value, flat ) )
p->i_cqm_preset = X264_CQM_FLAT;
else if( strstr( value, jvt ) )
p->i_cqm_preset = X264_CQM_JVT;
else
p->psz_cqm_file = strdup(value);
}
OPT(cqmfile)
p->psz_cqm_file = strdup(value);
OPT(cqm4)
{
p->i_cqm_preset = X264_CQM_CUSTOM;
b_error |= parse_cqm( value, p->cqm_4iy, 16 );
b_error |= parse_cqm( value, p->cqm_4py, 16 );
b_error |= parse_cqm( value, p->cqm_4ic, 16 );
b_error |= parse_cqm( value, p->cqm_4pc, 16 );
}
OPT(cqm8)
{
p->i_cqm_preset = X264_CQM_CUSTOM;
b_error |= parse_cqm( value, p->cqm_8iy, 64 );
b_error |= parse_cqm( value, p->cqm_8py, 64 );
b_error |= parse_cqm( value, p->cqm_8ic, 64 );
b_error |= parse_cqm( value, p->cqm_8pc, 64 );
}
OPT(cqm4i)
{
p->i_cqm_preset = X264_CQM_CUSTOM;
b_error |= parse_cqm( value, p->cqm_4iy, 16 );
b_error |= parse_cqm( value, p->cqm_4ic, 16 );
}
OPT(cqm4p)
{
p->i_cqm_preset = X264_CQM_CUSTOM;
b_error |= parse_cqm( value, p->cqm_4py, 16 );
b_error |= parse_cqm( value, p->cqm_4pc, 16 );
}
OPT(cqm4iy)
{
p->i_cqm_preset = X264_CQM_CUSTOM;
b_error |= parse_cqm( value, p->cqm_4iy, 16 );
}
OPT(cqm4ic)
{
p->i_cqm_preset = X264_CQM_CUSTOM;
b_error |= parse_cqm( value, p->cqm_4ic, 16 );
}
OPT(cqm4py)
{
p->i_cqm_preset = X264_CQM_CUSTOM;
b_error |= parse_cqm( value, p->cqm_4py, 16 );
}
OPT(cqm4pc)
{
p->i_cqm_preset = X264_CQM_CUSTOM;
b_error |= parse_cqm( value, p->cqm_4pc, 16 );
}
OPT(cqm8i)
{
p->i_cqm_preset = X264_CQM_CUSTOM;
b_error |= parse_cqm( value, p->cqm_8iy, 64 );
b_error |= parse_cqm( value, p->cqm_8ic, 64 );
}
OPT(cqm8p)
{
p->i_cqm_preset = X264_CQM_CUSTOM;
b_error |= parse_cqm( value, p->cqm_8py, 64 );
b_error |= parse_cqm( value, p->cqm_8pc, 64 );
}
OPT(log)
p->i_log_level = atoi(value);
OPT(dump-yuv)
p->psz_dump_yuv = strdup(value);
OPT2(analyse, partitions)
{
p->analyse.inter = 0;
if( strstr( value, none ) ) p->analyse.inter = 0;
if( strstr( value, all ) ) p->analyse.inter = ~0;
if( strstr( value, i4x4 ) ) p->analyse.inter |= X264_ANALYSE_I4x4;
if( strstr( value, i8x8 ) ) p->analyse.inter |= X264_ANALYSE_I8x8;
if( strstr( value, p8x8 ) ) p->analyse.inter |= X264_ANALYSE_PSUB16x16;
if( strstr( value, p4x4 ) ) p->analyse.inter |= X264_ANALYSE_PSUB8x8;
if( strstr( value, b8x8 ) ) p->analyse.inter |= X264_ANALYSE_BSUB16x16;
}
OPT(8x8dct)
p->analyse.b_transform_8x8 = atobool(value);
OPT2(weightb, weight-b)
p->analyse.b_weighted_bipred = atobool(value);
OPT(weightp)
p->analyse.i_weighted_pred = atoi(value);
OPT2(direct, direct-pred)
b_error |= parse_enum( value, x264_direct_pred_names, &p->analyse.i_direct_mv_pred );
OPT(chroma-qp-offset)
p->analyse.i_chroma_qp_offset = atoi(value);
OPT(me)
b_error |= parse_enum( value, x264_motion_est_names, &p->analyse.i_me_method );
OPT2(merange, me-range)
p->analyse.i_me_range = atoi(value);
OPT2(mvrange, mv-range)
p->analyse.i_mv_range = atoi(value);
OPT2(mvrange-thread, mv-range-thread)
p->analyse.i_mv_range_thread = atoi(value);
OPT2(subme, subq)
p->analyse.i_subpel_refine = atoi(value);
OPT(psy-rd)
{
if( 2 == sscanf( value, %f:%f, &p->analyse.f_psy_rd, &p->analyse.f_psy_trellis ) ||
2 == sscanf( value, %f,%f, &p->analyse.f_psy_rd, &p->analyse.f_psy_trellis ) ||
2 == sscanf( value, %f|%f, &p->analyse.f_psy_rd, &p->analyse.f_psy_trellis ))
{ }
else if( sscanf( value, %f, &p->analyse.f_psy_rd ) )
{
p->analyse.f_psy_trellis = 0;
}
else
{
p->analyse.f_psy_rd = 0;
p->analyse.f_psy_trellis = 0;
}
}
OPT(psy)
p->analyse.b_psy = atobool(value);
OPT(chroma-me)
p->analyse.b_chroma_me = atobool(value);
OPT(mixed-refs)
p->analyse.b_mixed_references = atobool(value);
OPT(trellis)
p->analyse.i_trellis = atoi(value);
OPT(fast-pskip)
p->analyse.b_fast_pskip = atobool(value);
OPT(dct-decimate)
p->analyse.b_dct_decimate = atobool(value);
OPT(deadzone-inter)
p->analyse.i_luma_deadzone[0] = atoi(value);
OPT(deadzone-intra)
p->analyse.i_luma_deadzone[1] = atoi(value);
OPT(nr)
p->analyse.i_noise_reduction = atoi(value);
OPT(bitrate)
{
p->rc.i_bitrate = atoi(value);
p->rc.i_rc_method = X264_RC_ABR;
}
OPT2(qp, qp_constant)
{
p->rc.i_qp_constant = atoi(value);
p->rc.i_rc_method = X264_RC_CQP;
}
OPT(crf)
{
p->rc.f_rf_constant = atof(value);
p->rc.i_rc_method = X264_RC_CRF;
}
OPT(crf-max)
p->rc.f_rf_constant_max = atof(value);
OPT(rc-lookahead)
p->rc.i_lookahead = atoi(value);
OPT2(qpmin, qp-min)
p->rc.i_qp_min = atoi(value);
OPT2(qpmax, qp-max)
p->rc.i_qp_max = atoi(value);
OPT2(qpstep, qp-step)
p->rc.i_qp_step = atoi(value);
OPT(ratetol)
p->rc.f_rate_tolerance = !strncmp(inf, value, 3) ? 1e9 : atof(value);
OPT(vbv-maxrate)
p->rc.i_vbv_max_bitrate = atoi(value);
OPT(vbv-bufsize)
p->rc.i_vbv_buffer_size = atoi(value);
OPT(vbv-init)
p->rc.f_vbv_buffer_init = atof(value);
OPT2(ipratio, ip-factor)
p->rc.f_ip_factor = atof(value);
OPT2(pbratio, pb-factor)
p->rc.f_pb_factor = atof(value);
OPT(aq-mode)
p->rc.i_aq_mode = atoi(value);
OPT(aq-strength)
p->rc.f_aq_strength = atof(value);
OPT(pass)
{
int pass = x264_clip3( atoi(value), 0, 3 );
p->rc.b_stat_write = pass & 1;
p->rc.b_stat_read = pass & 2;
}
OPT(stats)
{
p->rc.psz_stat_in = strdup(value);
p->rc.psz_stat_out = strdup(value);
}
OPT(qcomp)
p->rc.f_qcompress = atof(value);
OPT(mbtree)
p->rc.b_mb_tree = atobool(value);
OPT(qblur)
p->rc.f_qblur = atof(value);
OPT2(cplxblur, cplx-blur)
p->rc.f_complexity_blur = atof(value);
OPT(zones)
p->rc.psz_zones = strdup(value);
OPT(crop-rect)
b_error |= sscanf( value, %u,%u,%u,%u, &p->crop_rect.i_left, &p->crop_rect.i_top,
&p->crop_rect.i_right, &p->crop_rect.i_bottom ) != 4;
OPT(psnr)
p->analyse.b_psnr = atobool(value);
OPT(ssim)
p->analyse.b_ssim = atobool(value);
OPT(aud)
p->b_aud = atobool(value);
OPT(sps-id)
p->i_sps_id = atoi(value);
OPT(global-header)
p->b_repeat_headers = !atobool(value);
OPT(repeat-headers)
p->b_repeat_headers = atobool(value);
OPT(annexb)
p->b_annexb = atobool(value);
OPT(force-cfr)
p->b_vfr_input = !atobool(value);
OPT(nal-hrd)
b_error |= parse_enum( value, x264_nal_hrd_names, &p->i_nal_hrd );
OPT(filler)
p->rc.b_filler = atobool(value);
OPT(pic-struct)
p->b_pic_struct = atobool(value);
OPT(fake-interlaced)
p->b_fake_interlaced = atobool(value);
OPT(frame-packing)
p->i_frame_packing = atoi(value);
OPT(stitchable)
p->b_stitchable = atobool(value);
OPT(opencl)
p->b_opencl = atobool( value );
OPT(opencl-clbin)
p->psz_clbin_file = strdup( value );
OPT(opencl-device)
p->i_opencl_device = atoi( value );
else
return X264_PARAM_BAD_NAME;
#undef OPT
#undef OPT2
#undef atobool
#undef atoi
#undef atof
if( name_buf )
free( name_buf );
b_error |= value_was_null && !name_was_bool;
return b_error ? X264_PARAM_BAD_VALUE : 0;
}
/* (can be NULL, in which case the function will do nothing) * * Does NOT guarantee that the given profile will be used: if the restrictions * of High are applied to settings that are already Baseline-compatible, the * stream will remain baseline. In short, it does not increase settings, only * decrease them. * * returns 0 on success, negative on failure (e.g. invalid profile name). */ int x264_param_apply_profile( x264_param_t *, const char *profile );x264_param_apply_profile()的定義如下所示。
//設置profile
int x264_param_apply_profile( x264_param_t *param, const char *profile )
{
if( !profile )
return 0;
//字符串到整型
int p = profile_string_to_int( profile );
//檢查profile設置是否正確
if( p < 0 )
{
x264_log( NULL, X264_LOG_ERROR, invalid profile: %s
, profile );
return -1;
}
if( p < PROFILE_HIGH444_PREDICTIVE && ((param->rc.i_rc_method == X264_RC_CQP && param->rc.i_qp_constant <= 0) ||
(param->rc.i_rc_method == X264_RC_CRF && (int)(param->rc.f_rf_constant + QP_BD_OFFSET) <= 0)) )
{
x264_log( NULL, X264_LOG_ERROR, %s profile doesn't support lossless
, profile );
return -1;
}
if( p < PROFILE_HIGH444_PREDICTIVE && (param->i_csp & X264_CSP_MASK) >= X264_CSP_I444 )
{
x264_log( NULL, X264_LOG_ERROR, %s profile doesn't support 4:4:4
, profile );
return -1;
}
if( p < PROFILE_HIGH422 && (param->i_csp & X264_CSP_MASK) >= X264_CSP_I422 )
{
x264_log( NULL, X264_LOG_ERROR, %s profile doesn't support 4:2:2
, profile );
return -1;
}
if( p < PROFILE_HIGH10 && BIT_DEPTH > 8 )
{
x264_log( NULL, X264_LOG_ERROR, %s profile doesn't support a bit depth of %d
, profile, BIT_DEPTH );
return -1;
}
//根據不同的Profile做設置
//Baseline基本型
if( p == PROFILE_BASELINE )
{
//不支持DCT8x8
param->analyse.b_transform_8x8 = 0;
//不使用CABAC
param->b_cabac = 0;
param->i_cqm_preset = X264_CQM_FLAT;
param->psz_cqm_file = NULL;
//沒有B幀
param->i_bframe = 0;
//沒有加權
param->analyse.i_weighted_pred = X264_WEIGHTP_NONE;
//不支持隔行掃描
if( param->b_interlaced )
{
x264_log( NULL, X264_LOG_ERROR, baseline profile doesn't support interlacing
);
return -1;
}
if( param->b_fake_interlaced )
{
x264_log( NULL, X264_LOG_ERROR, baseline profile doesn't support fake interlacing
);
return -1;
}
}
//Main主型
else if( p == PROFILE_MAIN )
{
//不支持DCT8x8
param->analyse.b_transform_8x8 = 0;
param->i_cqm_preset = X264_CQM_FLAT;
param->psz_cqm_file = NULL;
}
return 0;
}
static int profile_string_to_int( const char *str )
{
if( !strcasecmp( str, baseline ) )
return PROFILE_BASELINE;
if( !strcasecmp( str, main ) )
return PROFILE_MAIN;
if( !strcasecmp( str, high ) )
return PROFILE_HIGH;
if( !strcasecmp( str, high10 ) )
return PROFILE_HIGH10;
if( !strcasecmp( str, high422 ) )
return PROFILE_HIGH422;
if( !strcasecmp( str, high444 ) )
return PROFILE_HIGH444_PREDICTIVE;
return -1;
}
從定義可以看出profile_string_to_int()根據輸入的字符串str返回不同的整型變量。
//根據文件名的後綴確定輸出的文件格式（raw H264，flv，mp4...）
static int select_output( const char *muxer, char *filename, x264_param_t *param )
{
//從文件路徑字符串中解析出擴展名，存入ext
//解析的方式就是反向搜索字符“.”
const char *ext = get_filename_extension( filename );
//strcasecmp(char *s1, char *s2)用於忽略大小寫比較字符串.
//參數s1和s2字符串相等則返回0。s1大於s2則返回大於0 的值，s1 小於s2 則返回小於0的值。
if( !strcmp( filename, - ) || strcasecmp( muxer, auto ) )
ext = muxer;
//後綴為“mp4”
if( !strcasecmp( ext, mp4 ) )
{
#if HAVE_GPAC || HAVE_LSMASH
cli_output = mp4_output;
param->b_annexb = 0;
param->b_repeat_headers = 0;
if( param->i_nal_hrd == X264_NAL_HRD_CBR )
{
x264_cli_log( x264, X264_LOG_WARNING, cbr nal-hrd is not compatible with mp4
);
param->i_nal_hrd = X264_NAL_HRD_VBR;
}
#else
x264_cli_log( x264, X264_LOG_ERROR, not compiled with MP4 output support
);
return -1;
#endif
}
else if( !strcasecmp( ext, mkv ) )
{
//設定cli_output_t
cli_output = mkv_output;
//不加起始碼0x00000001
param->b_annexb = 0;
//不再每個Keyframe前面加SPS和PPS
param->b_repeat_headers = 0;
}
else if( !strcasecmp( ext, flv ) )
{
cli_output = flv_output;
param->b_annexb = 0;
param->b_repeat_headers = 0;
}
else
cli_output = raw_output;//不符合上述後綴，則輸出裸流
return 0;
}
//根據“.”確定文件後綴
static inline char *get_filename_extension( char *filename )
{
char *ext = filename + strlen( filename );
while( *ext != '.' && ext > filename )
ext--;
ext += *ext == '.';
return ext;
}
可以看出get_filename_extension()從字符串的末尾開始向前搜索點符號“.”，並且將“.”後面的內容作為提取出來的擴展名。
//設置輸入文件的格式（yuv，y4m...）
static int select_input( const char *demuxer, char *used_demuxer, char *filename,
hnd_t *p_handle, video_info_t *info, cli_input_opt_t *opt )
{
int b_auto = !strcasecmp( demuxer, auto );
//從文件路徑字符串中解析出擴展名，存入ext
//解析的方式就是反向搜索字符“.”
const char *ext = b_auto ? get_filename_extension( filename ) : ;
int b_regular = strcmp( filename, - );
if( !b_regular && b_auto )
ext = raw;
b_regular = b_regular && x264_is_regular_file_path( filename );
if( b_regular )
{
FILE *f = x264_fopen( filename, r );
if( f )
{
b_regular = x264_is_regular_file( f );
fclose( f );
}
}
const char *module = b_auto ? ext : demuxer;
//strcasecmp(char *s1, char *s2)用於忽略大小寫比較字符串.
//參數s1和s2字符串相等則返回0。s1大於s2則返回大於0 的值，s1 小於s2 則返回小於0的值。
if( !strcasecmp( module, avs ) || !strcasecmp( ext, d2v ) || !strcasecmp( ext, dga ) )
{
#if HAVE_AVS
cli_input = avs_input;
module = avs;
#else
x264_cli_log( x264, X264_LOG_ERROR, not compiled with AVS input support
);
return -1;
#endif
}
else if( !strcasecmp( module, y4m ) )
cli_input = y4m_input;
else if( !strcasecmp( module, raw ) || !strcasecmp( ext, yuv ) )
cli_input = raw_input;
else
{
#if HAVE_FFMS
if( b_regular && (b_auto || !strcasecmp( demuxer, ffms )) &&
!ffms_input.open_file( filename, p_handle, info, opt ) )
{
module = ffms;
b_auto = 0;
cli_input = ffms_input;
}
#endif
#if HAVE_LAVF
if( (b_auto || !strcasecmp( demuxer, lavf )) &&
!lavf_input.open_file( filename, p_handle, info, opt ) )
{
module = lavf;
b_auto = 0;
cli_input = lavf_input;
}
#endif
#if HAVE_AVS
if( b_regular && (b_auto || !strcasecmp( demuxer, avs )) &&
!avs_input.open_file( filename, p_handle, info, opt ) )
{
module = avs;
b_auto = 0;
cli_input = avs_input;
}
#endif
if( b_auto && !raw_input.open_file( filename, p_handle, info, opt ) )
{
module = raw;
b_auto = 0;
cli_input = raw_input;
}
FAIL_IF_ERROR( !(*p_handle), could not open input file `%s' via any method!
, filename )
}
strcpy( used_demuxer, module );
return 0;
}
//編碼（在內部有一個循環用於一幀一幀編碼）
static int encode( x264_param_t *param, cli_opt_t *opt )
{
x264_t *h = NULL;
x264_picture_t pic;
cli_pic_t cli_pic;
const cli_pulldown_t *pulldown = NULL; // shut up gcc
int i_frame = 0;
int i_frame_output = 0;
int64_t i_end, i_previous = 0, i_start = 0;
int64_t i_file = 0;
int i_frame_size;
int64_t last_dts = 0;
int64_t prev_dts = 0;
int64_t first_dts = 0;
# define MAX_PTS_WARNING 3 /* arbitrary */
int pts_warning_cnt = 0;
int64_t largest_pts = -1;
int64_t second_largest_pts = -1;
int64_t ticks_per_frame;
double duration;
double pulldown_pts = 0;
int retval = 0;
opt->b_progress &= param->i_log_level < X264_LOG_DEBUG;
/* set up pulldown */
if( opt->i_pulldown && !param->b_vfr_input )
{
param->b_pulldown = 1;
param->b_pic_struct = 1;
pulldown = &pulldown_values[opt->i_pulldown];
param->i_timebase_num = param->i_fps_den;
FAIL_IF_ERROR2( fmod( param->i_fps_num * pulldown->fps_factor, 1 ),
unsupported framerate for chosen pulldown
)
param->i_timebase_den = param->i_fps_num * pulldown->fps_factor;
}
//打開編碼器
h = x264_encoder_open( param );
FAIL_IF_ERROR2( !h, x264_encoder_open failed
);
//獲得參數
x264_encoder_parameters( h, param );
//一些不是裸流的封轉格式（FLV，MP4等）需要一些參數，例如寬高等等
//cli_output_t是代表輸出媒體文件的結構體
FAIL_IF_ERROR2( cli_output.set_param( opt->hout, param ), can't set outfile param
);
//計時
i_start = x264_mdate();
/* ticks/frame = ticks/second / frames/second */
ticks_per_frame = (int64_t)param->i_timebase_den * param->i_fps_den / param->i_timebase_num / param->i_fps_num;
FAIL_IF_ERROR2( ticks_per_frame < 1 && !param->b_vfr_input, ticks_per_frame invalid: %PRId64
, ticks_per_frame )
ticks_per_frame = X264_MAX( ticks_per_frame, 1 );
//如果不是在每個keyframe前面都增加SPS/PPS/SEI的話，就在整個碼流前面加SPS/PPS/SEI
//Header指的就是SPS/PPS/SEI
if( !param->b_repeat_headers )
{
// Write SPS/PPS/SEI
x264_nal_t *headers;
int i_nal;
//獲得文件頭（SPS、PPS、SEI）
FAIL_IF_ERROR2( x264_encoder_headers( h, &headers, &i_nal ) < 0, x264_encoder_headers failed
)
//把文件頭寫入輸出文件
FAIL_IF_ERROR2( (i_file = cli_output.write_headers( opt->hout, headers )) < 0, error writing headers to output file
);
}
if( opt->tcfile_out )
fprintf( opt->tcfile_out, # timecode format v2
);
/* Encode frames */
//循環進行編碼
for( ; !b_ctrl_c && (i_frame < param->i_frame_total || !param->i_frame_total); i_frame++ )
{
//從輸入源中獲取1幀YUV數據，存於cli_pic
//cli_vid_filter_t可以認為是x264一種“擴展”後的輸入源，可以在像素域對圖像進行拉伸裁剪等工作。
//原本代表輸入源的結構體是cli_input_t
if( filter.get_frame( opt->hin, &cli_pic, i_frame + opt->i_seek ) )
break;
//初始化x264_picture_t結構體pic
x264_picture_init( &pic );
//cli_pic到pic
convert_cli_to_lib_pic( &pic, &cli_pic );
if( !param->b_vfr_input )
pic.i_pts = i_frame;
if( opt->i_pulldown && !param->b_vfr_input )
{
pic.i_pic_struct = pulldown->pattern[ i_frame % pulldown->mod ];
pic.i_pts = (int64_t)( pulldown_pts + 0.5 );
pulldown_pts += pulldown_frame_duration[pic.i_pic_struct];
}
else if( opt->timebase_convert_multiplier )
pic.i_pts = (int64_t)( pic.i_pts * opt->timebase_convert_multiplier + 0.5 );
if( pic.i_pts <= largest_pts )
{
if( cli_log_level >= X264_LOG_DEBUG || pts_warning_cnt < MAX_PTS_WARNING )
x264_cli_log( x264, X264_LOG_WARNING, non-strictly-monotonic pts at frame %d (%PRId64 <= %PRId64)
,
i_frame, pic.i_pts, largest_pts );
else if( pts_warning_cnt == MAX_PTS_WARNING )
x264_cli_log( x264, X264_LOG_WARNING, too many nonmonotonic pts warnings, suppressing further ones
);
pts_warning_cnt++;
pic.i_pts = largest_pts + ticks_per_frame;
}
second_largest_pts = largest_pts;
largest_pts = pic.i_pts;
if( opt->tcfile_out )
fprintf( opt->tcfile_out, %.6f
, pic.i_pts * ((double)param->i_timebase_num / param->i_timebase_den) * 1e3 );
if( opt->qpfile )
parse_qpfile( opt, &pic, i_frame + opt->i_seek );
prev_dts = last_dts;
//編碼pic中存儲的1幀YUV數據
i_frame_size = encode_frame( h, opt->hout, &pic, &last_dts );
if( i_frame_size < 0 )
{
b_ctrl_c = 1; /* lie to exit the loop */
retval = -1;
}
else if( i_frame_size )
{
i_file += i_frame_size;
i_frame_output++;
if( i_frame_output == 1 )
first_dts = prev_dts = last_dts;
}
//釋放處理完的YUV數據
if( filter.release_frame( opt->hin, &cli_pic, i_frame + opt->i_seek ) )
break;
/* update status line (up to 1000 times per input file) */
if( opt->b_progress && i_frame_output )
i_previous = print_status( i_start, i_previous, i_frame_output, param->i_frame_total, i_file, param, 2 * last_dts - prev_dts - first_dts );
}
/* Flush delayed frames */
//輸出編碼器中剩余的幀
//x264_encoder_delayed_frames()返回剩余的幀的個數
while( !b_ctrl_c && x264_encoder_delayed_frames( h ) )
{
prev_dts = last_dts;
//編碼
//注意第3個參數為NULL
i_frame_size = encode_frame( h, opt->hout, NULL, &last_dts );
if( i_frame_size < 0 )
{
b_ctrl_c = 1; /* lie to exit the loop */
retval = -1;
}
else if( i_frame_size )
{
i_file += i_frame_size;
i_frame_output++;
if( i_frame_output == 1 )
first_dts = prev_dts = last_dts;
}
//輸出一些統計信息
if( opt->b_progress && i_frame_output )
i_previous = print_status( i_start, i_previous, i_frame_output, param->i_frame_total, i_file, param, 2 * last_dts - prev_dts - first_dts );
}
fail:
if( pts_warning_cnt >= MAX_PTS_WARNING && cli_log_level < X264_LOG_DEBUG )
x264_cli_log( x264, X264_LOG_WARNING, %d suppressed nonmonotonic pts warnings
, pts_warning_cnt-MAX_PTS_WARNING );
/* duration algorithm fails when only 1 frame is output */
if( i_frame_output == 1 )
duration = (double)param->i_fps_den / param->i_fps_num;
else if( b_ctrl_c )
duration = (double)(2 * last_dts - prev_dts - first_dts) * param->i_timebase_num / param->i_timebase_den;
else
duration = (double)(2 * largest_pts - second_largest_pts) * param->i_timebase_num / param->i_timebase_den;
//計時
i_end = x264_mdate();
/* Erase progress indicator before printing encoding stats. */
if( opt->b_progress )
fprintf( stderr,
);
//關閉編碼器
if( h )
x264_encoder_close( h );
fprintf( stderr,
);
if( b_ctrl_c )
fprintf( stderr, aborted at input frame %d, output frame %d
, opt->i_seek + i_frame, i_frame_output );
//關閉輸出文件
cli_output.close_file( opt->hout, largest_pts, second_largest_pts );
opt->hout = NULL;
if( i_frame_output > 0 )
{
double fps = (double)i_frame_output * (double)1000000 /
(double)( i_end - i_start );
fprintf( stderr, encoded %d frames, %.2f fps, %.2f kb/s
, i_frame_output, fps,
(double) i_file * 8 / ( 1000 * duration ) );
}
return retval;
}
（1）調用x264_encoder_open()打開H.264編碼器。
（2）調用x264_encoder_parameters()獲得當前的參數集x264_param_t，用於後續步驟中的一些配置。
（3）調用輸出格式（H.264裸流、FLV、mp4等）對應cli_output_t結構體的set_param()方法，為輸出格式的封裝器設定參數。其中參數源自於上一步驟得到的x264_param_t。
（4）如果不是在每個keyframe前面都增加SPS/PPS/SEI的話，就調用x264_encoder_headers()在整個碼流前面加SPS/PPS/SEI。
（5）進入一個循環中進行一幀一幀的將YUV編碼為H.264：a)調用輸入格式（YUV、Y4M等）對應的cli_vid_filter_t結構體get_frame()方法，獲取一幀YUV數據。b)調用encode_frame()編碼該幀YUV數據為H.264數據，並且輸出出來。該函數內部調用x264_encoder_encode()完成編碼工作，調用輸出格式對應cli_output_t結構體的write_frame()完成了輸出工作。c)調用輸入格式（YUV、Y4M等）對應的cli_vid_filter_t結構體release_frame()方法，釋放剛才獲取的YUV數據。d)調用print_status()輸出一些統計信息。（6）編碼即將結束的時候，進入另一個循環，輸出編碼器中緩存的視頻幀：a)不再傳遞新的YUV數據，直接調用encode_frame()，將編碼器中緩存的剩余幾幀數據編碼輸出出來。b)調用print_status()輸出一些統計信息。（7）調用x264_encoder_close()關閉H.264編碼器。
x264_encoder_open()：打開H.264編碼器。
x264_encoder_headers()：輸出SPS/PPS/SEI。
x264_encoder_encode()：編碼一幀數據。
x264_encoder_close()：關閉H.264編碼器。
//編碼1幀
static int encode_frame( x264_t *h, hnd_t hout, x264_picture_t *pic, int64_t *last_dts )
{
x264_picture_t pic_out;
x264_nal_t *nal;
int i_nal;
int i_frame_size = 0;
//編碼API
//編碼x264_picture_t為x264_nal_t
i_frame_size = x264_encoder_encode( h, &nal, &i_nal, pic, &pic_out );
FAIL_IF_ERROR( i_frame_size < 0, x264_encoder_encode failed
);
if( i_frame_size )
{
//通過cli_output_t中的方法輸出
//輸出raw H.264流的話，等同於直接fwrite()
//其他封裝格式，則還需進行一定的封裝
i_frame_size = cli_output.write_frame( hout, nal[0].p_payload, i_frame_size, &pic_out );
*last_dts = pic_out.i_dts;
}
return i_frame_size;
}
//打印一些和時間有關的統計信息
static int64_t print_status( int64_t i_start, int64_t i_previous, int i_frame, int i_frame_total, int64_t i_file, x264_param_t *param, int64_t last_ts )
{
char buf[200];
int64_t i_time = x264_mdate();
if( i_previous && i_time - i_previous < UPDATE_INTERVAL )
return i_previous;
int64_t i_elapsed = i_time - i_start;
double fps = i_elapsed > 0 ? i_frame * 1000000. / i_elapsed : 0;
double bitrate;
if( last_ts )
bitrate = (double) i_file * 8 / ( (double) last_ts * 1000 * param->i_timebase_num / param->i_timebase_den );
else
bitrate = (double) i_file * 8 / ( (double) 1000 * param->i_fps_den / param->i_fps_num );
if( i_frame_total )
{
//形成輸出的字符串
int eta = i_elapsed * (i_frame_total - i_frame) / ((int64_t)i_frame * 1000000);
sprintf( buf, x264 [%.1f%%] %d/%d frames, %.2f fps, %.2f kb/s, eta %d:%02d:%02d,
100. * i_frame / i_frame_total, i_frame, i_frame_total, fps, bitrate,
eta/3600, (eta/60)%60, eta%60 );
}
else
sprintf( buf, x264 %d frames: %.2f fps, %.2f kb/s, i_frame, fps, bitrate );
//輸出到stderr
fprintf( stderr, %s
, buf+5 );
//設置到標題欄？
x264_cli_set_console_title( buf );
fflush( stderr ); // needed in windows
return i_time;
}
cli_output_t：輸出格式對應的結構體。輸出格式一般為H.264裸流、FLV、MP4等。在x264的編碼過程中，調用cli_vid_filter_t結構體的get_frame()讀取YUV數據，調用cli_output_t的write_frame()寫入數據。下面簡單分析一下它們之間的關系。
cli_input_t：輸入格式對應的結構體。輸入格式一般為純YUV像素數據，Y4M格式數據等。
cli_vid_filter_t：輸入格式濾鏡結構體。濾鏡可以對輸入數據做一些簡單的處理，例如拉伸、裁剪等等（當然濾鏡也可以不作任何處理，直接讀取輸入數據）。
typedef struct
{
int (*open_file)( char *psz_filename, hnd_t *p_handle, cli_output_opt_t *opt );
int (*set_param)( hnd_t handle, x264_param_t *p_param );
int (*write_headers)( hnd_t handle, x264_nal_t *p_nal );
int (*write_frame)( hnd_t handle, uint8_t *p_nal, int i_size, x264_picture_t *p_picture );
int (*close_file)( hnd_t handle, int64_t largest_pts, int64_t second_largest_pts );
} cli_output_t;
extern const cli_output_t raw_output;
extern const cli_output_t mkv_output;
extern const cli_output_t mp4_output;
extern const cli_output_t flv_output;
#include output.h
static int open_file( char *psz_filename, hnd_t *p_handle, cli_output_opt_t *opt )
{
if( !strcmp( psz_filename, - ) )
*p_handle = stdout;
else if( !(*p_handle = x264_fopen( psz_filename, w+b )) )
return -1;
return 0;
}
static int set_param( hnd_t handle, x264_param_t *p_param )
{
return 0;
}
static int write_headers( hnd_t handle, x264_nal_t *p_nal )
{
int size = p_nal[0].i_payload + p_nal[1].i_payload + p_nal[2].i_payload;
if( fwrite( p_nal[0].p_payload, size, 1, (FILE*)handle ) )
return size;
return -1;
}
static int write_frame( hnd_t handle, uint8_t *p_nalu, int i_size, x264_picture_t *p_picture )
{
if( fwrite( p_nalu, i_size, 1, (FILE*)handle ) )
return i_size;
return -1;
}
static int close_file( hnd_t handle, int64_t largest_pts, int64_t second_largest_pts )
{
if( !handle || handle == stdout )
return 0;
return fclose( (FILE*)handle );
}
const cli_output_t raw_output = { open_file, set_param, write_headers, write_frame, close_file };
const cli_output_t flv_output = { open_file, set_param, write_headers, write_frame, close_file };
該文件內容比較多，只舉例看一下其中的兩個函數：open_file()和write_frame()。
static int write_header( flv_buffer *c )
{
flv_put_tag( c, FLV ); // Signature
flv_put_byte( c, 1 ); // Version
flv_put_byte( c, 1 ); // Video Only
flv_put_be32( c, 9 ); // DataOffset
flv_put_be32( c, 0 ); // PreviousTagSize0
return flv_flush_data( c );
}
static int open_file( char *psz_filename, hnd_t *p_handle, cli_output_opt_t *opt )
{
*p_handle = NULL;
flv_hnd_t *p_flv = calloc( 1, sizeof(flv_hnd_t) );
if( !p_flv )
return -1;
p_flv->b_dts_compress = opt->use_dts_compress;
p_flv->c = flv_create_writer( psz_filename );
if( !p_flv->c )
return -1;
CHECK( write_header( p_flv->c ) );
*p_handle = p_flv;
return 0;
}
可以看出flv_output 中的open_file()中完成了FLV封裝格式文件頭的創建。
static int write_frame( hnd_t handle, uint8_t *p_nalu, int i_size, x264_picture_t *p_picture )
{
flv_hnd_t *p_flv = handle;
flv_buffer *c = p_flv->c;
#define convert_timebase_ms( timestamp, timebase ) (int64_t)((timestamp) * (timebase) * 1000 + 0.5)
if( !p_flv->i_framenum )
{
p_flv->i_delay_time = p_picture->i_dts * -1;
if( !p_flv->b_dts_compress && p_flv->i_delay_time )
x264_cli_log( flv, X264_LOG_INFO, initial delay %PRId64 ms
,
convert_timebase_ms( p_picture->i_pts + p_flv->i_delay_time, p_flv->d_timebase ) );
}
int64_t dts;
int64_t cts;
int64_t offset;
if( p_flv->b_dts_compress )
{
if( p_flv->i_framenum == 1 )
p_flv->i_init_delta = convert_timebase_ms( p_picture->i_dts + p_flv->i_delay_time, p_flv->d_timebase );
dts = p_flv->i_framenum > p_flv->i_delay_frames
? convert_timebase_ms( p_picture->i_dts, p_flv->d_timebase )
: p_flv->i_framenum * p_flv->i_init_delta / (p_flv->i_delay_frames + 1);
cts = convert_timebase_ms( p_picture->i_pts, p_flv->d_timebase );
}
else
{
dts = convert_timebase_ms( p_picture->i_dts + p_flv->i_delay_time, p_flv->d_timebase );
cts = convert_timebase_ms( p_picture->i_pts + p_flv->i_delay_time, p_flv->d_timebase );
}
offset = cts - dts;
if( p_flv->i_framenum )
{
if( p_flv->i_prev_dts == dts )
x264_cli_log( flv, X264_LOG_WARNING, duplicate DTS %PRId64 generated by rounding
decoding framerate cannot exceed 1000fps
, dts );
if( p_flv->i_prev_cts == cts )
x264_cli_log( flv, X264_LOG_WARNING, duplicate CTS %PRId64 generated by rounding
composition framerate cannot exceed 1000fps
, cts );
}
p_flv->i_prev_dts = dts;
p_flv->i_prev_cts = cts;
// A new frame - write packet header
flv_put_byte( c, FLV_TAG_TYPE_VIDEO );
flv_put_be24( c, 0 ); // calculated later
flv_put_be24( c, dts );
flv_put_byte( c, dts >> 24 );
flv_put_be24( c, 0 );
p_flv->start = c->d_cur;
flv_put_byte( c, p_picture->b_keyframe ? FLV_FRAME_KEY : FLV_FRAME_INTER );
flv_put_byte( c, 1 ); // AVC NALU
flv_put_be24( c, offset );
if( p_flv->sei )
{
flv_append_data( c, p_flv->sei, p_flv->sei_len );
free( p_flv->sei );
p_flv->sei = NULL;
}
flv_append_data( c, p_nalu, i_size );
unsigned length = c->d_cur - p_flv->start;
flv_rewrite_amf_be24( c, length, p_flv->start - 10 );
flv_put_be32( c, 11 + length ); // Last tag size
CHECK( flv_flush_data( c ) );
p_flv->i_framenum++;
return i_size;
}
typedef struct
{
int (*open_file)( char *psz_filename, hnd_t *p_handle, video_info_t *info, cli_input_opt_t *opt );
int (*picture_alloc)( cli_pic_t *pic, int csp, int width, int height );
int (*read_frame)( cli_pic_t *pic, hnd_t handle, int i_frame );
int (*release_frame)( cli_pic_t *pic, hnd_t handle );
void (*picture_clean)( cli_pic_t *pic );
int (*close_file)( hnd_t handle );
} cli_input_t;
extern const cli_input_t raw_input;
extern const cli_input_t y4m_input;
extern const cli_input_t avs_input;
extern const cli_input_t lavf_input;
extern const cli_input_t ffms_input;
#include input.h
#define FAIL_IF_ERROR( cond, ... ) FAIL_IF_ERR( cond, raw, __VA_ARGS__ )
typedef struct
{
FILE *fh;
int next_frame;
uint64_t plane_size[4];
uint64_t frame_size;
int bit_depth;
} raw_hnd_t;
//打開raw YUV格式文件
static int open_file( char *psz_filename, hnd_t *p_handle, video_info_t *info, cli_input_opt_t *opt )
{
raw_hnd_t *h = calloc( 1, sizeof(raw_hnd_t) );
if( !h )
return -1;
if( !opt->resolution )
{
//如果沒有設置分辨率
//嘗試從文件名中解析分辨率
/* try to parse the file name */
for( char *p = psz_filename; *p; p++ )
if( *p >= '0' && *p <= '9' && sscanf( p, %dx%d, &info->width, &info->height ) == 2 )
break;
}
else
sscanf( opt->resolution, %dx%d, &info->width, &info->height );
//沒有分辨率信息的話，會彈出錯誤信息
FAIL_IF_ERROR( !info->width || !info->height, raw input requires a resolution.
)
//設置顏色空間
if( opt->colorspace )
{
for( info->csp = X264_CSP_CLI_MAX-1; info->csp > X264_CSP_NONE; info->csp-- )
{
if( x264_cli_csps[info->csp].name && !strcasecmp( x264_cli_csps[info->csp].name, opt->colorspace ) )
break;
}
FAIL_IF_ERROR( info->csp == X264_CSP_NONE, unsupported colorspace `%s'
, opt->colorspace );
}
else /* default */
info->csp = X264_CSP_I420;//默認為YUV420P
//顏色位深
h->bit_depth = opt->bit_depth;
FAIL_IF_ERROR( h->bit_depth < 8 || h->bit_depth > 16, unsupported bit depth `%d'
, h->bit_depth );
if( h->bit_depth > 8 )
info->csp |= X264_CSP_HIGH_DEPTH;
if( !strcmp( psz_filename, - ) )
h->fh = stdin; //從管道輸入
else
h->fh = x264_fopen( psz_filename, rb ); //打開文件
if( h->fh == NULL )
return -1;
info->thread_safe = 1;
info->num_frames = 0;
info->vfr = 0;
const x264_cli_csp_t *csp = x264_cli_get_csp( info->csp );
for( int i = 0; i < csp->planes; i++ )
{
h->plane_size[i] = x264_cli_pic_plane_size( info->csp, info->width, info->height, i );
h->frame_size += h->plane_size[i];
/* x264_cli_pic_plane_size returns the size in bytes, we need the value in pixels from here on */
h->plane_size[i] /= x264_cli_csp_depth_factor( info->csp );
}
if( x264_is_regular_file( h->fh ) )
{
fseek( h->fh, 0, SEEK_END );
uint64_t size = ftell( h->fh );
fseek( h->fh, 0, SEEK_SET );
info->num_frames = size / h->frame_size;
}
*p_handle = h;
return 0;
}
//讀取一幀數據-內部
static int read_frame_internal( cli_pic_t *pic, raw_hnd_t *h, int bit_depth_uc )
{
int error = 0;
int pixel_depth = x264_cli_csp_depth_factor( pic->img.csp );
//一個分量一個分量讀
for( int i = 0; i < pic->img.planes && !error; i++ )
{
//fread()讀取
error |= fread( pic->img.plane[i], pixel_depth, h->plane_size[i], h->fh ) != h->plane_size[i];
if( bit_depth_uc )
{
/* upconvert non 16bit high depth planes to 16bit using the same
* algorithm as used in the depth filter. */
uint16_t *plane = (uint16_t*)pic->img.plane[i];
uint64_t pixel_count = h->plane_size[i];
int lshift = 16 - h->bit_depth;
for( uint64_t j = 0; j < pixel_count; j++ )
plane[j] = plane[j] << lshift;
}
}
return error;
}
//讀取一幀數據
static int read_frame( cli_pic_t *pic, hnd_t handle, int i_frame )
{
raw_hnd_t *h = handle;
if( i_frame > h->next_frame )
{
if( x264_is_regular_file( h->fh ) )
fseek( h->fh, i_frame * h->frame_size, SEEK_SET ); //fseek()。偏移量=幀序號*幀大小。
else
while( i_frame > h->next_frame )
{
//讀取一幀數據-內部
if( read_frame_internal( pic, h, 0 ) )
return -1;
h->next_frame++;
}
}
if( read_frame_internal( pic, h, h->bit_depth & 7 ) )
return -1;
h->next_frame = i_frame+1;
return 0;
}
//關閉文件
static int close_file( hnd_t handle )
{
raw_hnd_t *h = handle;
if( !h || !h->fh )
return 0;
//fclose()關閉文件
fclose( h->fh );
free( h );
return 0;
}
//raw格式對應的數組
const cli_input_t raw_input = { open_file, x264_cli_pic_alloc, read_frame, NULL, x264_cli_pic_clean, close_file };
從源代碼中可以看出，raw_input 中的open_file()函數在打開YUV像素數據的時候，會首先判斷是否設置了寬和高（YUV是純像素數據，沒有寬和高信息），如果沒有設置，則會嘗試從文件路徑中解析寬和高信息。如果成功完成上述步驟，open_file()就會調用x264_fopen()打開輸入文件。其他的函數在源代碼中都寫了注釋，就不再重復記錄了。
y4m_input（Y4M格式的cli_input_t結構體）
const cli_input_t y4m_input = { open_file, x264_cli_pic_alloc, read_frame, NULL, x264_cli_pic_clean, close_file };
該文件內容較多，不再進行詳細分析。在這裡看一個打開文件的函數open_file()。該函數的定義如下所示。
typedef struct
{
FILE *fh;
int next_frame;
int seq_header_len;
int frame_header_len;
uint64_t frame_size;
uint64_t plane_size[3];
int bit_depth;
} y4m_hnd_t;
#define Y4M_MAGIC YUV4MPEG2
#define MAX_YUV4_HEADER 80
#define Y4M_FRAME_MAGIC FRAME
#define MAX_FRAME_HEADER 80
static int parse_csp_and_depth( char *csp_name, int *bit_depth )
{
int csp = X264_CSP_MAX;
/* Set colorspace from known variants */
if( !strncmp( 420, csp_name, 3 ) )
csp = X264_CSP_I420;
else if( !strncmp( 422, csp_name, 3 ) )
csp = X264_CSP_I422;
else if( !strncmp( 444, csp_name, 3 ) && strncmp( 444alpha, csp_name, 8 ) ) // only accept alphaless 4:4:4
csp = X264_CSP_I444;
/* Set high bit depth from known extensions */
if( sscanf( csp_name, %*d%*[pP]%d, bit_depth ) != 1 )
*bit_depth = 8;
return csp;
}
static int open_file( char *psz_filename, hnd_t *p_handle, video_info_t *info, cli_input_opt_t *opt )
{
y4m_hnd_t *h = malloc( sizeof(y4m_hnd_t) );
int i;
uint32_t n, d;
char header[MAX_YUV4_HEADER+10];
char *tokend, *header_end;
int colorspace = X264_CSP_NONE;
int alt_colorspace = X264_CSP_NONE;
int alt_bit_depth = 8;
if( !h )
return -1;
h->next_frame = 0;
info->vfr = 0;
if( !strcmp( psz_filename, - ) )
h->fh = stdin;
else
h->fh = x264_fopen(psz_filename, rb);
if( h->fh == NULL )
return -1;
h->frame_header_len = strlen( Y4M_FRAME_MAGIC )+1;
/* Read header */
//解析Y4M格式的文件頭
for( i = 0; i < MAX_YUV4_HEADER; i++ )
{
header[i] = fgetc( h->fh );
if( header[i] == '
' )www.2cto.com
{
/* Add a space after last option. Makes parsing 444 vs
444alpha easier. */
header[i+1] = 0x20;
header[i+2] = 0;
break;
}
}
if( i == MAX_YUV4_HEADER || strncmp( header, Y4M_MAGIC, strlen( Y4M_MAGIC ) ) )
return -1;
/* Scan properties */
header_end = &header[i+1]; /* Include space */
h->seq_header_len = i+1;
for( char *tokstart = &header[strlen( Y4M_MAGIC )+1]; tokstart < header_end; tokstart++ )
{
if( *tokstart == 0x20 )
continue;
switch( *tokstart++ )
{
case 'W': /* Width. Required. */
info->width = strtol( tokstart, &tokend, 10 );
tokstart=tokend;
break;
case 'H': /* Height. Required. */
info->height = strtol( tokstart, &tokend, 10 );
tokstart=tokend;
break;
case 'C': /* Color space */
colorspace = parse_csp_and_depth( tokstart, &h->bit_depth );
tokstart = strchr( tokstart, 0x20 );
break;
case 'I': /* Interlace type */
switch( *tokstart++ )
{
case 't':
info->interlaced = 1;
info->tff = 1;
break;
case 'b':
info->interlaced = 1;
info->tff = 0;
break;
case 'm':
info->interlaced = 1;
break;
//case '?':
//case 'p':
default:
break;
}
break;
case 'F': /* Frame rate - 0:0 if unknown */
if( sscanf( tokstart, %u:%u, &n, &d ) == 2 && n && d )
{
x264_reduce_fraction( &n, &d );
info->fps_num = n;
info->fps_den = d;
}
tokstart = strchr( tokstart, 0x20 );
break;
case 'A': /* Pixel aspect - 0:0 if unknown */
/* Don't override the aspect ratio if sar has been explicitly set on the commandline. */
if( sscanf( tokstart, %u:%u, &n, &d ) == 2 && n && d )
{
x264_reduce_fraction( &n, &d );
info->sar_width = n;
info->sar_height = d;
}
tokstart = strchr( tokstart, 0x20 );
break;
case 'X': /* Vendor extensions */
if( !strncmp( YSCSS=, tokstart, 6 ) )
{
/* Older nonstandard pixel format representation */
tokstart += 6;
alt_colorspace = parse_csp_and_depth( tokstart, &alt_bit_depth );
}
tokstart = strchr( tokstart, 0x20 );
break;
}
}
if( colorspace == X264_CSP_NONE )
{
colorspace = alt_colorspace;
h->bit_depth = alt_bit_depth;
}
// default to 8bit 4:2:0 if nothing is specified
if( colorspace == X264_CSP_NONE )
{
colorspace = X264_CSP_I420;
h->bit_depth = 8;
}
FAIL_IF_ERROR( colorspace <= X264_CSP_NONE || colorspace >= X264_CSP_MAX, colorspace unhandled
)
FAIL_IF_ERROR( h->bit_depth < 8 || h->bit_depth > 16, unsupported bit depth `%d'
, h->bit_depth );
info->thread_safe = 1;
info->num_frames = 0;
info->csp = colorspace;
h->frame_size = h->frame_header_len;
if( h->bit_depth > 8 )
info->csp |= X264_CSP_HIGH_DEPTH;
const x264_cli_csp_t *csp = x264_cli_get_csp( info->csp );
for( i = 0; i < csp->planes; i++ )
{
h->plane_size[i] = x264_cli_pic_plane_size( info->csp, info->width, info->height, i );
h->frame_size += h->plane_size[i];
/* x264_cli_pic_plane_size returns the size in bytes, we need the value in pixels from here on */
h->plane_size[i] /= x264_cli_csp_depth_factor( info->csp );
}
/* Most common case: frame_header = FRAME */
if( x264_is_regular_file( h->fh ) )
{
uint64_t init_pos = ftell( h->fh );
fseek( h->fh, 0, SEEK_END );
uint64_t i_size = ftell( h->fh );
fseek( h->fh, init_pos, SEEK_SET );
info->num_frames = (i_size - h->seq_header_len) / h->frame_size;
}
*p_handle = h;
return 0;
}
struct cli_vid_filter_t
{
/* name of the filter */
const char *name;
/* help: a short message on what the filter does and how to use it.
* this should only be implemented by filters directly accessible by the user */
void (*help)( int longhelp );
/* init: initializes the filter given the input clip properties and parameter to adjust them as necessary
* with the given options provided by the user.
* returns 0 on success, nonzero on error. */
int (*init)( hnd_t *handle, cli_vid_filter_t *filter, video_info_t *info, x264_param_t *param, char *opt_string );
/* get_frame: given the storage for the output frame and desired frame number, generate the frame accordingly.
* the image data returned by get_frame should be treated as const and not be altered.
* returns 0 on success, nonzero on error. */
int (*get_frame)( hnd_t handle, cli_pic_t *output, int frame );
/* release_frame: frame is done being used and is signaled for cleanup.
* returns 0 on succeess, nonzero on error. */
int (*release_frame)( hnd_t handle, cli_pic_t *pic, int frame );
/* free: run filter cleanup procedures. */
void (*free)( hnd_t handle );
/* next registered filter, unused by filters themselves */
cli_vid_filter_t *next;
};
source_filter：不作任何處理。
resize_filter：拉伸。
#include video.h
/* This filter converts the demuxer API into the filtering API for video frames.
* Backseeking is prohibited here as not all demuxers are capable of doing so. */
typedef struct
{
cli_pic_t pic;
hnd_t hin;
int cur_frame;
} source_hnd_t;
cli_vid_filter_t source_filter;
static int init( hnd_t *handle, cli_vid_filter_t *filter, video_info_t *info, x264_param_t *param, char *opt_string )
{
source_hnd_t *h = calloc( 1, sizeof(source_hnd_t) );
if( !h )
return -1;
h->cur_frame = -1;
if( cli_input.picture_alloc( &h->pic, info->csp, info->width, info->height ) )
return -1;
h->hin = *handle;
*handle = h;
*filter = source_filter;
return 0;
}
static int get_frame( hnd_t handle, cli_pic_t *output, int frame )
{
source_hnd_t *h = handle;
/* do not allow requesting of frames from before the current position */
if( frame <= h->cur_frame || cli_input.read_frame( &h->pic, h->hin, frame ) )
return -1;
h->cur_frame = frame;
*output = h->pic;
return 0;
}
static int release_frame( hnd_t handle, cli_pic_t *pic, int frame )
{
source_hnd_t *h = handle;
if( cli_input.release_frame && cli_input.release_frame( &h->pic, h->hin ) )
return -1;
return 0;
}
static void free_filter( hnd_t handle )
{
source_hnd_t *h = handle;
cli_input.picture_clean( &h->pic );
cli_input.close_file( h->hin );
free( h );
}
cli_vid_filter_t source_filter = { source, NULL, init, get_frame, release_frame, free_filter, NULL };
cli_vid_filter_t resize_filter = { NAME, help, init, get_frame, release_frame, free_filter, NULL };
由於resize_filter涉及到的代碼比較多，在這裡僅看一下它的get_frame()的定義。
static int get_frame( hnd_t handle, cli_pic_t *output, int frame )
{
resizer_hnd_t *h = handle;
if( h->prev_filter.get_frame( h->prev_hnd, output, frame ) )
return -1;
if( h->variable_input && check_resizer( h, output ) )
return -1;
h->working = 1;
if( h->pre_swap_chroma )
XCHG( uint8_t*, output->img.plane[1], output->img.plane[2] );
if( h->ctx )
{
sws_scale( h->ctx, (const uint8_t* const*)output->img.plane, output->img.stride,
0, output->img.height, h->buffer.img.plane, h->buffer.img.stride );
output->img = h->buffer.img; /* copy img data */
}
else
output->img.csp = h->dst_csp;
if( h->post_swap_chroma )
XCHG( uint8_t*, output->img.plane[1], output->img.plane[2] );
return 0;
}
