SerialMonitor:C#寫的串口調試程序

點擊右側的“》”按鈕，可以將接收窗最大化。

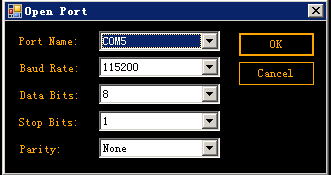

會自動探測當前存在的串口。

可以在發送數據上添加新行、大寫或轉換為16進制。

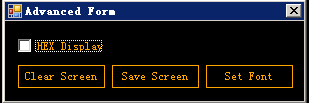

可以十六進制顯示接收的數據，並可以設置接收窗的字體。
主要源程序：

[csharp]
/*
 * Created by SharpDevelop.
 * User: PenG
 * Date: 2012/10/31
 * Time: 15:56
 *
 * To change this template use Tools | Options | Coding | Edit Standard Headers.
 */
using System;
using System.Collections.Generic;
using System.Drawing;
using System.Windows.Forms;

using System.Diagnostics;
using System.IO.Ports;
using System.Text;

namespace SerialMonitor
{
    /// <summary>
    /// Description of MainForm.
    /// </summary>
    public partial class MainForm : Form
    {
        public SerialPort sp = new SerialPort();
        public bool isHexDisplay = false;

        int richHeight = 0;

        public MainForm()
        {
            //
            // The InitializeComponent() call is required for Windows Forms designer support.
            //
            InitializeComponent();

            //
            // TODO: Add constructor code after the InitializeComponent() call.
            //
            Control.CheckForIllegalCrossThreadCalls = false;

            richHeight = this.richTextBox1.Height;
        }

        public void SetFont(){
            try{
                FontDialog fd = new FontDialog();
                if(fd.ShowDialog() == DialogResult.OK){
                    this.richTextBox1.Font = fd.Font;
                }
            }catch(Exception e){
                ShowException(e.Message);
            }
        }

        public void ClearScreen(){
            this.richTextBox1.Text = "";
        }

        public void PrintText(string msg){
            this.richTextBox1.Text += msg;
        }

        public string GetText(){
            return this.richTextBox1.Text;
        }

        public void ShowException(string msg){
            MessageBox.Show(msg,"EXCEPTION",MessageBoxButtons.OK,MessageBoxIcon.Exclamation);
        }

        public void ShowInformation(string msg){
            MessageBox.Show(msg,"INFORMATION",MessageBoxButtons.OK,MessageBoxIcon.Information);
        }

        void MainFormLoad(object sender, EventArgs e)
        {
            this.richTextBox1.ScrollBars = RichTextBoxScrollBars.ForcedBoth;
            this.richTextBox1.MaxLength = int.MaxValue;

            sp.DataReceived += delegate {
                if(!this.isHexDisplay){
                    this.richTextBox1.Text += sp.ReadLine();
                }else{
                    this.richTextBox1.Text += BitConverter.ToString(System.Text.Encoding.Default.GetBytes(sp.ReadLine())).Replace("-"," ") + Environment.NewLine;
                }
                this.richTextBox1.SelectionStart = this.richTextBox1.TextLength;
                this.richTextBox1.ScrollToCaret();
            };

            this.label1.Text = "";
        }

        void LinkLabel1LinkClicked(object sender, LinkLabelLinkClickedEventArgs e)
        {
            try{
                Process.Start("http://blog.csdn.net/pengqianhe");
            }catch(Exception ex){
                ShowException(ex.Message);
            }
        }

        void Timer1Tick(object sender, EventArgs e)
        {
            if(sp.IsOpen){
                this.label1.BackColor = Color.Lime;
                this.label1.ForeColor = Color.Blue;
                this.label1.Text = sp.PortName + " is Opened.";
            }else{
                this.label1.BackColor = Color.Red;
                this.label1.ForeColor = Color.Yellow;
                this.label1.Text = sp.PortName + " is Closed.";
            }
        }

        void BtnOpenClick(object sender, EventArgs e)
        {
            try{
                SerialMonitor.PortForm pf = new PortForm(this);
                pf.ShowDialog();
            }catch(Exception ex){
                ShowException(ex.Message);
            }
        }

        void BtnCloseClick(object sender, EventArgs e)
        {
            try{
                if(sp.IsOpen)
                    sp.Close();
            }catch(Exception ex){
                ShowException(ex.Message);
            }
        }

        void MainFormFormClosing(object sender, FormClosingEventArgs e)
        {
            BtnCloseClick(sender,e);
        }

        void BtnSendClick(object sender, EventArgs e)
        {
            try{
                SerialMonitor.SendForm sf = new SendForm(this);
                sf.ShowDialog();
            }catch(Exception ex){
                ShowException(ex.Message);
            }
        }

        void BtnAdvancedClick(object sender, EventArgs e)
        {
            try{
                SerialMonitor.AdvancedForm af = new AdvancedForm(this);
                af.ShowDialog();
            }catch(Exception ex){
                ShowException(ex.Message);
            }
        }

        void BtnHideClick(object sender, EventArgs e)
        {
            try{
                if(this.btnHide.Text.Equals(">>")){
                    this.richHeight = this.richTextBox1.Height;
                    this.richTextBox1.Height = this.Height - 25;
                    this.btnHide.Text = "<<";

                    this.btnOpen.Visible = false;
                    this.btnClose.Visible = false;
                    this.btnSend.Visible = false;
                    this.btnAdvanced.Visible = false;
                    this.label1.Visible = false;
                    this.linkLabel1.Visible = false;

                    this.MinimizeBox = false;
                    this.MaximizeBox = false;
                    this.FormBorderStyle = FormBorderStyle.FixedSingle;
                }else{
                    this.richTextBox1.Height = this.richHeight;
                    this.btnHide.Text = ">>";

                    this.btnOpen.Visible = true;
                    this.btnClose.Visible = true;
                    this.btnSend.Visible = true;
                    this.btnAdvanced.Visible = true;
                    this.label1.Visible = true;
                    this.linkLabel1.Visible = true;
                    this.richTextBox1.Refresh();

                    this.MaximizeBox = true;
                    this.MinimizeBox = true;
                    this.FormBorderStyle = FormBorderStyle.Sizable;
                }
            }catch(Exception ex){
                ShowException(ex.Message);
            }
        }
    }
｝
