Preface

use appium Simulate human sliding operation to obtain app Data to avoid frequent replacement ip The situation of , The disadvantage is that the speed of obtaining data will be relatively slow , This article introduces appium Get data content .

One 、appium What is it? ？

1,appium It's an open source mobile automation testing framework ;
2,appium You can test native 、 Mixed 、 And mobile web project ;
3,appium You can test ios,android application （ Yes, of course , also firefox os）;
4,appium It's cross platform , Can be used in ios,windows as well as linux On the desktop ;

Two 、 Use steps

1. Prepare the environment

Appium Server GUI 1.22.3-4
Appium Inspector 2022.5.4
Night God Simulator The Android system used is 5.1.1
Android system needs to open developer mode , Turn on USB debugging

2. Realize the idea

1. get data

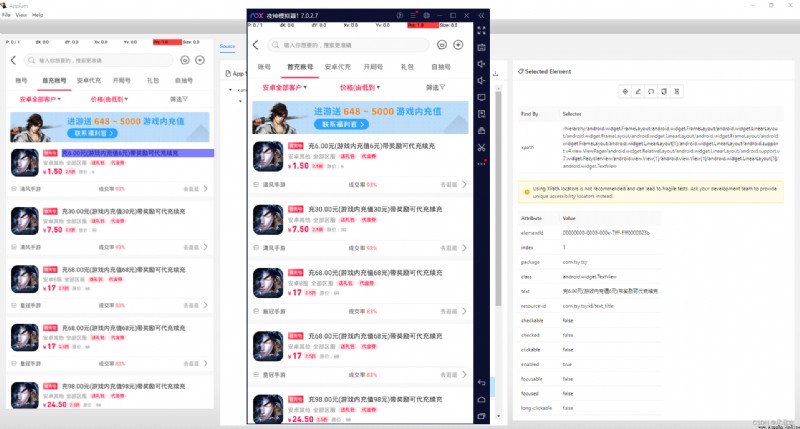

adopt Appium To operate the simulator to obtain data , use Appium Inspector, We can get app Of data in class,id,xpath etc. , To locate the data in the element .

2. Element of judgement

In this way, you can only get the content displayed on the screen , Therefore, the code to judge the existence of elements through methods is as follows
The code is as follows ：

from selenium.common.exceptions import NoSuchElementException
def isElementPresent(by, value):
try:
driver.find_element(by=by, value=value)
except NoSuchElementException:
# Print exception information
# print(NoSuchElementException)
# Something goes wrong , The element was not found in the description page , return False
return False
else:
# No abnormality , Indicates that the element was found in the page , return True
return True

3. Simulate sliding
   Simulate human sliding app Internal content , Press and hold to get the new data generated below , Want to slide without sliding inertia , It can only be released by pressing and sliding ,
   The code is as follows ：

from appium.webdriver.common.touch_action import TouchAction
# Get the mouse position
def get_size():
x = driver.get_window_size()['width']
y = driver.get_window_size()['height']
return(x,y)
l = get_size()
# Take half of the width
x1 = int(l[0]*0.5)
# Slide from below
y1 = int(l[1]*0.8)
# Stop at a position above
y2 = int(l[1]*0.25)
action.long_press(x=x1 ,y=y1,duration=2000).move_to(x=x1,y=y2).release().perform()

3. Project implementation

summary

That's what we're going to talk about today , This article briefly introduces appium Use , For learning and communication only
