Software use cases in micropython kernel development notebook: experiment of I2C part

編輯：Python

Jane Medium ： This paper gives MicroPython Kernel Development Notes ： Experimental tasks are embedded in the book Medium I2C Part of the use case .

key word ：MM32F3277,MicroPython,SofiI2C,I2C

The contents of the manuscript Objective record
Contents Basic experiments SoftI2C initialization Observe SoftI2C The signal Reading and writing K24C02 operation I2C Interface OLED Two wire interface OLED scanning OLED Address LCD initialization Display character information total junction



  • The contents of this manuscript belong to MicroPython Kernel Development Notes ： Experimental tasks are embedded in the book The content in .

Software use case ：
This part of the manuscript includes ：
1.
2.

  • Position in manuscript ：



§01 book Draft content

One 、 Basic experiments

1、SoftI2C initialization

The following code initializes a SoftI2C The process of bus interface , adopt print ,dir Two commands observe SoftI2C The properties of the bus and the interface functions provided .

from machine import Pin,I2C,SoftI2C
scl = Pin('PA0')
sda = Pin('PA1')
i2c = SoftI2C(scl, sda, freq=100000)
print(i2c)
dir(i2c)

The result of the above code is ：

SoftI2C(scl=PA0, sda=PA1, freq=100000)
['readinto', 'start', 'stop', 'write', 'init', 'readfrom', 'readfrom_into', 'readfrom_mem', 'readfrom_mem_into', 'scan', 'writeto', 'writeto_mem', 'writevto']
>>>

One SoftI2C Object provides the following interface functions ：

  • tart ： produce I2C Start status signal ;
  • top ： produce I2C Stop status signal ;
  • can： Scanning error I2C Devices on the bus ;
  • readfrom,readfrom_into,readfrom_mem, readfrom_memo_into： Read bytes from external devices ;
  • writeto,writevto,writeto_mem： Write bytes to the receiving device ;

2、 Observe SoftI2C The signal

（1） Scanning device waveform

The following code uses PC6,PC7 As SoftI2C Of SCL,SDA The signal . repeat i2c.scan() command . Use an oscilloscope to measure SCL,SDA Signal waveform .

from machine import Pin,I2C,SoftI2C
import time
scl = Pin('PC6')
sda = Pin('PC7')
i2c = SoftI2C(scl, sda, freq=100000)
while True:
i2c.scan()
time.sleep_ms(20)

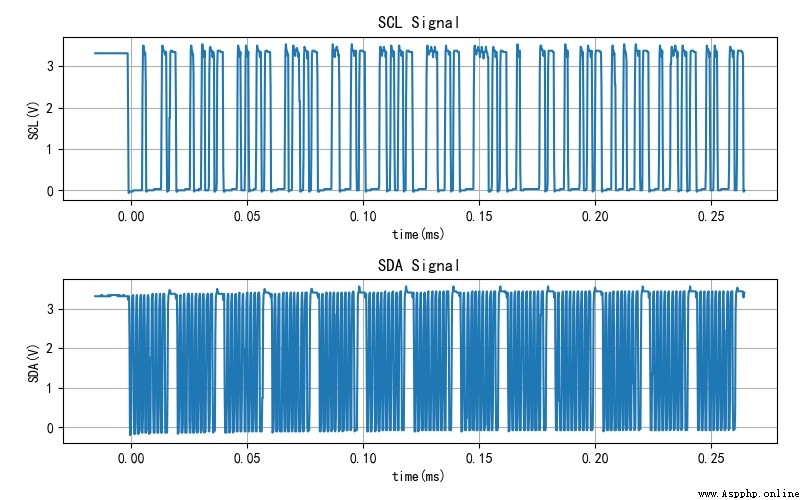

Captured by oscilloscope SCL,SDA The signal waveform is as follows . You can see I2C Medium scan function , Execute on I2C Scan all possible addresses of the bus , Get the address of the responsive device .

▲ chart 1.1.1 SCL,SDA Signal waveform

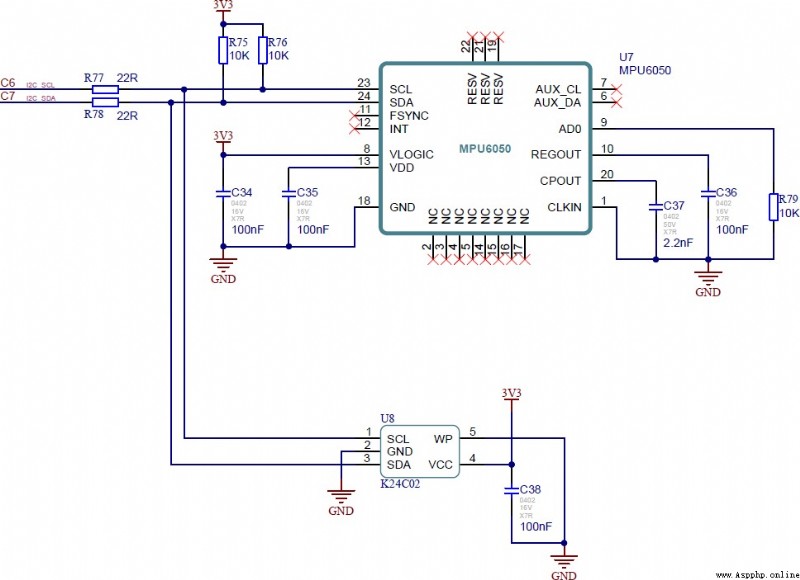

stay PLUS-F3270 The experimental board contains two I2C device , One is MPU6050, The other is K24C02.MPU6050 Corresponding I2C The address is 0x68,K24C02 For the I2C The address is 0x50.

▲ chart 1.1.2 PLUS-F3270 Two on the experimental board I2C device

Use I2C Of scan function , The result is zero ： [80, 104], Namely K24C02, MPU6050 Of I2C Address .

3、 Reading and writing K24C02

The following code will 0 ~ 7 Eight bytes are written K24C02 The first eight bytes .

from machine import Pin,SoftI2C
import time
scl = Pin('PC6')
sda = Pin('PC7')
i2c = SoftI2C(scl, sda, freq=100000)
buf = bytes((0x0,0,1,2,3,4,5,6,7))
i2c.writeto(0x50, buf)
time.sleep_ms(10)

Next, reread the first eight bytes . The first two statements actually execute a null write instruction , It's about setting up EEPROM Current address pointer . Then read continuously 0x10 The numbers are displayed .

buf = bytes((0x0,))
i2c.writeto(0x50, buf)
buf = i2c.readfrom(0x50, 0x20)
print(buf)

The execution result is ：

1
b'\x00\x01\x02\x03\x04\x05\x06\x07\xff\xff\xff\xff\xff\xff\xff\xff\x00\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff'

Number one 1 yes i2c.writeto After execution , Go back to the actual I2C Number of bytes transferred by bus . Back 16 A number of bytes , The first eight are the numbers written before , The last eight remain 0xff .

Two 、 operation I2C Interface OLED

1、 Two wire interface OLED

OLED Display screen is a commonly used device output device , It usually has two interfaces ：

  • Seven wire interface ： Except for the power supply （VDD,GND） outside , And the clock （SCK）、 data （SDA）, Reset （RES）, function （DC） And film selections （CS） The signal ;
  • Four wire interface ： Except for the power supply （VDD,GND） outside , Include I2C Summarize the two interfaces SCK, SDA.

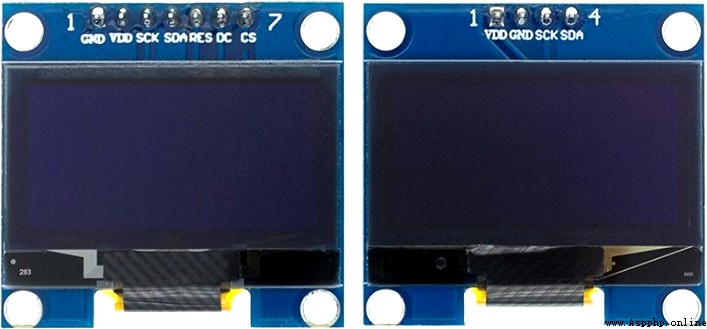

▲ chart 1.2.1 128×64 OLED LCD screen
Left ： Term interface OLED; Right ： Four wire interface OLED

Four wire interface , It's actually I2C Bus interface . Next I2C Summarize the interface OLED Connect to Simple experimental board PA0,PA1 On two pins .

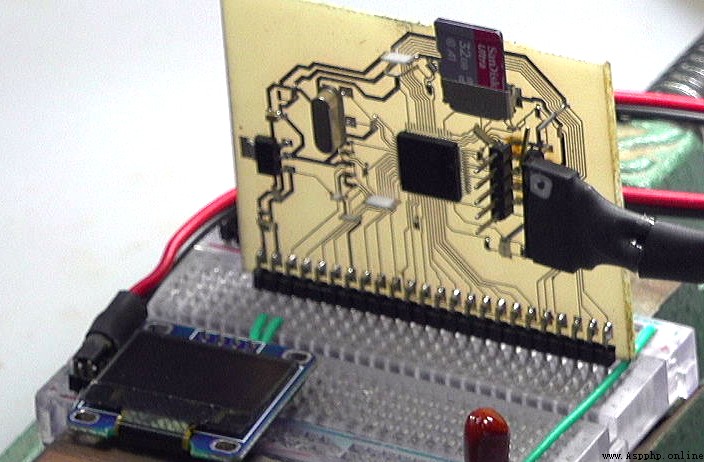

▲ chart 1.2.2 Put two lines on the bread board OLED Connect with the simple experimental board

2、 scanning OLED Address

Use I2C Of scan Function test OLED Of I2C Address .

from machine import Pin,SoftI2C
import utime
print("Test I2C")
scl = Pin('PA0')
sda = Pin('PA1')
i2c = SoftI2C(scl, sda, freq=100000)
ret = i2c.scan()
print(ret)

The result of program running is ：

Test I2C
[60]

3、 LCD initialization

For OLED Code for initialization , This code will OLED The plane is displayed in white .

from machine import Pin,SoftI2C
import utime
from micropython import const
#------------------------------------------------------------
scl = Pin('PA0')
sda = Pin('PA1')
i2c = SoftI2C(scl, sda, freq=100000)
#------------------------------------------------------------
SET_CONTRAST = const(0x81)
SET_ENTIRE_ON = const(0xa4)
SET_NORM_INV = const(0xa6)
SET_DISP = const(0xae)
SET_MEM_ADDR = const(0x20)
SET_COL_ADDR = const(0x21)
SET_PAGE_ADDR = const(0x22)
SET_DISP_START_LINE = const(0x40)
SET_SEG_REMAP = const(0xa0)
SET_MUX_RATIO = const(0xa8)
SET_COM_OUT_DIR = const(0xc0)
SET_DISP_OFFSET = const(0xd3)
SET_COM_PIN_CFG = const(0xda)
SET_DISP_CLK_DIV = const(0xd5)
SET_PRECHARGE = const(0xd9)
SET_VCOM_DESEL = const(0xdb)
SET_CHARGE_PUMP = const(0x8d)
#------------------------------------------------------------
class SSD1306():
def __init__(self, width, height, external_vcc):
self.width = width
self.height = height
self.external_vcc = external_vcc
self.pages = self.height // 8
self.buffer = bytearray(self.pages * self.width)
self.init_display()
def init_display(self):
for cmd in (
SET_DISP | 0x00, # off
SET_MEM_ADDR, 0x00, # horizontal
SET_DISP_START_LINE | 0x00,
SET_SEG_REMAP | 0x01, # column addr 127 mapped to SEG0
SET_MUX_RATIO, self.height - 1,
SET_COM_OUT_DIR | 0x08, # scan from COM[N] to COM0
SET_DISP_OFFSET, 0x00,
SET_COM_PIN_CFG, 0x02 if self.height == 32 else 0x12,
SET_DISP_CLK_DIV, 0x80,
SET_PRECHARGE, 0x22 if self.external_vcc else 0xf1,
SET_VCOM_DESEL, 0x30, # 0.83*Vcc
SET_CONTRAST, 0xff, # maximum
SET_ENTIRE_ON, # output follows RAM contents
SET_NORM_INV, # not inverted
SET_CHARGE_PUMP, 0x10 if self.external_vcc else 0x14,
SET_DISP | 0x01): # on
self.write_cmd(cmd)
self.fill(0xff)
self.show()
def fill(self, c):
for i in range(len(self.buffer)):
self.buffer[i] = c
def poweroff(self):
self.write_cmd(SET_DISP | 0x00)
def poweron(self):
self.write_cmd(SET_DISP | 0x01)
def contrast(self, contrast):
self.write_cmd(SET_CONTRAST)
self.write_cmd(contrast)
def invert(self, invert):
self.write_cmd(SET_NORM_INV | (invert & 1))
def show(self):
x0 = 0
x1 = self.width - 1
if self.width == 64:
x0 += 32
x1 += 32
self.write_cmd(SET_COL_ADDR)
self.write_cmd(x0)
self.write_cmd(x1)
self.write_cmd(SET_PAGE_ADDR)
self.write_cmd(0)
self.write_cmd(self.pages - 1)
self.write_data(self.buffer)
class SSD1306_I2C(SSD1306):
def __init__(self, width, height, i2c, addr=0x3c, external_vcc=False):
self.i2c = i2c
self.addr = addr
self.temp = bytearray(2)
super().__init__(width, height, external_vcc)
def write_cmd(self, cmd):
self.temp[0] = 0x80 # Co=1, D/C#=0
self.temp[1] = cmd
self.i2c.writeto(self.addr, self.temp)
def write_data(self, buf):
self.temp[0] = self.addr << 1
self.temp[1] = 0x40 # Co=0, D/C#=1
self.i2c.start()
self.i2c.write(self.temp)
self.i2c.write(buf)
self.i2c.stop()
#------------------------------------------------------------
oled = SSD1306_I2C(128, 64, i2c, addr=0x3c)

The moving picture below shows OLED The slow process of being initialized .

▲ chart 1.2.3 SoftI2C initialization OLED

4、 Display character information

The following code gives the code in OLED Example program for displaying characters on .

from machine import Pin,SoftI2C
import utime
from micropython import const
scl = Pin('PA0')
sda = Pin('PA1')
i2c = SoftI2C(scl, sda, freq=400000)
SET_CONTRAST = const(0x81)
SET_ENTIRE_ON = const(0xa4)
SET_NORM_INV = const(0xa6)
SET_DISP = const(0xae)
SET_MEM_ADDR = const(0x20)
SET_COL_ADDR = const(0x21)
SET_PAGE_ADDR = const(0x22)
SET_DISP_START_LINE = const(0x40)
SET_SEG_REMAP = const(0xa0)
SET_MUX_RATIO = const(0xa8)
SET_COM_OUT_DIR = const(0xc0)
SET_DISP_OFFSET = const(0xd3)
SET_COM_PIN_CFG = const(0xda)
SET_DISP_CLK_DIV = const(0xd5)
SET_PRECHARGE = const(0xd9)
SET_VCOM_DESEL = const(0xdb)
SET_CHARGE_PUMP = const(0x8d)
font8x16 = bytes((0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00,
0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,
0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,
0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,
0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,
0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,
0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,
0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,
0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,
0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,
0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,
0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,
0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,
0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,
0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,
0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,
0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,
0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,
0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,
0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,
0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,
0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,
0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,
0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,
0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,
0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,
0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,
0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,
0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,
0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,
0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,
0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,
0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,
0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,
0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,
0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,
0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,
0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,
0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,
0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,
0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,
0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,
0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00,
0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,
0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,
0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,
0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,
0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,
0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,
0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,
0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,
0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,
0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,
0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,
0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,
0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,
0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,
0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,
0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,
0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,
0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,
0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,
0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,
0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,
0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,
0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,
0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,
0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,
0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,
0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,
0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,
0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,
0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,
0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,
0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,
0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,
0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,
0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,
0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,
0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,
0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,
0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,
0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,
0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,
0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,
0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00))
class SSD1306():
def __init__(self, width, height, external_vcc):
self.width = width
self.height = height
self.external_vcc = external_vcc
self.pages = self.height // 8
self.buffer = bytearray(self.pages * self.width)
self.init_display()
def init_display(self):
for cmd in (
SET_DISP | 0x00, # off
SET_MEM_ADDR, 0x00, # horizontal
SET_DISP_START_LINE | 0x00,
SET_SEG_REMAP | 0x01, # column addr 127 mapped to SEG0
SET_MUX_RATIO, self.height - 1,
SET_COM_OUT_DIR | 0x08, # scan from COM[N] to COM0
SET_DISP_OFFSET, 0x00,
SET_COM_PIN_CFG, 0x02 if self.height == 32 else 0x12,
SET_DISP_CLK_DIV, 0x80,
SET_PRECHARGE, 0x22 if self.external_vcc else 0xf1,
SET_VCOM_DESEL, 0x30, # 0.83*Vcc
SET_CONTRAST, 0xff, # maximum
SET_ENTIRE_ON, # output follows RAM contents
SET_NORM_INV, # not inverted
SET_CHARGE_PUMP, 0x10 if self.external_vcc else 0x14,
SET_DISP | 0x01): # on
self.write_cmd(cmd)
self.fill(0x0)
self.show()
def fill(self, c):
for i in range(len(self.buffer)):
self.buffer[i] = c
def poweroff(self):
self.write_cmd(SET_DISP | 0x00)
def poweron(self):
self.write_cmd(SET_DISP | 0x01)
def contrast(self, contrast):
self.write_cmd(SET_CONTRAST)
self.write_cmd(contrast)
def invert(self, invert):
self.write_cmd(SET_NORM_INV | (invert & 1))
def show(self):
x0 = 0
x1 = self.width - 1
if self.width == 64:
x0 += 32
x1 += 32
self.write_cmd(SET_COL_ADDR)
self.write_cmd(x0)
self.write_cmd(x1)
self.write_cmd(SET_PAGE_ADDR)
self.write_cmd(0)
self.write_cmd(self.pages - 1)
self.write_data(self.buffer)
def setpoint(self, x,y):
liney = y//8
yy = 1<<(y%8)
self.buffer[liney*self.width+x] |= yy
def setstring(self, x,y,str):
for c in str:
cid = ord(c) - 0x20
cid *= 16
for i in range(8):
ii = y*self.width+x*8+i
self.buffer[ii] = font8x16[cid+i]
self.buffer[ii+self.width] = font8x16[cid+i+8]
x += 1
if x >= self.width//8:
x = 0
y += 1
class SSD1306_I2C(SSD1306):
def __init__(self, width, height, i2c, addr=0x3c, external_vcc=False):
self.i2c = i2c
self.addr = addr
self.temp = bytearray(2)
super().__init__(width, height, external_vcc)
def write_cmd(self, cmd):
self.temp[0] = 0x80 # Co=1, D/C#=0
self.temp[1] = cmd
self.i2c.writeto(self.addr, self.temp)
def write_data(self, buf):
self.temp[0] = self.addr << 1
self.temp[1] = 0x40 # Co=0, D/C#=1
self.i2c.start()
self.i2c.write(self.temp)
self.i2c.write(buf)
self.i2c.stop()
oled = SSD1306_I2C(128, 64, i2c, addr=0x3c)
oled.setstring(0, 0, ' MM32F3277')
oled.setstring(0, 2, 'MicroPython:V2')
oled.show()
count = 0
while True:
oled.setstring(3, 6, 'Count:%04d'%count)
count += 1
oled.show()
utime.sleep_ms(100)

▲ chart 1 utilize SoftI2C control OLED Display character information



※ total junction ※

This paper gives MicroPython Kernel Development Notes ： Experimental tasks are embedded in the book Medium I2C Part of the use case .

■ Links to related literature :

  • MicroPython Kernel Development Notes ： Experimental tasks are embedded in the book

● Related chart Links :

  • chart 1.1.1 SCL,SDA Signal waveform
  • chart 1.1.2 PLUS-F3270 Two on the experimental board I2C device
  • chart 1.2.2 Put two lines on the bread board OLED Connect with the simple experimental board
  • chart 1.2.3 SoftI2C initialization OLED
  • chart 1 utilize SoftI2C control OLED Display character information

  1. 上一篇文章：
  2. 下一篇文章：
Python
Extracting stock data with Python and extracting data through tushare API interface

First step , register tushareh
Python crawler (II) lxml Use of etree (five minutes to climb the part-time network of college students)

All libraries and installation
為什麼這麼多人學Python？看了需求量和就業薪資你就懂了

Python今年是排名前3的最受歡迎和增長最快的編程語言之一
Python Matplotlib data visualization case - generate histogram, pie chart (sector chart) and word cloud.

at present python,spark,scala

python輸出最大的值：鍵

def get_max_value_and_key(a_di
PyThon Debug mining pit -- prompt module thread has no attribute start_new_thread

PyThon DebugC:\Users\Administr
相關文章
閱讀排行榜
[Python combat] -- output and output (updating) Python學習筆記：字典 Modification of Python list basic operation Python圖像處理中PIL中image.convert()函數 Python crawler programming idea (152): use scrapy to grab data, and use itemloader to save multiple pieces of captured data How do you use subprocess check_ output（）？ - How do you use subprocess. check_ output() in Python? python使用execjs時，編碼gdk報錯 Pythonskimage image processing Quick start Python Basics python運算符，內置函數問題 Pandas中創建DataFrame對象以及相關的列操作，行操作
熱門圖文
pandas 哈希表鏈地址法表示與實現 【機器學習】數據准備--python爬蟲 事件傳遞-為什麼onTouchEvent方法會在dispatchTouchEvent方法之前執行呢？ 【筆試題】並查集實現，筆試題實現 詳細述說ADO超時相關問題介紹 c++-本地函數定義非法；C++ PHP禁止頁面緩存輸出
欄目導航
  • 匯編語言
    •
  • Delphi
    •
  • Groovy
    •
  • WebSphere
    •
  • Rational
    •
  • Python
    •
  • Ruby
    •
  • 編程解疑
    •
  • 編程綜合問答
    •
  • 更多關於編程
    •
  • 編程問題解答
    • Copyright © 程式師世界 All Rights Reserved
