Technical document 2: URL route resolution in Django

URL Definition ：

urls.py ----- Responsible for the URL Schema mapping to application .URL yes Django After receiving the user's request , According to the user's request URL Address and urls.py The mapping relationship configured in , Identify a with the right URL Which piece of logic code is called to execute the corresponding view function or view class , Finally, the view returns the data that the client wants to receive .

Django The process of route resolution in is mainly ：

1. The client sends the access request ;
2. The server accepts the request from the client , Disassembly request ;
3. The server gives priority to matching... Under the project directory URL, Then match... In specific applications URL;
4. use sb.'s judgement , If the matching is successful, execute the corresponding view ; If the match is not successful, it returns 404;
5. The client accepts the response and renders the execution ;

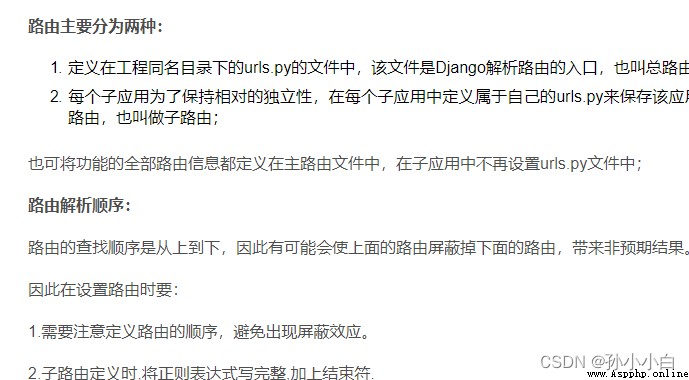

There are two main types of routing ：

1. Defined in the directory with the same name of the project urls.py In the file of , The document is Django Analyze the entry of the route , Also called total routing ;
2. Each sub application in order to maintain relative independence , Define your own... In each sub application urls.py To save the route of the application , Also called sub routing ;

You can also define all the routing information of the function in the main routing file , No longer set in subapplication urls.py In file ;

Route resolution order ：

The search order of routes is from top to bottom , therefore It is possible to shield the upper route from the lower route , Bring unexpected results .

Therefore, when setting the route, you should ：

1. Note the order in which the routes are defined , Avoid shielding effects .

2. When defining a sub route , Write the regular expression completely , Add a close .

Slash at the end of the path / Explanation ：

Django When routing is defined in , Usually with a slash / ending , The advantage is that users do not access with slashes / At the end of the same path ,Django Will redirect the user to a slash / At the end of the path , Instead of going back 404 non-existent .

Custom expressions match : Converter type Type specification

<int:number>

take number Convert to integer , matching 0 Or any positive integer

<str:name>

take name Convert to floating point , Match except / Non empty characters other than

<slug:path1>

Match the letter 、 Numbers 、 String of underscores

<uuid:path2>

Match formatted UUID Unique identification number

<path:path3>

Matches any non-null characters , Include path delimiters ,？ With the exception of

Other matters needing attention ：

urlpatterns The elements in () match the regular expression from top to bottom in writing order , Once the match is successful, it will not continue .

If you want to rush URL Captures a value in , Just put a pair of parentheses around it ( Assign groups )
