51JOB爬蟲+數據可視化 python

1.登錄模塊：

用了Xpath和selenium，最後被缺口滑塊驗證碼反爬了一波，缺口驗證碼那個地方成功率奇低。

from selenium import webdriver
from selenium.webdriver import ActionChains
from selenium.webdriver.common.by import By
from selenium.webdriver.common.keys import Keys
from selenium.webdriver.support import expected_conditions as EC
from selenium.webdriver.support.wait import WebDriverWait
from PIL import Image
import time
from time import sleep
global web,wait
web=webdriver.Firefox()#打開浏覽器
wait = WebDriverWait(web, 20)
def denglu():
web.get("https://login.51job.com/login.php?loginway=0&isjump=0&lang=c&from_domain=i&url=http%3A%2F%2Fsearch.51job.com%2Flist%2F360000%2C000000%2C0000%2C00%2C9%2C99%2C%252B%2C2%2C1.html%3Flang%3Dc%26postchannel%3D0000%26workyear%3D99%26cotype%3D99%26degreefrom%3D99%26jobterm%3D99%26companysize%3D99%26ord_field%3D0%26dibiaoid%3D0%26line%3D%26welfare%3D") #在浏覽器地址欄，輸入網站
#web.maximize_window()# 全屏最大化窗口
web.find_element_by_xpath('//*[@id="loginname"]').send_keys('18658607893')
web.find_element_by_xpath('//*[@id="password"]').send_keys('cjhcjh123')
web.find_element_by_xpath('//*[@id="isread_em"]').click()
web.find_element_by_xpath('/html/body/div[4]/div/div/span').click()
sleep(3)
web.find_element_by_id('login_btn_withPwd').click()
# 對某元素截圖
def save_pic(obj, name):
try:
pic_url = web.save_screenshot('.\\51job.png')
print("%s:截圖成功!" % pic_url)
# 獲取元素位置信息
left = obj.location['x'] * 1.25 # 自己通過原圖與實際圖片對比得出的系數
top = obj.location['y'] * 1.25
right = left + obj.size['width'] * 1.25
bottom = top + obj.size['height'] * 1.25
print('圖：' + name)
print('Left %s' % left)
print('Top %s' % top)
print('Right %s' % right)
print('Bottom %s' % bottom)
print('')
im = Image.open('.\\51job.png')
im = im.crop((left, top, right, bottom)) # 元素裁剪
file_name = '51job_' + name + '.png'
im.save(file_name) # 元素截圖
except BaseException as msg:
print("%s:截圖失敗!" % msg)
# 設置元素可見
def show_element(element):
web.execute_script("arguments[0].style=arguments[1]", element, "display: block;")
# 設置元素不可見
def hide_element(element):
web.execute_script("arguments[0].style=arguments[1]", element, "display: none;")
def cut():
c_background = wait.until(EC.presence_of_element_located((By.CSS_SELECTOR, 'canvas.geetest_canvas_bg.geetest_absolute')))
c_slice = wait.until(EC.presence_of_element_located((By.CSS_SELECTOR, 'canvas.geetest_canvas_slice.geetest_absolute')))
c_full_bg = wait.until(EC.presence_of_element_located((By.CSS_SELECTOR, 'canvas.geetest_canvas_fullbg.geetest_fade.geetest_absolute')))
hide_element(c_slice)
save_pic(c_background, 'back') # 隱藏滑塊
show_element(c_slice)
save_pic(c_slice, 'slice') # 所有的
show_element(c_full_bg)
save_pic(c_full_bg, 'full') # 隱藏所有的
# 判斷像素是否相同
def is_pixel_equal(bg_image, fullbg_image, x, y):
"""
:param bg_image: (Image)缺口圖片
:param fullbg_image: (Image)完整圖片
:param x: (Int)位置x
:param y: (Int)位置y
:return: (Boolean)像素是否相同
"""
# 獲取缺口圖片的像素點(按照RGB格式)
bg_pixel = bg_image.load()[x, y]
# 獲取完整圖片的像素點(按照RGB格式)
fullbg_pixel = fullbg_image.load()[x, y]
# 設置一個判定值，像素值之差超過判定值則認為該像素不相同
threshold = 120
# 判斷像素的各個顏色之差，abs()用於取絕對值
if (abs(bg_pixel[0] - fullbg_pixel[0] < threshold) and abs(bg_pixel[1] - fullbg_pixel[1] < threshold) and abs(bg_pixel[2] - fullbg_pixel[2] < threshold)):
# 如果差值在判斷值之內，返回是相同像素
return True
else:
# 如果差值在判斷值之外，返回不是相同像素
return False
# 計算滑塊移動距離
def get_distance(bg_image, fullbg_image):
'''
:param bg_image: (Image)缺口圖片
:param fullbg_image: (Image)完整圖片
:return: (Int)缺口離滑塊的距離
'''
# 滑塊的初始位置
distance = 0
# 遍歷像素點橫坐標
for i in range(distance, fullbg_image.size[0]):
# 遍歷像素點縱坐標
for j in range(fullbg_image.size[1]):
# 如果不是相同像素
if not is_pixel_equal(fullbg_image, bg_image, i, j):
# 返回此時橫軸坐標就是滑塊需要移動的距離
return i
#破解滑塊驗證
def slide():
distance=get_distance(Image.open('.\\51job_back.png'),Image.open('.\\51job_full.png'))/1.25 #要將原圖與實際圖對比的系數除掉
try:
slider=wait.until(EC.presence_of_element_located((By.CSS_SELECTOR,'div.geetest_slider_button'))) #找到滑塊
if slider:
print("====有滑塊驗證=====")
action_chains = webdriver.ActionChains(web)
# 點擊，准備拖拽
action_chains.click_and_hold(slider)
action_chains.pause(0.2)
action_chains.move_by_offset(distance,0)
action_chains.pause(0.6)
action_chains.move_by_offset(36,0) #添加修正過程
action_chains.pause(0.6)
action_chains.release()
action_chains.perform() # 釋放滑塊
time.sleep(5)
else:
print("===沒有滑塊驗證===")
except Exception as e:
print("==="+str(e))
denglu()
cut()
slide()

2.搜索+爬取模塊 沒結合第一個登錄模塊 因為登錄成功率實在低了點（涉及了一小部分的數據清洗，關於工資那部分的）

import re
from selenium import webdriver
from selenium.webdriver import ActionChains
from selenium.webdriver.common.by import By
from selenium.webdriver.common.keys import Keys
from selenium.webdriver.support import expected_conditions as EC
from selenium.webdriver.support.wait import WebDriverWait
from PIL import Image
import time
import json
from time import sleep
import requests
global web,wait
web=webdriver.Firefox()#打開浏覽器
wait = WebDriverWait(web, 20)
web.get("https://search.51job.com/list/360000,000000,0000,00,9,99,%2B,2,1.html?lang=c&postchannel=0000&workyear=99&cotype=99&degreefrom=99&jobterm=99&companysize=99&ord_field=0&dibiaoid=0&line=&welfare=") #在浏覽器地址欄，輸入網站
web.maximize_window()# 全屏最大化窗口
print('請輸入你要搜索的職位')
s = input()
def sousuo():
sleep(3)
#web.find_element_by_xpath('/html/body/div[1]/div[4]/div/p/a[2]').click()
web.find_element_by_xpath('/html/body/div[2]/div[2]/div[1]/div[1]/div[2]/div[2]').click()
web.find_element_by_xpath('/html/body/div[2]/div[2]/div[1]/div[2]/div/div[2]/div[1]/div[2]/div/table/tbody[1]/tr/td[2]/em').click()
web.find_element_by_xpath('/html/body/div[2]/div[2]/div[1]/div[2]/div/div[2]/div[1]/div[2]/div/table/tbody[2]/tr/td[2]/em').click()
web.find_element_by_xpath('/html/body/div[2]/div[2]/div[1]/div[2]/div/div[2]/div[1]/div[2]/div/table/tbody[4]/tr/td[4]/em').click()
web.find_element_by_xpath('/html/body/div[2]/div[2]/div[1]/div[2]/div/div[2]/div[1]/div[3]/table/tbody/tr/td/em').click()
web.find_element_by_xpath('/html/body/div[2]/div[2]/div[1]/div[2]/div/div[3]/span').click()
sleep(2)
web.find_element_by_xpath('//*[@id="keywordInput"]').send_keys(s)
sleep(0.5)
web.find_element_by_xpath('//*[@id="search_btn"]').click()
def pachu():
f=open('C:\\Users\\55151\\Desktop\\python課設\\51jobpachong.csv','a+')
f.write('{},{},{},{},{},{},{}\n'.format('職位','公司','工資','工作地點','學歷','更新時間','詳情'))
#f = open('C:\\Users\\55151\\Desktop\\python課設\\51jobpachong.csv', 'a+')
headers={'Cookie': '_uab_collina=165432020619222940563756; acw_tc=ac11000116543202028027511e010fbf52b6b519923541b8e77a0e3850f097; guid=b6ba05a019649425e1e1883cbfeb8b3f; search=jobarea%7E%60360000%2C020000%2C080200%2C170200%7C%21ord_field%7E%600%7C%21recentSearch0%7E%60360000%2C020000%2C080200%2C170200%A1%FB%A1%FA000000%A1%FB%A1%FA0000%A1%FB%A1%FA00%A1%FB%A1%FA99%A1%FB%A1%FA%A1%FB%A1%FA99%A1%FB%A1%FA99%A1%FB%A1%FA99%A1%FB%A1%FA99%A1%FB%A1%FA9%A1%FB%A1%FA99%A1%FB%A1%FA%A1%FB%A1%FA0%A1%FB%A1%FApython%A1%FB%A1%FA2%A1%FB%A1%FA1%7C%21recentSearch1%7E%60360000%2C020000%2C080200%2C170200%A1%FB%A1%FA000000%A1%FB%A1%FA0000%A1%FB%A1%FA00%A1%FB%A1%FA99%A1%FB%A1%FA%A1%FB%A1%FA99%A1%FB%A1%FA99%A1%FB%A1%FA99%A1%FB%A1%FA99%A1%FB%A1%FA9%A1%FB%A1%FA99%A1%FB%A1%FA%A1%FB%A1%FA0%A1%FB%A1%FA%A1%FB%A1%FA2%A1%FB%A1%FA1%7C%21recentSearch2%7E%60360000%A1%FB%A1%FA000000%A1%FB%A1%FA0000%A1%FB%A1%FA00%A1%FB%A1%FA99%A1%FB%A1%FA%A1%FB%A1%FA99%A1%FB%A1%FA99%A1%FB%A1%FA99%A1%FB%A1%FA99%A1%FB%A1%FA9%A1%FB%A1%FA99%A1%FB%A1%FA%A1%FB%A1%FA0%A1%FB%A1%FA%A1%FB%A1%FA2%A1%FB%A1%FA1%7C%21; nsearch=jobarea%3D%26%7C%26ord_field%3D%26%7C%26recentSearch0%3D%26%7C%26recentSearch1%3D%26%7C%26recentSearch2%3D%26%7C%26recentSearch3%3D%26%7C%26recentSearch4%3D%26%7C%26collapse_expansion%3D; ssxmod_itna=YqIx2DBDyii=iteGHD8Qbq0IKpQD0DbAGQG=CcD0vxpeGzDAxn40iDto=ThloZA7u5Pf8lO+hxZWEDedpsWpOAfOe6+r4GLDmKDylYxheDx1q0rD74irDDxD3DbRdDSDWKD9D0bMgy2VKDbxi36xDbDiWkvxGCDeKD0PqHDQKDucKPslrkYRPw9ro1eGAxKnKD9OoDsc0fC4oLU/2GfCKDX1dDvhv1ZgPpDB4C/pyGbQDPfmlFsxDOy4017zqDWcIxsel5DjTk1gaKWB=DBoUe/j+x5G0q8b0gqlGKOlGZeBqxNQaq6Nm4O2PH7DDDfPGhdmDxD=; ssxmod_itna2=YqIx2DBDyii=iteGHD8Qbq0IKpQD0DbAGQG=7DnFfbyqDs=KeDL7ZiybDqnRDq=zKmrqc5eXtAGIxq9Qigc5kcKYMpaCd3br2dze3rkMD3YxcGOwfeYeu80KsbNBrKmli7vKhNc8pxW0Qiie8pkWeW+Yhwie8GHKiAiO0WmaSwT8lbTxExTOlRbt8gd7+qmXm7zpU3fhU33ptpioI36KQaflj34G/cm8SpNz/d2SScWYVpIp3e=E6oXGRezdgh2gIwUhRT8xF=uiMMIcn0bk/7pKQA=nQAXlFgDYlxvtgTp0QWihafmZq1YxToBHL+sk3=WSH3earfsVbOiuDb21kRF93bc04pRhhd8c7Y+S1V8whT+OYWB+NUhFrk75lrqLT/0FBozDWmjbYCMdw81BObfq7n7OTw7M3FKdzqaY2dmBOKPT88qEquxxO1uQrZQTPcOnjE8kObCHDm7pODDkadSdOYFALk=GEtldY7aCDjBqLk4HhQOz41DI54U+F6+SfxEDDwZGKnDc9E5s6xiAAA=elo3lxCm9M=K=uO/0EEnherhZWIicoTkwZBK6ph1iwy9OSZOOww8kqbue=G2eavQeo=ZkIih99vX++nn+MFXmBmE0C8TxDjKDeuz/rxuhTwYubgCphTAi3GBz0BqEbmC/zkNHCbZ=r/bo/jTlV7D4D===','User-Agent': 'Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:100.0) Gecko/20100101 Firefox/100.0'}
for page in range(1,497):
print('正在爬取第{}頁\n'.format(page))
url='https://search.51job.com/list/360000%252c020000%252c080200%252c170200,000000,0000,00,9,99,python,2,{}.html?lang=c&postchannel=0000&workyear=99&cotype=99&degreefrom=99&jobterm=99&companysize=99&ord_field=0&dibiaoid=0&line=&welfare='.format(page)
ree=requests.get(url=url,headers=headers).text
#print(ree)
r=re.findall('window.__SEARCH_RESULT__ = (.*?)</script>',ree,re.S)
#print(r)
sss=' '.join(r)
# #print(sss)
infodict=json.loads(sss)
print(infodict)
engine_jds=infodict['engine_jds']
for i in engine_jds:
job_name=i['job_name']
company_name=i['company_name']
providesalary_text=i['providesalary_text']
for k in i['attribute_text']:
if k=='大專' or k=='本科' or k =='碩士' :
attribute_text=k
n = 0
if ("萬/月" in providesalary_text):
Num = (re.findall(r"\d+\.?\d*", providesalary_text)) # 將工資字符串中數字提取出
n = int((float(Num[0]) + float(Num[1])) * 10000 / 2) # 將工資區間平均化
elif ("千/月" in providesalary_text):
Num = (re.findall(r"\d+\.?\d*", providesalary_text))
n = int((float(Num[0]) + float(Num[1])) * 1000 / 2)
elif ('元/天'in providesalary_text ):
n=0
if n==0:
providesalary_text='面議'
else:
providesalary_text= str(n)+'元'
workarea_text=i['workarea_text'][0:2]
updatedate=i['updatedate']
job_href=i['job_href']
f.write('{},{},{},{},{},{},{}\n'.format(job_name,company_name,providesalary_text,workarea_text,attribute_text,updatedate,job_href))
sleep(0.1)
print('done!\n')
f.close()
sousuo()
pachu()

3.可視化模塊：


import csv
import wordcloud as wc
import jieba
from PIL import Image
import numpy as np
from matplotlib import pyplot as plt
from pyecharts.charts import Map
from pyecharts.charts import Bar
from pyecharts import options
from pyecharts.commons.utils import JsCode
import csv
import pandas as pd
from pyecharts.charts import Pie
from pyecharts import options as opts
data_x = []
data_y = []
province_date = []
data_number_y = []
ss=''
with open("C:\\Users\\55151\\Desktop\\python課設\\51jobpachong.csv") as fp:
read = csv.reader(fp) # 讀取文件內容
for i in read:
ss+=i[0]
#print(i[2]+'\n')
if i[2]=='工資' or i[2]=='面議':
pass
else:
#print(i[2][:len(i[2])-1])
province = []
data_x.append(i[3])
data_y.append((i[2][:len(i[2])-1]))
data_number_y.append(i[3])
province.append(i[3])
province.append(i[2][:len(i[2])-1])
province_date.append(province)

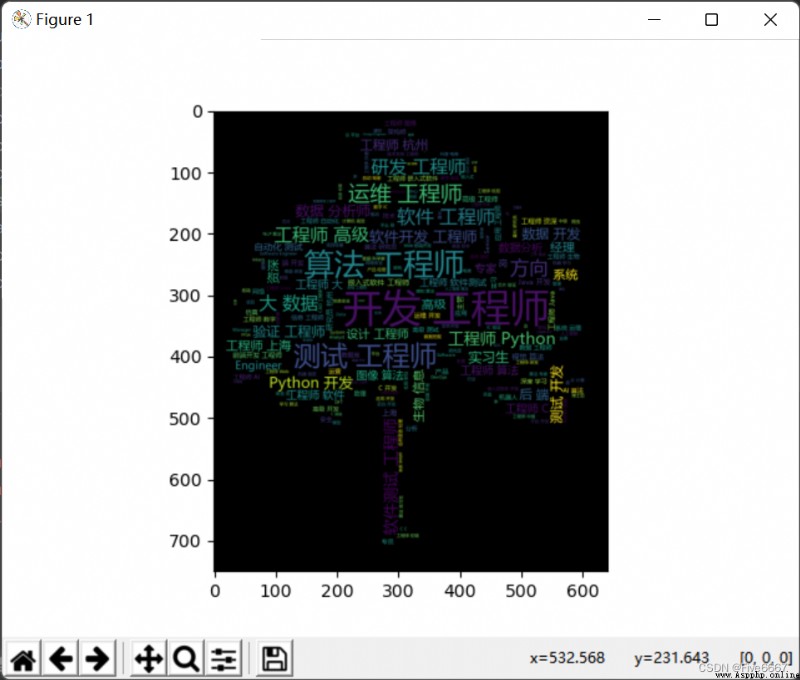

res = jieba.lcut(ss) # 中文分詞
text = " ".join(res) # 用空格連接所有的詞
mask = np.array(Image.open("C:\\Users\\55151\\Desktop\\詞雲.jpg")) # 指定詞雲圖效果
word_cloud = wc.WordCloud(font_path="msyh.ttc", mask=mask) # 創建詞雲對象
word_cloud.generate(text) # 生成詞語
plt.imshow(word_cloud) # 顯示詞雲圖
word_cloud.to_file("wordcloud.png") # 保存成圖片
plt.show() # 顯示圖片
data_x = data_x[0: 30]
print(data_x)

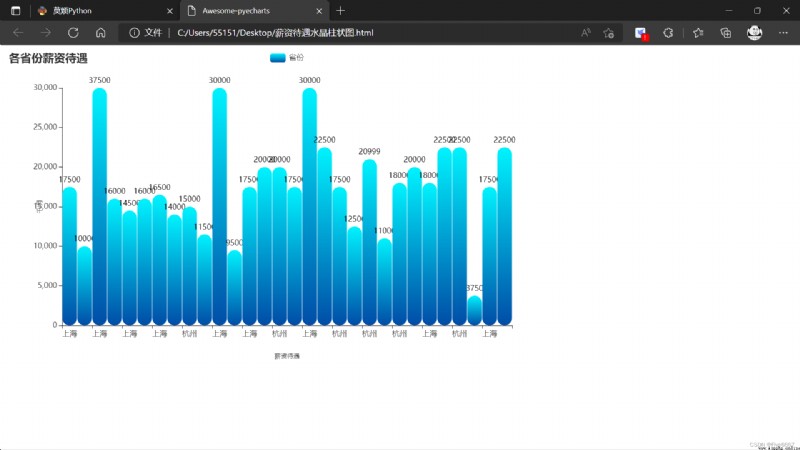

date_many_map = (#薪資待遇水晶柱狀圖
Bar()
.add_xaxis(data_x)
.add_yaxis("省份", data_y, category_gap="3%")
.set_series_opts(
itemstyle_opts={
"normal": {
"color": JsCode(
"""new echarts.graphic.LinearGradient(0, 0, 0, 1, [{
offset: 0,
color: 'rgba(0, 244, 255, 1)'
}, {
offset: 1,
color: 'rgba(0, 77, 167, 1)'
}], false)"""
),
"barBorderRadius": [50, 50, 50, 50],
"shadowColor": "rgb(0, 160, 221)",
}
}
)
.set_global_opts(title_opts=options.TitleOpts(title="各省份薪資待遇"),
xaxis_opts=options.AxisOpts(
name='薪資待遇',
name_location='middle',
name_gap=45, # 標簽與軸線之間的距離，默認為20，最好不要設置20
name_textstyle_opts=options.TextStyleOpts(
font_family='Times New Roman',
font_size=10 # 標簽字體大小
)),
yaxis_opts=options.AxisOpts(
name='千/月',
name_location='middle',
name_gap=30,
split_number = 5,
max_=30000,
#length=100,
name_textstyle_opts=options.TextStyleOpts(
font_family='Times New Roman',
font_size=10
# font_weight='bolder',
)),
# toolbox_opts=opts.ToolboxOpts() # 工具選項
)
.render("C:\\Users\\55151\\Desktop\\薪資待遇水晶柱狀圖.html")
)
print("薪資待遇水晶柱狀圖創建能完成！！！")
data = pd.read_csv('C:\\Users\\55151\\Desktop\\python課設\\51jobpachong.csv', error_bad_lines=False, encoding='gbk')
counts = data['學歷'].value_counts()
l1 = counts.index.tolist()
l2 = counts.values.tolist()
# 數據格式整理
data_pair = [list(z) for z in zip(l1, l2)]
(
# 設置圖標背景顏色
Pie(init_opts=opts.InitOpts(bg_color="rgba(206, 206, 206, 0.3)"))
.add(
# 系列名稱，即該餅圖的名稱
series_name="學歷分析",
# 系列數據項
data_pair=data_pair,
# 餅圖的半徑，設置成默認百分比，相對於容器高寬中較小的一項
radius="55%",
# 餅圖的圓心，第一項是相對於容器的寬度，第二項是相對於容器的高度
center=["50%", "50%"],
# 標簽配置項
label_opts=opts.LabelOpts(is_show=False, position="center"),
)
# 全局設置
.set_global_opts(
# 設置標題
title_opts=opts.TitleOpts(
# 名字
title="學歷占比分析",
# 組件距離容器左側的位置
pos_left="center",
# 組件距離容器上方的像素值
pos_top="20",
# 設置標題顏色
title_textstyle_opts=opts.TextStyleOpts(color="#000"),
),
# 圖例配置項，參數 是否顯示圖裡組件
legend_opts=opts.LegendOpts(
is_show=True,
# 豎向顯示
orient="vertical",
# 距離左邊5%
pos_left="5%",
# 距離上邊60%
pos_top="60%",
),
)
# 系列設置
.set_series_opts(
tooltip_opts=opts.TooltipOpts(
trigger="item", formatter="{a} <br/>{b}: {c} ({d}%)"
),
# 設置標簽顏色
label_opts=opts.LabelOpts(color="#000"),
)
.render('C:\\Users\\55151\\Desktop\\xueli.html')
)
