Android App中DrawerLayout抽屜效果的菜單編寫實例,drawerlayout上下抽屜

編輯:關於PHP編程

Android App中DrawerLayout抽屜效果的菜單編寫實例,drawerlayout上下抽屜


抽屜效果的導航菜單
看了很多應用,覺得這種側滑的抽屜效果的菜單很好。


不用切換到另一個頁面,也不用去按菜單的硬件按鈕,直接在界面上一個按鈕點擊,菜單就滑出來,而且感覺能放很多東西。
庫的引用:
首先, DrawerLayout這個類是在Support Library裡的,需要加上android-support-v4.jar這個包。

然後程序中用時在前面導入import android.support.v4.widget.DrawerLayout;

如果找不到這個類,首先用SDK Manager更新一下Android Support Library,然後在Android SDK\extras\android\support\v4路徑下找到android-support-v4.jar,復制到項目的libs路徑,將其Add to Build Path.

代碼1
布局:

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  xmlns:tools="http://schemas.android.com/tools"
  android:layout_width="match_parent"
  android:layout_height="match_parent" >

  <android.support.v4.widget.DrawerLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/drawer_layout"
    android:layout_width="match_parent"
    android:layout_height="match_parent" >

    <!-- The main content view -->
    <!-- main content must be the first element of DrawerLayout because it will be drawn first and drawer must be on top of it -->

    <FrameLayout
      android:id="@+id/content_frame"
      android:layout_width="match_parent"
      android:layout_height="match_parent" />

    <!-- The navigation drawer -->

    <ListView
      android:id="@+id/left_drawer"
      android:layout_width="240dp"
      android:layout_height="match_parent"
      android:layout_gravity="left"
      android:background="#111"
      android:choiceMode="singleChoice"
      android:divider="@android:color/transparent"
      android:dividerHeight="0dp" />
  </android.support.v4.widget.DrawerLayout>

</RelativeLayout>

  DrawerLayout的第一個子元素是主要內容,即抽屜沒有打開時顯示的布局。這裡采用了一個FrameLayout,裡面什麼也沒放。

  DrawerLayout的第二個子元素是抽屜中的內容,即抽屜布局,這裡采用了一個ListView。

主要的Activity(從官方實例中扒出來的):

package com.example.hellodrawer;

import android.os.Bundle;
import android.app.Activity;
import android.content.res.Configuration;
import android.view.MenuItem;
import android.view.View;
import android.widget.AdapterView;
import android.widget.AdapterView.OnItemClickListener;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.support.v4.app.ActionBarDrawerToggle;
import android.support.v4.view.GravityCompat;
import android.support.v4.widget.DrawerLayout;

public class HelloDrawerActivity extends Activity
{

  private String[] mPlanetTitles;
  private DrawerLayout mDrawerLayout;
  private ActionBarDrawerToggle mDrawerToggle;
  private ListView mDrawerList;

  @Override
  public void onCreate(Bundle savedInstanceState)
  {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_hello_drawer);

    mDrawerLayout = (DrawerLayout) findViewById(R.id.drawer_layout);

    // init the ListView and Adapter, nothing new
    initListView();

    // set a custom shadow that overlays the main content when the drawer
    // opens
    mDrawerLayout.setDrawerShadow(R.drawable.drawer_shadow,
        GravityCompat.START);

    mDrawerToggle = new ActionBarDrawerToggle(this, mDrawerLayout,
        R.drawable.ic_drawer, R.string.drawer_open,
        R.string.drawer_close)
    {

      /** Called when a drawer has settled in a completely closed state. */
      public void onDrawerClosed(View view)
      {

        invalidateOptionsMenu(); // creates call to
                      // onPrepareOptionsMenu()
      }

      /** Called when a drawer has settled in a completely open state. */
      public void onDrawerOpened(View drawerView)
      {

        invalidateOptionsMenu(); // creates call to
                      // onPrepareOptionsMenu()
      }
    };

    // Set the drawer toggle as the DrawerListener
    mDrawerLayout.setDrawerListener(mDrawerToggle);

    // enable ActionBar app icon to behave as action to toggle nav drawer
    getActionBar().setDisplayHomeAsUpEnabled(true);
    // getActionBar().setHomeButtonEnabled(true);
    // Note: getActionBar() Added in API level 11
  }

  private void initListView()
  {
    mDrawerList = (ListView) findViewById(R.id.left_drawer);

    mPlanetTitles = getResources().getStringArray(R.array.planets_array);

    // Set the adapter for the list view
    mDrawerList.setAdapter(new ArrayAdapter<String>(this,
        R.layout.list_item, mPlanetTitles));
    // Set the list's click listener
    mDrawerList.setOnItemClickListener(new OnItemClickListener()
    {

      @Override
      public void onItemClick(AdapterView<?> parent, View view,
          int position, long id)
      {
        // Highlight the selected item, update the title, and close the
        // drawer
        mDrawerList.setItemChecked(position, true);
        setTitle(mPlanetTitles[position]);
        mDrawerLayout.closeDrawer(mDrawerList);
      }
    });
  }

  @Override
  protected void onPostCreate(Bundle savedInstanceState)
  {
    super.onPostCreate(savedInstanceState);
    // Sync the toggle state after onRestoreInstanceState has occurred.
    mDrawerToggle.syncState();
  }

  @Override
  public void onConfigurationChanged(Configuration newConfig)
  {
    super.onConfigurationChanged(newConfig);
    mDrawerToggle.onConfigurationChanged(newConfig);
  }

  @Override
  public boolean onOptionsItemSelected(MenuItem item)
  {
    // Pass the event to ActionBarDrawerToggle, if it returns
    // true, then it has handled the app icon touch event
    if (mDrawerToggle.onOptionsItemSelected(item))
    {
      return true;
    }
    // Handle your other action bar items...

    return super.onOptionsItemSelected(item);
  }

}

比較糾結的是用了Level 11的一個API,這樣minSdkVersion就有限制,不能太低。

圖片資源Android官網示例處提供下載了。

程序運行後效果如下:

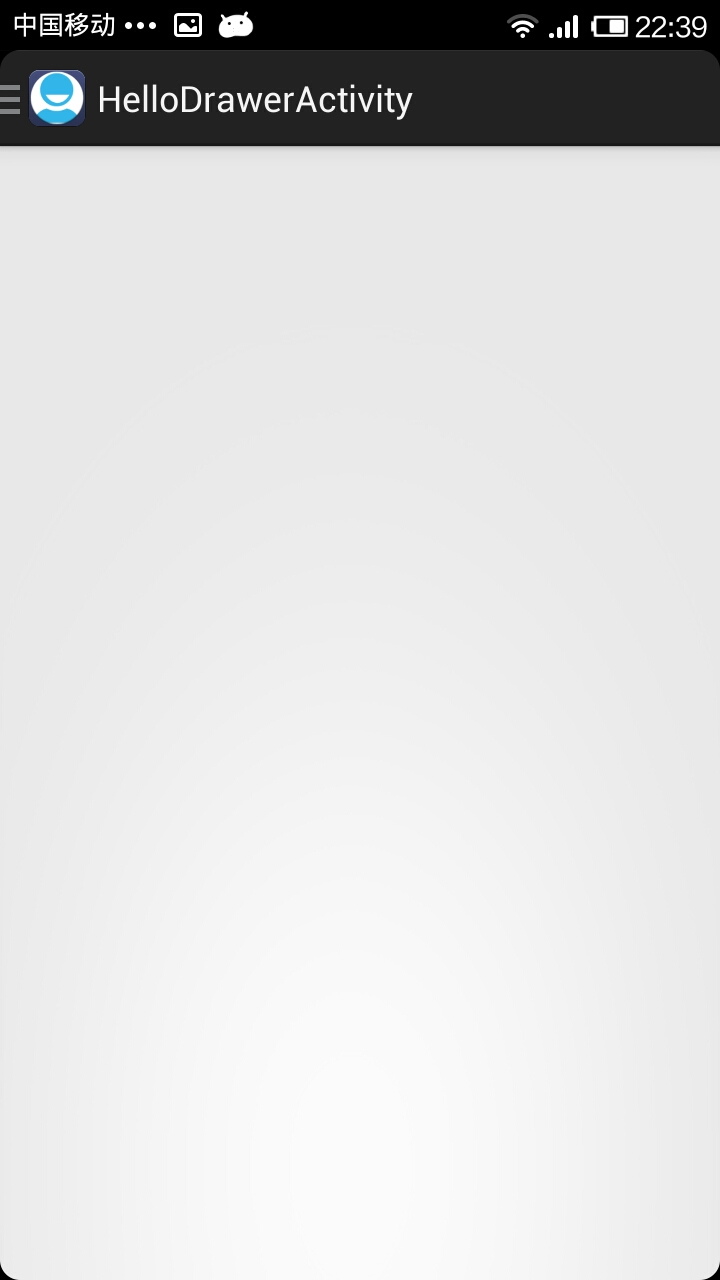

抽屜打開前:

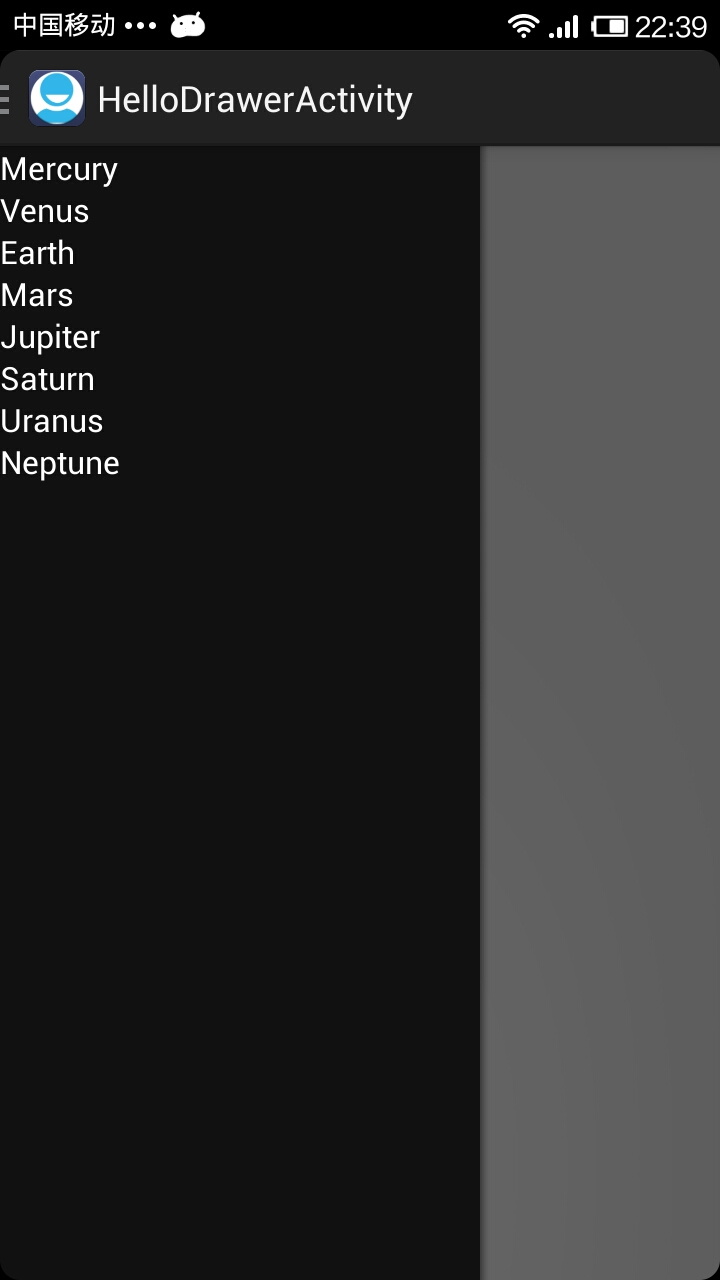

抽屜打開後:


代碼2
今天又看了一下DrawerLayout的類,發現有很多方法可以直接用的。

重新試了一下,其實不用上面那麼麻煩,隨便自己定義一個按鈕控制抽屜的打開就行:

布局:

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  xmlns:tools="http://schemas.android.com/tools"
  android:layout_width="match_parent"
  android:layout_height="match_parent"
  android:paddingBottom="@dimen/activity_vertical_margin"
  android:paddingLeft="@dimen/activity_horizontal_margin"
  android:paddingRight="@dimen/activity_horizontal_margin"
  android:paddingTop="@dimen/activity_vertical_margin"
  tools:context=".DrawerActivity" >

  <android.support.v4.widget.DrawerLayout
    android:id="@+id/drawer_layout"
    android:layout_width="match_parent"
    android:layout_height="match_parent" >

    <!-- The main content view -->

    <FrameLayout
      android:id="@+id/content_frame"
      android:layout_width="match_parent"
      android:layout_height="match_parent" >

      <Button
        android:id="@+id/btn"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="open"
        />
    </FrameLayout>

    <!-- The navigation drawer -->

    <ListView
      android:id="@+id/left_drawer"
      android:layout_width="240dp"
      android:layout_height="match_parent"
      android:layout_gravity="start"
      android:background="#111"
      android:choiceMode="singleChoice"
      android:divider="@android:color/transparent"
      android:dividerHeight="0dp" />
  </android.support.v4.widget.DrawerLayout>

</RelativeLayout>


主要代碼:

package com.example.hellodrawer;

import android.os.Bundle;
import android.app.Activity;
import android.support.v4.widget.DrawerLayout;
import android.view.Gravity;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;

public class DrawerActivity extends Activity
{
  private DrawerLayout mDrawerLayout = null;

  @Override
  protected void onCreate(Bundle savedInstanceState)
  {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_drawer);

    mDrawerLayout = (DrawerLayout) findViewById(R.id.drawer_layout);

    Button button = (Button) findViewById(R.id.btn);
    button.setOnClickListener(new OnClickListener()
    {

      @Override
      public void onClick(View v)
      {
        // 按鈕按下,將抽屜打開
        mDrawerLayout.openDrawer(Gravity.LEFT);

      }
    });
  }

}

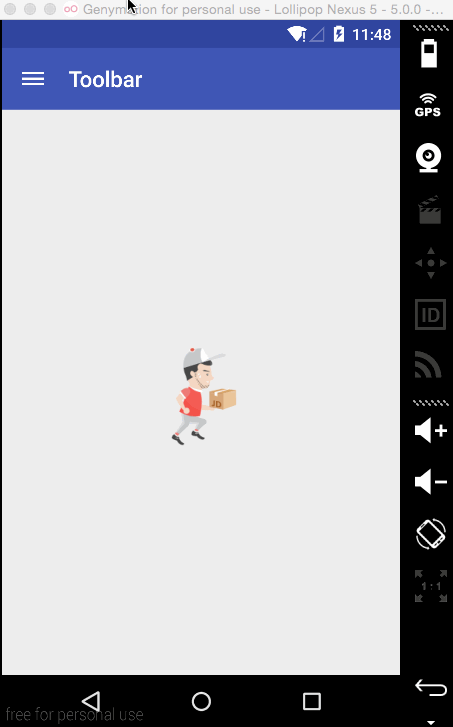

使用Toolbar + DrawerLayout快速實現高大上菜單側滑

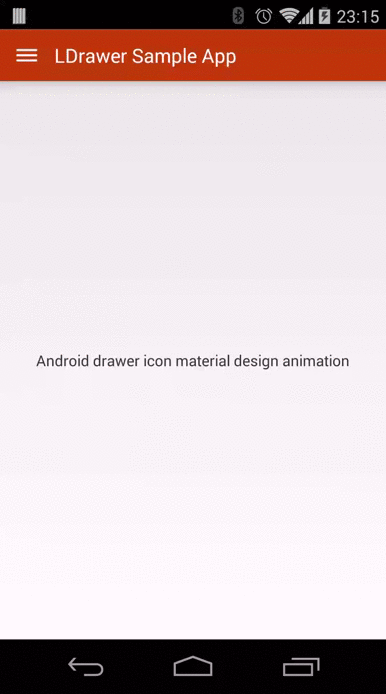

如果你有在關注一些遵循最新的Material Design設計規范的應用的話(如果沒有,假設你有!),也許會發現有很多使用了看起來很舒服、很高大上的側滑菜單動畫效果,示例如下(via 參考2):


今天就來使用官方支持庫來快速實現這類效果,需要使用到Toolbar和DrawerLayout,詳細步驟如下:(如果你還不知道這兩個Widget,先自己Google吧~)
首先需要添加appcompat-v7支持:

如果是在Android Studio 1.0 RC4上創建的項目,默認已經添加了appcompat-v7支持了,如果不是最新版AS則需要在build.gradle中添加如下代碼:

dependencies {
  ...//其他代碼
  compile 'com.android.support:appcompat-v7:21.0.2'
}

添加完成後需要同步一下gradle

添加Toolbar:

由於Toolbar是繼承自View,所以可以像其他標准控件一樣直接主布局文件添加Toolbar,但是為了提高Toolbar的重用效率,可以在layout創建一個custom_toolbar.xml代碼如下:

<?xml version="1.0" encoding="utf-8"?>
  <android.support.v7.widget.Toolbar xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:id="@+id/tl_custom"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:background="?attr/colorPrimary"
    android:minHeight="?attr/actionBarSize"
    android:popupTheme="@style/ThemeOverlay.AppCompat.Light"
    app:theme="@style/ThemeOverlay.AppCompat.ActionBar">
</android.support.v7.widget.Toolbar>

說明:

android.support.v7.widget.Toolbar - 當然如果只在Lollipop中可以直接使用Toolbar而不需要加上v7支持
xmlns:app - 自定義xml命名控件,在AS中可以直接指定res-auto而不需要使用完整包名
android:background 和 android:minHeight 均可以在styles.xml中聲明
添加DrawerLayout:

和Toolbar類似,為了提高代碼重用效率,可以在layout中創建一個custom_drawerlayout.xml代碼如下:

<?xml version="1.0" encoding="utf-8"?>
  <android.support.v4.widget.DrawerLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/dl_left"
    android:layout_width="match_parent"
    android:layout_height="match_parent">
  <!--主布局-->
  <LinearLayout
    android:layout_width="match_parent"
    android:layout_height="match_parent">
    <ImageView
      android:id="@+id/iv_main"
      android:layout_width="100dp"
      android:layout_height="100dp" />
  </LinearLayout>
  <!--側滑菜單-->
  <LinearLayout
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#fff"
    android:layout_gravity="start">
    <ListView
      android:id="@+id/lv_left_menu"
      android:layout_width="match_parent"
      android:layout_height="match_parent"
      android:divider="@null"
      android:text="DrawerLayout" />
  </LinearLayout>
</android.support.v4.widget.DrawerLayout>

Drawerlayout標簽中有兩個子節點,一個是左邊菜單,一個是主布局,另外需要在左邊菜單起始位置設置為android:layout_gravity="start"

實現activity_main.xml:

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  xmlns:tools="http://schemas.android.com/tools"
  android:layout_width="match_parent"
  android:layout_height="match_parent"
  android:orientation="vertical"
  tools:context=".MainActivity">
    <!--Toolbar-->
    <include layout="@layout/custom_toolbar" />
    <!--DrawerLayout-->
    <include layout="@layout/custom_drawerlayout" />
</LinearLayout>

直接使用include標簽,簡潔明了

完善Java代碼:

public class MainActivity extends ActionBarActivity {
  //聲明相關變量
  private Toolbar toolbar;
  private DrawerLayout mDrawerLayout;
  private ActionBarDrawerToggle mDrawerToggle;
  private ListView lvLeftMenu;
  private String[] lvs = {"List Item 01", "List Item 02", "List Item 03", "List Item 04"};
  private ArrayAdapter arrayAdapter;
  private ImageView ivRunningMan;
  private AnimationDrawable mAnimationDrawable;
  @Override
  protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_main);
    findViews(); //獲取控件
    //京東RunningMan動畫效果,和本次Toolbar無關
    mAnimationDrawable = (AnimationDrawable) ivRunningMan.getBackground();
    mAnimationDrawable.start();
    toolbar.setTitle("Toolbar");//設置Toolbar標題
    toolbar.setTitleTextColor(Color.parseColor("#ffffff")); //設置標題顏色
    setSupportActionBar(toolbar);
    getSupportActionBar().setHomeButtonEnabled(true); //設置返回鍵可用
    getSupportActionBar().setDisplayHomeAsUpEnabled(true);
    //創建返回鍵,並實現打開關/閉監聽
    mDrawerToggle = new ActionBarDrawerToggle(this, mDrawerLayout, toolbar, R.string.open, R.string.close) {
      @Override
      public void onDrawerOpened(View drawerView) {
        super.onDrawerOpened(drawerView);
        mAnimationDrawable.stop();
      }
      @Override
      public void onDrawerClosed(View drawerView) {
        super.onDrawerClosed(drawerView);
        mAnimationDrawable.start();
      }
    };
    mDrawerToggle.syncState();
    mDrawerLayout.setDrawerListener(mDrawerToggle);
    //設置菜單列表
    arrayAdapter = new ArrayAdapter(this, android.R.layout.simple_list_item_1, lvs);
    lvLeftMenu.setAdapter(arrayAdapter);
  }
  private void findViews() {
    ivRunningMan = (ImageView) findViewById(R.id.iv_main);
    toolbar = (Toolbar) findViewById(R.id.tl_custom);
    mDrawerLayout = (DrawerLayout) findViewById(R.id.dl_left);
    lvLeftMenu = (ListView) findViewById(R.id.lv_left_menu);
  }
}

當然比較重要還有styles.xml和colors.xml,具體如下:

<resources>
  <style name="AppTheme" parent="Theme.AppCompat.Light.NoActionBar">
    <!--狀態欄顏色-->
    <item name="colorPrimaryDark">@color/Indigo_colorPrimaryDark</item>
    <!--Toolbar顏色-->
    <item name="colorPrimary">@color/Indigo_colorPrimary</item>
    <!--返回鍵樣式-->
    <item name="drawerArrowStyle">@style/AppTheme.DrawerArrowToggle</item>
    </style>
    <style name="AppTheme.DrawerArrowToggle" parent="Base.Widget.AppCompat.DrawerArrowToggle">
    <item name="color">@android:color/white</item>
  </style>
</resources>
<?xml version="1.0" encoding="utf-8"?>
<resources>
  <color name="Indigo_colorPrimaryDark">#303f9f</color>
  <color name="Indigo_colorPrimary">#3f51b5</color>
  <color name="Indigo_nav_color">#4675FF</color>
</resources>

到此就實現了高大上菜單側滑,最終效果如下(注:在Yosemite上貌似直接Record手機屏幕貌似不起作用,而且動畫由於幀率原因無法實時,就先這樣看吧~)

您可能感興趣的文章:

  • Android組件之DrawerLayout實現抽屜菜單
  • Android提高之多方向抽屜實現方法
  • Android控件之SlidingDrawer(滑動式抽屜)詳解與實例分享
  • android UI進階之android中隱藏的layout 抽屜的使用方法
  • Android SlidingDrawer 抽屜效果的實現

  1. 上一頁:
  2. 下一頁:
Copyright © 程式師世界 All Rights Reserved
