Windows 8開發入門（十一） Windows 8 中的Toast Tile Badge通知

在Windows 8中有三種通知的方式及時提醒用戶，它們分別是Toast,Tile,Badge

Toast：是在應用程 序中及時彈出的提醒通知。

Tile：是磁貼通知，用於Metro界面中的應用程序圖標上進行圖片和文字通 知。

Badge：是在磁貼小貼士通知，用於Metro界面中的應用程序圖標右下角提示當前有多少新消息或 者當前應用程序狀態，如（playing paused newMessage）等。

准備工作：首先：引用 NotificationsExtensions.winmd庫，這是對各種通知簡化訪問的封裝。

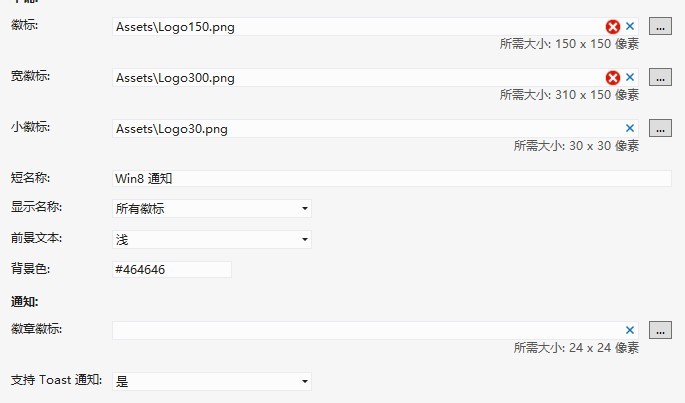

其次：打開 Package.appxmanifest重新設置各種徽標。

最後：打開Package.appxmanifest，設置“支持Toast通知 ”為“是”。

Toast:

private void ToastNotice_Click(object sender, RoutedEventArgs e)
        {
            //Toast通知文字以及圖片設置
            IToastImageAndText01 Toast = ToastContentFactory.CreateToastImageAndText01();
            Toast.TextBodyWrap.Text = "今日世界末日倒數10天！";
            Toast.Image.Src = "http://news.shangdu.com/301/20120512/P_5626361_0__1686841290.jpg";
            ToastNotificationManager.CreateToastNotifier().Show(Toast.CreateNotification());
        }

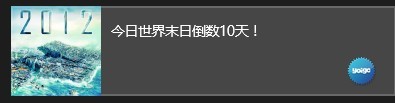

效果圖片：

Tile:

private void

TileNotice_Click(object sender, RoutedEventArgs e)
        {
            //Tile通知文字以及圖片設置
            ITileWideImageAndText01 tile = TileContentFactory.CreateTileWideImageAndText01();
            tile.TextCaptionWrap.Text = "小資情有獨鐘 10款合資熱銷時尚車型導購";
            tile.Image.Src = "http://news.mycar168.com/uploadfile/2011/1030/20111030040816628.jpg";

            ITileSquareImage wideImageContent = TileContentFactory.CreateTileSquareImage();
            wideImageContent.Image.Src = "http://news.mycar168.com/uploadfile/2011/1030/20111030040816628.jpg";
            tile.SquareContent = wideImageContent;
            TileUpdateManager.CreateTileUpdaterForApplication().Update(tile.CreateNotification());
        }

        private void ClearTile_Click(object sender, RoutedEventArgs e)
        {
            //清除Tile通知
            TileUpdateManager.CreateTileUpdaterForApplication().Clear();
        }

效果圖片：

Badge:

private void

BadgeNotice_Click(object sender, RoutedEventArgs e)
        {
            //Badge數字通知
            BadgeNumericNotificationContent badge = new BadgeNumericNotificationContent(29);
            BadgeUpdateManager.CreateBadgeUpdaterForApplication().Update(badge.CreateNotification());
        }

        private void BadgeImage_Click(object sender, RoutedEventArgs e)
        {
            //Badge狀態圖片通知
            BadgeGlyphNotificationContent badge = new BadgeGlyphNotificationContent(GlyphValue.Paused);
            BadgeUpdateManager.CreateBadgeUpdaterForApplication().Update(badge.CreateNotification());
        }

        private void BadgeClear_Click(object sender, RoutedEventArgs e)
        {
            //清楚Badge通知
            BadgeUpdateManager.CreateBadgeUpdaterForApplication().Clear();
        }

圖片效果見圖片右下角：

Xaml:

<Grid Background="{StaticResource

ApplicationPageBackgroundThemeBrush}">
        <Button Content="Toast通知" HorizontalAlignment="Left" Name="ToastNotice"
                Margin="250,172,0,0" VerticalAlignment="Top" Click="ToastNotice_Click"/>
        <Button Content="Tile 通知" HorizontalAlignment="Left" Name="TileNotice"
                Margin="394,172,0,0" VerticalAlignment="Top" Click="TileNotice_Click"/>
        <Button Content="清除Tile通知" HorizontalAlignment="Left" Name="ClearTile"
                Margin="559,172,0,0" VerticalAlignment="Top" Click="ClearTile_Click" />
        <Button Content="Badge數字" HorizontalAlignment="Left" Name="BadgeNotice"
                Margin="250,270,0,0" VerticalAlignment="Top" Click="BadgeNotice_Click"/>
        <Button Content="Badge圖片" HorizontalAlignment="Left" Name="BadgeImage"
                Margin="394,270,0,0" VerticalAlignment="Top" Click="BadgeImage_Click" />
        <Button Content="Badge清除" HorizontalAlignment="Left" x:Name="BadgeClear"
                Margin="559,270,0,0" VerticalAlignment="Top" Click="BadgeClear_Click" />
    </Grid>

源碼下載：http://files.cnblogs.com/chengxingliang/Win8Notice.rar
