Article table of contents

• I. Introduction to ensemble algorithms
• II. Introduction to Xgboost Integration Algorithm
• Three. Graphical Xgboost Algorithm
• Reference:

I. Introduction to ensemble algorithms

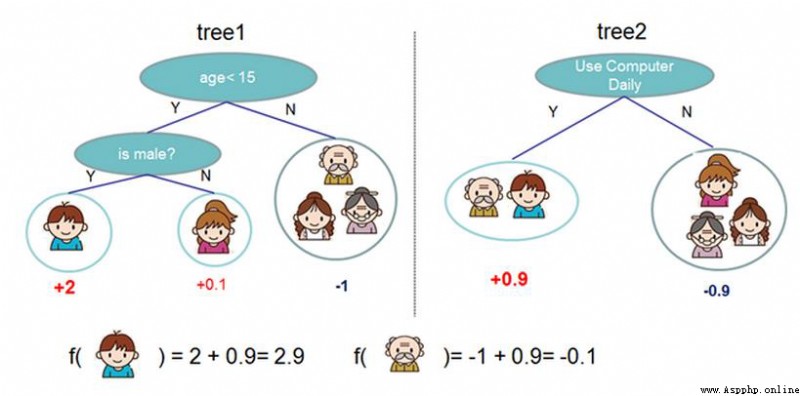

The following figure is a diagram of an ensemble algorithm:
y = wx +b
The first tree is used to find the weight value w
The second tree is used to find the intercept b
MoreCombining the two trees together, the overall practicability of the model is better.

II. Introduction to Xgboost Integration Algorithm

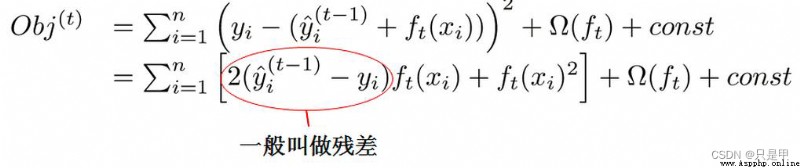

The following figure is the formula of the integrated algorithm:

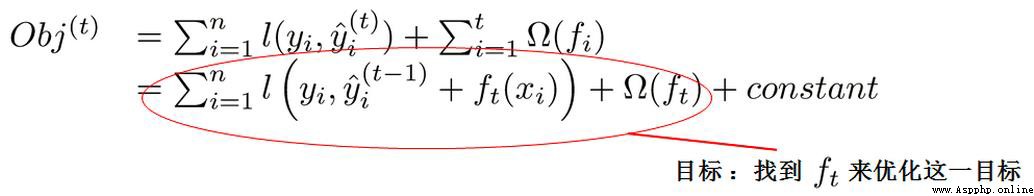

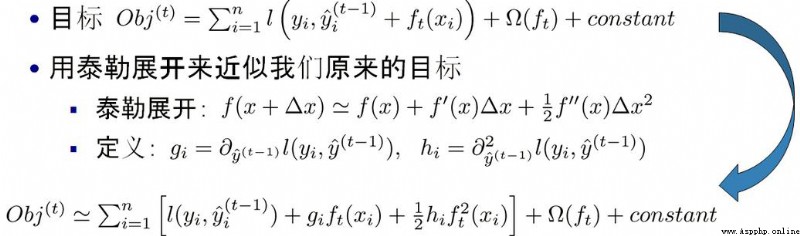

Objective function:

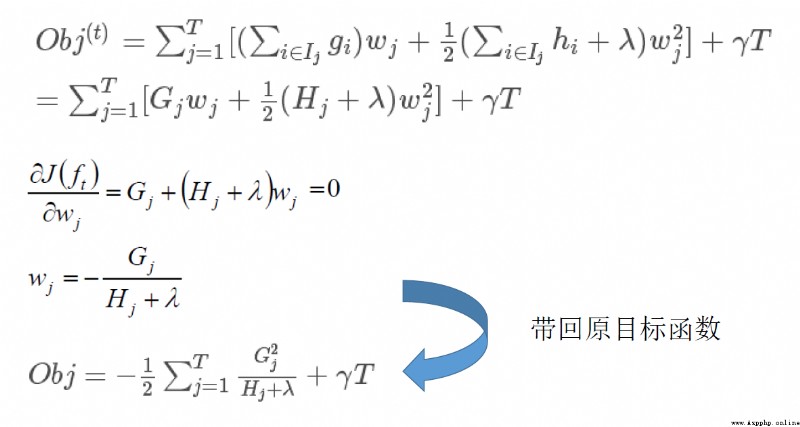

How to solve the optimal function?

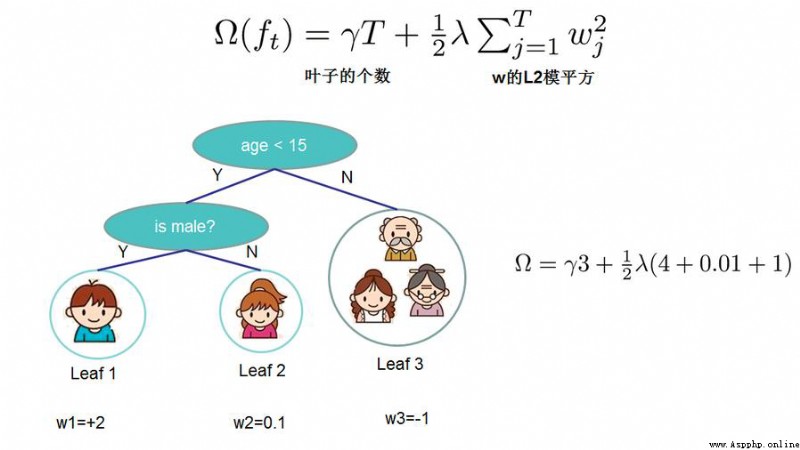

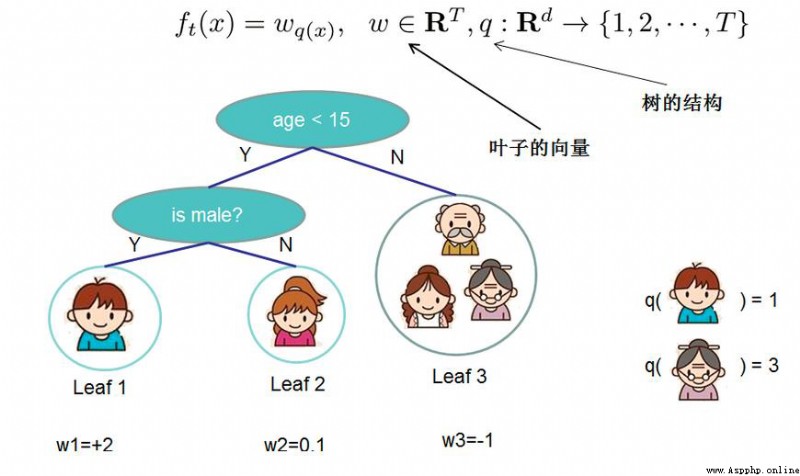

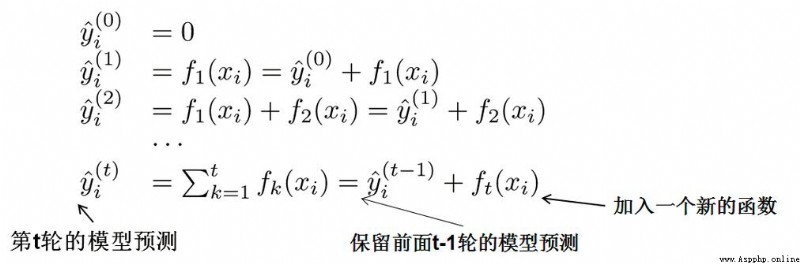

Representation of the ensemble algorithm:

The question remains, how do we choose what f to add to each round?The answer is very straightforward, choose an f to minimize our objective function

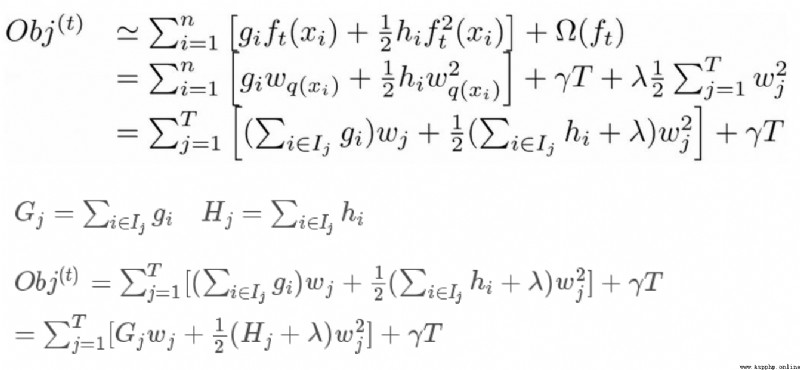

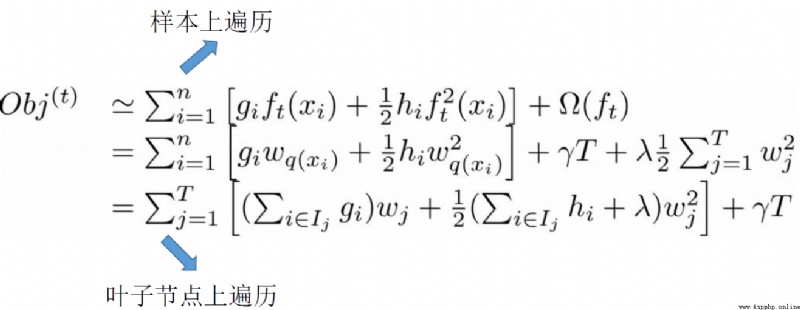

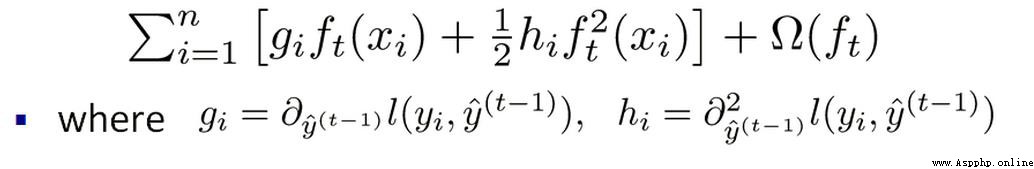

By the formula, the sample up traversal is converted to the leaf node traversal

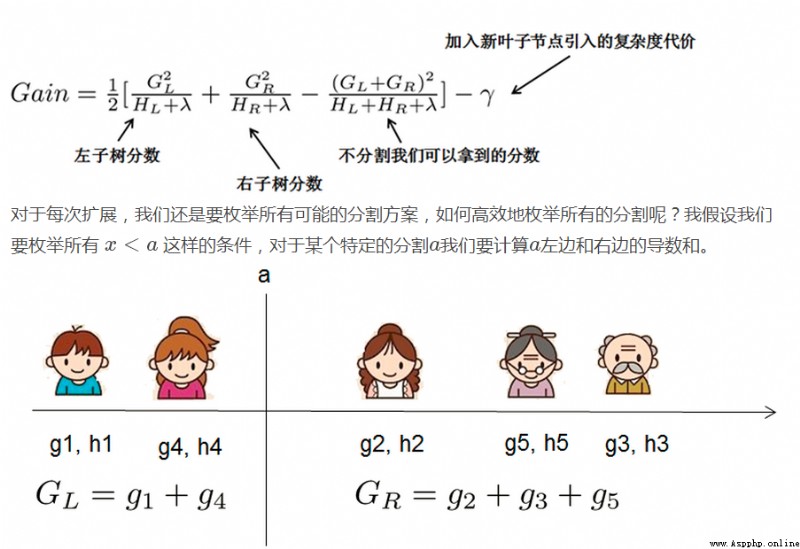

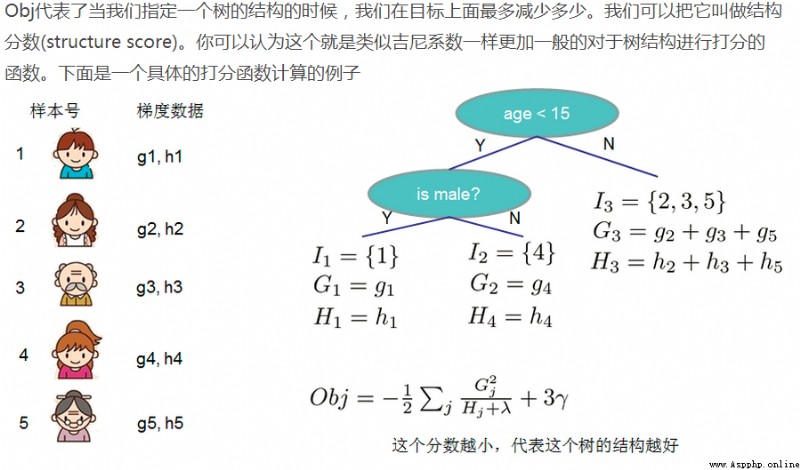

Three. Graphical Xgboost algorithm

Reference:
