List of articles

• background
• System environment
• MNN Introduce
• MNN Environmental Science
• Python Use MNN
• Reference article

background

background ： The mobile terminal needs to call the calculation of the deep learning model .
programme ：python Training models –> go to MNN Framework model –> Put in C++ call （SDK）–>Java call SDK（JNI）.

System environment

CentOS Linux release 7.9.2009 (Core)
Linux iZuf627r0ggzf84xn57fuvZ 3.10.0-1160.62.1.el7.x86_64
Tesla V100 32G CUDA11
Miniconda3

recommend Linux System , Not recommended Windows System .

install ：

sudo yum install cmake3 protobuf -y

Be careful ： CMake 3.0 or higher is required, therefore ：

sudo ln -s /usr/bin/cmake3 /usr/bin/cmake

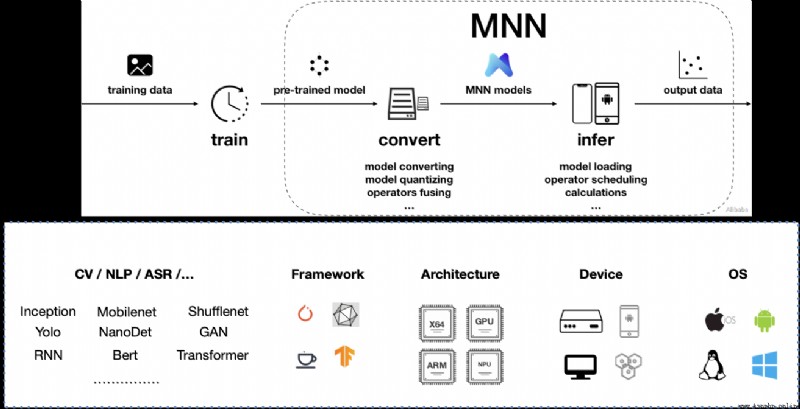

MNN Introduce

View documents directly ：https://github.com/alibaba/MNN/blob/master/README_CN.md

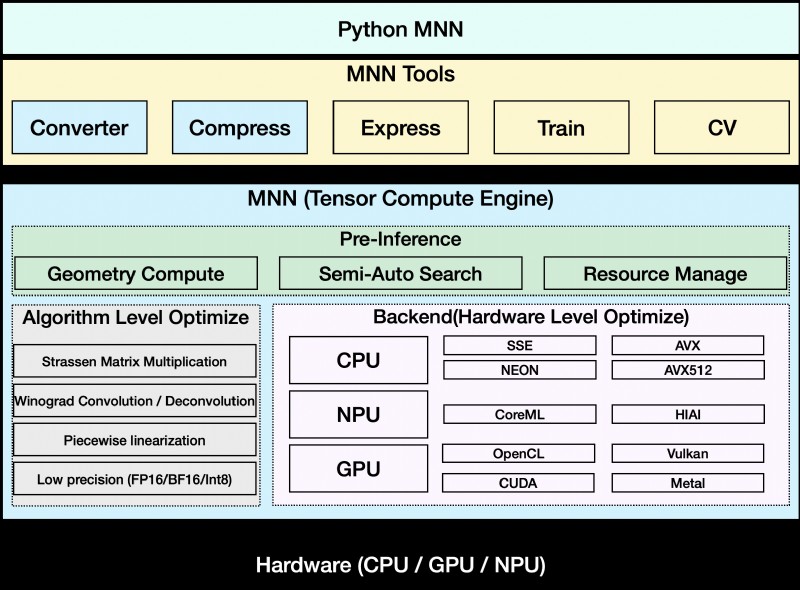

Tools
MNN-Converter： Model transformation tools , from Frontends and Graph Optimize constitute . The former is responsible for supporting different training frameworks ,MNN The current support Tensorflow(Lite)、Caffe、ONNX(PyTorch/MXNet The model of can be changed into ONNX The model goes to MNN) and Torchscripts; The latter is fused by operators 、 Operator substitution 、 Layout adjustment and other ways to optimize the map , Generally, it runs offline .
MNN-Compress: Model compression tools , Under the permission of certain accuracy error , Yes MNN The model is compressed , Reduce model volume , Improve operational performance .
MNN-Express ： Support model operation with control flow , Support calling MNN Operator for custom calculation .
MNN-CV ： similar OpenCV , But the core computing function is based on MNN Image processing algorithm library implemented
MNN-Train ：MNN Training module , Support training on all platforms

MNN Environmental Science

Reference resources ：https://www.yuque.com/mnn/cn/demo_project

download MNN engineering ：

git clone https://github.com/alibaba/MNN.git

Choices before compilation ：

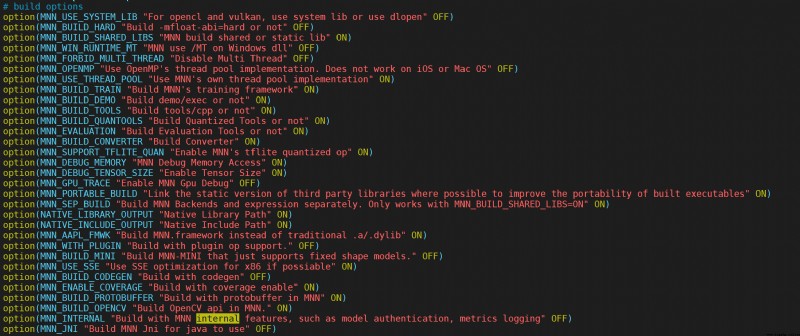

vim CMakeLists.txt I think CMakeLists.txt All of them are very useful , I do it manually ON Yes , It may be used in the future learning process ：

compile ：

cd path/to/MNN
# Generate schema , Optional
cd schema && ./generate.sh
# Compile
cd path/to/MNN # Notice going back to the root directory
mkdir build && cd build
cmake -DMNN_BUILD_DEMO=ON ..
make -j

Build this in the system MNN after , Can use MNN Many tools provided .

Python Use MNN

Code and introduction ：https://github.com/xddun/MNN_Demos

Reference article

https://blog.csdn.net/wl1710582732/article/details/107731147
