3.2.2 Assertion
3.2.2.1 Assert that there is
assert_exists(v, msg="") There is an assertion target on the device screen
Parameters ：
v – The target to check
msg – A short description of the assertion , It will be recorded in the report
trigger ：
AssertionError – If the assertion fails
return ：
Target coordinates
3.2.2.2 Assertion does not exist
assert_not_exists(v, msg="") The assertion target does not exist on the device screen
Parameters ：
v – The target to check
msg – A short description of the assertion , It will be recorded in the report
trigger ：
AssertionError – If the assertion fails
return ：
Target coordinates
3.2.2.3 Assert equality
assert_equal(first, second, msg="") Assert that two values are equal
Parameters ：
first – The first value is
second – Second value
msg – A short description of the assertion , It will be recorded in the report
trigger ：
AssertionError – If the assertion fails
return ：
Target coordinates
3.2.2.4 Assertion is not equal
assert_not_equal(first, second, msg="") Assert that two values are not equal
Parameters ：
first – The first value is
second – Second value
msg – A short description of the assertion , It will be recorded in the report
trigger ：
AssertionError – If the assertion fails
return ：
Target coordinates
3.3 Other api
3.3.1 airtest.core.api module
init_device(platform=“Android”, uuid=None, **kwargs) Initialization equipment , And set it to the current device
connect_device(uri) use URI String to initialize the device , And set it to the current device
give an example ：
android:/// # At present Android equipment , Connect using default parameters
android://adbhost:adbport/1234566?cap_method=javacap&touch_method=adb
windows:/// # Local Windows desktop
ios:/// # iOS equipment
device() Return to the device currently in use
set_current(idx) Set the current device
auto_setup(basedir=None, devices=None, logdir=None, project_root=None, compress=None)
Automatically configure the running environment , If there is no currently connected device , Try to connect by default Android equipment
shell(cmd) Run remote on the target device shell Instructions
start_app(package, activity=None) Start the target application on the device
stop_app(package) Terminate the operation of the target application on the device
clear_app(package) Clear the data of the target application
install(filepath, **kwargs) Installation applied to the device
# Support only android
uninstall(package) Unload the application on the device
# Support only android
wake() Wake up and unlock the target device
# Be careful ： It may not work on some brand mobile phones
home() return HOME Interface
click(*args, **kwargs) Click once on the current device screen
# and touch The same effect
double_click(v) Double click the coordinates on the current device
pinch(in_or_out=‘in’, center=None, percent=0.5) Execute a double finger on the device screen pinch Kneading operation
in_or_out – Knead inward or expand outward , stay [“in”, “out”] Enumerate a value in
center – pinch The central position of the action , The default value is None Is the center point of the screen
percent – pinch Screen percentage of action , The default value is 0.5
# Support only Android
sleep(secs=1.0) Set a wait sleep Time , It will be displayed in the report
find_all(v) Find all the targets that appear on the device screen and return to their coordinate list
Return to the list of coordinates ：[(x, y), (x1, y1), …]
3.3.2 android.core.android
Reference documents ：
https://airtest.readthedocs.io/zh_CN/latest/all_module/airtest.core.android.html
3.3.3 android.core.ios
Reference documents ：
https://airtest.readthedocs.io/zh_CN/latest/all_module/airtest.core.ios.html
3.3.4 airtest.core.win
Reference documents ：
https://airtest.readthedocs.io/zh_CN/latest/all_module/airtest.core.win.html
3.3.5 airtest subpackages
airtest.aircv package
Reference documents ：
https://airtest.readthedocs.io/zh_CN/latest/all_module/airtest.aircv.html
airtest.cli package
Reference documents ：
https://airtest.readthedocs.io/zh_CN/latest/all_module/airtest.cli.html
airtest.core package
Reference documents ：
https://airtest.readthedocs.io/zh_CN/latest/all_module/airtest.core.html
airtest.report package
Reference documents ：
https://airtest.readthedocs.io/zh_CN/latest/all_module/airtest.report.html
4.1 Settings before generating the report
from airtest.report.report import simple_report
if not cli_setup():
auto_setup(file, logdir=True, devices=[
“Android:///”,
], project_root=“D:/pyworkspace/airtest_demo1/test”)
4.2 Report generation
Insert a code generation report at the end of the code
simple_report(file)
4.3 The style of the report
and AirtestIDE The resulting reports are consistent
The test report is roughly composed of two parts ：
The first half ：
The name of the report 、 author 、 Report description （ Customizable , See below ） And a quick look, etc . Click any one of the snapshots , The corresponding test information will be displayed below

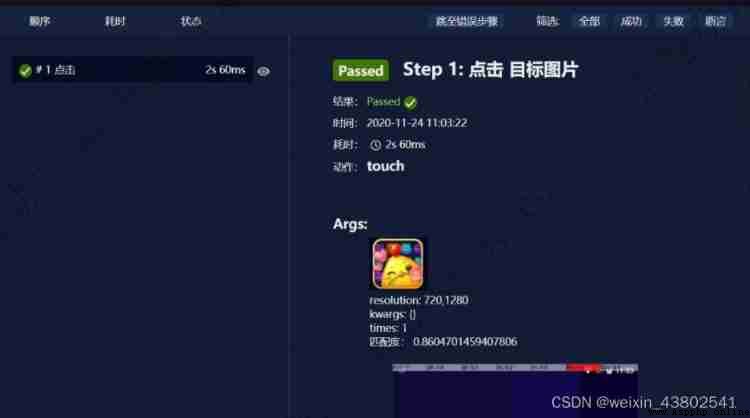

The second part of ：
Each test action and its execution are shown in detail . Click the test action on the left , The details of the execution results of the corresponding actions will be displayed on the right .
And we can also filter different execution results on the right
4.4 Other
4.4.1 log route
Execute the script after initialization , It will be generated in the script directory log.html and log Folder ( There is... In it log.txt). But if we specify it manually logdir The catalog of ,log.txt Will be generated in the specified directory
4.4.2 simple_report Parameters
def simple_report(filepath, logpath=True, logfile=LOGFILE, output=HTML_FILE):
path, name = script_dir_name(filepath)
if logpath is True:
logpath = os.path.join(path, LOGDIR)
rpt = LogToHtml(path, logpath, logfile=logfile, script_name=name)
rpt.report(HTML_TPL, output_file=output)
Which can be passed in logpath= To manually specify the script log Catalog , To simply generate log.html
4.4.3 More complex requirements
There are more complex requirements , For example, you need to specify the export directory export_dir , Or in the script poco sentence , Need to use –pluginpoco.utils.airtest.report
Reference documents ：
https://airtest.readthedocs.io/zh_CN/latest/all_module/airtest.report.report.html#airtest.report.report.LogToHtml
